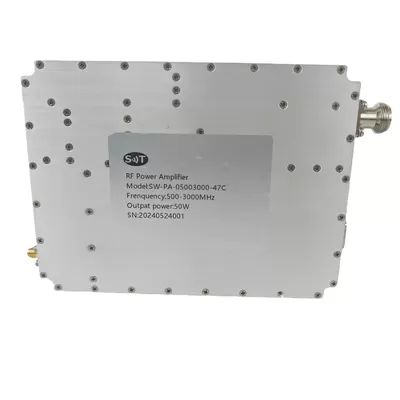

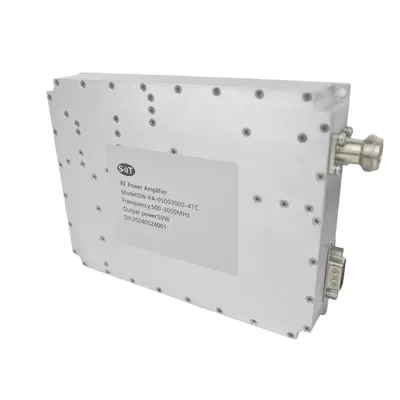

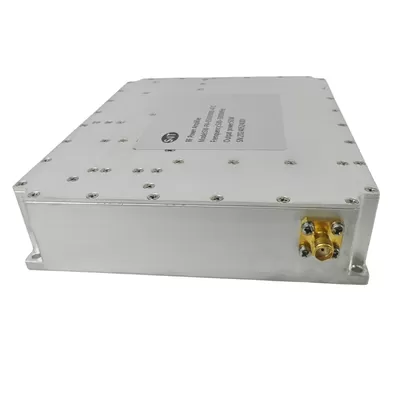

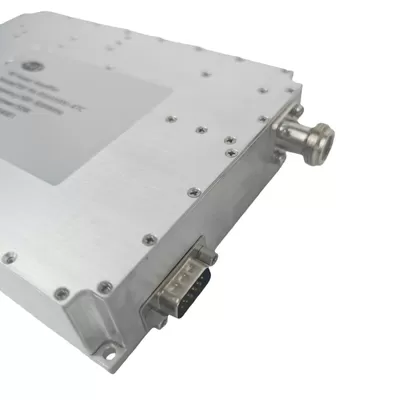

Robust Design 500-3000MHz RF Power Amplifier for Various High-Frequency and High-Power Applications

Robust Design 500-3000GHz RF Power Amplifier for various high-frequency and high-power applications

Description

The 500-3000MHz 50W RF Power Amplifier is designed for a wide range of applications in communication systems, electronic warfare, radar systems, and test and measurement equipment. This amplifier covers a broad frequency range, making it versatile and suitable for various high-frequency and high-power applications. It delivers high efficiency, robust performance, and excellent linearity, ensuring reliable signal amplification across the entire bandwidth.

Key Features

1. Frequency Range: Covers a wide frequency range from 500MHz to 3000MHz.

2. Power Output: Capable of delivering a high power output of 50 watts, meeting the demands of high-power applications.

3. High Efficiency: Designed to provide high efficiency, reducing power consumption and thermal load.

4. High Linearity: Ensures low distortion and high signal integrity, essential for communication and radar systems.

5. Robust Design: Built with durable components and advanced thermal management to ensure reliable operation in various environments.

Application Areas

1. Wireless Communication:

• Base Stations: Enhances signal coverage and quality in cellular base stations.

• Broadcasting: Used in FM and AM broadcasting systems to increase signal strength and coverage area.

• Wi-Fi and Bluetooth: Supports the amplification of signals in Wi-Fi and Bluetooth devices for improved range and performance.

2. Radar Systems:

• Military Radar: Enhances the detection and tracking capabilities of military radar systems.

• Weather Radar: Used in weather monitoring systems to improve the detection and analysis of meteorological phenomena.

• Aviation Radar: Provides reliable signal amplification for aviation radar systems used in air traffic control and navigation.

3. Satellite Communication:

• Ground Stations: Improves the transmission and reception performance of satellite communication ground stations.

• Satellite Uplinks: Enhances signal strength for satellite uplink communications, ensuring stable and high-quality links.

4. Electronic Warfare:

• Jamming and Interference: Generates powerful jamming signals to disrupt enemy communications and radar systems.

• Signal Intelligence: Used to intercept and analyze enemy signals, providing critical intelligence for military operations.

5. Test and Measurement:

• Signal Generators and Analyzers: Used in test equipment to generate and measure high-frequency RF signals with high precision.

• Laboratory Research: Supports scientific research and development of new technologies by providing reliable signal amplification.

Technical Challenges

1. Thermal Management: Effective thermal management is essential to handle the heat generated by high-power amplification and ensure consistent performance.

2. Power Management: Requires stable power supply management to maintain reliable operation under high power output conditions.

3. Linearity and Efficiency: Balancing high linearity with efficiency is crucial for achieving optimal performance in RF power amplifiers.

4. Frequency Stability: Maintaining frequency stability across the entire bandwidth is critical for reliable and consistent signal transmission.

5. Broadband Matching: Ensuring good input and output matching over a wide frequency range to maintain efficient and stable signal transmission.

Outline Dimensional Drawing

Specification

Typical performance at +28VDC +25oC, and in a 50Ω system.
