Customized 2350-2550MHz 100W Microwave Power Amplifier RF signal amplification for base stations and relay stations

Customized 2350-2550 MHz 100W Microwave Power Amplifier RF signal amplification for base stations and relay stations

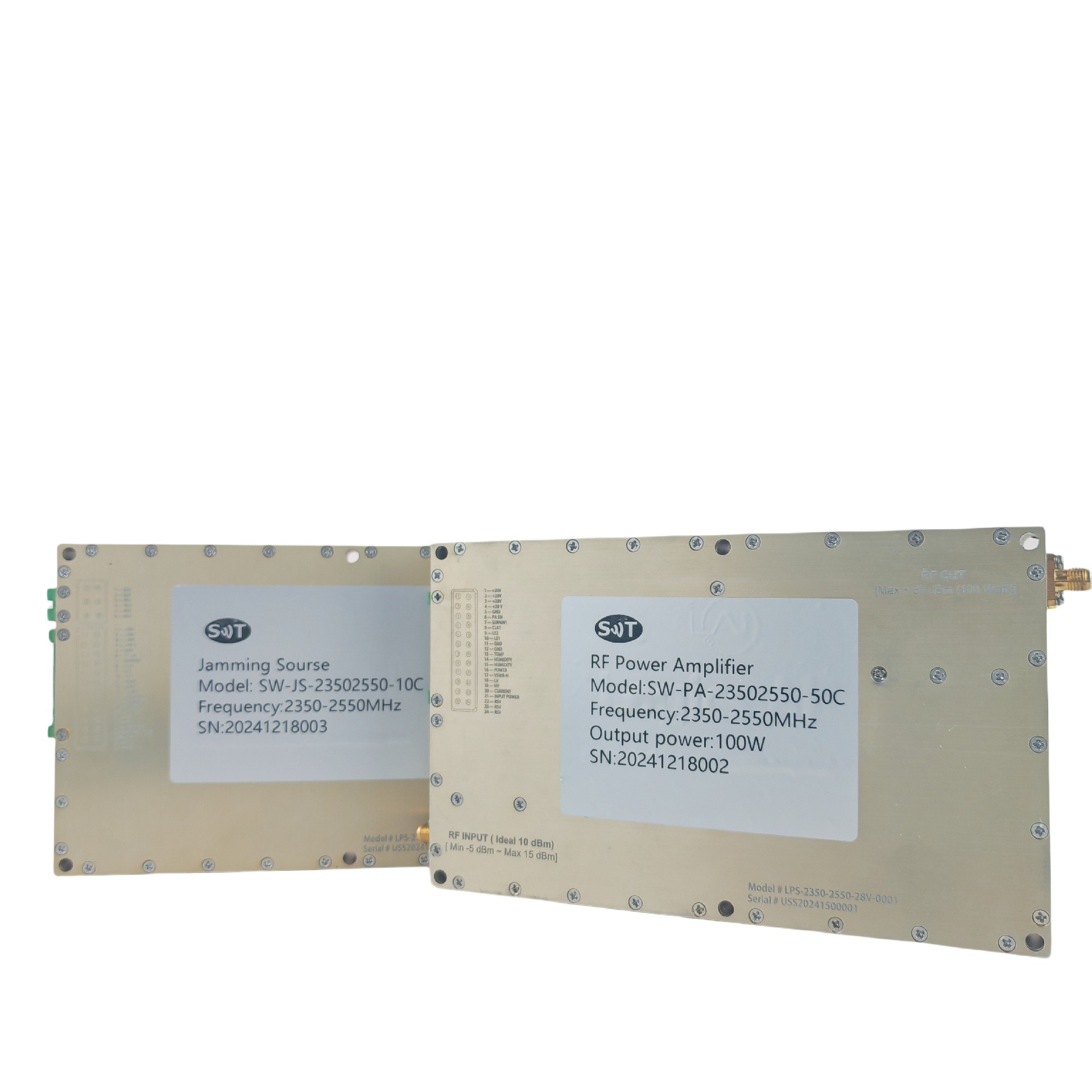

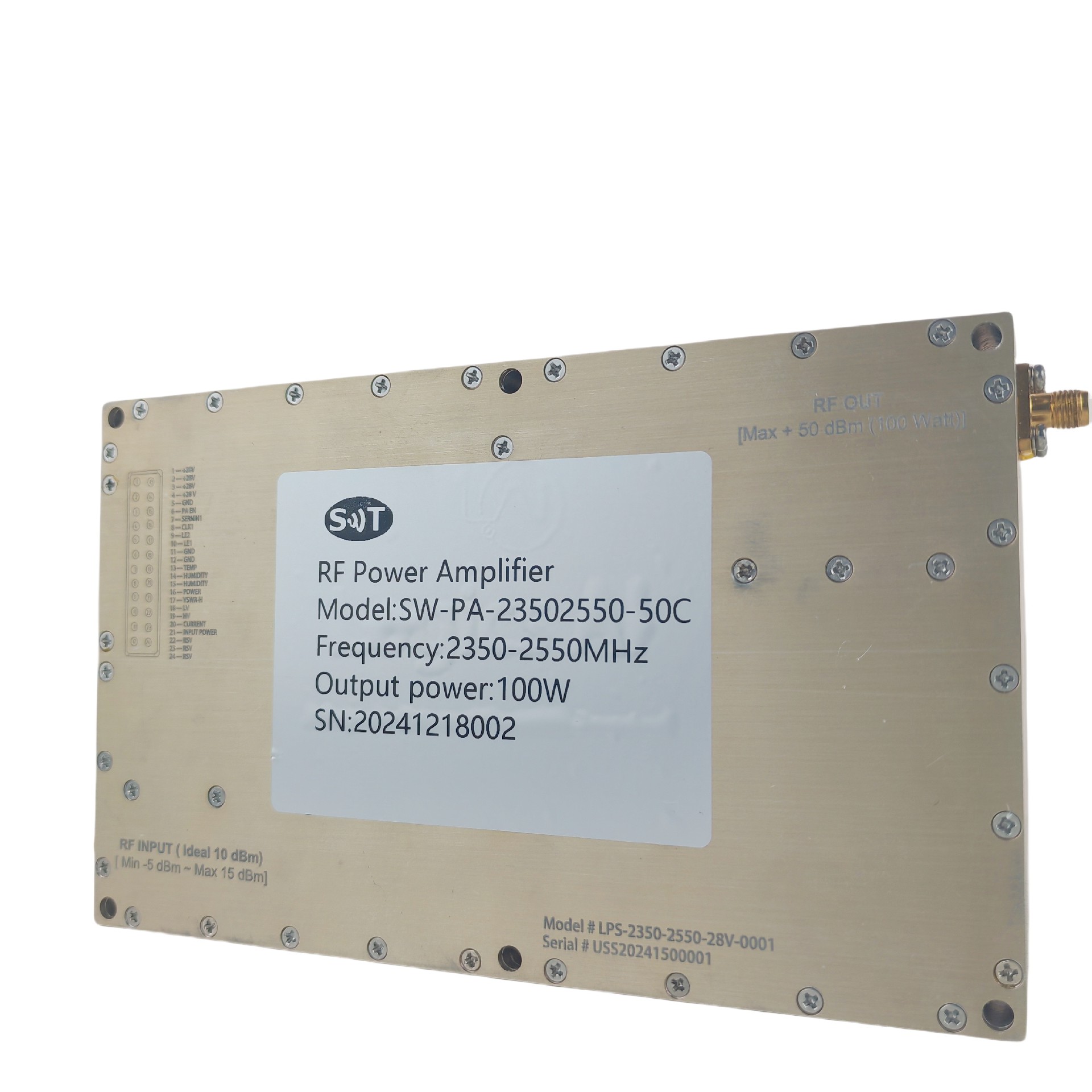

Product Overview:

1. Frequency Range:
   This RF power amplifier supports a frequency range of 2350-2550 MHz, suitable for signal amplification within this range. This frequency band is commonly used in wireless communication systems, radar, or microwave communication devices.

2. Output Power:
   The maximum output power is 100W, corresponding to an output level of +50dBm, capable of meeting high-power RF signal requirements.

3. Input Power Range:
   The ideal input power is designed at 10dBm, with an allowable range from -5 dBm to +15 dBm. Users should ensure the input signal is within this range to prevent overloading the device.

4. Product Applications:

• RF power amplification for relay stations and signal transmitters;

• Support for high-power requirements in scientific experiments and testing equipment;

• Broad use in industrial communication, military, and aerospace fields.

Product Features:

1. High Efficiency: Designed with a highly efficient amplifier circuit to maintain low energy loss under high-power output.

2. Wideband Design: Supports a wide frequency range of 2350-2550 MHz with excellent in-band flatness.

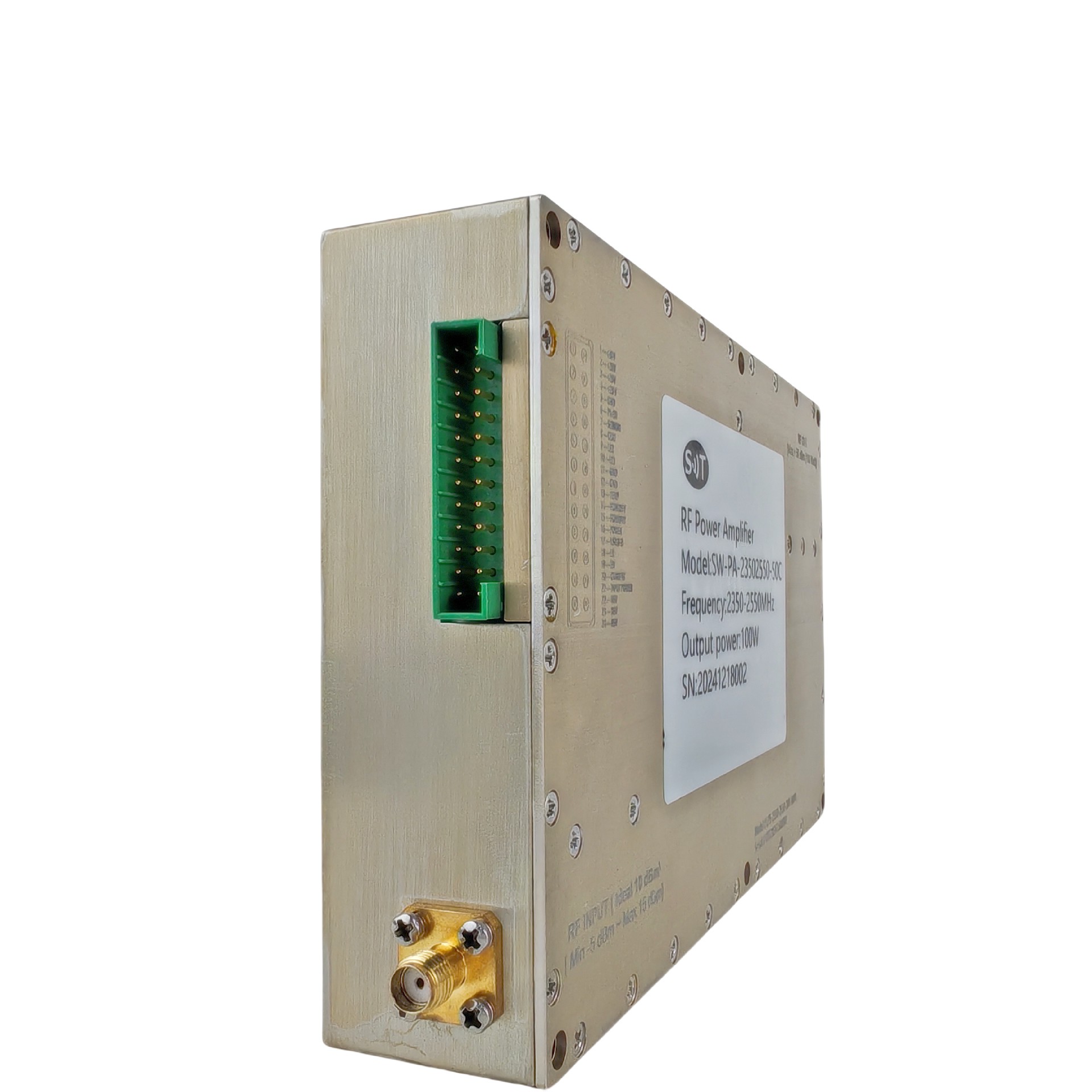

3. Durable Build: Featuring a metal enclosure for enhanced heat dissipation and interference resistance, suitable for long-duration high-power operation.

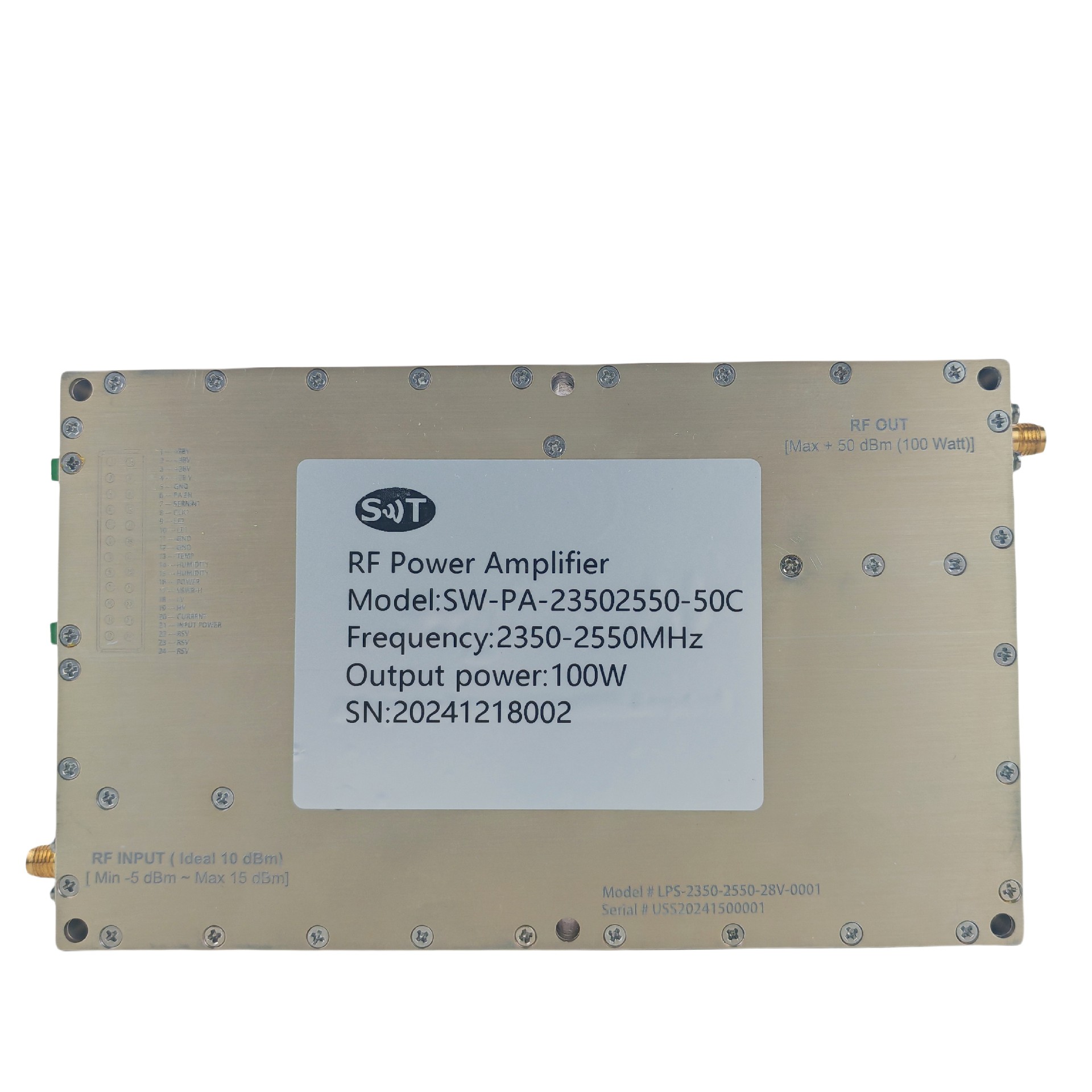

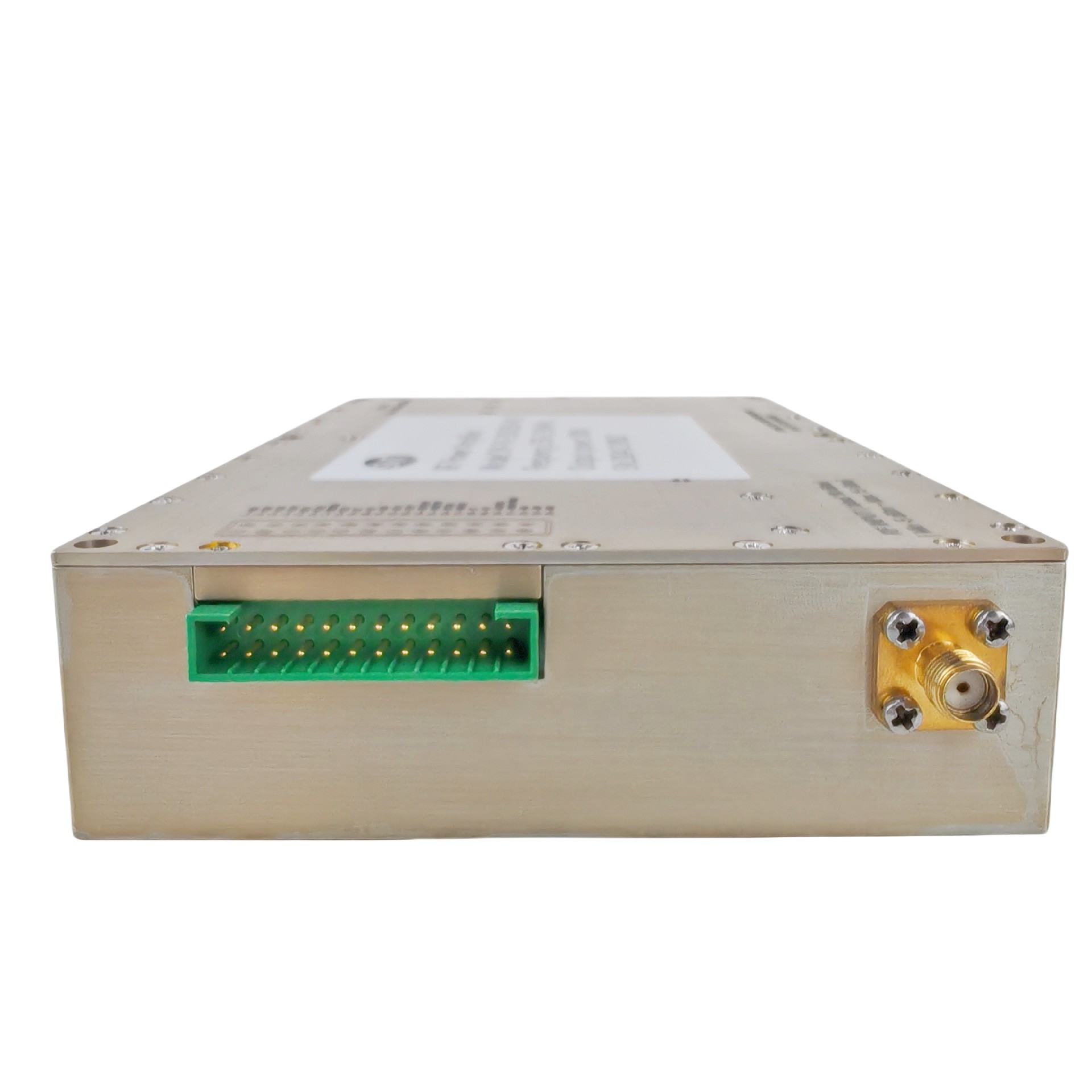

4. Interfaces:

• RF INPUT: Accepts low-power RF signals for amplification;

• RF OUTPUT: Outputs amplified high-power RF signals.

5. Modular Design: Can be embedded into larger communication or amplification systems as a core component.

Application Areas:

• Communication: RF signal amplification for base stations and relay stations;

• Radar Systems: Amplification of radar transmission signals;

• Testing and R&D: High-frequency signal measurements in laboratories;

• Industrial Control: Industrial systems requiring high-power RF signals.

For more detailed technical specifications or user guidance, please provide additional requirements.

Specification

Typical performance at 28V  DC +25oC, and in a 50Ω system.

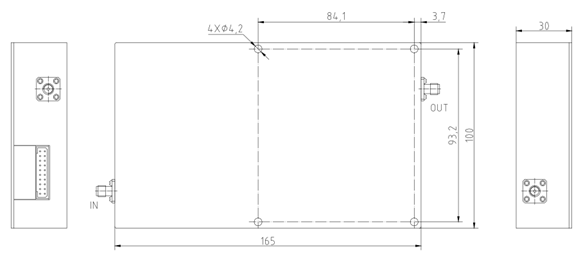

Outline Dimensional Drawing
