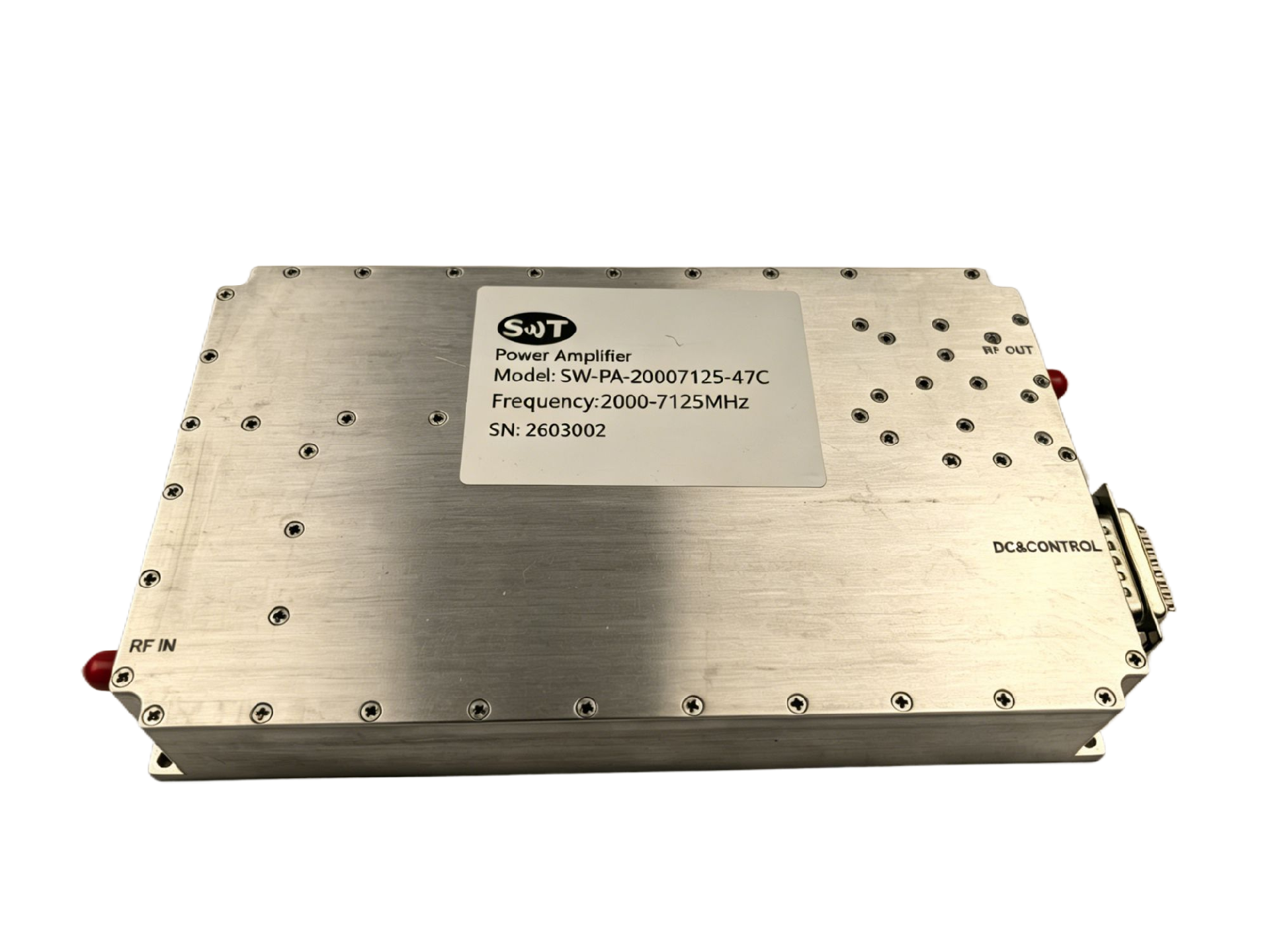

50W RF Power Amplifier 2000-7125MHz SW-PA-20007125-47C Defense & Commercial Communication Signal Amplification Module
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-20007125-47C
Price：Please Contact Customer Service
Product Description
Description
SW-PA-20007125-47C is a 50W RF power amplifier with an operating frequency range of 2000-7125MHz, featuring 47dB high gain, high linearity and high efficiency. Designed with a compact and lightweight structure (160×120×30mm, ≤1.3kg), it integrates multi-protection against over-temperature, over-voltage and over-current. Suitable for defense communication, commercial RF systems, radar signal enhancement, RF testing and measurement, it effectively solves problems such as insufficient signal power, large transmission loss and amplification distortion, providing stable and reliable signal amplification support for various RF applications.
Specification
Typical performance at 28V DC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 2000 | 7125 | MHz | |
RF INPUT | 0 | dBm | ||
Power Gain@ Pin=0dbm | 47 | dB | ||
P-sat Output Power@ Pin=0dbm | 47 | dBm | ||
Power Gain Flatness@ Pin=0dbm | ±2.5 | dB | ||
In/Out Impedance | 50 | Ω | ||
Spurious Signals | -60 | dBc | ||
Harmonic Signals | -20 | -10 | dBc | |
Input VSWR | 1.75 | -- | ||
Operating Voltage | 28 | V | ||
Currents@50W | 10 | 12 | A | |
MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (W x D x H) | 160× 120 × 30 | mm |
RF Connectors (Input / Output) | SMA-KFD / N-KFD | -- |
DC & Control Connector | D-SUB 7W2 M | -- |
Cooling | External Heatsink Required | -- |
Weight | ≤1.3 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | -20 | +60 | °C |
Storage Temp. | -40 | +80 | °C |
Amplifier Safeguard Temp. | +70 | °C | |
Protections | Over temperature protection, over voltage protection (OVP), over current protection (OCP) | -- | |

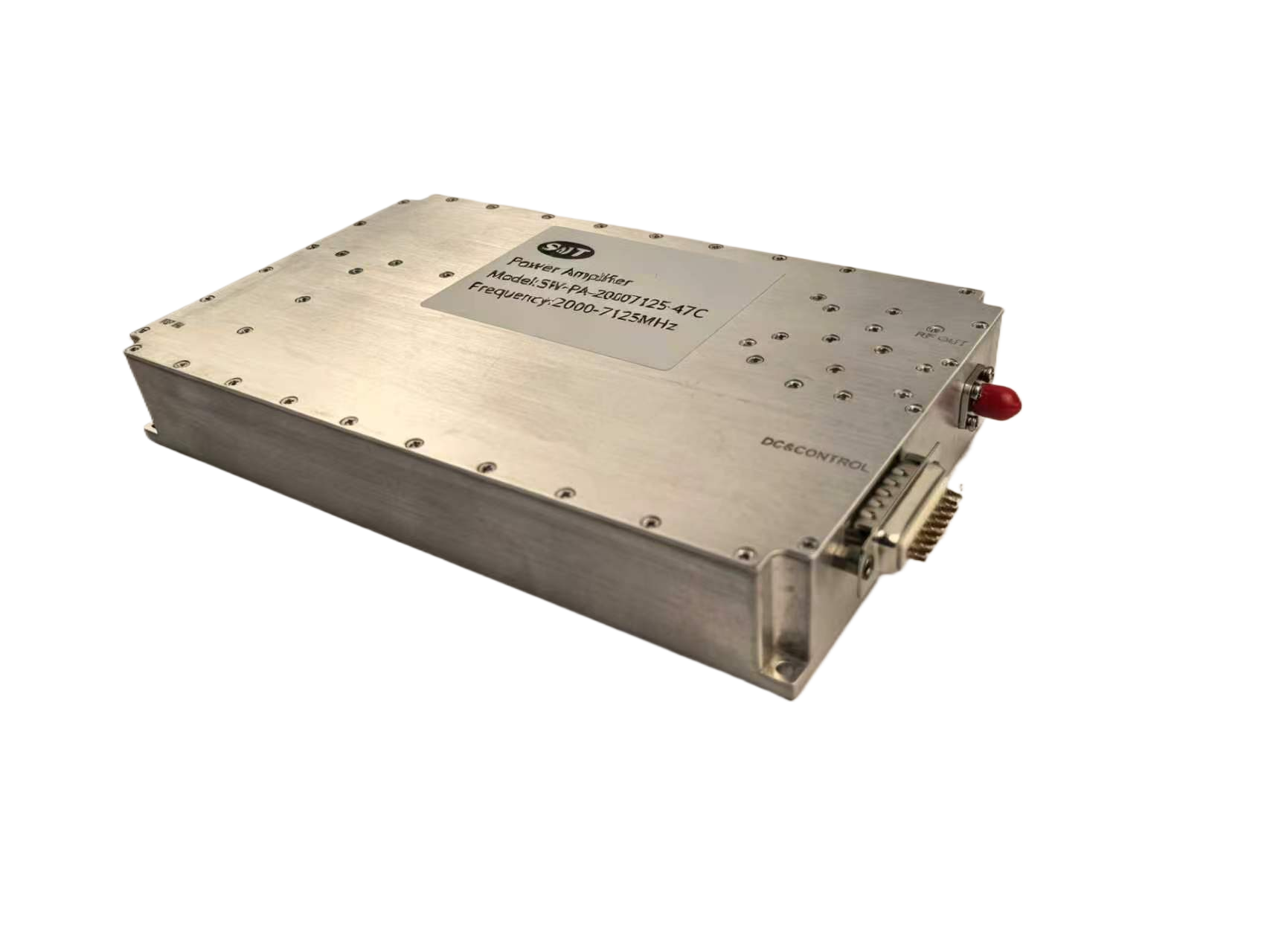

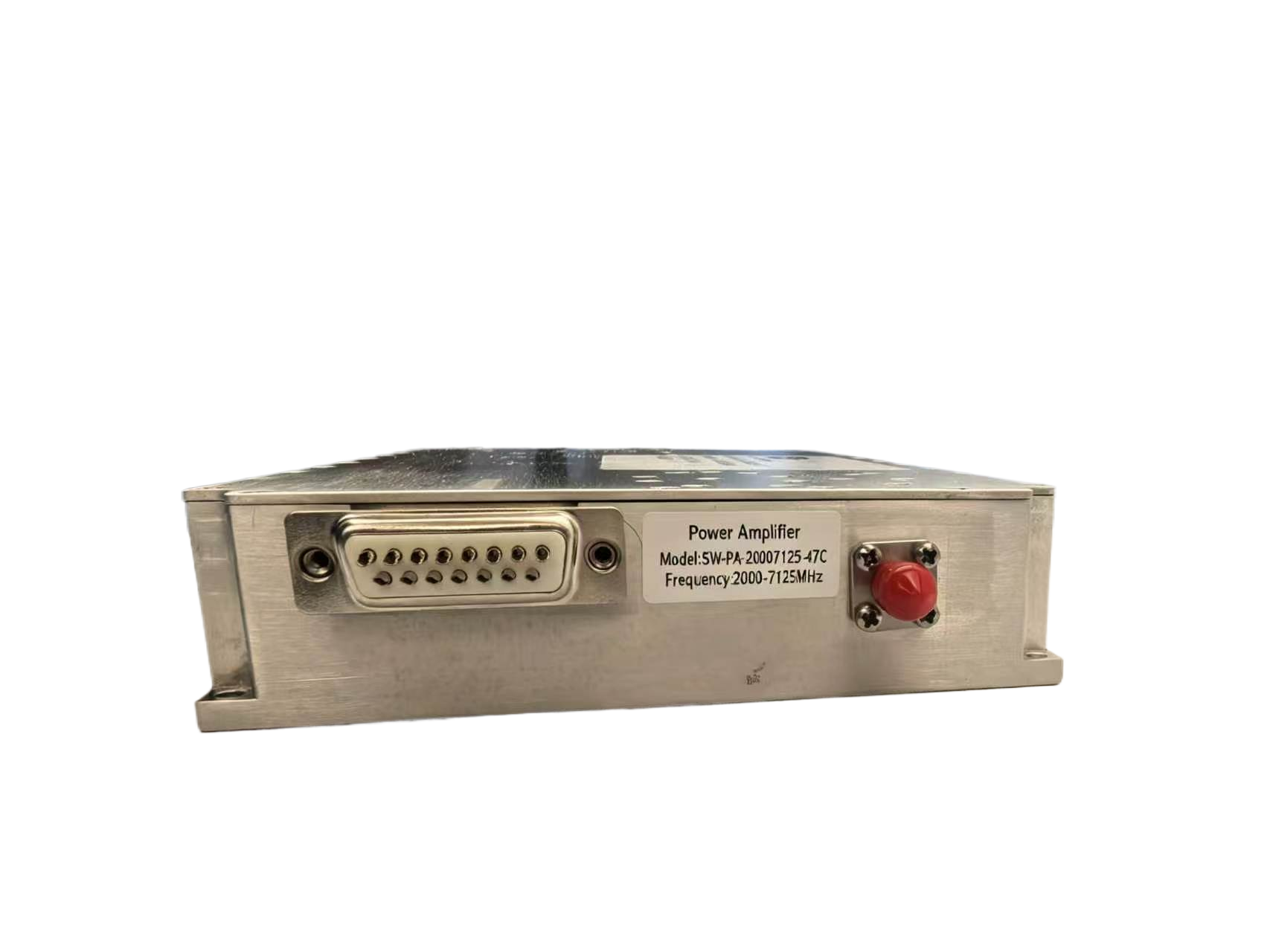

INPUT/OUTPUT panel Connector | |||
AMPLIFIER CONNECTOR TYPE: | —— | ||
TRIAD CABLE PART NUMBER: | —— | ||
NUMBER | interface type | DESCRIPTION | |
X1 | SMA-FK | RF IN | |
X2 | N-FK | RF OUT | |
X3 | D-SUB 7W2 M | DC & Control interface | |
Connector Definition | ||
AMPLIFIER CONNECTOR TYPE: | D-SUB 7W2M | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | Definition | DESCRIPTION |
A1 | VDD | 28V |
A2 | GND | GND |
1 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
2 | GND | GND |
3-5 | NC | NC |
Outline Dimensional Drawing （TBD）
Product Details
Name:
2000-7125MHz 50W RF Power Amplifier
Operating Frequency:
2000–7125 MHz
Psat Output Power:
50 W
Gain:
47 dB
Input Vswr:
≤1.75
Power Gain Flatness:
±2.5 dB
Spurious Signals:
≤−60 dBc
Harmonic Signals:
−20 ~ −10 dBc
Operating Temp:
−20 ℃ ~ +60 ℃
Application:
Defense communication, commercial RF systems, radar signal enhancement, RF testing and measurement
Transport Package:
Anti-static bag + hard carton
Specification:
160×120×30 mm；weight ≤1.3 kg；28 V DC supply；built-in over-temperature, over-voltage, over-current protection
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
