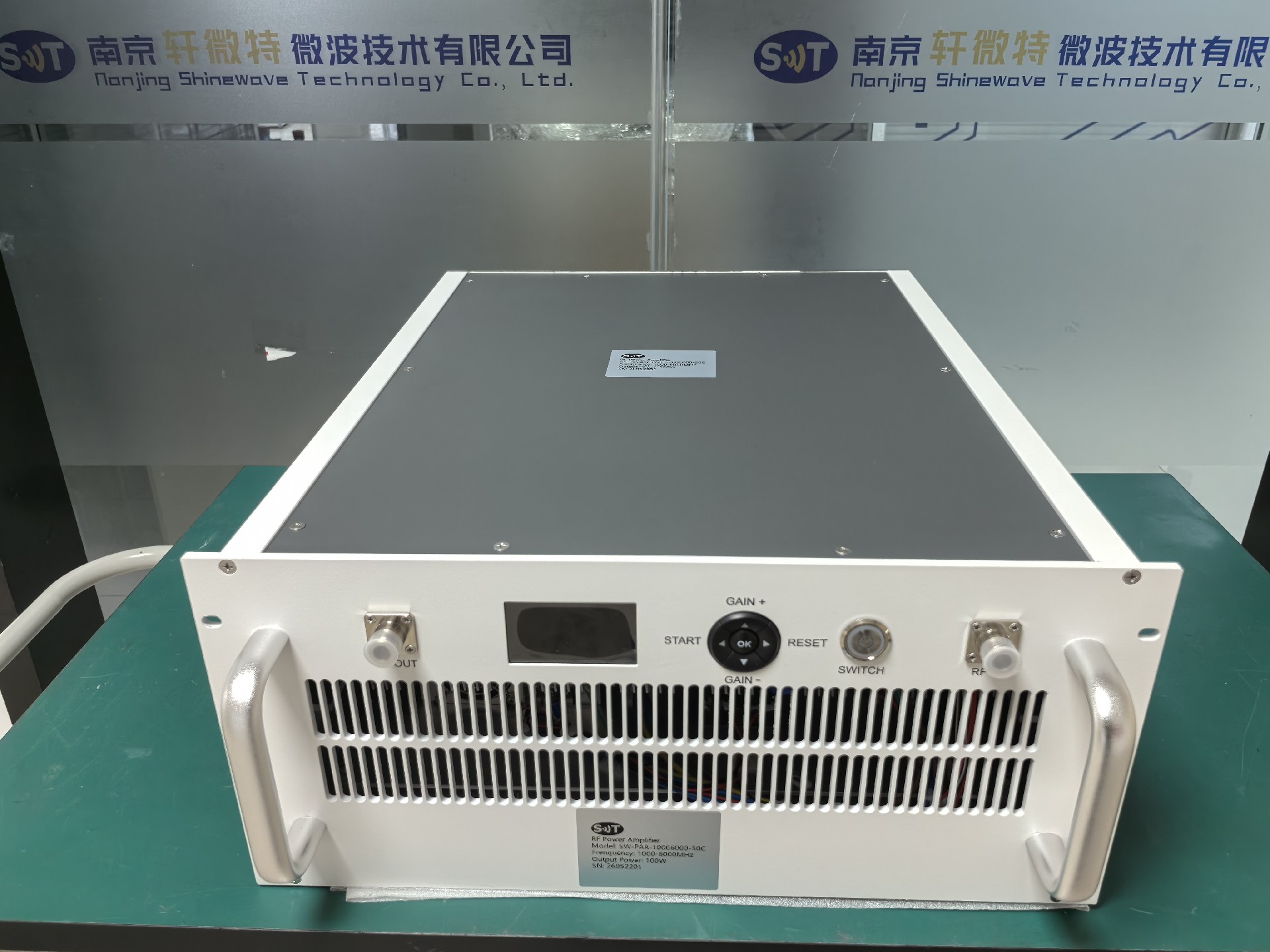

100W RF Power Amplifier SW-PAR-10006000-50C 1-6GHz Wideband Amp for Defense & Commercial RF Testing & Signal Transmission Applications
Place of Origin：China
Brand Name：SWT
Model Number：SW-PAR-10006000-50C
Price：Please Contact Customer Service
Product Description
Description
SW-PAR-10006000-50C is a 100W 50-ohm RF power amplifier operating from 1000MHz to 6000MHz with typical 50dBm output power and 50dB gain, packed in standard 19-inch 5U rack mount chassis. It is designed for both defense supporting projects and diverse commercial RF engineering:
Defense industry: Radar signal simulation, RF interference emulation, airborne & vehicle-mounted RF component reliability testing, wireless communication equipment R&D calibration, full radio frequency unit performance verification;
Commercial industry: 5G & microwave communication production aging test, EMC compliance testing, RF component parameter calibration, IoT wireless signal amplification, microwave broadcast transmission, university communication lab research experiments;
General application: Security wireless RF inspection, ground satellite station RF amplification, college teaching experiment. Built-in overheat, over-input-power & output mismatch protection, remote LAN control via RJ45, AC220V input for long-time continuous operation under industrial ambient.
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.

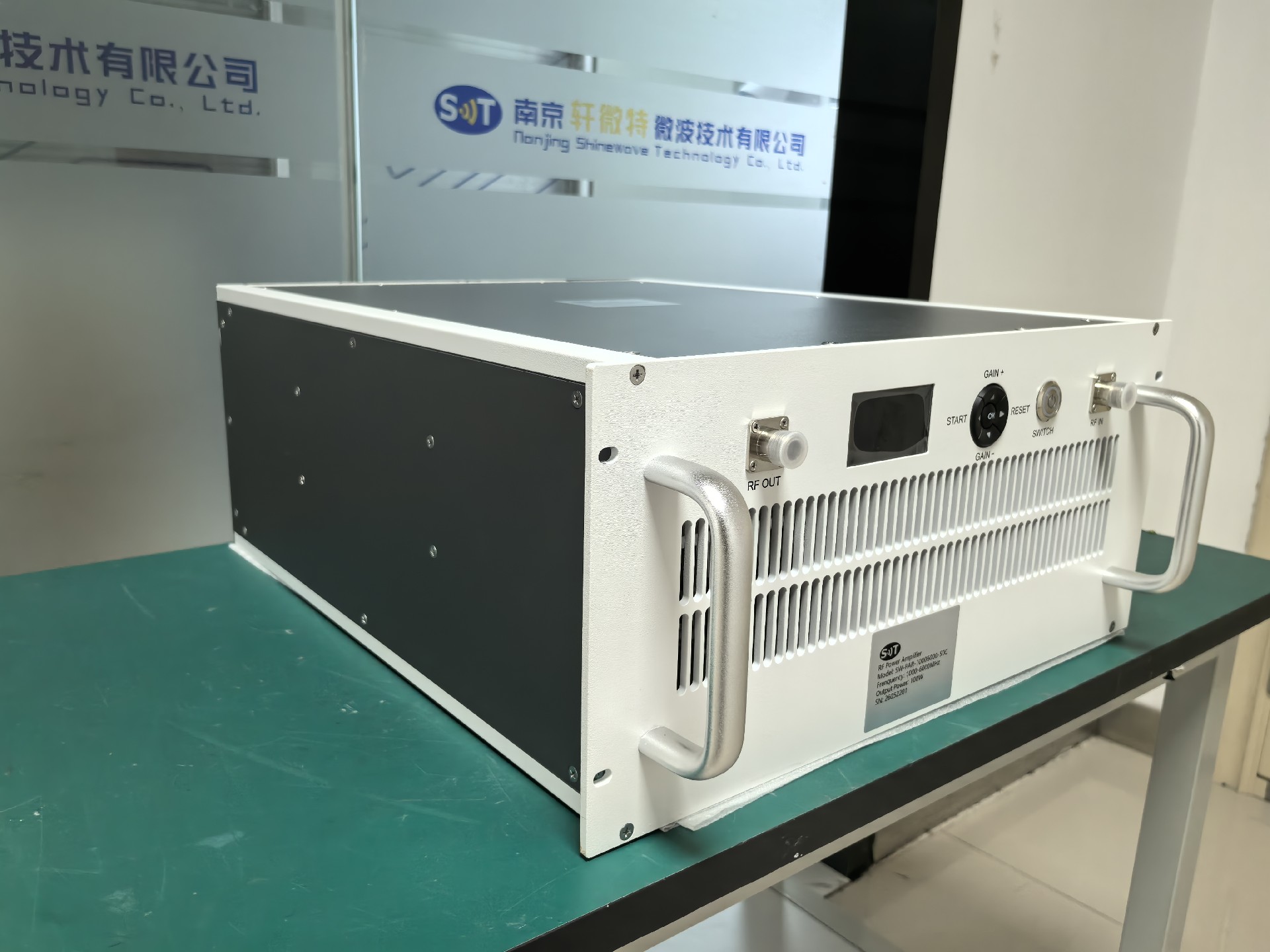

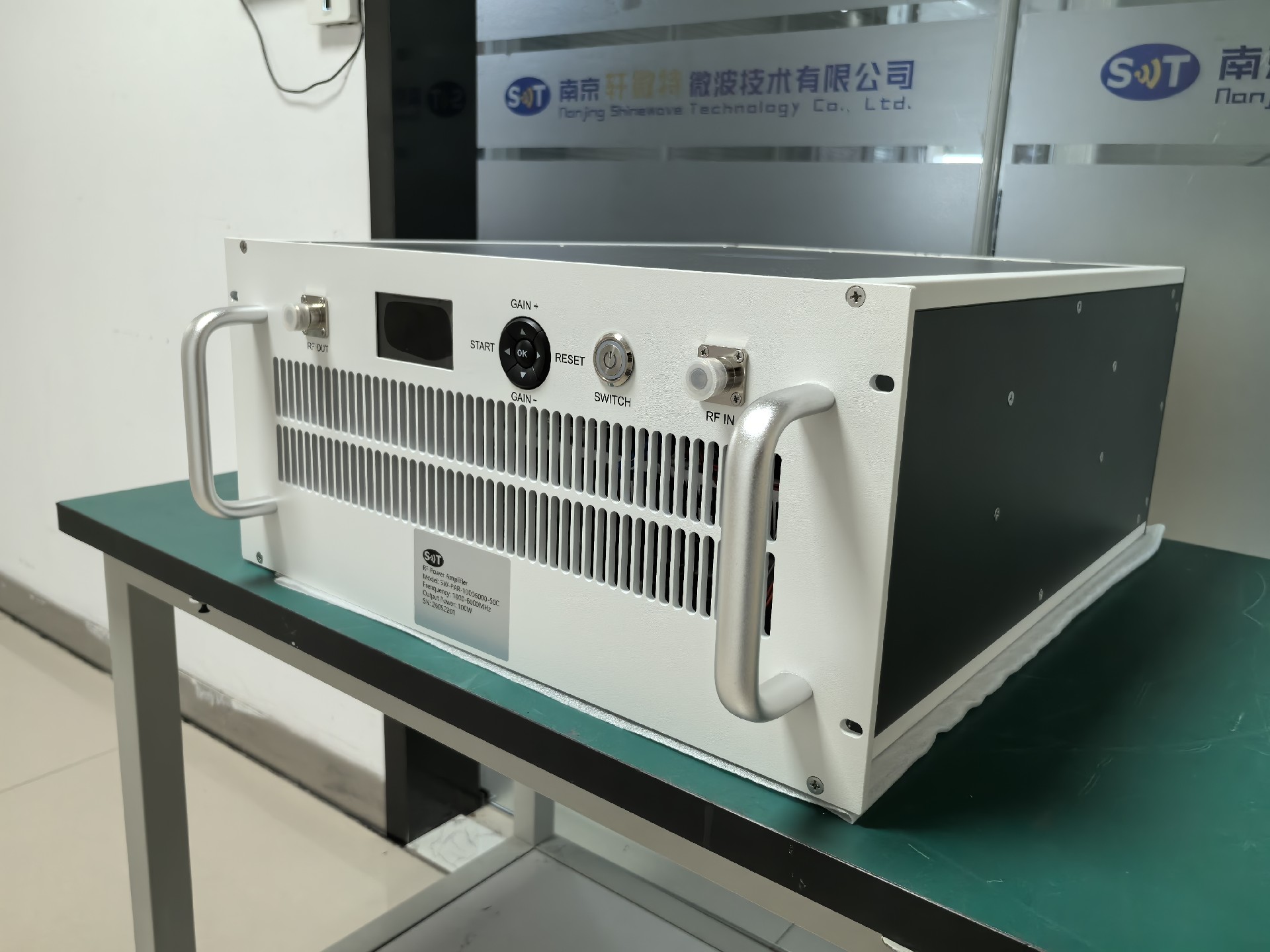

RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 1000 | 6000 | MHz | |
RF INPUT | 0 | 5 | dBm | |
Power Output | 50 | dBm | ||
Power Gain | 50 | dB | ||
Power Gain Flatness | ±3 | dB | ||
Gain adjustable range | 0 | 20 | dB | |
Gain adjustable steps | 0.5 | dB | ||
Input VSWR | 1.75 | 2 | -- | |
In-Out impedance | 50 | Ω | ||
Operating Voltage | 200 | 220 | 260 | V AC |
Supply Power@100W | 600 | 700 | W | |
MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (W x D x H) | The standard 19-inch shelf is 5U high, 482*550*223 | mm |
RF Connectors (Input / Output) | N-K / N-K (female) | -- |
Control Connector | RJ45：Remote control and monitoring can be realized through LAN | -- |
Cooling | Built-in cooling system, forced air cooling | -- |
Weight | ≤35 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. | -10 | +55 | °C |
Humidity Range | 0-95 | % | |
Protections | With over temperature protection, input over power protection, output mismatch protection | -- | |
INPUT/OUTPUT panel Connector | ||
AMPLIFIER CONNECTOR TYPE: | —— | |
TRIAD CABLE PART NUMBER: | —— | |
NUMBER | interface type | DESCRIPTION |
X1 | N-FK | RF IN |
X2 | N-FK | RF OUT |
X3 | LCD Display | Human-computer interaction interface |
X4 | Switch | AC/220V/50Hz |

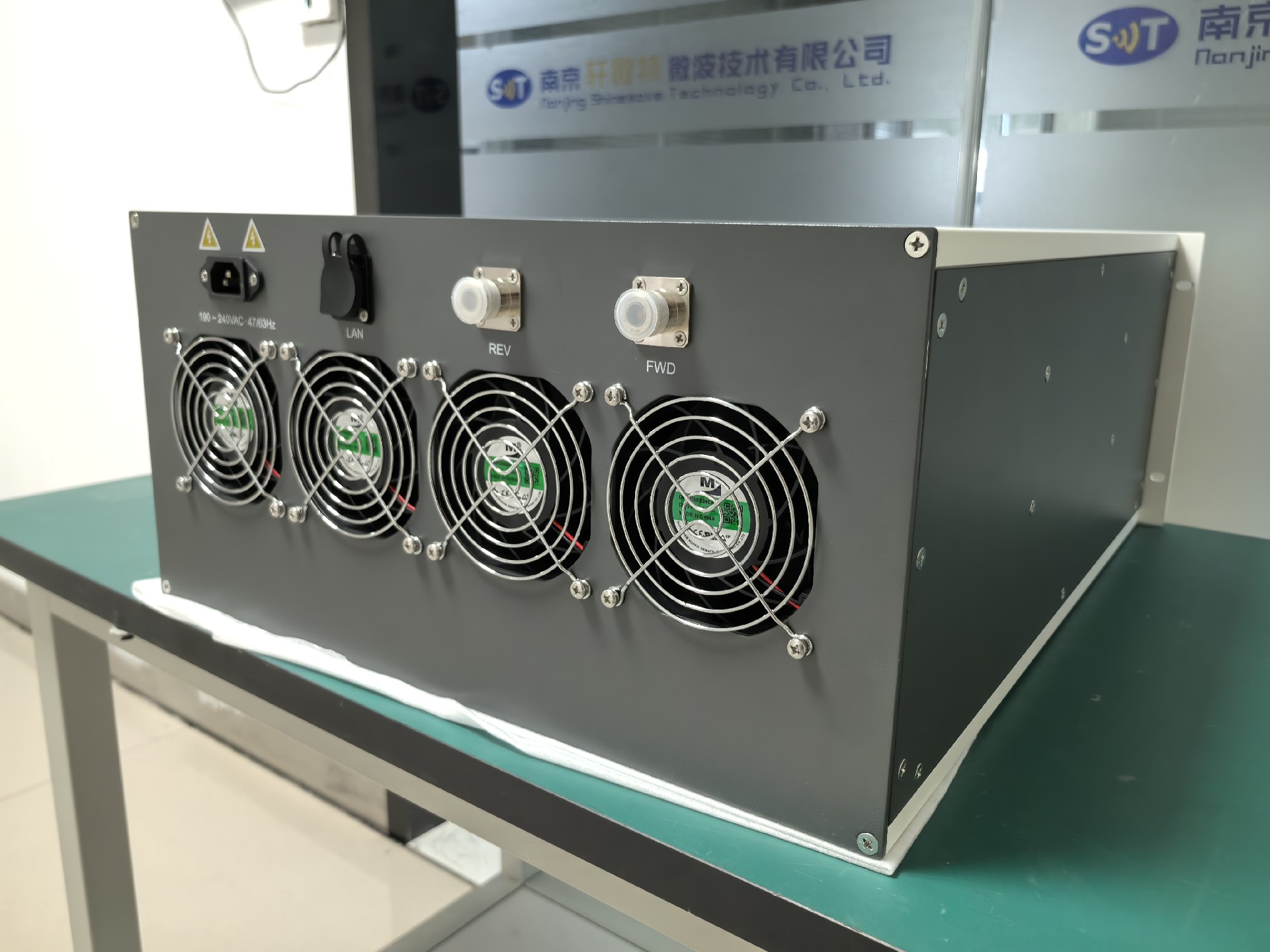

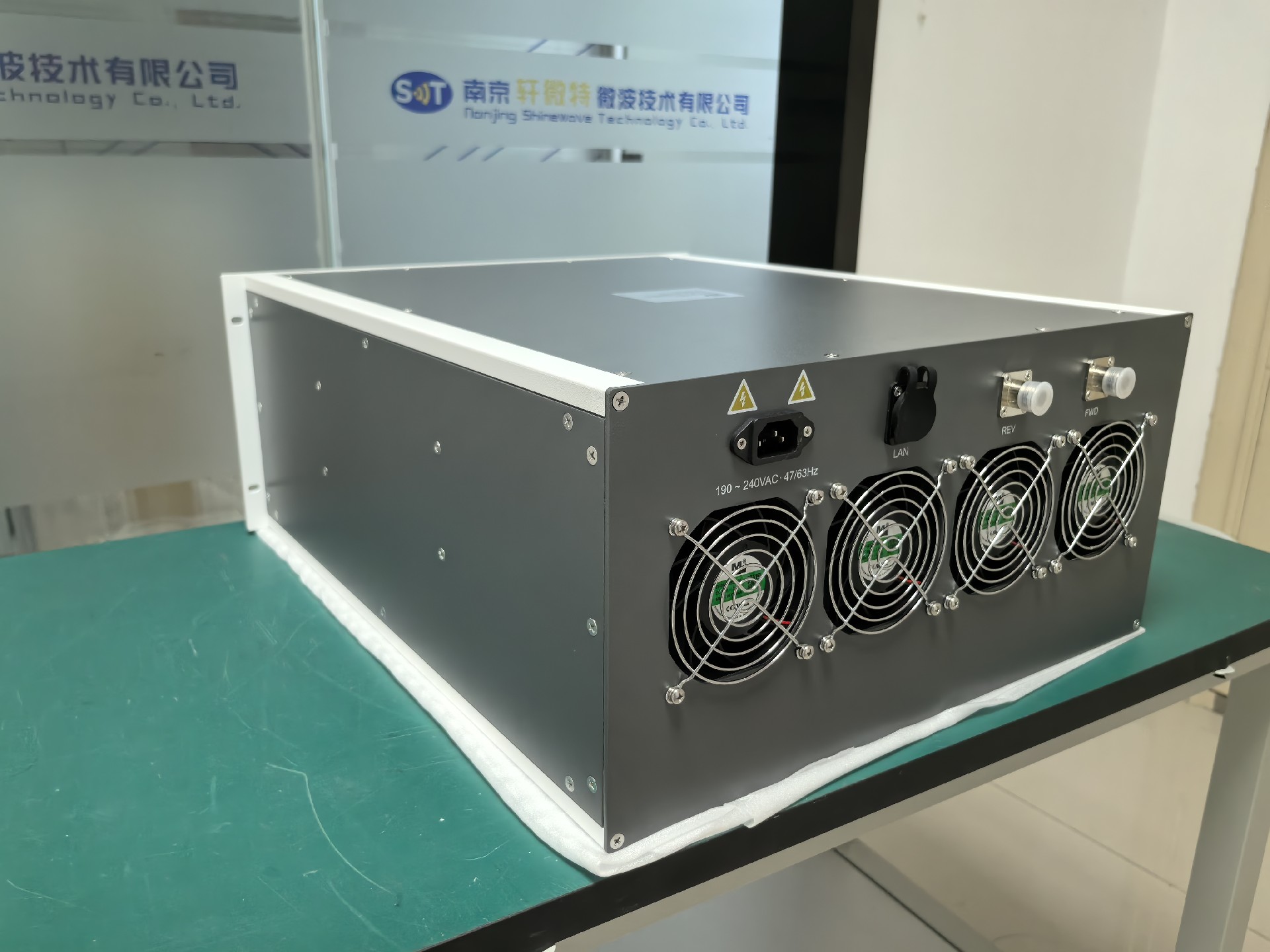

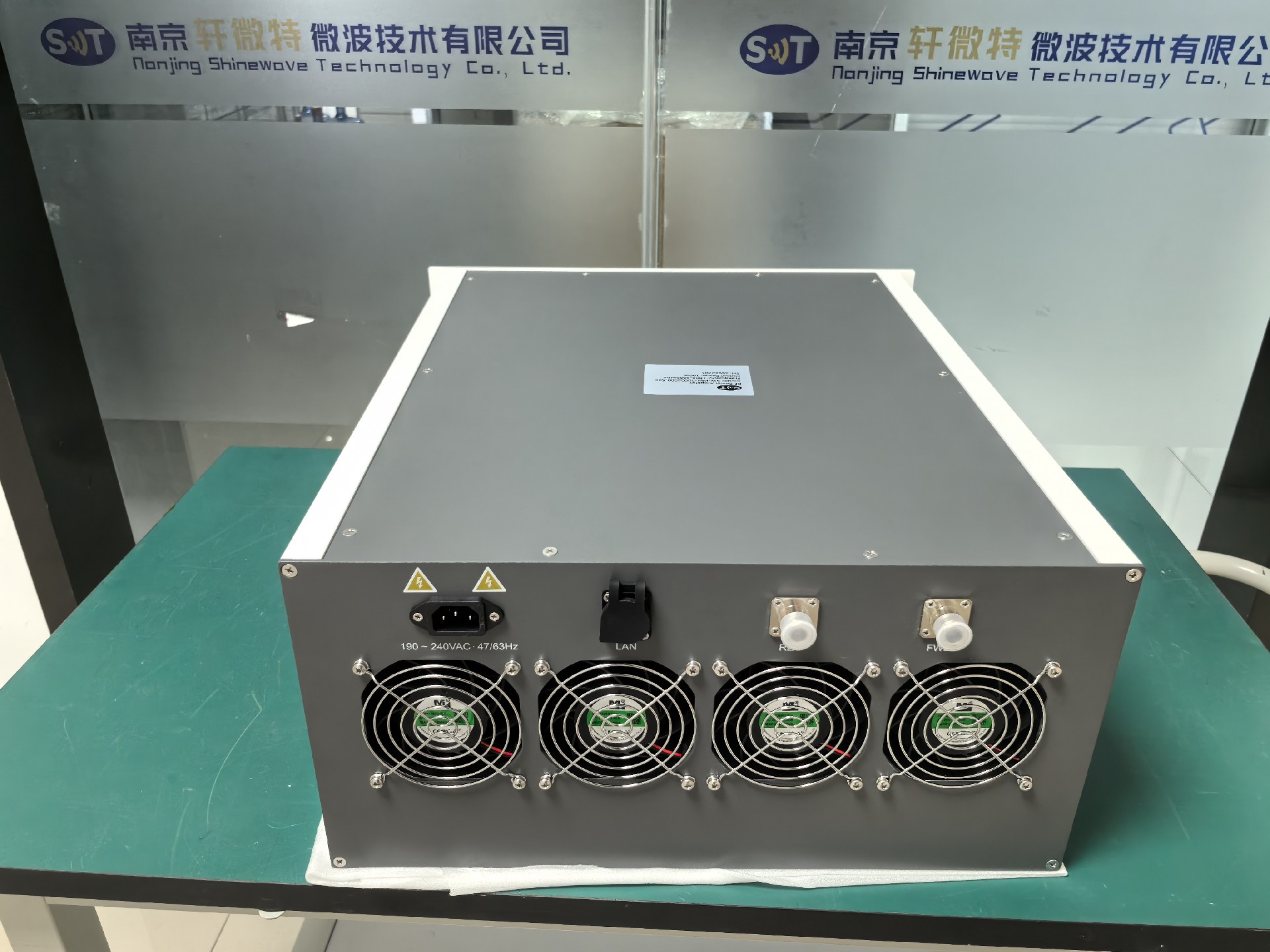

X5 | RJ45 | LAN (Control and monitoring) |
X6 | N-FK | Forward coupling port |
X7 | N-FK | Reverse coupling port |

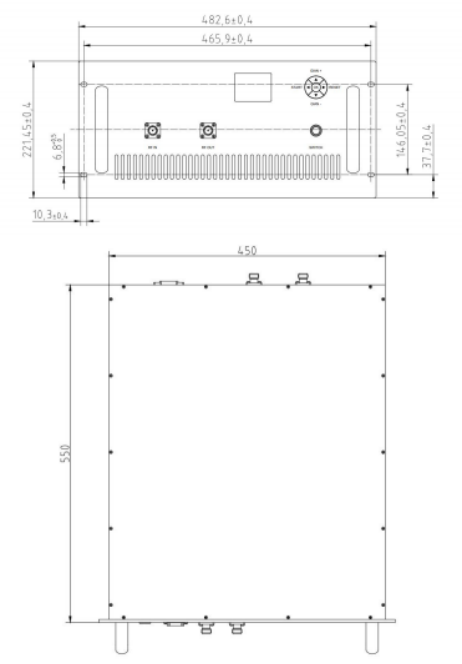

Outline Dimensional Drawing (TBD)
Product Details
Name:
SW-PAR-10006000-50C 100W RF Power Amplifier
Operating Frequency:
1000MHz～6000MHz (1~6GHz, L/S/C Band)
Psat Output Power:
Typ 50dBm(100W)
Gain:
Typ 50dB, adjustable 0~20dB, 0.5dB step
Input Vswr:
Typ 1.75, Max 2
Power Gain Flatness:
±3dB
Spurious Signals:
Harmonic Signals:
Operating Temp:
-10℃ ~ +55℃
Application:
Defense RF test, 5G & microwave test, EMC test, lab research, commercial signal transmission
Transport Package:
Standard export carton packing
Specification:
19-inch 5U rack mount, 50Ω, N-K RF port, RJ45 remote control, AC200~260V supply, overheat/overpower/mismatch protection
