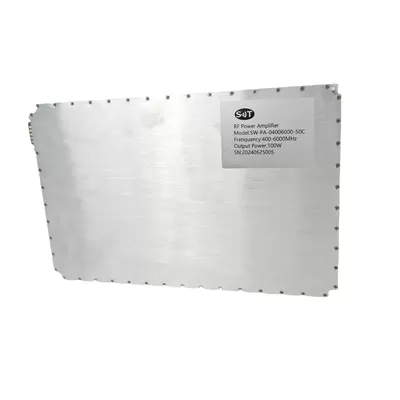

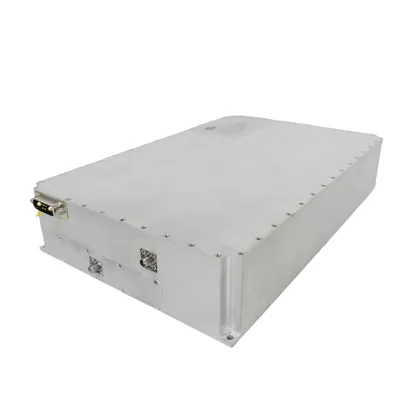

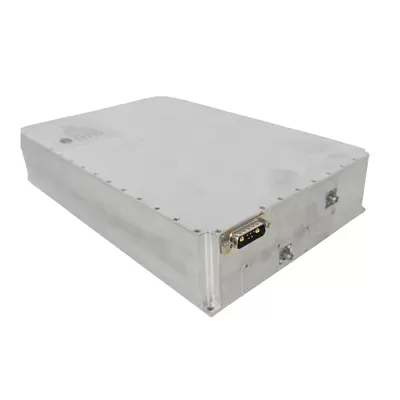

Customised 400-6000MHz 100W RF Power Amplifier With Excellent Frequency And Temperature Stability
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-04006000-50C
Price：$11500/pcs
Product Description
Description
The 400-6000MHz 100W RF Power Amplifier is a high-performance, wideband amplifier designed for various applications, including wireless communication, radar systems, electronic warfare, and signal testing. This amplifier uses advanced design technology to ensure high efficiency, high gain, and stable output power.
Product Features
High Efficiency: Utilizes efficient power amplification technology for high performance and low energy consumption.
High Gain: Delivers excellent gain performance, ensuring high-quality signal amplification.
Wide Bandwidth: Covers a frequency range of 400-6000MHz, suitable for various applications.
Stability: Offers excellent frequency and temperature stability, adapting to complex environments.
Durable: Designed to meet industrial standards, providing high reliability and durability.
Application Scenarios
Wireless Communication: Enhances signal transmission quality, ensuring stable and reliable communication.
Radar Systems: Improves radar signal detection capability, enhancing system detection range and accuracy.
Electronic Warfare: Provides powerful signal jamming and suppression capabilities in electronic warfare systems.
Signal Testing: Used in various RF signal testing systems, ensuring accurate and reliable test results.
Advantages
High Efficiency and Stability: Uses advanced amplification technology to ensure high efficiency and stability.
Wide Frequency Coverage: Covers a frequency range of 400-6000MHz, suitable for various applications.
Easy Integration: Compact design for easy integration into existing systems.
High Reliability: Meets industrial standards, suitable for harsh environments.
Specification
Typical performance at 28V AC +25oC, and in a 50Ω system.

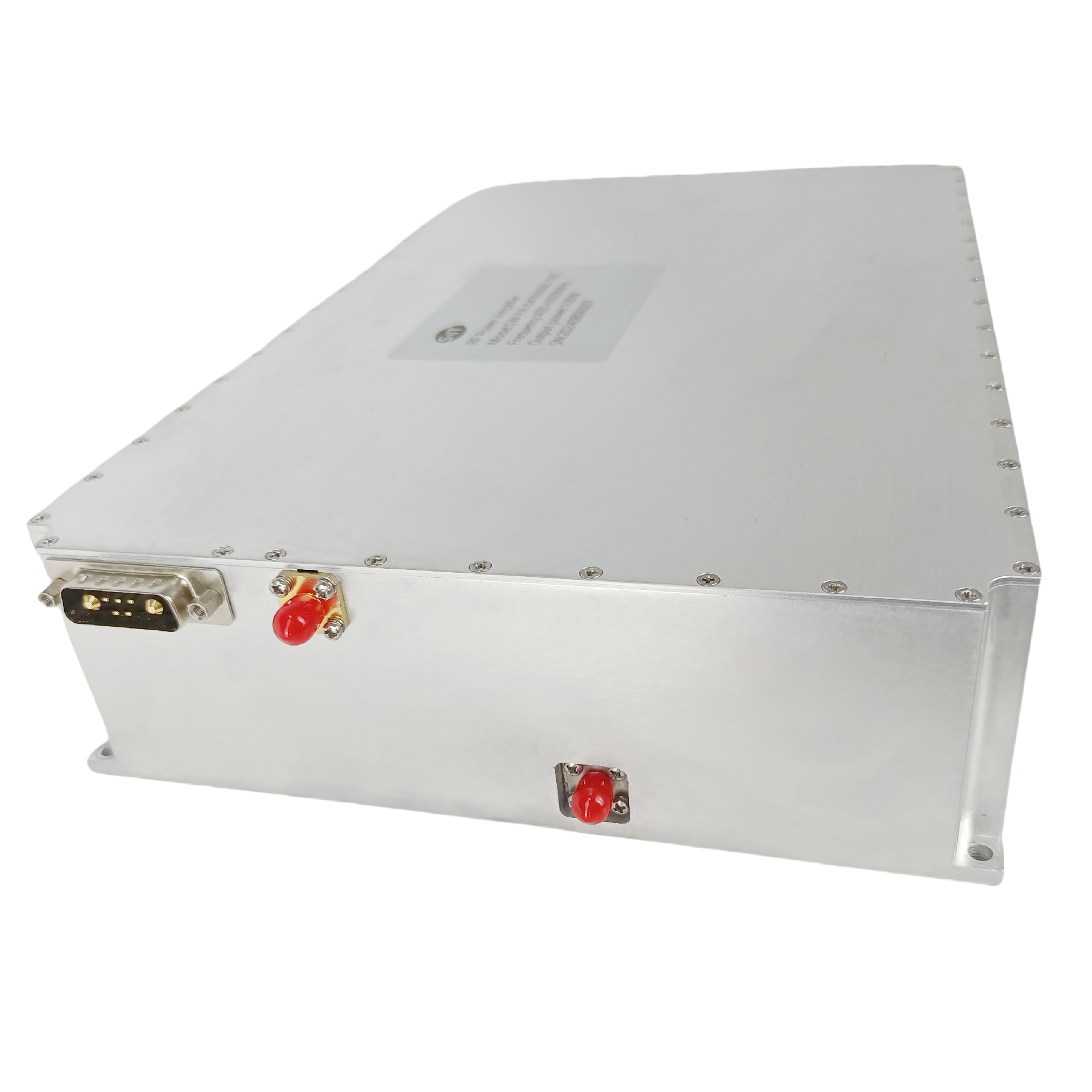

| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 400 | 6000 | MHz | |
| RF INPUT | -10 | dBm | ||
| Power Gain | 60 | dB | ||
| P-sat Output Power | 49.5 | 50 | dBm | |
| Power Gain Flatness | ±4 | dB | ||
| In/Out Impedance | 50 | Ω | ||
| Spurious Signals | -40 | dBc | ||
| Harmonic Signals | -15 | dBc | ||
| Operating Voltage | 28 | V | ||
| Supply Power | 500 | W | ||
| Input VSWR | 2 | |||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (W x D x H) | 300*192*25 | mm |
| RF Connectors (Input / Output) | SMA-KF / SMA-FK | -- |
| Control Connector | D-SUB:Power on/power off control; Monitoring parameters include output power, temperature | -- |
| Cooling | Exteral Heatsink Required | -- |
| Weight | ≤4.5 | kg |
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (W x D x H) | 300*192*25 | mm |
| RF Connectors (Input / Output) | SMA-KF / SMA-FK | -- |
| Control Connector | D-SUB:Power on/power off control; Monitoring parameters include output power, temperature | -- |
| Cooling | Exteral Heatsink Required | -- |
| Weight | ≤4.5 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. | -40 | +85 | °C |
| Storage Temp. | -40 | +85 | °C |
| Amplifier Safeguard Temp. | +90 | °C | |
| Shock | MIL-STD-810F/G | ||
| Vibration | MIL-STD-810F/G | ||
| Protections | With over temperature protection, input over power protection, over voltage protection, over current protection | ||
| INPUT/OUTPUT panel Connector | |||
| AMPLIFIER CONNECTOR TYPE: | -- | ||
| TRIAD CABLE PART NUMBER: | -- | ||
| NUMBER | interface type | DESCRIPTION | |
| X1 | SMA-FK | RF IN | |
| X2 | SMA-FK | RF OUT | |
| X6 | D-SUB | DC & Control interface | |
| Connector Definition | ||
| AMPLIFIER CONNECTOR TYPE: | D-SUB | |
| TRIAD CABLE PART NUMBER: | -- | |
| NUMBER | Definition | DESCRIPTION |
| 1 | VDD | 28V |
| 2 | VDD | 28V |
| 3 | GND | GND |
| 4 | GND | GND |
| 5 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
| 6 | Alarm | Alarm (TTL) |
| 7 | Temp monitoring | Temperature (Analog) |
| 8 | NC | NC |
| 9 | NC | NC |

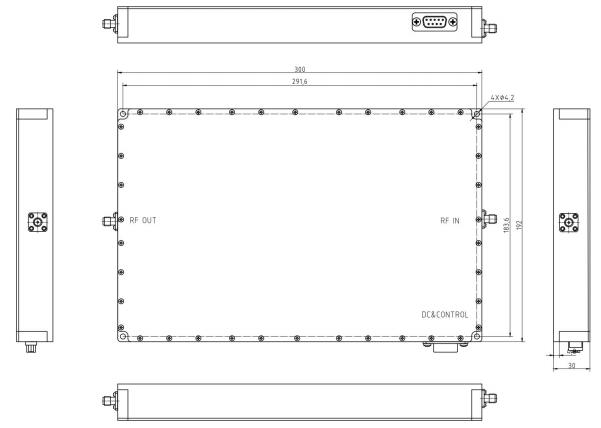

Outline Dimensional Drawing
Product Details
Name:
0.4-6GHz RF Power Amplifier
Operating Frequency:
0.4-6GHz
Psat Output Power:
100W
Gain:
60dB
Input Vswr:
2
Power Gain Flatness:
±4dB
Spurious Signals:
-40dBc
Harmonic Signals:
-15dBc
Operating Temp:
-40~85°c
Application:
EMC Test
Transport Package:
Carton
Specification:
300*192*25mm
