1000-6000 MHz C Band Power Amplifier Wideband Psat 40W RF Power Amplifier for Telecommunication
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-10006000-46C
Price：$3720/pcs
Product Description
1000-6000 MHz C Band Power Amplifier Wideband Psat 40 W RF Power Amplifier for Telecommunication
Description
The 1000-6000 MHz C Band Power Amplifier is a specialized device designed to amplify radio frequency (RF) signals within the C band, covering the frequency range from 1000 megahertz (MHz) to 6000 MHz. Here's a detailed introduction to this power amplifier:
Frequency Range: The C band is an important part of the RF spectrum, typically ranging from 4 gigahertz (GHz) to 8 GHz. This amplifier specifically covers the frequency range from 1000 MHz to 6000 MHz within the C band. The C band finds extensive applications in communication, radar, and satellite communication systems.
Power Output: This amplifier is capable of amplifying input RF signals to higher power levels, suitable for applications that require strong signal transmission or testing. The specific output power can vary based on the amplifier's design and requirements.
Applications: C band power amplifiers are commonly used in wireless communication systems, radar systems, satellite communications, broadcasting, and radio spectrum analysis. They play a crucial role in signal amplification and transmission in these fields.
Stability and Reliability: These amplifiers are typically designed for stability and reliability, capable of long-term operation in various environmental conditions while maintaining consistent performance. This is essential for ensuring signal quality and system stability.
Design Features: The design features of C band power amplifiers include a wide frequency range, appropriate power output, good signal amplification and transmission performance, and compatibility with other equipment and systems.
In summary, the 1000-6000 MHz C Band Power Amplifier is a vital equipment operating within the C band frequency range, serving various RF applications with its high power output, stability, and reliability. It plays a significant role in meeting the demanding requirements of signal amplification and transmission in RF systems.
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 1000 | 6000 | MHz | |
| RF INPUT | 0 | 5 | dBm | |
| Power Gain | 46 | dB | ||
| P-sat Output Power | 40 | W | ||
| Power Gain Flatness | ±4 | dB | ||
| In/Out Impedance | 50 | Ω | ||
| Spurious Signals | -65 | dBc | ||
| Harmonic Signals | -15 | -10 | dBc | |
| Gain Adjust Range | 31.5 | dB | ||
| Gain Adjust Step | 0.5 | dB | ||
| Operating Voltage | 200 | 220 | 240 | V AC |
| Supply Power | 800 | W | ||
| Input VSWR | 2 | |||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (W x D x H) | The standard 19-inch shelf is 5U high, 482*600*223 | mm |
| RF Connectors (Input / Output) | N-K / N-K (N female) | -- |
| Control Connector (Option1) | DB9:Power on/power off control, gain control; Monitoring parameters include output power, temperature, supply voltage, and supply current | -- |
| Control Connector (Option2) | RJ45:Remote control and monitoring can be realized through LAN | |
| Cooling | Built-in cooling system, forced air cooling | -- |
| Weight | ≤25 | kg |
| AC Connector | Three-in-one air switch | |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. | -25 | +55 | °C |
| Humidity Range | 0-90 | % | |
| Amplifier Safeguard Temp. | +80 | °C | |
| Protections | With over temperature protection, input over power protection, over voltage protection, over current protection, output mismatch protection | ||
| INPUT/OUTPUT panel Connector | |||
| AMPLIFIER CONNECTOR TYPE: | —— | ||
| TRIAD CABLE PART NUMBER: | —— | ||

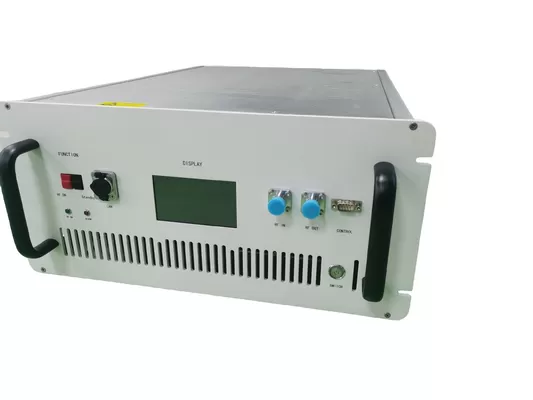

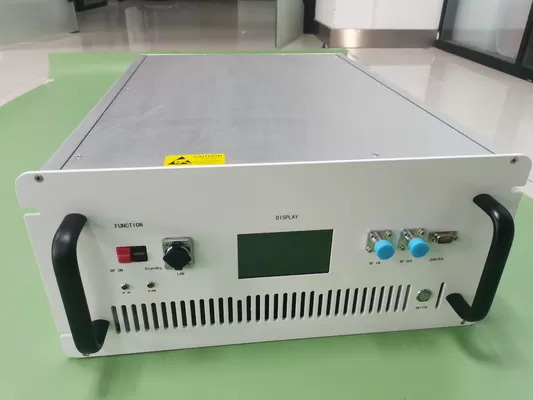

| NUMBER | interface type | DESCRIPTION | |
| X1 | N-FK | RF IN | |
| X2 | N-FK | RF OUT | |
| X3 | LCD display | Human-computer interaction interface | |
| X4 | Three-in-one air switch | AC/220V/50Hz | |
| X5 | RJ45 | LAN | |
| X6 | DB9 | Control interface | |

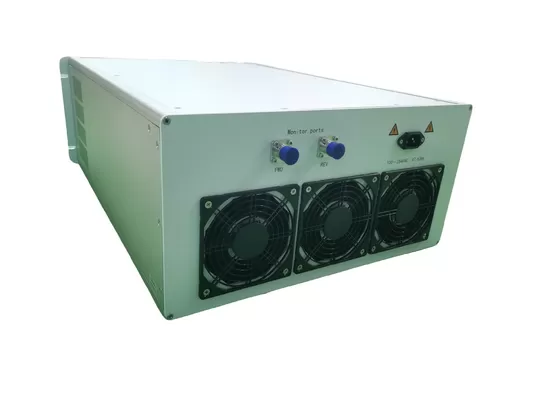

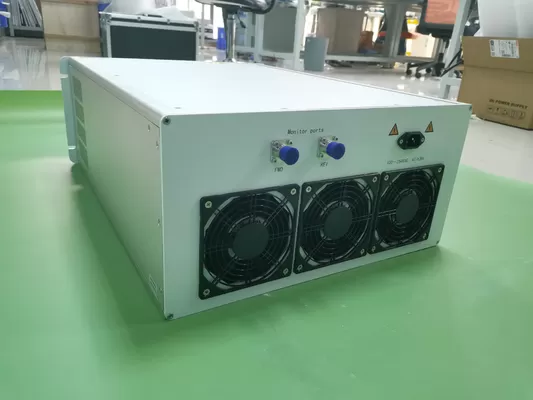

| X7 | N-FK | Forward coupling port | |
| X8 | N-FK | Reverse coupling port | |
| Connector Definition | ||
| AMPLIFIER CONNECTOR TYPE: | DB9 | |
| TRIAD CABLE PART NUMBER: | —— | |
| NUMBER | Definition | DESCRIPTION |
| 1 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
| 2 | Output Power monitoring | Output Power Detection (TTL Hi= Normal , TTL Lo =Fault ) |
| 3 | Temp monitoring | Temp monitoring alarm (TTL Hi= Normal , TTL Lo =Fault ) |
| 4 | Voltage monitoring | Voltage monitoring alarm (TTL Hi= Normal , TTL Lo =Fault ) |
| 5 | Current monitoring | Current monitoring alarm (TTL Hi= Normal , TTL Lo =Fault ) |
| 6 | RXD | RS232 serial bus interface, PA gain adjustment |
| 7 | TXD | |
| 8 | GND | |
| 9 | NC | NC |
Product Details
Name:
1000-6000MHz RF Power Amplifier
Operating Frequency:
1-6GHz
Psat Output Power:
40W
Gain:
46dB
Input Vswr:
2
Power Gain Flatness:
±4dB
Spurious Signals:
-65dBc
Harmonic Signals:
-10dBc
Operating Temp:
-25~55°c
Application:
wireless communication systems, radar systems, satellite communications, broadcasting
Transport Package:
Carton
Specification:
482*600*223mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
