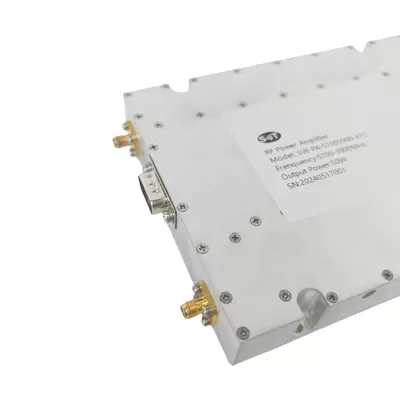

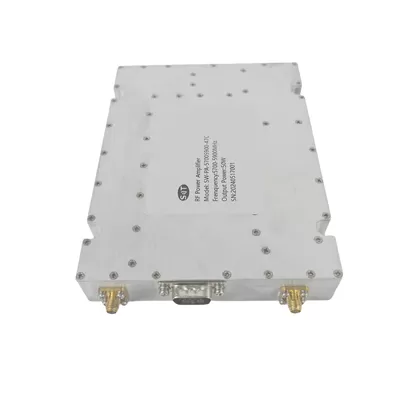

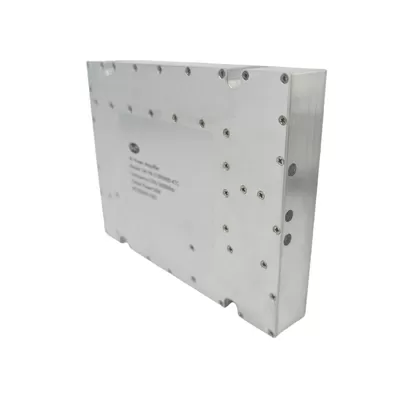

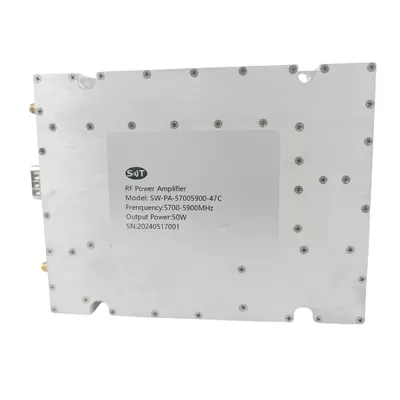

Customized C-Band 5700-5900MHz 50W RF Power Amplifier for Communication and Radar Systems

Description

The 5700-5900MHz 50W RF Power Amplifier is designed for a range of applications in wireless communications, radar systems, and test and measurement equipment. This amplifier operates in the C-band frequency range, making it ideal for high-frequency and high-power applications. It provides high efficiency, robust performance, and excellent linearity, ensuring reliable signal amplification within this specific bandwidth.

Key Features

1. Frequency Range: Covers the C-band frequency range from 5700MHz to 5900MHz.

2. Power Output: Delivers a high power output of 50 watts, suitable for demanding applications.

3. High Efficiency: Designed to offer high efficiency, reducing power consumption and heat generation.

4. High Linearity: Ensures low distortion and high signal integrity, essential for communication and radar systems.

5. Robust Design: Built with durable components and advanced thermal management to ensure stable operation in various environments.

Application Areas

1. Wireless Communication:

• Wi-Fi: Enhances signal coverage and quality in Wi-Fi networks, particularly for high-speed data transmission.

• Fixed Wireless Access: Supports the amplification of signals in fixed wireless access systems, providing reliable connectivity over long distances.

2. Radar Systems:

• Short-range Radar: Used in applications such as automotive radar for collision avoidance and traffic monitoring.

• Industrial Radar: Enhances the performance of industrial radar systems used in manufacturing and process control.

3. Test and Measurement:

• Signal Generators and Analyzers: Used in test equipment to generate and measure high-frequency RF signals with high precision.

• Laboratory Research: Supports scientific research and development of new technologies by providing reliable signal amplification.

Technical Challenges

1. Thermal Management: Effective thermal management is essential to handle the heat generated by high-power amplification and ensure consistent performance.

2. Power Management: Requires stable power supply management to maintain reliable operation under high power output conditions.

3. Linearity and Efficiency: Balancing high linearity with efficiency is crucial for achieving optimal performance in RF power amplifiers.

4. Frequency Stability: Maintaining frequency stability across the entire bandwidth is critical for reliable and consistent signal transmission.

5. Broadband Matching: Ensuring good input and output matching over the specified frequency range to maintain efficient and stable signal transmission.

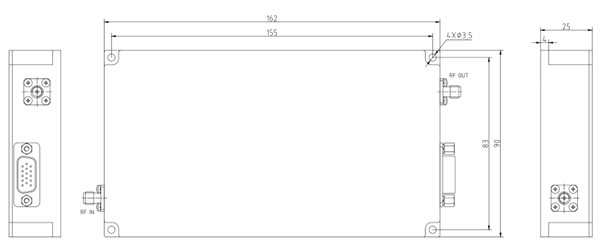

Outline Dimensional Drawing

Specification

Typical performance at +32VDC +25oC, and in a 50Ω system.
