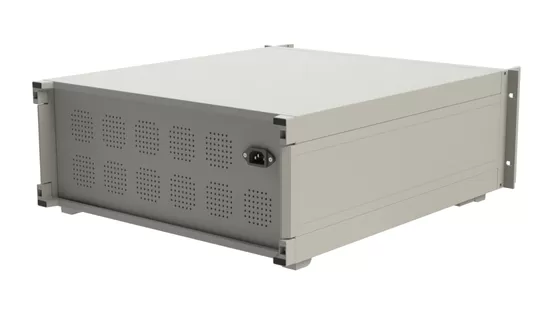

2.1 - 2.2 GHz S Band Power Amplifier Psat CW 200W high power RF Amplifier For signal amplification in wireless networks
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-21002200-53C
Price：
Product Description
2.1 - 2.2 GHz S Band Power Amplifier Psat CW 200W high power RF Amplifier For signal amplification in wireless networks
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 2.1 | 2.2 | GHz | |
| Power Gain | 80 | dB | ||
| Gain control | 0 | 80 | dB | |
| Power Gain Flatness | ±2 | dB | ||
| Output Power (Psat CW) | 200 | Watt | ||
| Spurious | -60 | dBc | ||
| Harmonic | -15 | dBc | ||
| VSWR | 2:1 | Ratio | ||
| Power waste | 1 | Ratio | ||
| Input Voltage | 220 | Volt | ||
| Human-computer Interface | Touch screen LCD: Voltage, Current, Gain | |||
| Program Control Interfac | RS422 and Ethernet | |||
Note:
1. Forced air cooling.
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | +10 | dBm | ||
| Operating Temperature | -20 | +50 | ℃ | |
| Non-operating Temperature | -40 | +85 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | TBD | feet | ||
| Shock / Vibration (MIL-STD-810F) | TBD | |||

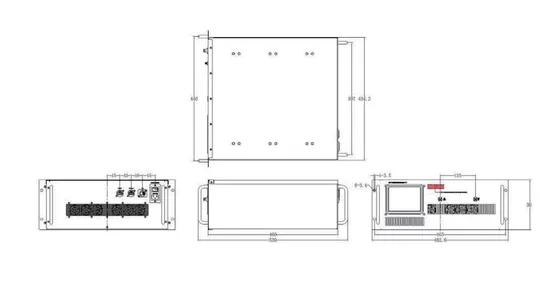

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 3U | Max | Millimeter |
| Weight | 20000 | Max | gram |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | NF | ||
| Forward / Reverse Detection Connectors | |||
| Impedance | 50 | Ohms | |
Product Details
Name:
2.1 - 2.2 GHz RF Power Amplifier
Operating Frequency:
2.1 - 2.2GHz
Psat Output Power:
53dBm
Gain:
80dB
Input Vswr:
2:1Ratio
Power Gain Flatness:
±2dB
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
-20~50°c
Application:
Telecommunications,Broadcasting,Military,Satellite Communication,Scientific Research
Transport Package:
Carton
Specification:
200*150*30mm
