0.1-3 GHz S Band P1dB 30 dBm RF Amplifier Module for signal transmission across wide areas
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-1003000-25C
Price：
Product Description
0.1-3GHz S Band P1dB 30 dBm RF Amplifier Module for signal transmission across wide areas
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 0.1 | 3 | GHz | |
| Power Signal Gain | 25 | dB | ||
| Power Signal Gain Flatness | ±2 | dB | ||
| Noise Figure | dB | |||
| Output Power 1dBcompression | 30 | dBm | ||
| Spurious | -60 | dBc | ||
| Harmonics | -15 | dBc | ||
| Input VSWR | 1.5:1 | dBm | ||
| Output VSWR | 2:1 | Ratio | ||
| DC Power Supply | 28 | Volt | ||
| Current | 0.3 | A | ||
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | +10 | dBm | ||
| Operating Temperature | -20 | +50 | ℃ | |
| Non-operating Temperature | -45 | +85 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | TBD | feet | ||
| Shock / Vibration (MIL-STD-810F) | TBD | |||

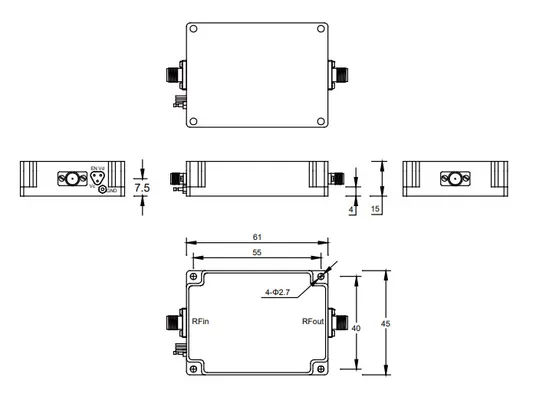

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 61*45*15 | Max | Millimeter |
| Weight | 300 | Max | gram |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | SMA-F | ||
| Impedance | 50 | Ohms | |
Product Details
Name:
0.1-3GHz RF Power Amplifier
Operating Frequency:
0.1-3GHz
Psat Output Power:
30 dBm
Gain:
25dB
Input Vswr:
1.5:1
Power Gain Flatness:
±2dB
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
-20~50°c
Application:
Communications, radar system
Transport Package:
Carton
Specification:
61*45*15mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
