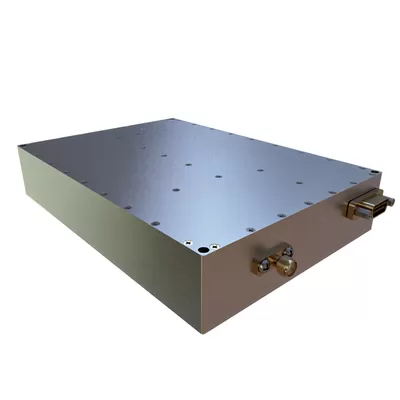

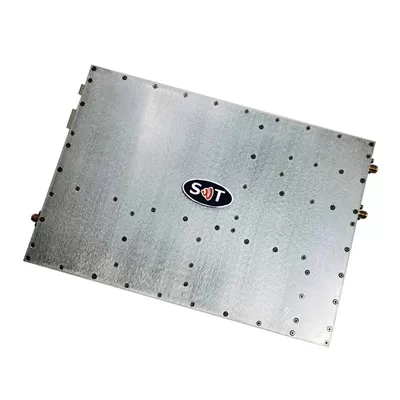

2300-2700MHz Psat 53dBm S Band Power Amplifier for Communications, radar system
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 2300 | 2500 | 2700 | MHz |
| RF INPUT | 0 | dBm | ||
| Psat Power Output | 53 | dBm | ||
| Gain | 53 | dB | ||
| Power Gain Flatness | ±1.5 | dB | ||
| In/Out Impedance | 50 | Ω | ||
| Input Return Loss | -15 | dB | ||
| Spurious Signals | -60 | dBc | ||
| Harmonic Signals@ Pout-4KW(dB) | -25 | dBc | ||
| Operating Voltage | 220 | AC | ||
| Current@pout: 53 dbm CW | 2 | A | ||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (W x H x D) | 483×178×465 | mm |
| RF Connectors (Input / Output) | SMA- KFD/ N-type Female | -- |
| Control Connector | DB15 | -- |
| AC Connector | MS / D-Sub | |
| Power indicator light | green(Normal) | |
| Standing wave fault indicator light | red(Alarm ) | |
| Cooling | Heat Sink with Integrated Cooling Fan | -- |
| Mounting | -- | |
| Weight | ≤20 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. (Housing Temp.) | -20 | +55 | °C |
| Humidity Range | 0-90 | % | |
| Max RF Input | +10 | dBm | |
| PA Baseplate Shutoff Temperature | +85 | °C | |
| High VSWR Protections | Power Amplifier has open/short port protection Configure Input and Output Isolators | ||
| INPUT/OUTPUT PINS | |||
| AMPLIFIER CONNECTOR TYPE: | DB9 | ||
| TRIAD CABLE PART NUMBER: | —— | ||
| PIN NUMBER | LABEL | DESCRIPTION | |
| 1 | Amp Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection | |
| 2 | GND | GND | |
| 3 | FWD | Forward Power Detection (TTL Hi= Normal , TTL Lo =Fault ) | |
| 4 | REV | Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault ) | |
| 5-9 | NC | NC | |
| INPUT PINS | |||
| AMPLIFIER CONNECTOR TYPE: | MS / D-Sub | ||
| TRIAD CABLE PART NUMBER: | —— | ||
| PIN NUMBER | LABEL | DESCRIPTION | |
| 1 | L | firing line | |
| 2 | N | null line | |
| 3 | FG | rack earth | |
Product Details
Name:
2300-2700MHz RF Power Amplifier
Operating Frequency:
2300-2700MHz
Psat Output Power:
53dBm
Gain:
53dB
Input Vswr:
2
Power Gain Flatness:
±1.5dB
Spurious Signals:
-60dBc
Harmonic Signals:
-25dBc
Operating Temp:
-25~55°c
Application:
EMC Test，Communications, radar system
Transport Package:
Carton
Specification:
483×178×465mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
