High Gain 37dB 5W S Band Power Amplifier for Amplifying Signals in Wireless Communication
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-24002500-37C
Price：$650/pcs
Product Description
High Gain 37dB 5W S Band Power Amplifier for amplifying signals in wireless communication (such as Wi-Fi and Bluetooth).
The 2400-2500MHz 5W RF power amplifier is a high-power device with the following key features:
Frequency Range: Covers 2400MHz to 2500MHz, suitable for 2.4GHz wireless communication (such as Wi-Fi and Bluetooth).
Output Power: Provides 5W (37dBm) output, enhancing signal transmission distance and coverage.
High Gain: Delivers 30dB gain, effectively amplifying signals.
High Linearity: Ensures signal quality with minimal distortion.
Efficient Design: Reduces power consumption and improves energy efficiency.
Applications:
Used in wireless communication, RF testing, and wireless network devices to enhance signal performance and coverage.
Specification
Typical performance at +24VDC +25oC,and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 2.4 | 2.5 | GHz | |
| RF INPUT | 0 | dBm | ||
| RF Gain | 37 | dB | ||
| P-sat output power | 37 | dBm | ||
| In/Out Impedance | 50 | Ω | ||
| Spurious Signals | -60 | dBc | ||
| Harmonic Signals | -15 | dBc | ||
| Input VSWR | 2 | |||
| Operating Voltage | 20 | V | ||
| Current | 1.8 | A | ||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (W x D x H) | 63*61*24 | mm |
| RF Connectors (Input / Output) | SMA- KFD / SMA- KFD | -- |
| DC/Control Connector | J30J-9ZKP:PA on/off control; Over-Temperature alarm | -- |
| Cooling | Base heat dissipation | -- |
| Weight | ≤0.7 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. | -20 | +60 | °C |
| Storage Temp. | -40 | +80 | °C |
| Humidity Range | 0-100 | % | |
| PA Baseplate Shutoff Temperature | +85 | °C | |
INPUT/OUTPUT panel Connector | ||
| AMPLIFIER CONNECTOR TYPE: | -- | |
| TRIAD CABLE PART NUMBER: | -- | |
| NUMBER | interface type | DESCRIPTION |
| X1 | SMA- KFD | RF IN |
| X2 | SMA- KFD | RF OUT |
| X3 | J30J-9ZKP | DC / Control interface |
| Connector Definition | ||
| AMPLIFIER CONNECTOR TYPE: | J30J-09ZKP | |
| TRIAD CABLE PART NUMBER: | -- | |
| NUMBER | Definition | DESCRIPTION |
| 1~3 | VDD | 20V |
| 4~6 | GND | GND |
| 7 | PA Enable(1) | Logic Hi = Enable, Logic Lo = Disable or No Connection |
| 8 | Over-Temperature alarm | Logic Hi when the temperature is above 85 °C, |
| 9 | NC | |
Note: (1) Logic Lo: 0~1V; Logic Hi: 2.5~5V

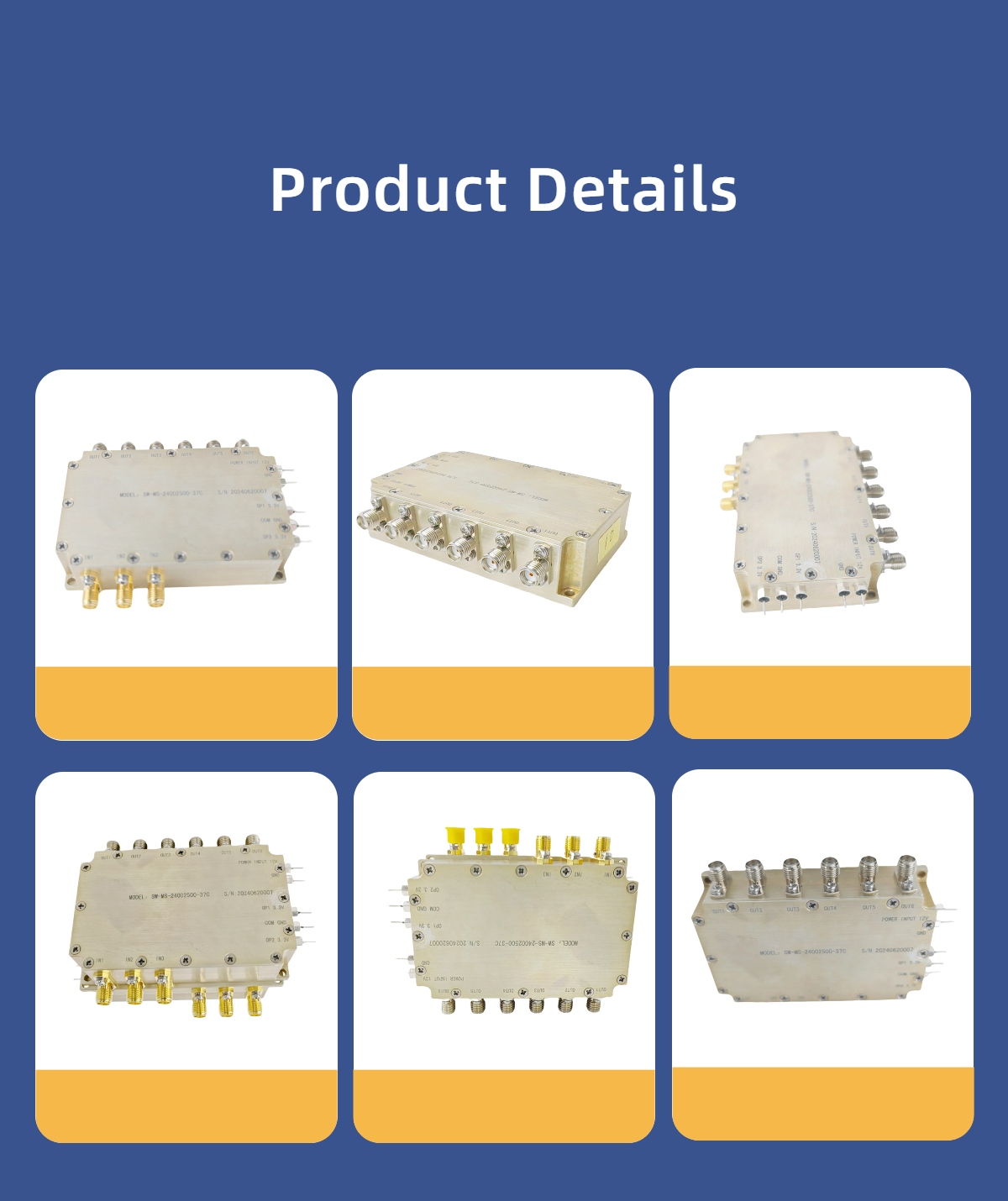

Product Details
Name:
2400-2500MHz RF Power Amplifier
Operating Frequency:
2400-2500MHz
Psat Output Power:
5w
Gain:
37dB
Input Vswr:
2
Power Gain Flatness:
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
-40~60°C
Application:
Wireless Communication, RF Testing
Transport Package:
Carton
Specification:
63*61*24mm
