0.6 - 2.7 GHz S Band Power Amplifier Past CW 53 dBm RF Amplifier rackmount for Communications
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-6002700-53C
Price：
Product Description

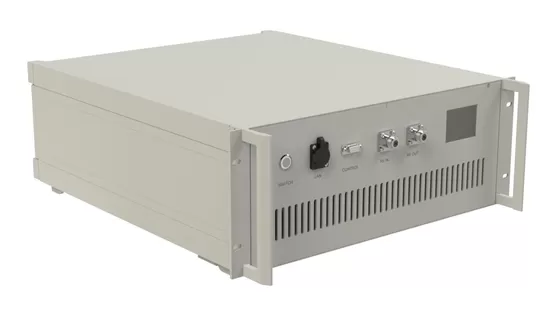

0.6 - 2.7 GHz S Band Power Amplifier Past CW 53 dBm RF Amplifier rackmount for Communications
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 0.6 | 2.7 | GHz | |
| Power Gain | 46.5±2.5 | dB | ||
| Power Gain Flatness | ±3 | dB | ||
| Output Power (Psat CW) | 53 | dBm | ||
| Spurious @ Pout=150Watt | -70 | -65 | dBc | |
| Harmonic | dBc | |||
| VSWR Input | 2.5:1 | Ratio | ||
| Input Voltage | 220V/50Hz | |||
| Human-computer Interface | LCD display information: Voltage, Current, Gain, FWD Power | |||
| Program Control Interfac | RS422 and Ethernet | |||
Note:
1. Power Consumption@200W CW
2. Cooling: Internal Forced Fancooling, fromfront to back
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | +10 | dBm | ||
| Operating Temperature | -10 | +50 | ℃ | |
| Non-operating Temperature | -45 | +55 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude | / | feet | ||
| Shock / Vibration | / | |||

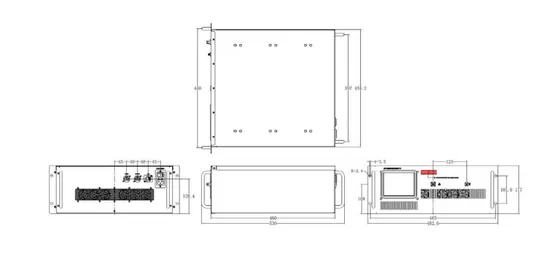

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 19’ 4U | Millimeter | |
| Weight | 20000 | gram | |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | N-F | ||
| Impedance | 50 | Ohms | |
Product Details
Name:
0.6 - 2.7 GHz RF Power Amplifier
Operating Frequency:
0.6 - 2.7 GHz
Psat Output Power:
200W
Gain:
53dB
Input Vswr:
2
Power Gain Flatness:
±3dB
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
-10~50°c
Application:
EMC Test，Communications, radar system
Transport Package:
Carton
Specification:
19’ 4U
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
