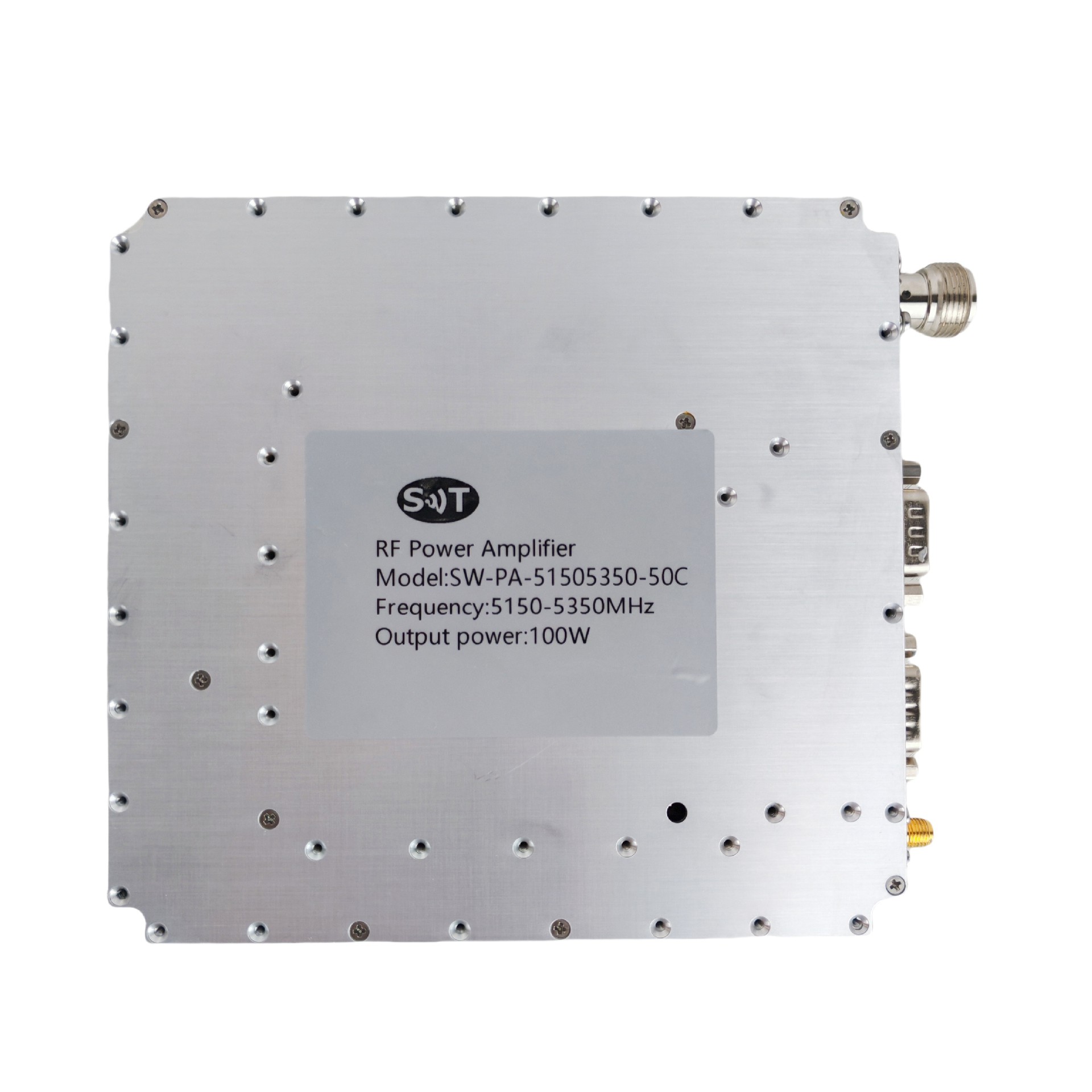

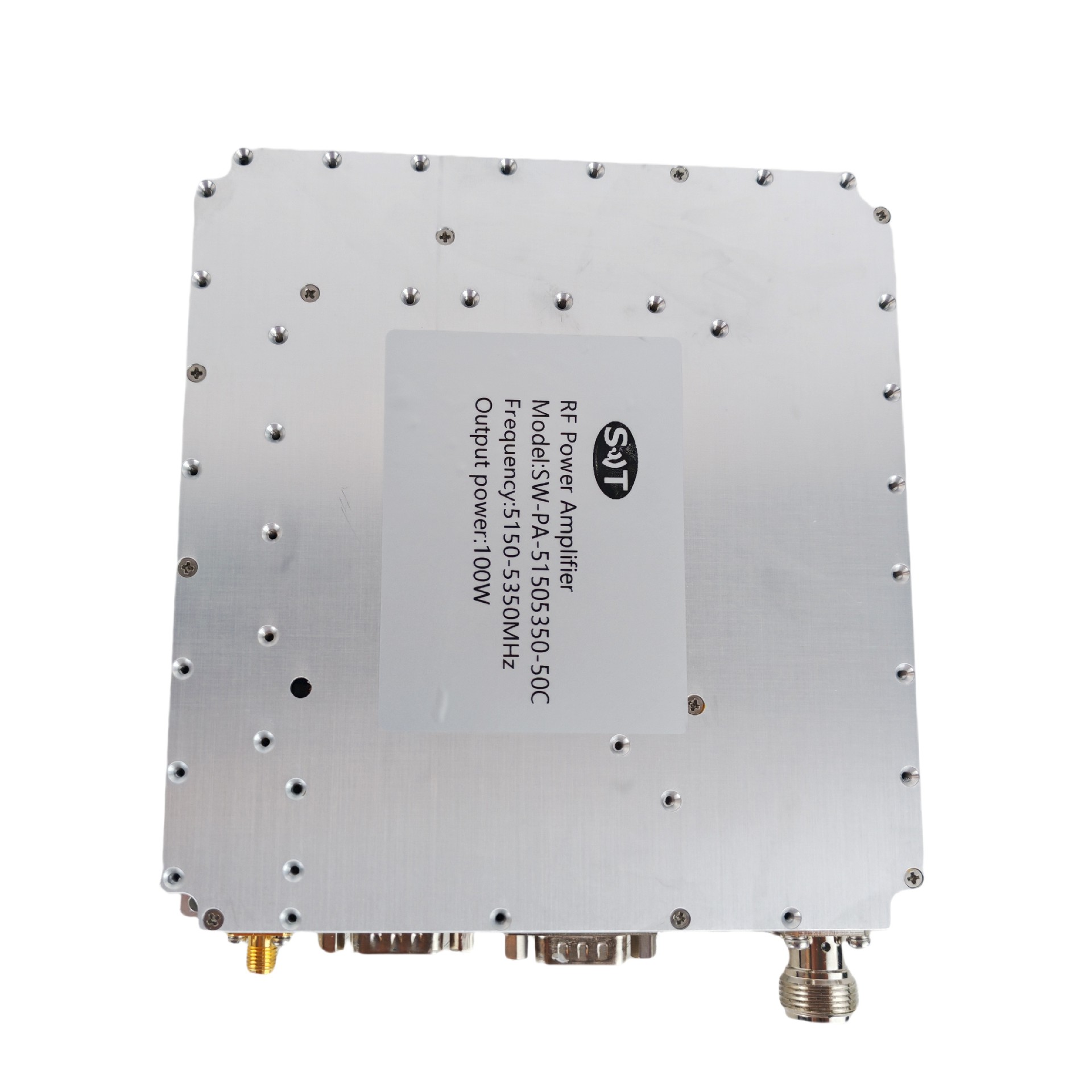

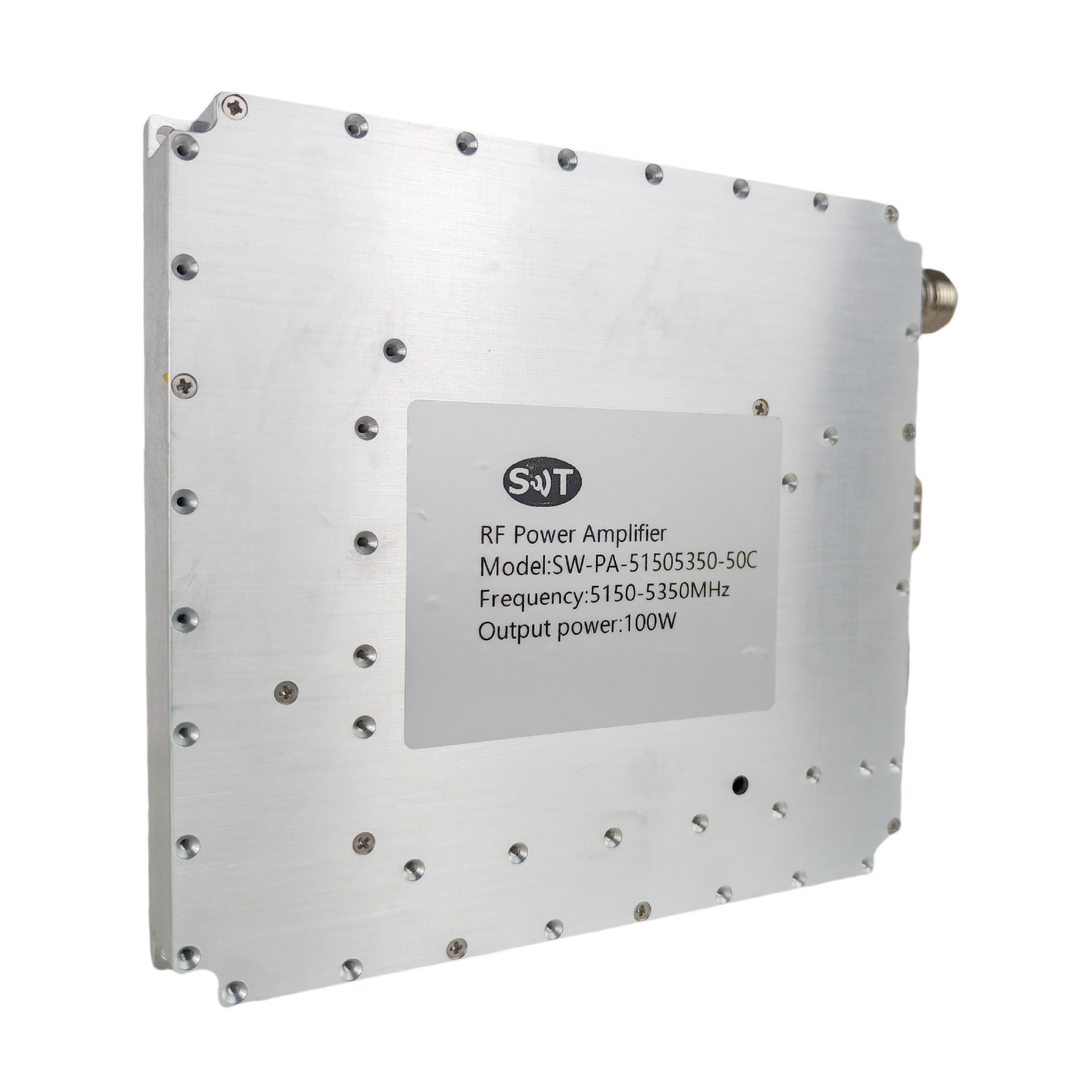

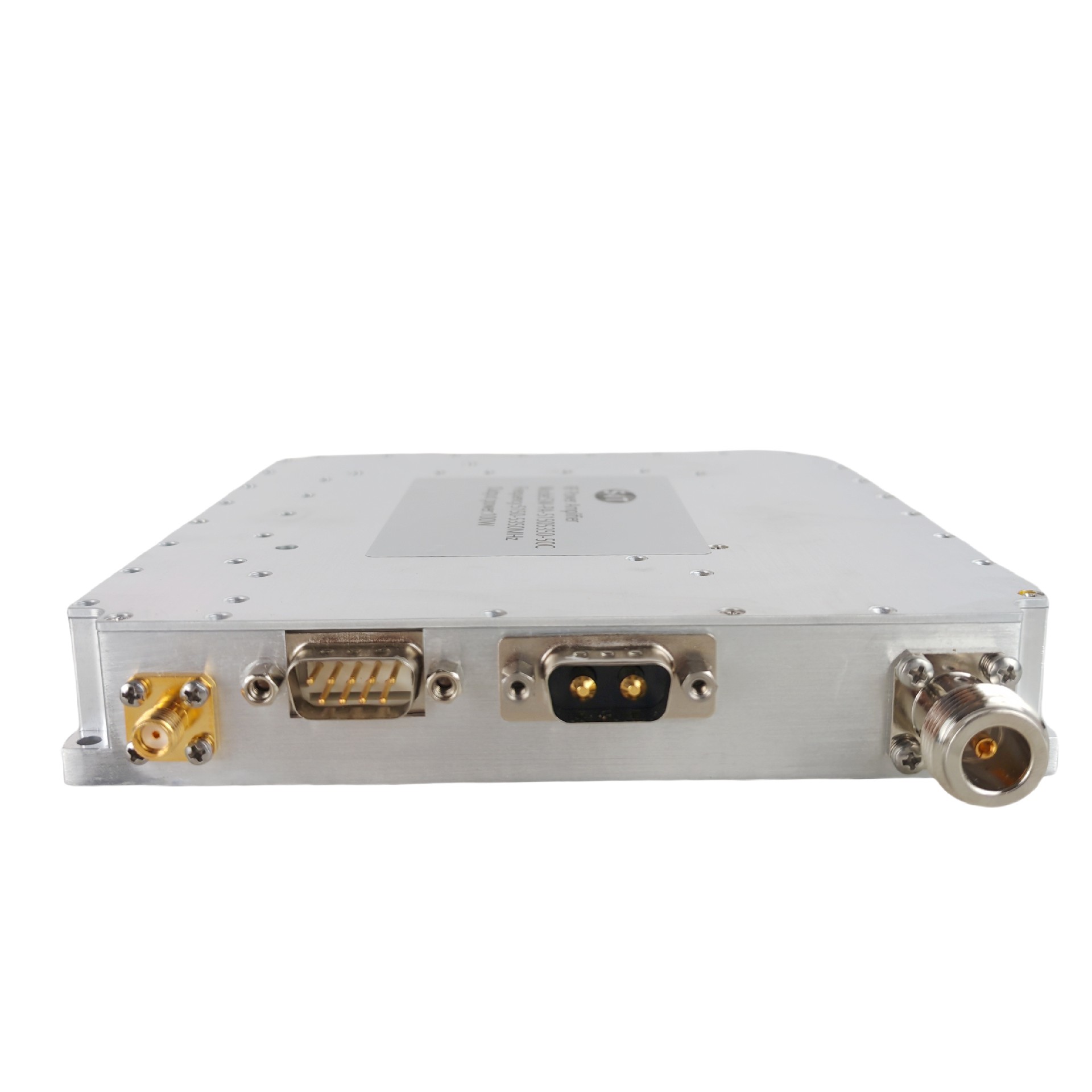

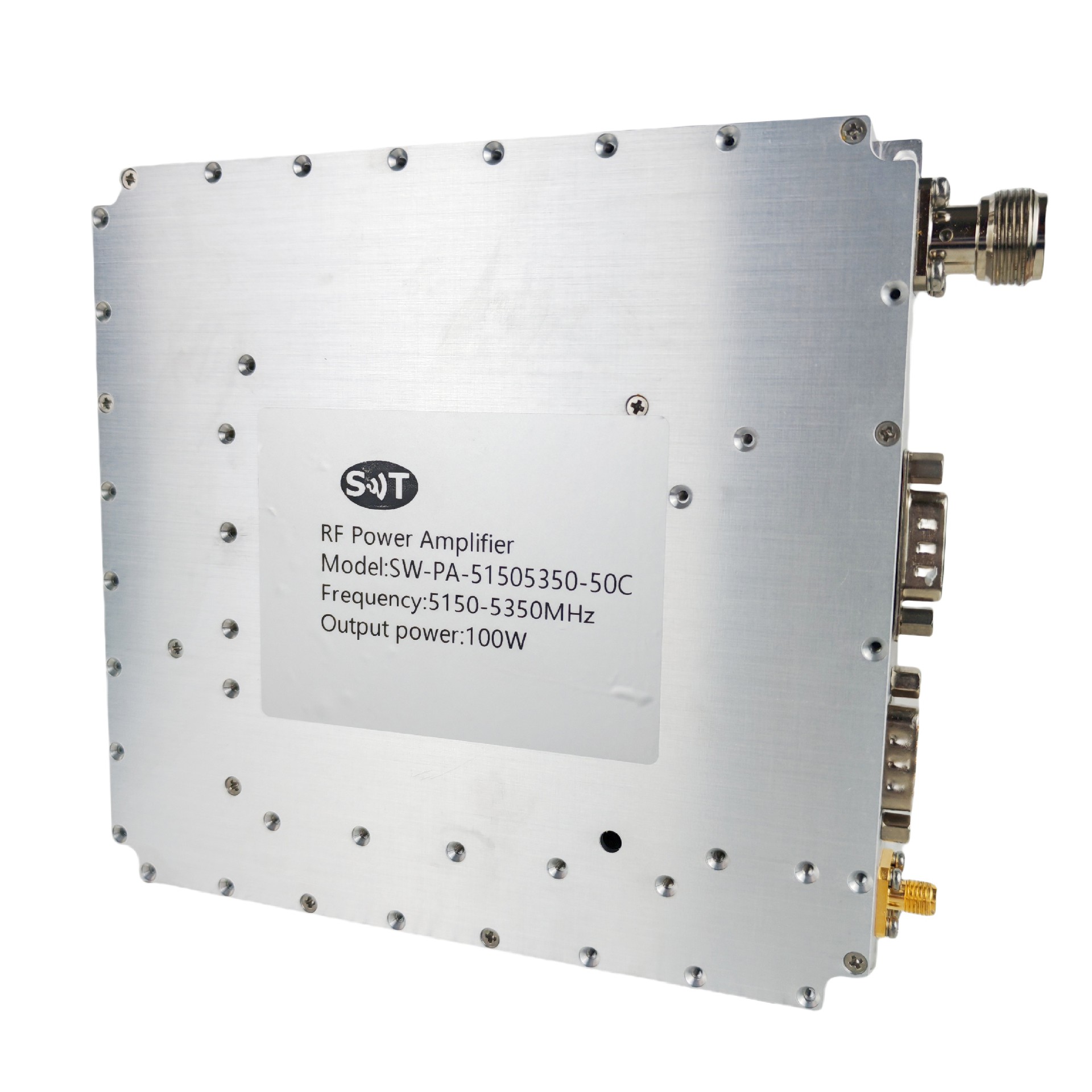

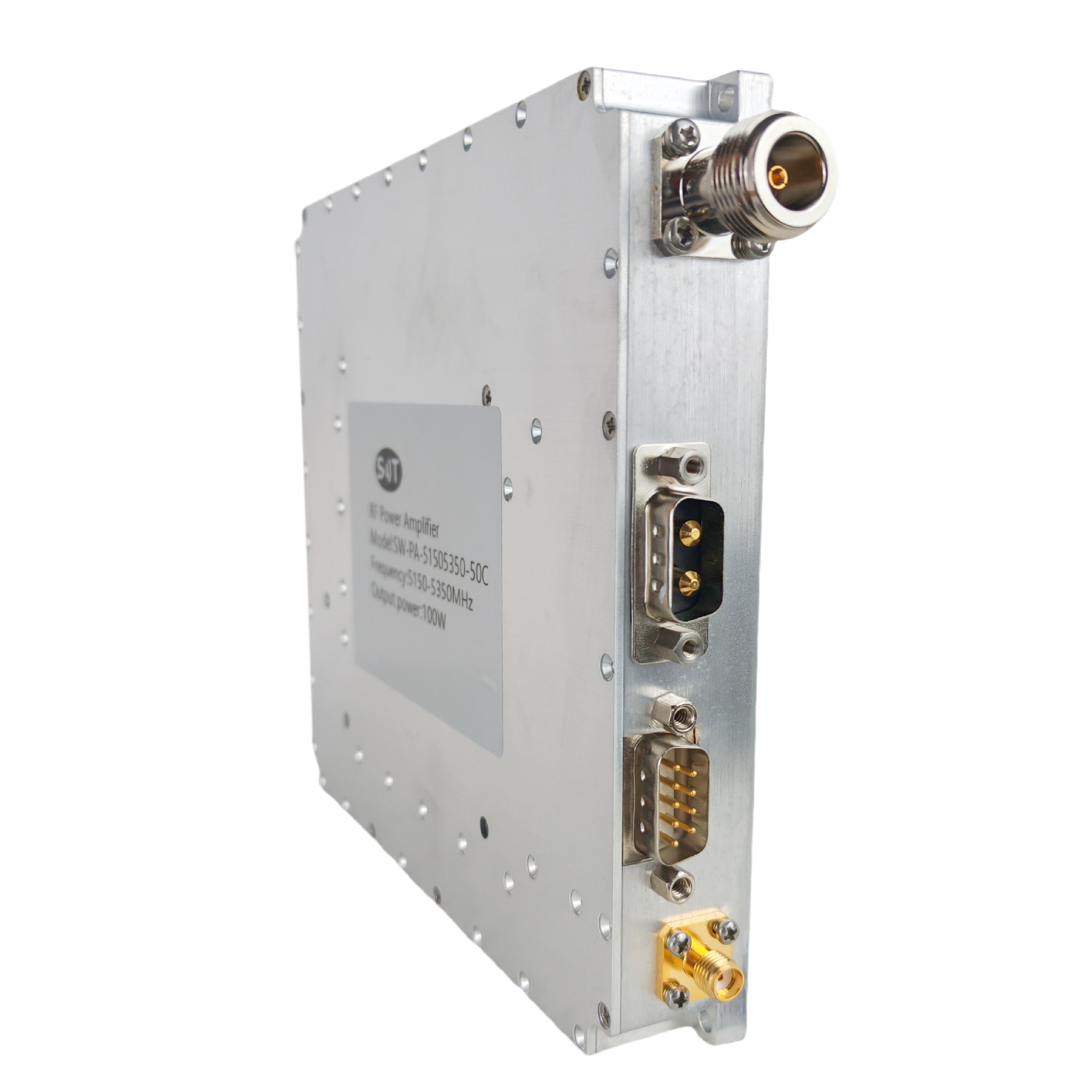

C Band 5150-5350MHz 100W RF Amplifier Module Solid State RF Amplifier for Wireless Communication
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-51505350-50C
Price：make request to get price
Product Description
C Band 5150-5350MHz 100W RF Amplifier Module Solid State RF Amplifier for wireless communication
The 5150-5350MHz 100W RF power amplifier is designed for wireless communication, radar systems, satellite transmission, and RF testing, providing high power output, low noise, and stable signal amplification to ensure reliable long-distance signal transmission.
Key Features:
Operating Frequency: 5150-5350MHz, ideal for wireless communication, radar, and microwave systems.
High Power Output: 100W (Psat 50dBm), ensuring stable long-range signal coverage.
High Gain & Low Noise: Optimized circuit design enhances signal quality while reducing distortion and interference.
Efficient Cooling System: Advanced thermal management technology supports continuous and stable long-term operation.
Durable & Versatile Design: Compatible with various RF systems, making it suitable for industrial, military, aerospace, and research applications.
This high-performance RF power amplifier is an ideal solution for wireless communication, radar signal amplification, and high-frequency RF applications, ensuring efficient and stable signal transmission
Specification
Typical performance at +28 VDC +25oC, and in a 50Ω system.
| Technical indicators | coding | Min | TYP | Max | Unit |
| operating frequency | BW | 5.7 | 5.9 | GHz | |
| Saturated output power | Psat | 100 | W | ||
| input power | Pin | 0 | dBm | ||
| Gain Flatness | ΔG | ±1.5 | dB | ||
| power gain | Gp | 50 | dB | ||
| Gain adjustment range (potentiometer adjustment) | Gadj | 0 | 20 | dB | |
| Spurious rejection @Pout=50dBm | Spur | -60 | dBc | ||
| Harmonic rejection @Pout=50dBm | 2nd/3nd | -15 | dBc | ||
| Input VSWR | VSWRin | 2.0 | |||
| Input/Output Impedance | I/O-IMP | 50 | Ω | ||
| electricity supply | Vdc | 28 | 30 | V | |
| power wastage | Pdiss | 310 | 330 | W | |
| Operating Temperature Range | OT | -20 | +55 | ºC | |
Product Details
Name:
5150-5350MHz RF Power Amplifier
Operating Frequency:
5150-5350MHz
Psat Output Power:
50dBm
Gain:
50dB
Input Vswr:
2
Power Gain Flatness:
±1.5dB
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
-20~55°C
Application:
wireless communications, radar systems, satellite communications, broadcasting, medical equipment
Transport Package:
Carton
Specification:
155*145*25mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
