Customized high-performance broadband 300-1500MHz 50w RF power amplifier for radar transmission signals

Customized high-performance broadband 300-1500MHz 50w RF power amplifier for radar transmission signals

Product Overview

This is a high-performance broadband RF power amplifier designed for signal amplification in the 300-1500MHz frequency range, delivering 50W of output power. It is widely used in wireless communication, radar, broadcasting systems, and scientific research. With a focus on performance stability and user convenience, it is an ideal choice for mid-to-high-frequency RF systems.

Detailed Specifications and Features

1. Frequency Range: 300-1500MHz

    Supports a wide frequency range, meeting the needs of various RF signals.

   Applicable for VHF and UHF frequency bands in communication and signal processing.

2. Output Power: 50W

   Provides up to 50W RF output power, suitable for long-distance wireless transmission and signal extension.

   Ideal for scenarios requiring high-power signal transmission, such as base station communication or radar signal amplification.

3. Gain Performance:

   Designed with linear gain to ensure consistent signal amplification.

   Low distortion characteristics reduce interference during the amplification process.

4. Interface Design:

   RF IN and RF OUT interfaces facilitate easy signal input and output connections.

   DC & CONTROL interface indicates that the device requires external power and control signals, typically supporting external adjustments (e.g., gain tuning or status monitoring).

5. Thermal Management and Stability:

   The metal enclosure features efficient thermal design, ensuring stable operation during high-power output.

   The uniformly distributed screws on the surface suggest excellent shielding and structural strength.

6. Operating Environment:

   Suitable for industrial environments, usually supporting a wide temperature range.

   High resistance to electromagnetic interference, ensuring reliable operation in complex settings.

Application Scenarios

1. Wireless Communication:

   Can be used as a power amplifier module for base stations, walkie-talkies, and radio broadcasting to enhance signal transmission coverage.

   Enables efficient RF signal amplification in broadband communication.

2. Radar Systems:

   Amplifies radar transmission signals to enhance target detection capabilities.

3. Scientific Research:

   Used in laboratories for signal amplification in equipment testing or new system designs.

4. Electronic Countermeasures:

   In military applications, it is used for signal jamming and power amplification.

5. Testing and Measurement:

   Serves as an RF power amplification device for verifying RF performance in tests.

Specification

Typical performance at +28VDC +25oC, and in a 50Ω system.

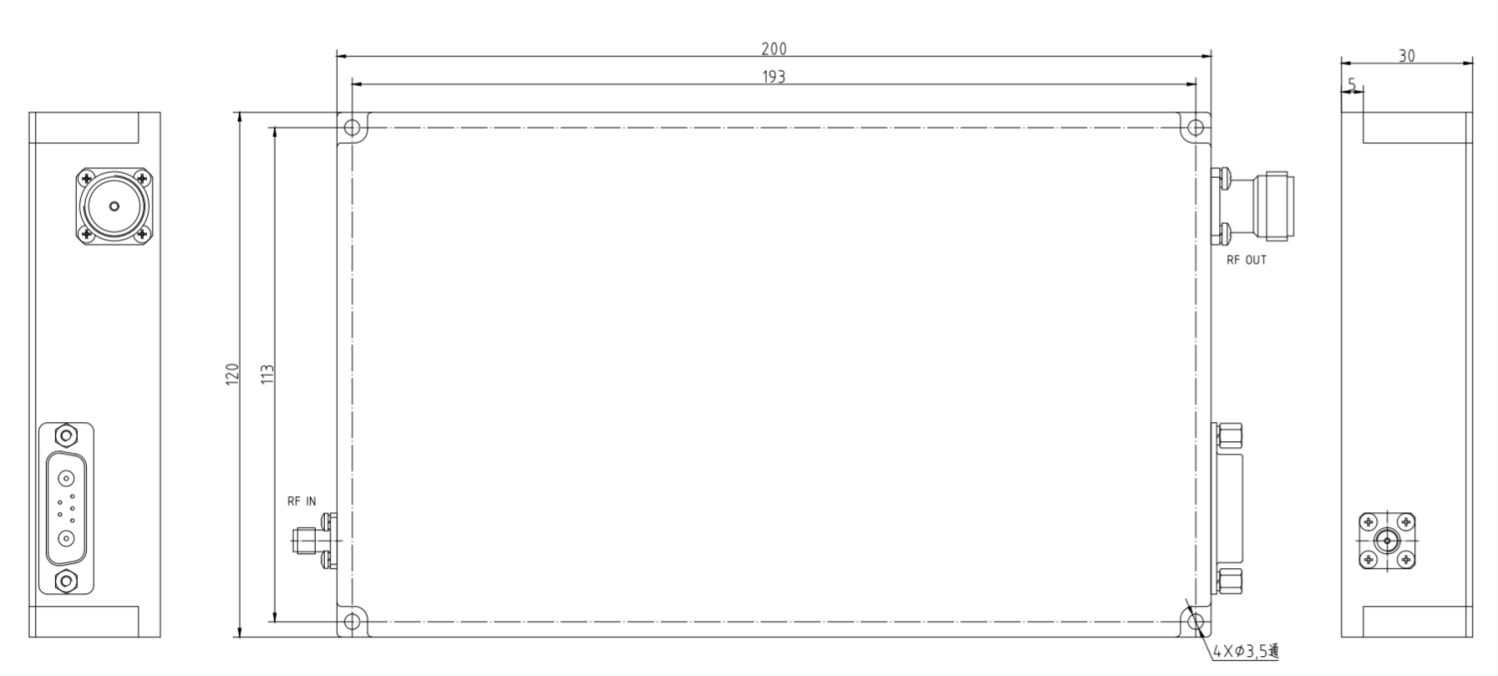

Outline Dimensional Drawing
