High-frequency communication systems high power rf amplifier 5050-5875MHz 100w Microwave Power Amplifier for Satellite Communication
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-50505875-50C
Price：make request to get price
Product Description

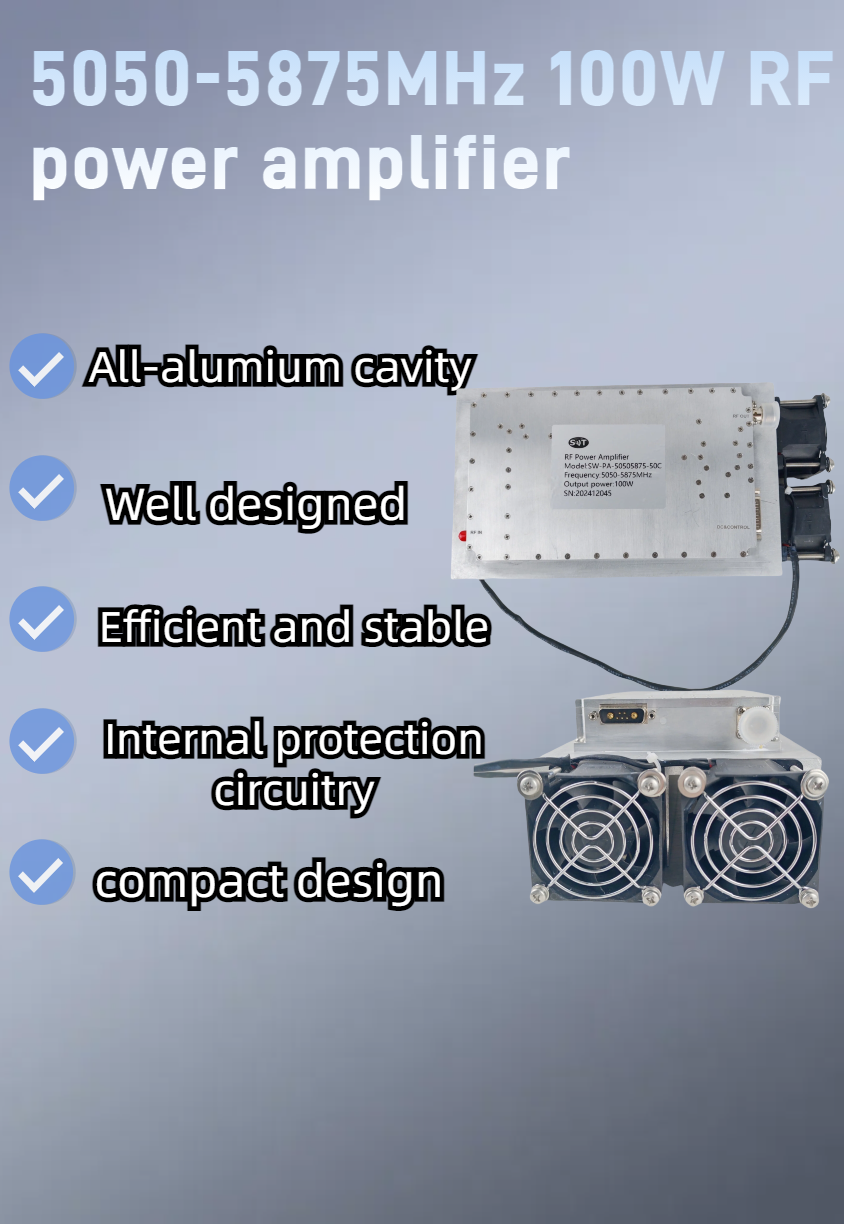

High-frequency communication systems high power rf amplifier 5050-5875MHz 100w Microwave Power Amplifier for Satellite Communication
This RF power amplifier is designed for the frequency range of 5050-5875MHz, widely used in high-frequency communication systems, radar, satellite communication, radio frequency spectrum management, and wireless broadband technologies. The amplifier can provide up to 100W of output power, ensuring stable and strong signal transmission in high-demand environments.
Features:
Frequency Range: Supports a wide bandwidth of 5050-5875MHz, catering to various application needs, especially suitable for modern communication and radar detection fields.
High Output Power: With a maximum output power of up to 100W, it meets the requirements for long-distance communication and high-power signal transmission.
High Efficiency and Cooling: The device uses a metal casing and cooling design to maintain stability during high-power operation, preventing overheating.
Wide Applications: Suitable for satellite communication, military radar, scientific research, spectrum monitoring, and other communication applications that require high power and high-frequency bands.
Applications:
Satellite Communication: Provides powerful signal amplification, ensuring stability and long-distance signal transmission in satellite communication links.
Radar Systems: Enhances radar signals to improve detection capabilities.
Wireless Communication: Used in 5G, Wi-Fi, microwave communication, and other wireless networks to extend signal coverage and improve communication quality.
Spectrum Monitoring: Provides effective signal amplification in spectrum analysis and management, helping monitor the usage of different frequency bands.
This RF power amplifier, with its high output power and high-frequency adaptability, is an essential device in modern communication and research fields.
Specification
Typical performance at +28 VDC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 5050 | 5875 | MHz | |
RF INPUT | 0 | dBm | ||
P-sat Power Output | 50 | dBm | ||
Power Gain | 50 | dB | ||
Power Gain Flatness | ±2 | dB | ||
Input VSWR | 2 | |||
Operating Voltage | 28 | V DC | ||
In-Out impedance | 50 | Ω | ||
Current | 12 | 13 | A | |

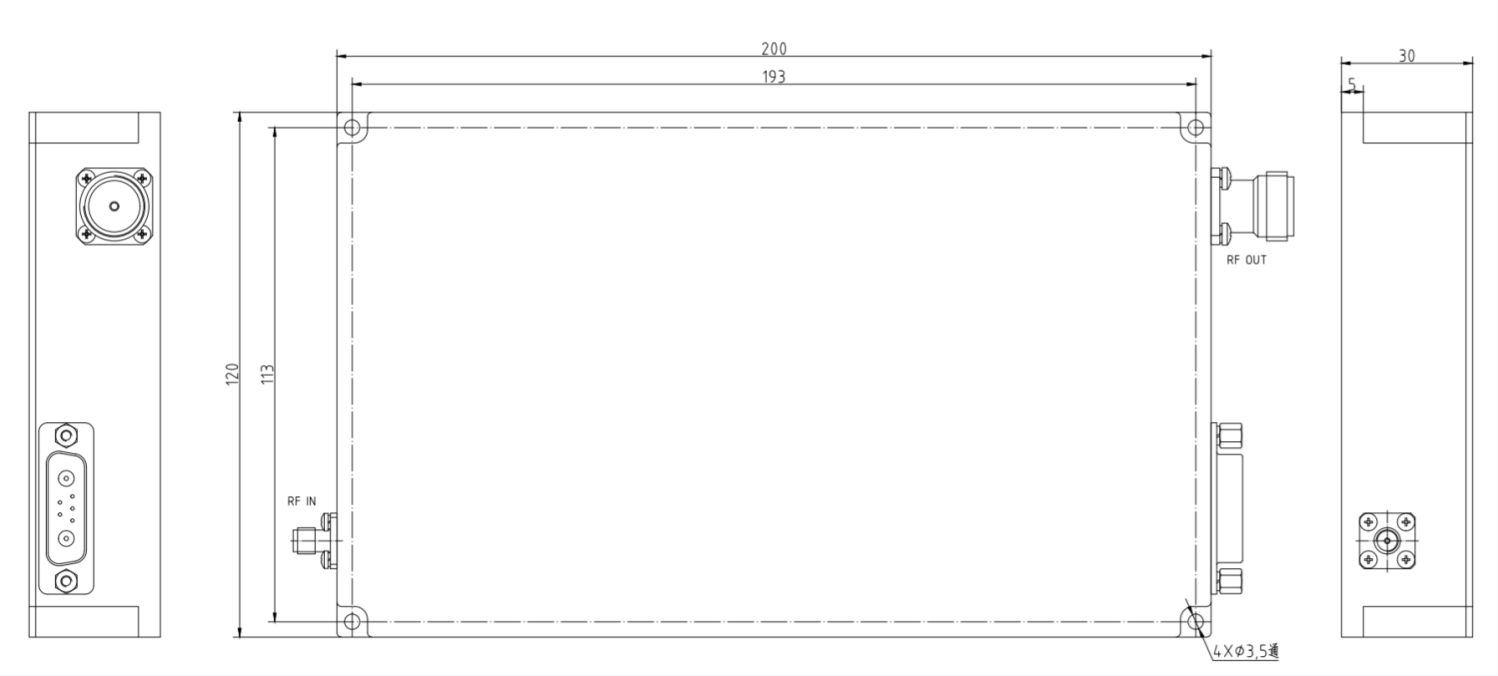

MECHANICAL | ||
PARAMETER | VALUE | UNIT |
Dimensions (L x W x H) | 200x120x30 | mm |
RF Connectors (Input / Output) | SMA- KFD/ N- KFD | -- |
DC / Control Connector | D-SUB 7W2 | -- |
Cooling | Consider heat dissipation with the system | -- |
Mounting | φ3-6 Thru Hole | -- |
Weight | ≤3 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -20 | +55 | °C |
Humidity Range | 0-100 | % | |
PA Baseplate Shutoff Temperature | + 65 | °C | |

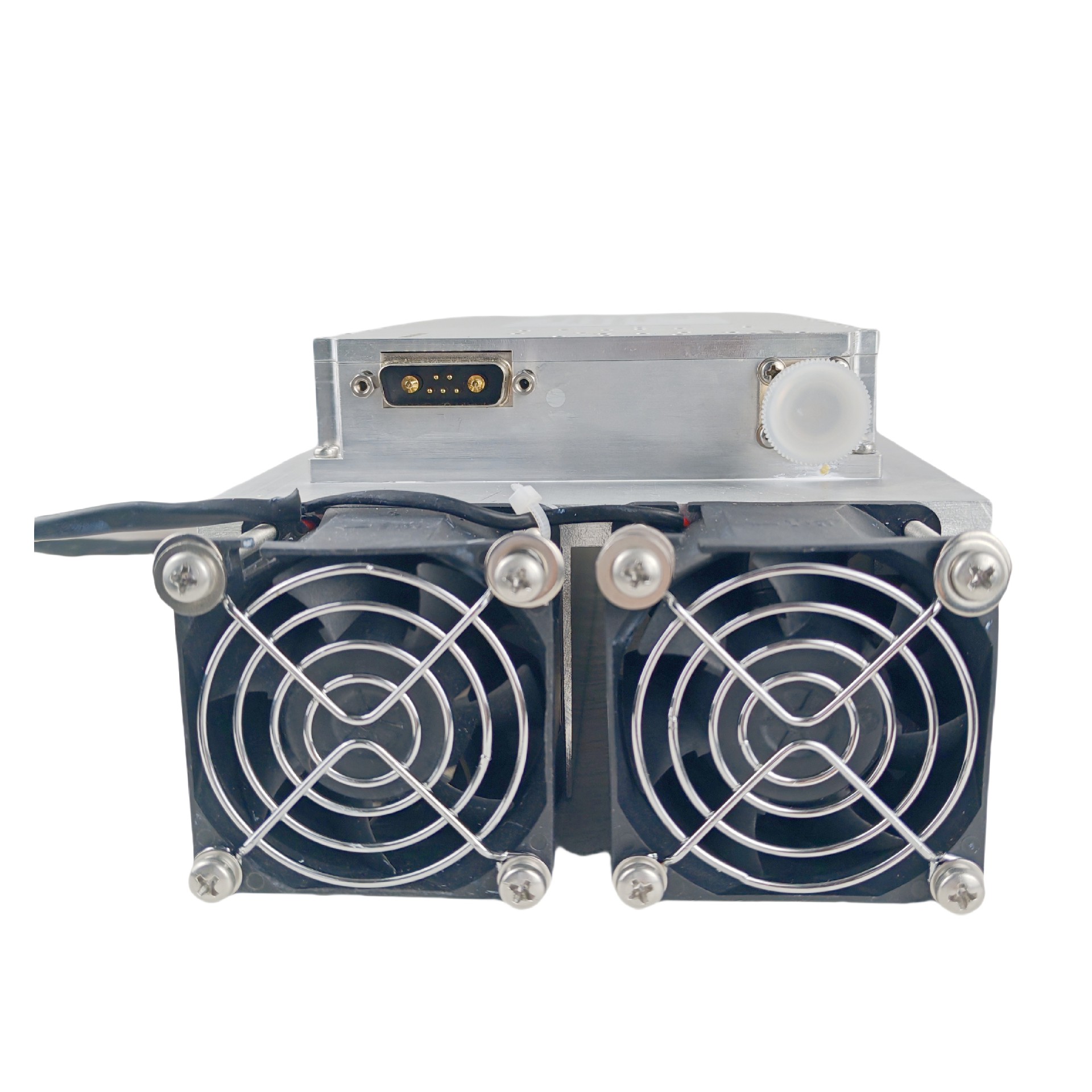

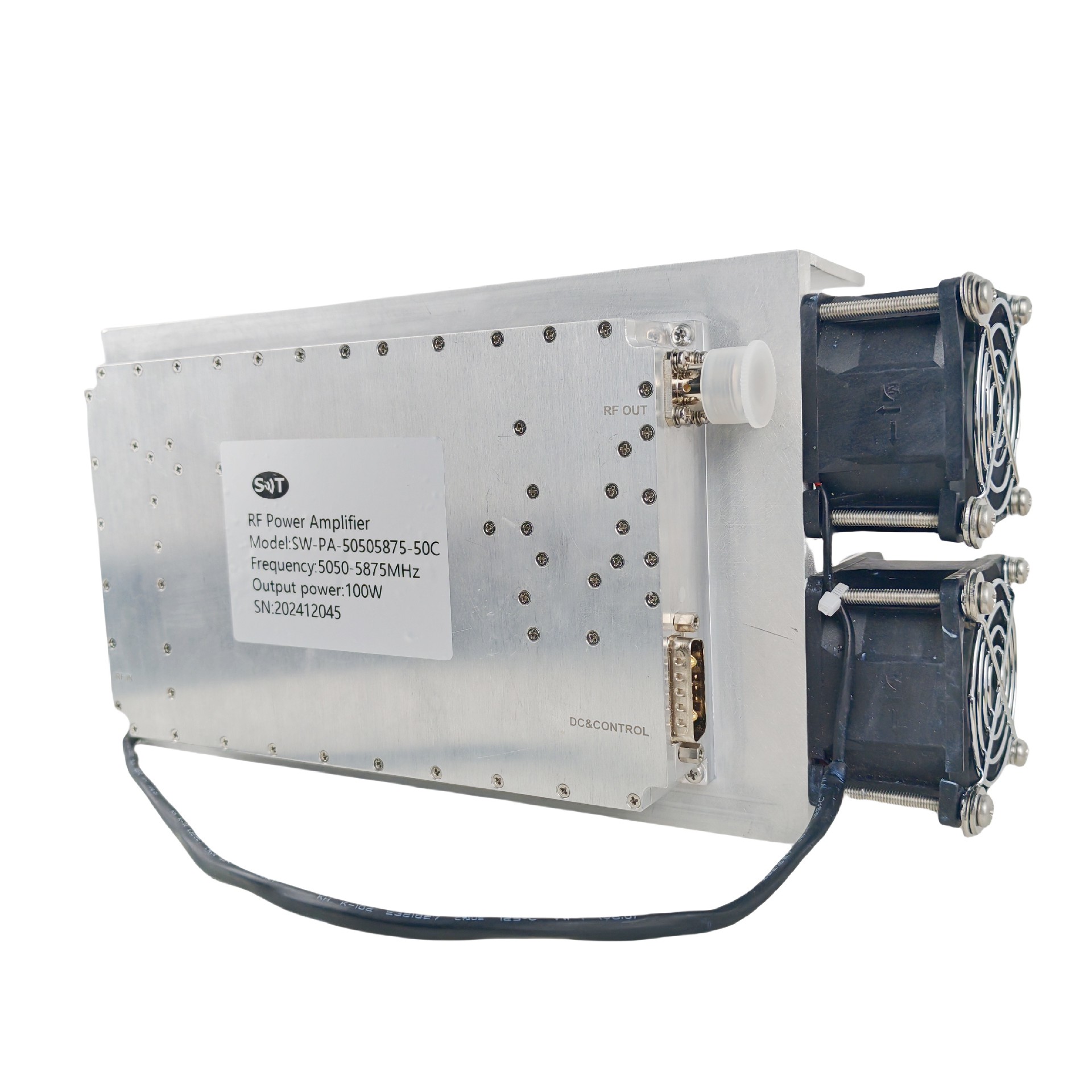

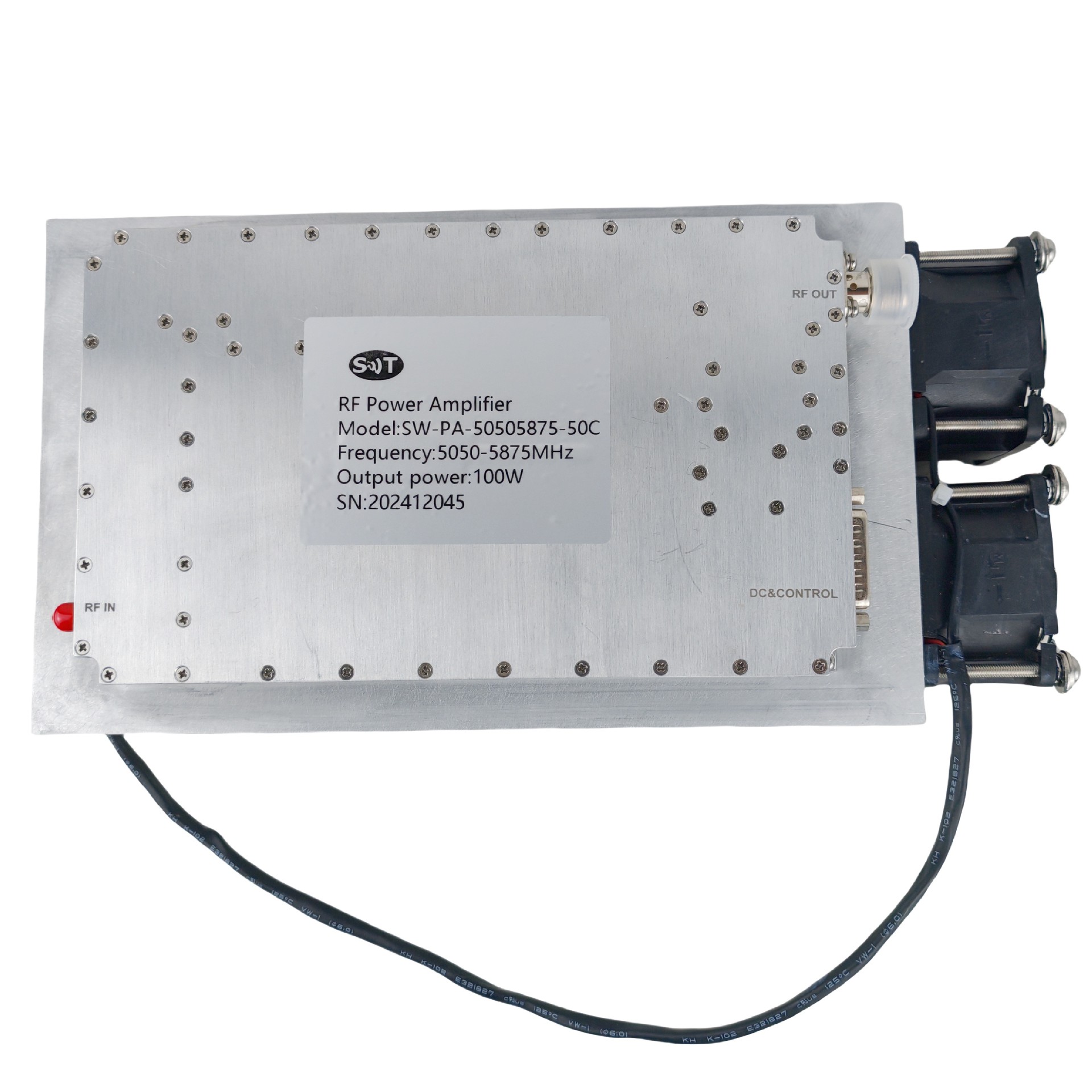

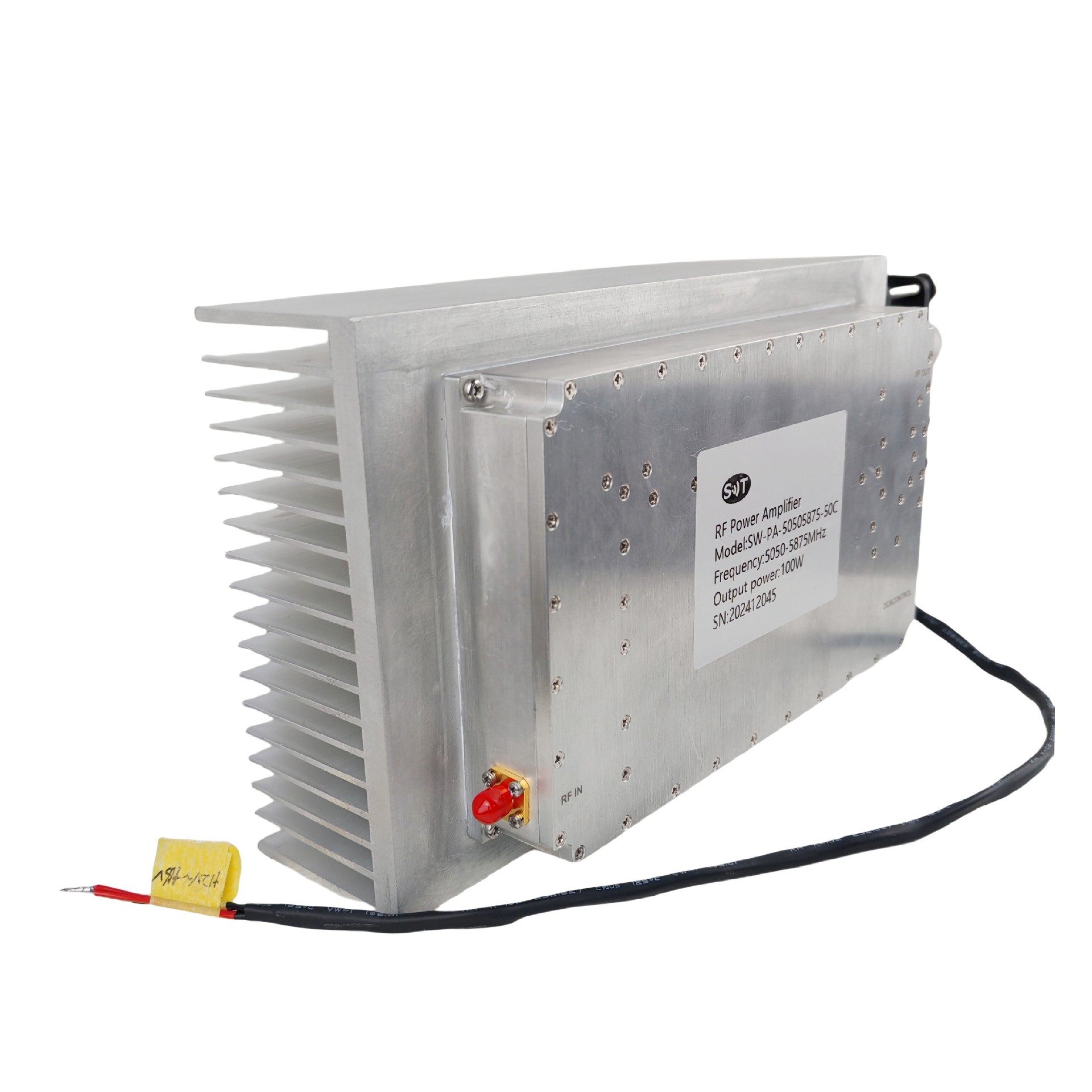

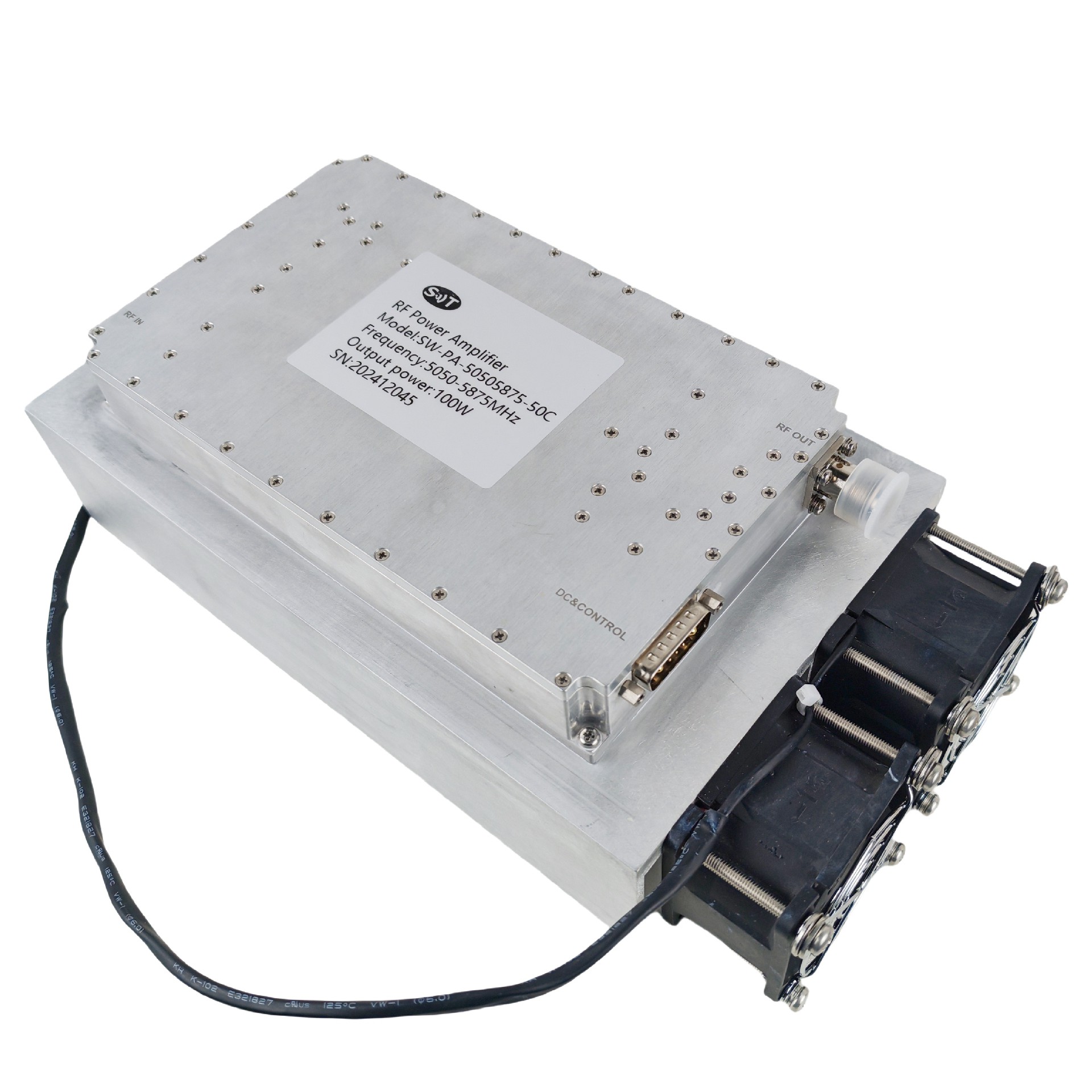

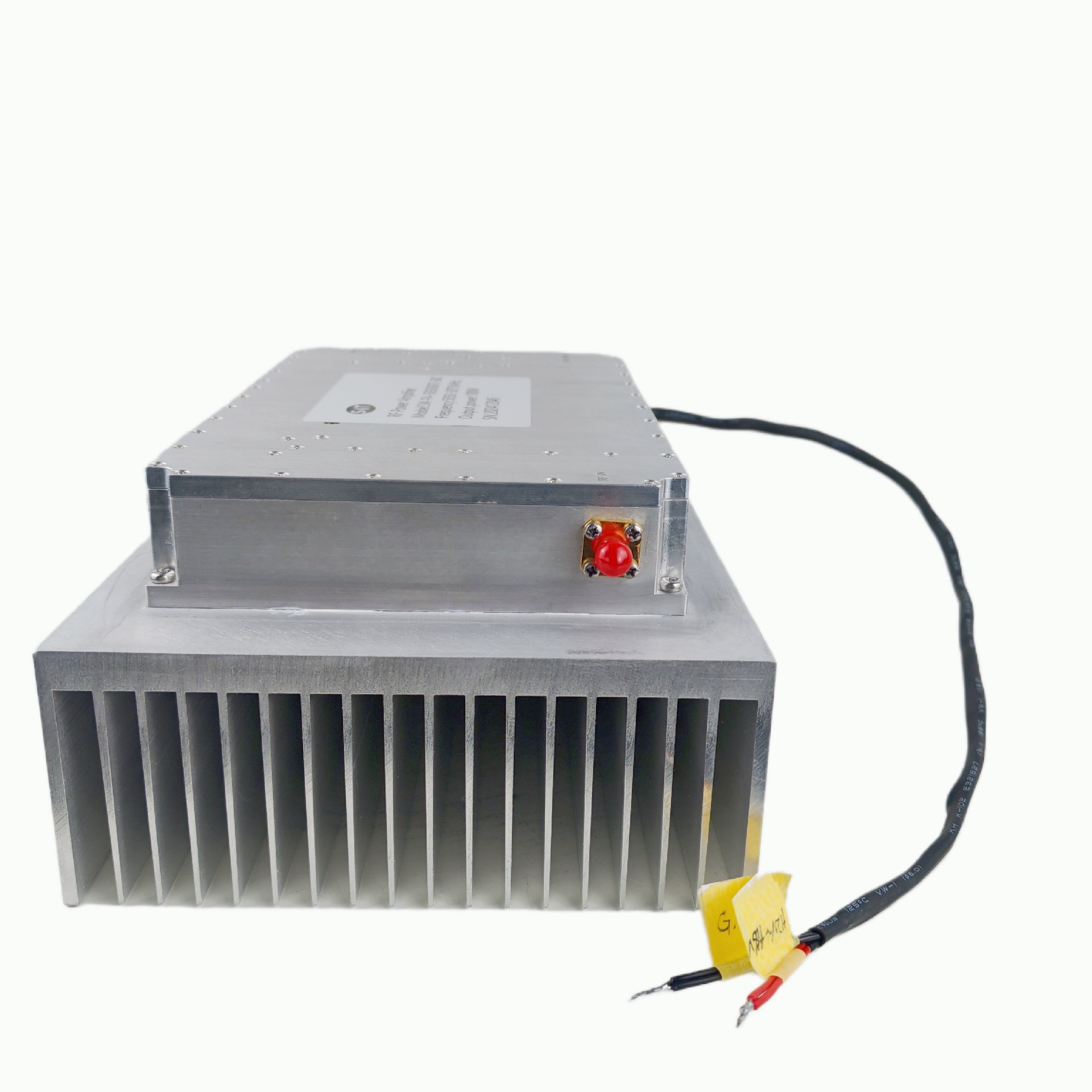

Product Details
Name:
5050-5875MHz RF Power Amplifier
Operating Frequency:
5050-5875MHz
Psat Output Power:
50dBm
Gain:
50dB
Input Vswr:
2
Power Gain Flatness:
±2dB
Spurious Signals:
Harmonic Signals:
Operating Temp:
-20~55°C
Application:
wireless communications, radar systems, satellite communications, broadcasting, medical equipment
Transport Package:
Carton
Specification:
200x120x30mm
