High power output 9 - 10GHz X Band Power Amplifier Past 1000W RF Power Amplifier for Test & Measurement
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-900010000-60C
Price：
Product Description
High power output 9 - 10GHz X Band Power Amplifier Past 1000W RF Power Amplifier for Test & Measurement
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 9 | 10 | GHz | |
| Gain | 60 | dB | ||
| Gain control | dB | |||
| Gain Flatness | dB | |||
| Noise Figure | dB | |||
| Output Power (Psat) | 1000 | Watt | ||
| Spurious | -60 | dBc | ||
| Harmonic | dBc | |||
| VSWR | 2:1 | Ratio | ||
| Input Voltage | 220VAC | |||
| Human-computer Interface | touch screen LCD:FWD Power,Temperature,Voltage,Current | |||
| Program Control Interfac | RS232 and Ethernet | |||
Note:
1. Pulse work style:Duty Cycle:5%(Max). Pulse Width:0.2-100us.
2. Over Temperature Protection; Over Voltage Protection; Over Current Protection;Over REV VSWR Protection.
3. Air forced cool.
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | dBm | |||
| Operating Temperature | -20 | +50 | ℃ | |
| Non-operating Temperature | -20 | +70 | ℃ | |
| Relative humidity (non-condensing) | 95 | % | ||
| Altitude (MIL-STD-810F) | TBD | feet | ||
| Shock / Vibration (MIL-STD-810F) | TBD | |||

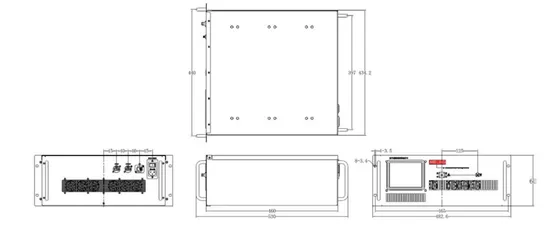

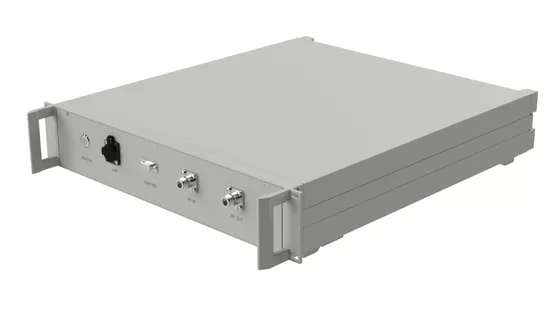

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 2U D:500mm | Max | Millimeter |
| Weight | 20000 | Max | gram |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | N-F | ||
| Forward / Reverse Detection Connectors | |||
| Impedance | 50 | Ohms | |
Product Details
Name:
9 - 10GHz RF Power Amplifier
Operating Frequency:
9 - 10GHz
Psat Output Power:
1000W
Gain:
60dB
Input Vswr:
2
Power Gain Flatness:
±3dB
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
-20~50°c
Application:
Telecommunications,Radar Systems,Satellite Communication,Test & Measurement,Broadcasting
Transport Package:
Carton
Specification:
2U
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
