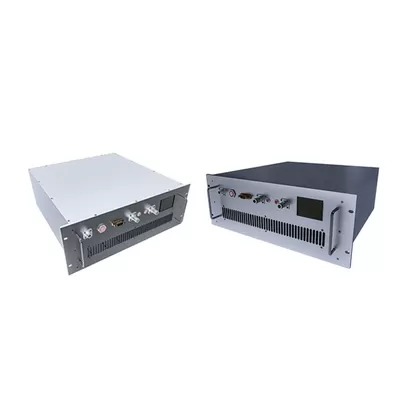

10-12GHz X Band Gan Power Amplifier Past 50W Solid State RF Amplifier for Radar Systems,Satellite Communication
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-1000012000-50C
Price：
Product Description
10-12GHz X Band Gan Power Amplifier Past 50W Solid State RF Amplifier for Radar Systems,Satellite Communication
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 10 | 12 | GHz | |
| Gain | 50 | dB | ||
| Gain control | ±1.5 | dB | ||
| Gain Flatness | dB | |||
| Noise Figure | dB | |||
| Output Power (Psat) | 50 | Watt | ||
| Spurious | -60 | dBc | ||
| Harmonic | -15 | dBc | ||
| VSWR | 2:1 | Ratio | ||
| Input Voltage | 220VAC | |||
| Human-computer Interface | touch screen LCD:Voltage,Current,Gain,FWD Power | |||
| Program Control Interfac | RS422 and Ethernet | |||
Note:
1. Over Voltage Protection; Over Current Protection;Over REV VSWR Protection;Enable;Modulation.
2. Detection Function:FWD/REV Power;Coupling.
3. Forced air cooling.
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | +10 | dBm | ||
| Operating Temperature | -10 | +40 | ℃ | |
| Non-operating Temperature | -40 | +85 | ℃ | |
| Relative humidity (non-condensing) | 90 | % | ||
| Altitude (MIL-STD-810F) | 10000 | 30000 | feet | |
| Shock / Vibration (MIL-STD-810F) | Airbone | |||

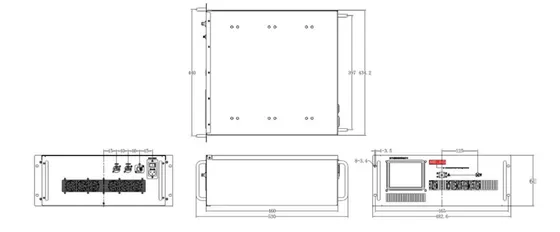

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 19’ | Max | Millimeter |
| Weight | 15000 | Max | gram |
| RF Connectors Input | SMA-F | ||
| RF Connectors output | N-F | ||
| Forward / Reverse Detection Connectors | |||
| Impedance | 50 | Ohms | |
Product Details
Name:
10-12GHz RF Power Amplifier
Operating Frequency:
10-12GHz
Psat Output Power:
50W
Gain:
47dB
Input Vswr:
2:1Ratio
Power Gain Flatness:
±3dB
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
-10~40°c
Application:
Telecommunications,Radar Systems,Satellite Communication,Test & Measurement,Broadcasting
Transport Package:
Carton
Specification:
3U
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
