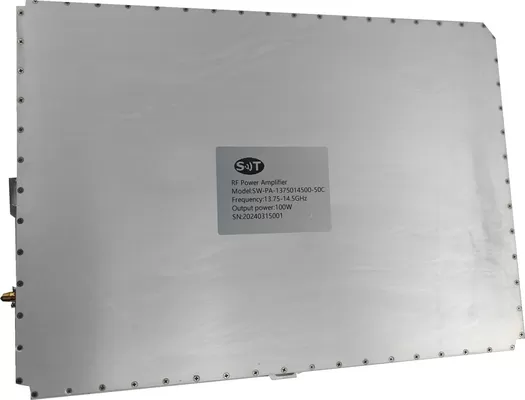

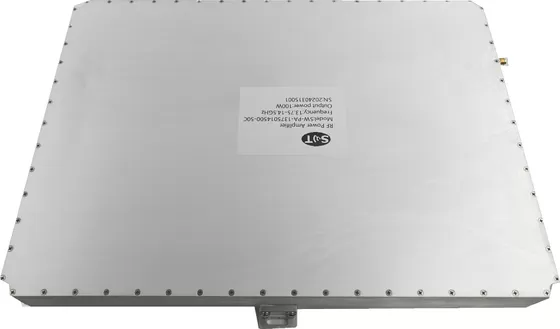

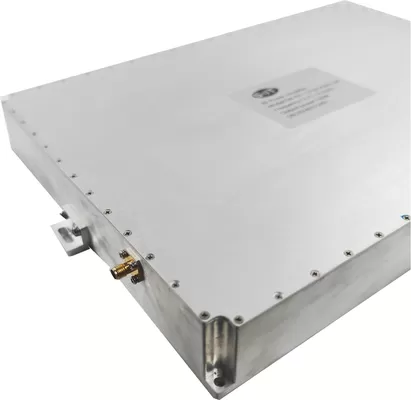

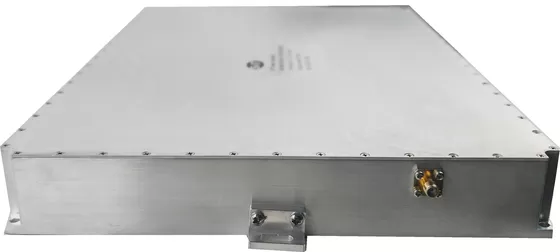

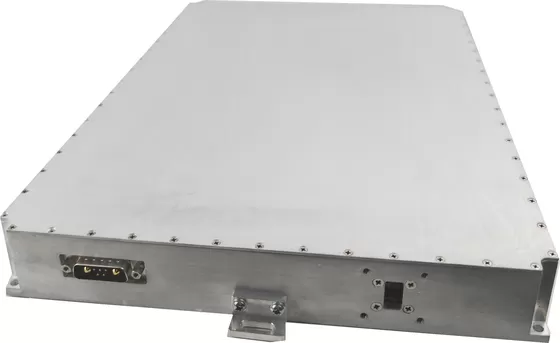

Professional Microwave Communication Module 13.75-14.5GHz 100W 50dBm RF Power Amplifier
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-1375014500-50C
Price：$13810/pcs
Product Description
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Outline Dimensional Drawing
Specification
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 13750 | 14500 | MHz | |
| RF INPUT | 0 | dBm | ||
| P-sat Power Output | 50 | dBm | ||
| Power Gain | 50 | dB | ||
| Power Gain Flatness | ±1 | dB | ||
| Harmonic Signals | -30 | dBc | ||
| IM3@Two-tone Test,Po=41dBm (Single Carrier Level) Δ f=5MHz(IM3) | -25 | dBc | ||
| Input VSWR | 1.5 | 2 | ||
| Operating Voltage | 24 | V DC | ||
| Currents | 32 | A | ||
| In-Out impedance | 50 | Ω | ||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (L x W x H) | 350*280*40 | mm |
| RF Connectors (Input / Output) | SMA- KFD/ N- KFD | -- |
| DC / Control Connector | D-SUB 7W2 | -- |
| Cooling | Consider heat dissipation with the system | -- |
| Mounting | φ3-8 Thru Hole | -- |
| Weight | ≤10 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. (Housing Temp.) | -20 | +55 | °C |
| Humidity Range | 0-100 | % | |
| PA Baseplate Shutoff Temperature | + 85 | °C | |
| INPUT/OUTPUT PINS | |||
| AMPLIFIER CONNECTOR TYPE: | D-SUB 7W2 | ||
| TRIAD CABLE PART NUMBER: | -- | ||
| PIN NUMBER | LABEL | DESCRIPTION | |
| 1-2 | +VDC | +24V | |
| 3 | GND | Ground | |
| 4 | NC | NC | |
| 5 | Amp Enable | Disable: TTL "Low", Enable : TTL "High" (Low : 0~0.5V, High : 2.5~5V) | |
| 6-9 | GND | Ground | |
Product Details
Name:
13.75-14.5GHz RF Power Amplifier
Operating Frequency:
13.75-14.5GHz
Psat Output Power:
100W
Gain:
50dB
Input Vswr:
2
Power Gain Flatness:
±1dB
Spurious Signals:
-60dBc
Harmonic Signals:
-30dBc
Operating Temp:
-20~55°c
Application:
Communication,EMC Test,Electronic Warfare
Transport Package:
Carton
Specification:
350*280*40mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
