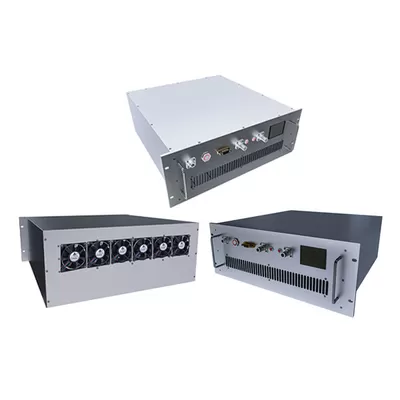

Ka Band Power Amplifier 18-26.5GHz Psat CW 40W RF Power Amplifier
Description
The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25℃, and in a 50Ω system.
| ELECTRICAL SPECIFICATIONS@25℃ | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Frequency Range | 18 | 26.5 | GHz | |
| Power Gain | 39 | dB | ||
| Gain control | dB | |||
| Power Gain Flatness | ±3 | dB | ||
| Noise Figure | dB | |||
| Output Power (Psat CW) | 40 | Watt | ||
| Spurious | -50 | dBc | ||
| Harmonic | -10 | dBc | ||
| Input VSWR | 2:1 | Ratio | ||
| Output VSWR | 2.5:1 | Ratio | ||
| Input Voltage | 180 | 220 | 240 | Volt |
| Human-computer Interface | touch screen LCD:Voltage,Current,Temperature,FWD/REV Power | |||
| Program Control Interfac | TCP/IP and Ethernet | |||
Note:
1. Input Signal:AM, FM, CW Pulse. LFM. Phase coded.
2. Over Temperature Protection; Over REV VSWR Protection; Over incentive protection.
3. Air forced cool.
4. Protection from Rain. Sand and Dust.
| ENVIRONMENTAL RATINGS | ||||
| PARAMETER | MIN | TYPICAL | MAX | UNIT |
| Max Input power | 0±6 | dBm | ||
| Operating Temperature | 0 | +55 | ℃ | |
| Non-operating Temperature | -10 | +70 | ℃ | |
| Relative humidity (non-condensing) | 90 | % | ||
| Altitude (MIL-STD-810F) | 10000 | 30000 | feet | |
| Shock / Vibration (MIL-STD-810F) | Airbone | |||

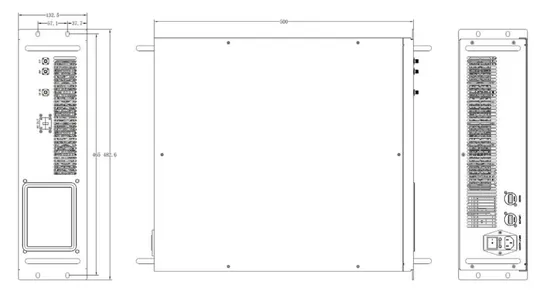

| MECHANICAL SPECIFICATIONS | |||
| PARAMETER | VALUE | LIMITS | UNIT |
| Dimensions | 3U D:500mm | Max | Millimeter |
| Weight | 16000±2500 | Max | gram |
| RF Connectors Input | 2.92mm-F | ||
| RF Connectors output | WR42 | ||
| Forward / Reverse Detection Connectors | 2.92mm-F | ||
| Impedance | Ohms | ||
Product Details
Name:
18-26.5GHz RF Power Amplifier
Operating Frequency:
18-26.5GHz
Psat Output Power:
40W
Gain:
39dB
Input Vswr:
2
Power Gain Flatness:
±3dB
Spurious Signals:
-50dBc
Harmonic Signals:
-15dBc
Operating Temp:
0~55°c
Application:
Telecommunications,Broadcasting,Military,Satellite Communication,Scientific Research
Transport Package:
Carton
Specification:
3U
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
