High Power Output 80W RF Power Amplifier Ku Band 12.9-13.1GHz Amplifier Module for Communication
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-1290013100-49C
Price：make request to get price
Product Description
High Power Output 80W RF Power Amplifier Ku Band 12.9-13.1GHz Amplifier Module for Communication
The 12.9-13.1GHz 80W RF power amplifier is designed for satellite communication, radar systems, microwave transmission, and RF testing, offering high power, high linearity, and stable signal amplification.
Key Features:
Operating Frequency: 12.9-13.1GHz, ideal for satellite and radar applications.
High Power Output: 80W (Psat 49dBm), ensuring stable long-distance signal transmission.
High Gain & Low Noise: Optimized circuit design minimizes signal distortion and enhances communication quality.

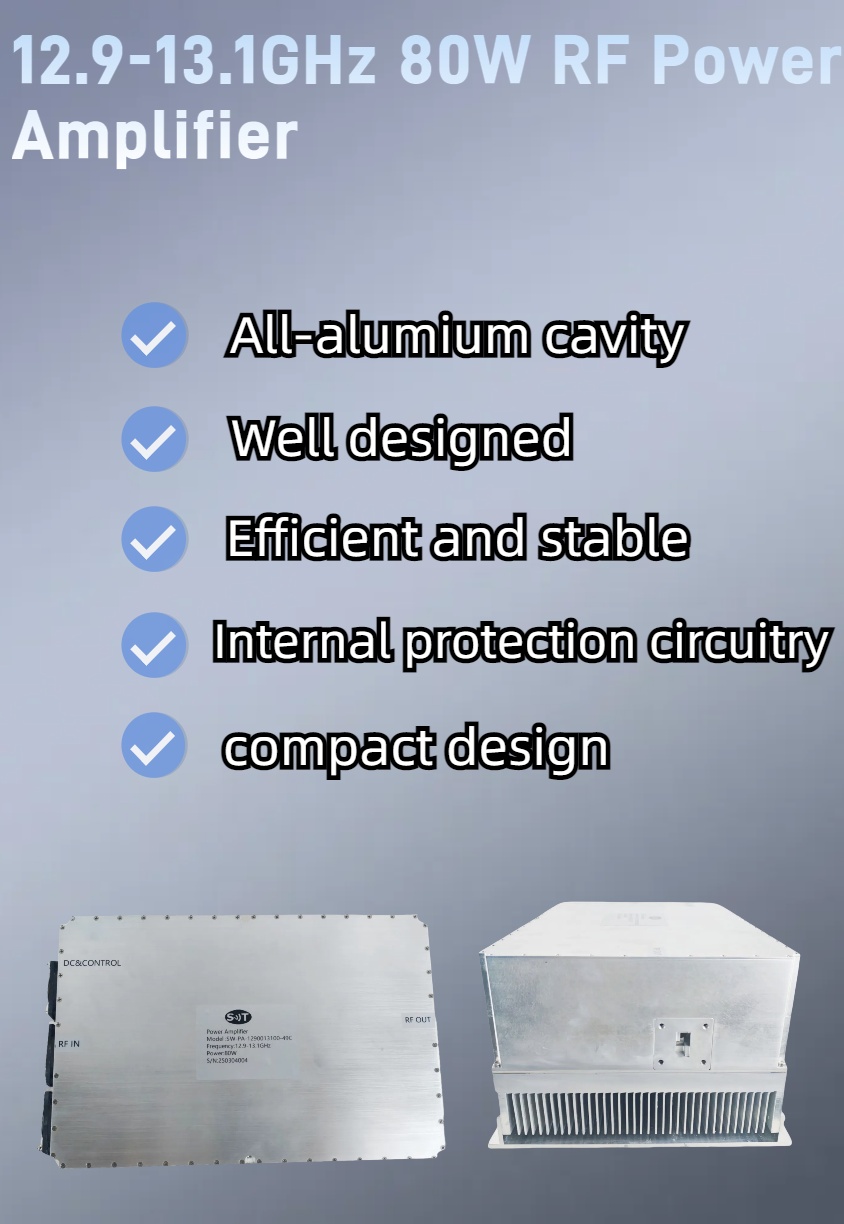

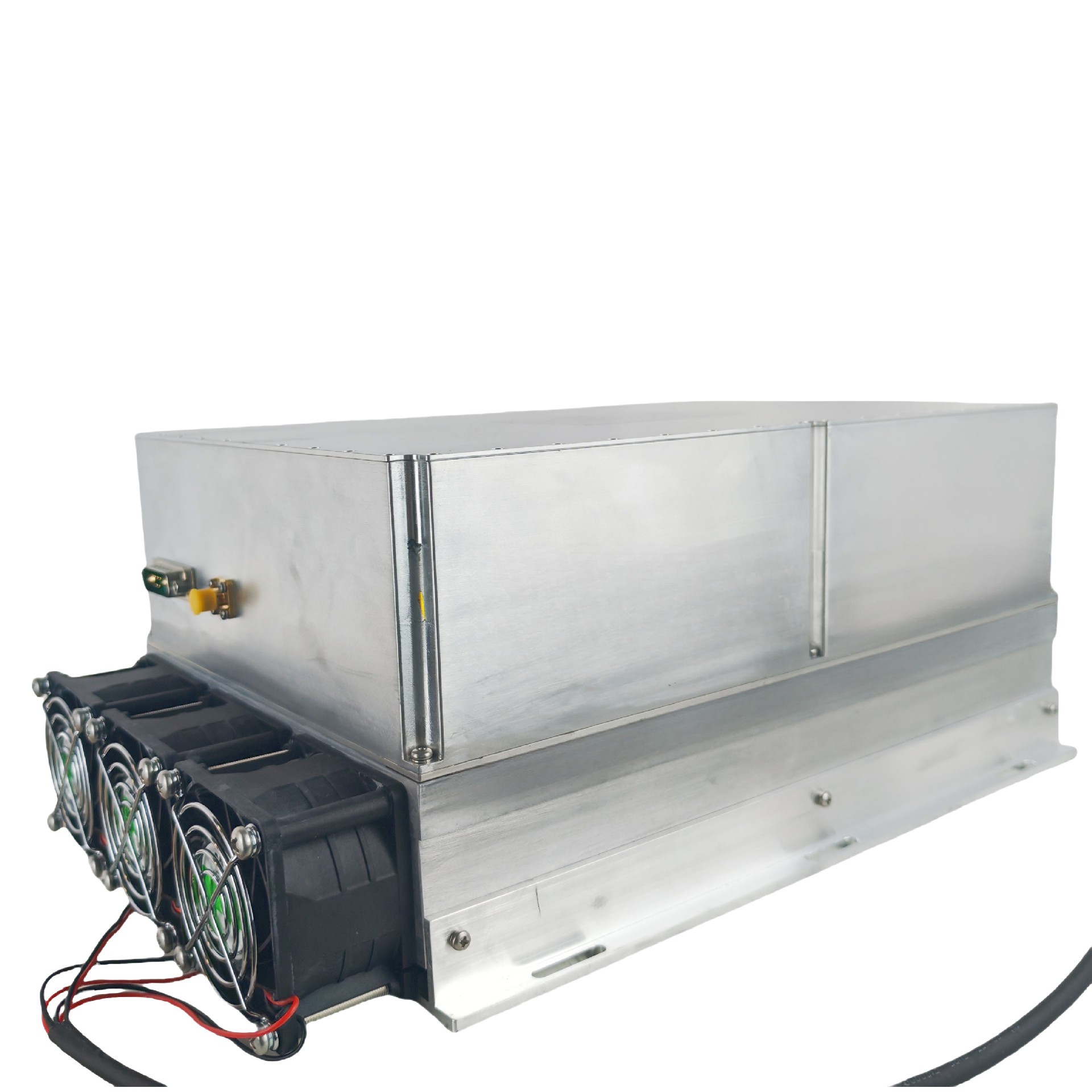

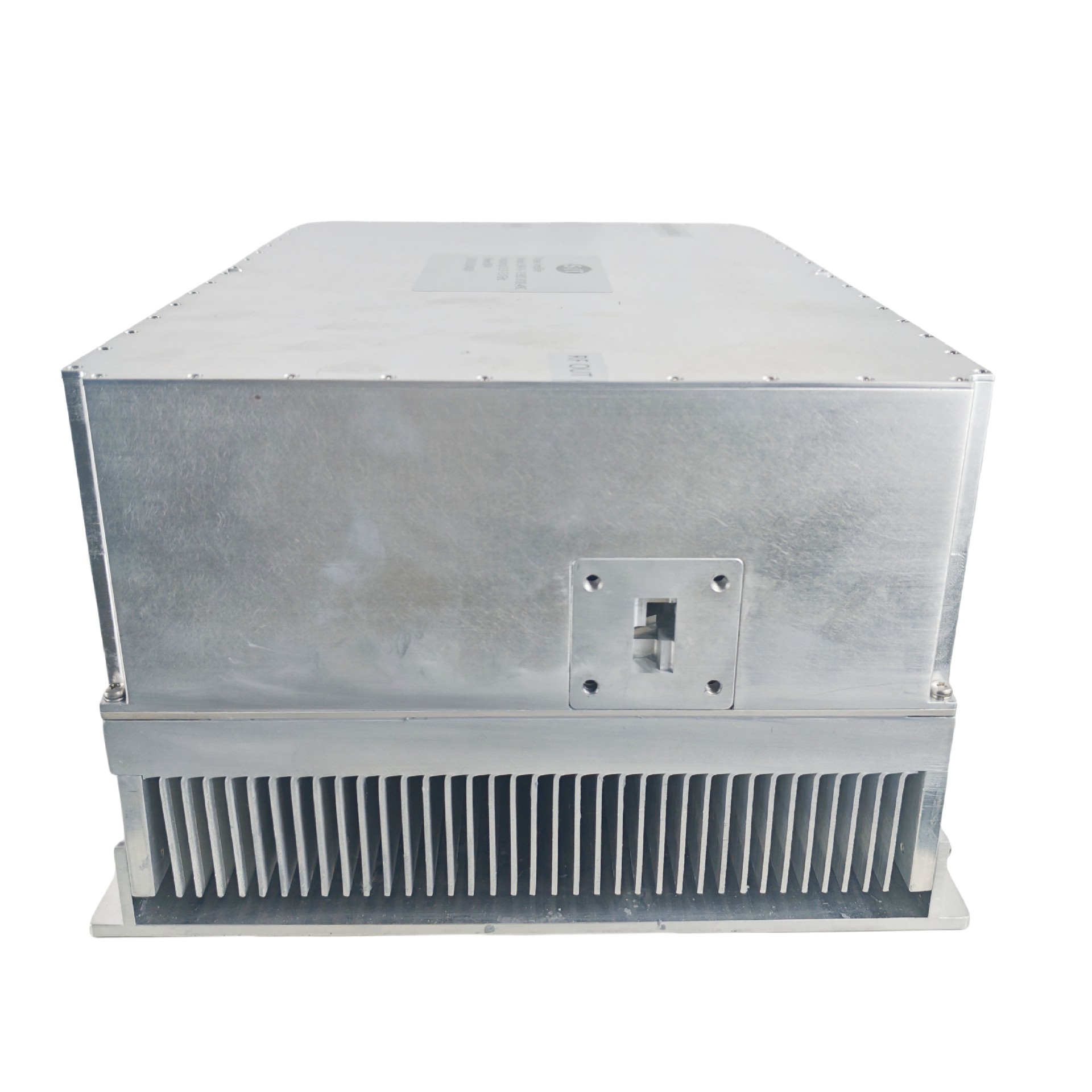

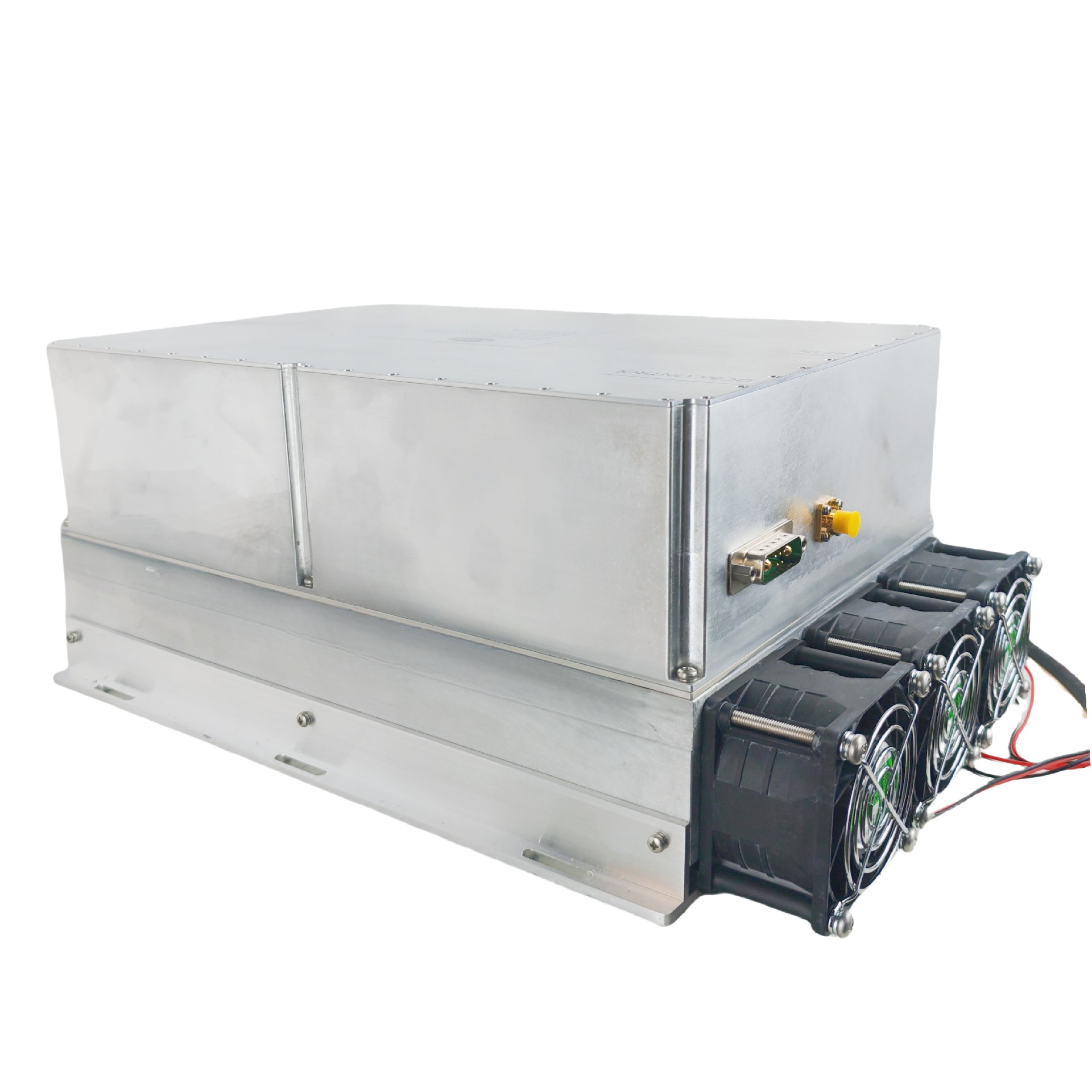

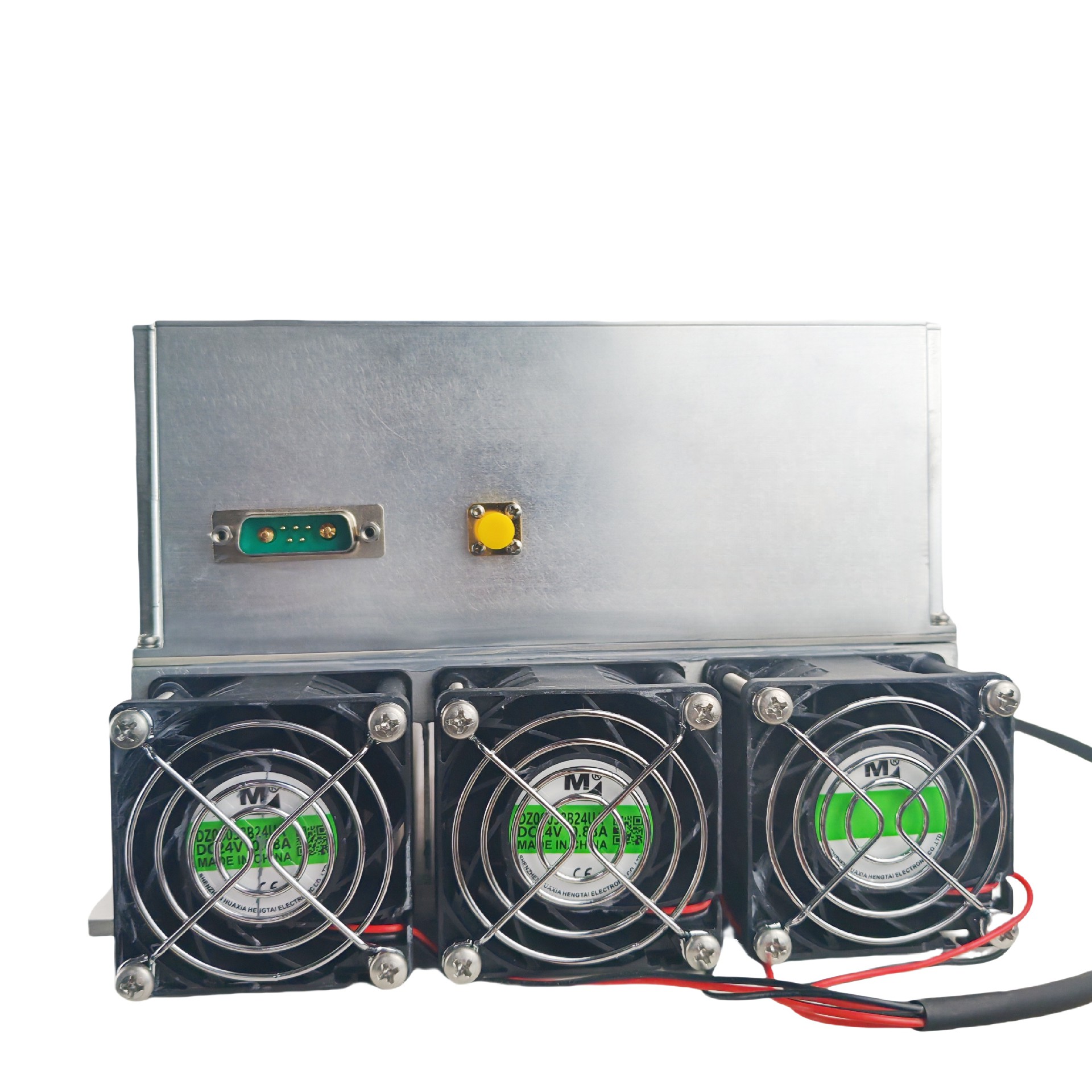

Efficient Cooling System: Advanced thermal management enables long-term stable operation and improves device reliability.
Durable & Versatile Design: Compatible with various RF systems, suitable for military, aerospace, industrial, and research applications.
This high-performance RF power amplifier is an ideal solution for microwave communication, radar signal amplification, and high-frequency RF applications, ensuring efficient and stable signal transmission.
Specification
Typical performance at +28VDC +25oC, and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 12.9 | 13.1 | GHz | |
| RF INPUT | 0 | dBm | ||
| Power Gain | 49 | dB | ||
| P-1dB Output Power | 49 | dBm | ||
| Power Gain temperature drift | 3 | dB | ||
| In/Out Impedance | 50 | Ω | ||
| Input VSWR | 1.5 | |||
| Spurious Signals | -55 | dBc | ||
| IMD3@Output 42dbm @ two tone space 5MHz | -25 | dBc | ||
| Operating Voltage | 48 | V DC | ||
| Power Dissipation | 1000 | W | ||
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
OperatingTemp.(Housing Temp.) | -40 | +60 | °C |
Humidity Range | 0-100 | % | |
PA Baseplate Shutoff Temperature | + 90 | °C | |
Product Details
Name:
12.9-13.1GHz RF Power Amplifier
Operating Frequency:
12.9-13.1GHz
Psat Output Power:
49dBm
Gain:
49dB
Input Vswr:
1.5
Power Gain Flatness:
±3dB
Spurious Signals:
-55dBc
Harmonic Signals:
-25dBc
Operating Temp:
-40~60°C
Application:
wireless communications, radar systems, satellite communications, broadcasting, medical equipment
Transport Package:
Carton
Specification:
300*200*80mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
