8-11GHz 20w high-frequency signal amplification RF Power Amplifier Low Distortion Amplification Amplifier module
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-800011000-43C
Price：make request to get price
Product Description
8-11GHz 20w high-frequency signal amplification RF Power Amplifier Low Distortion Amplification Amplifier module
Introduction
This is an RF power amplifier operating in the 8-11GHz frequency range, specifically designed for microwave applications. It is ideal for radar systems, satellite communications, electronic warfare, and scientific testing requiring high-frequency signal amplification.Key Features
Frequency Range: Covers a wideband range of 8-11GHz, suitable for various microwave applications.
High Output Power: Delivers output power ranging from tens to hundreds of watts, meeting the needs of long-distance communication and strong signals.
Low Distortion Amplification: Features a linear design to minimize signal distortion and interference, ensuring high-quality output.
High Efficiency: Optimized circuit design for high efficiency and low power consumption, supporting long-term stable operation.
Design Highlights

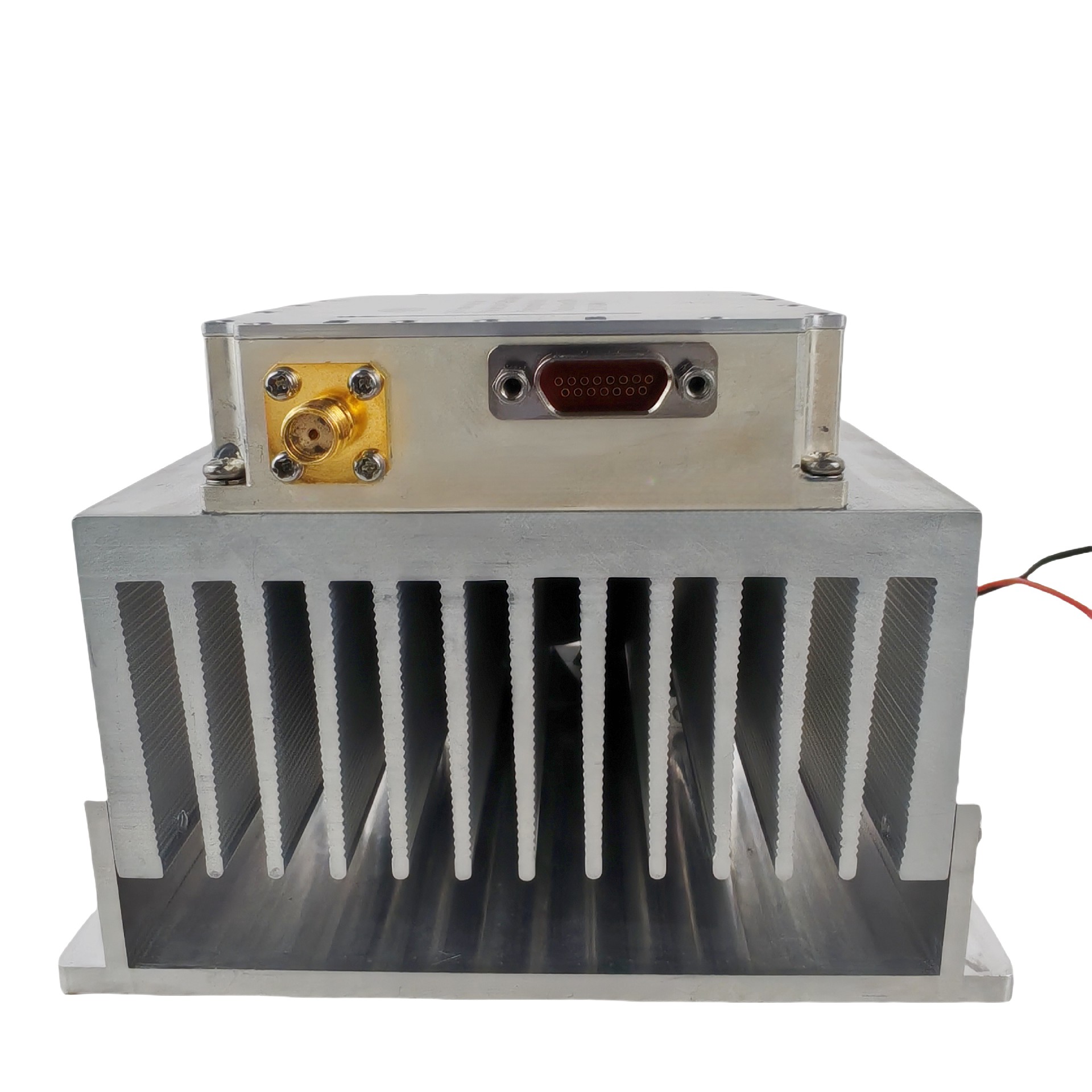

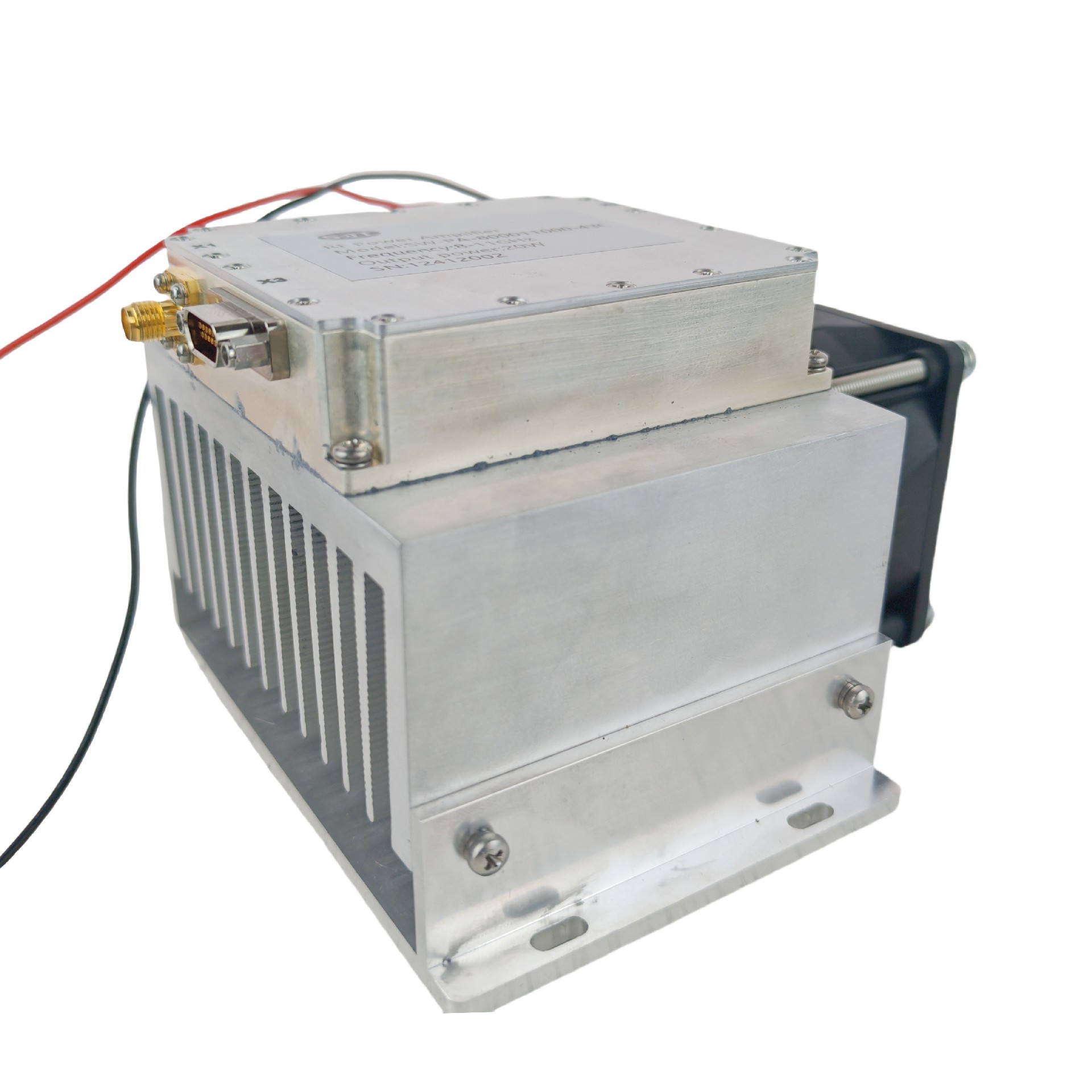

Robust Structure: Metal enclosure for excellent heat dissipation and electromagnetic shielding performance.

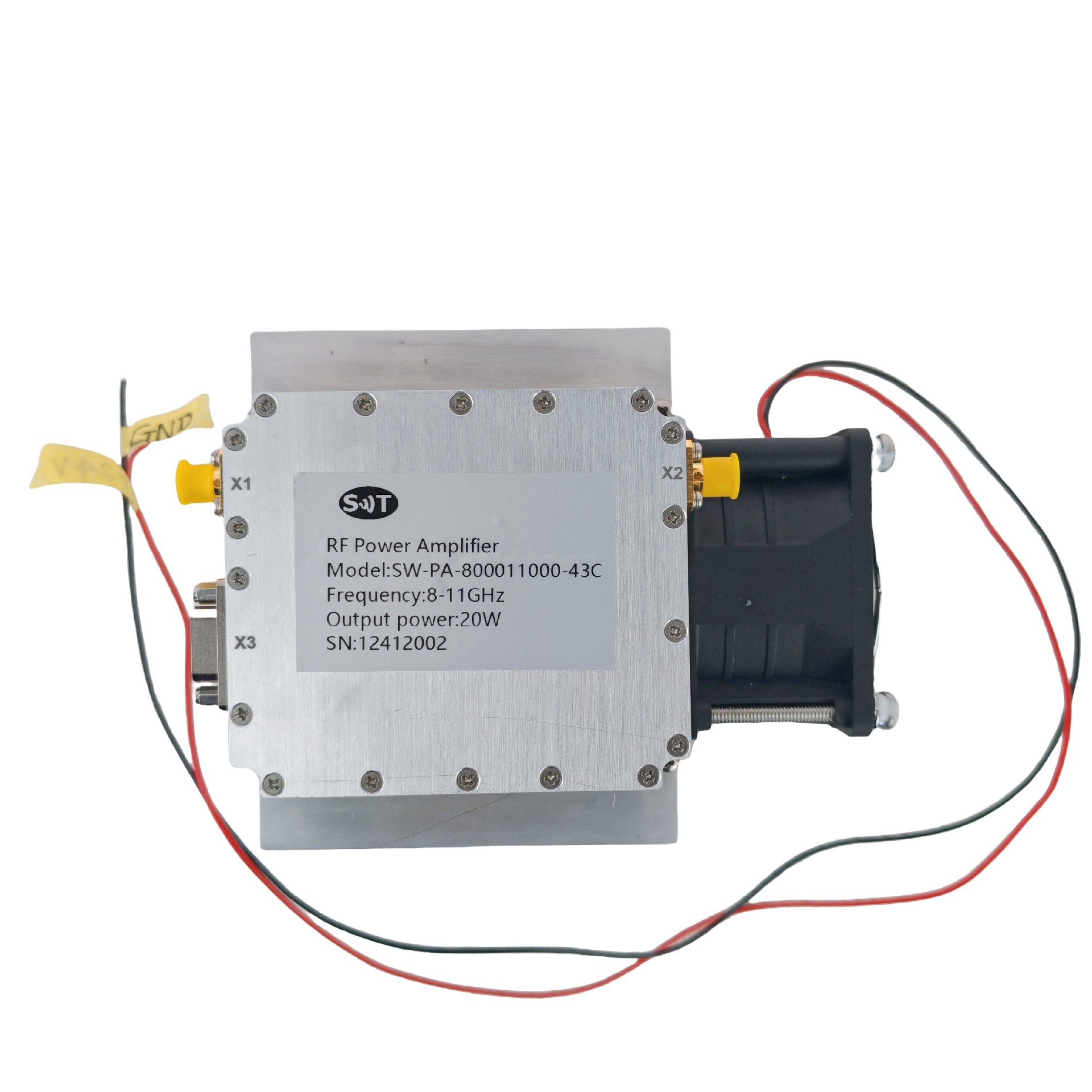

Flexible Interfaces: Equipped with RF IN/OUT and DC & CONTROL interfaces, facilitating installation and integration.

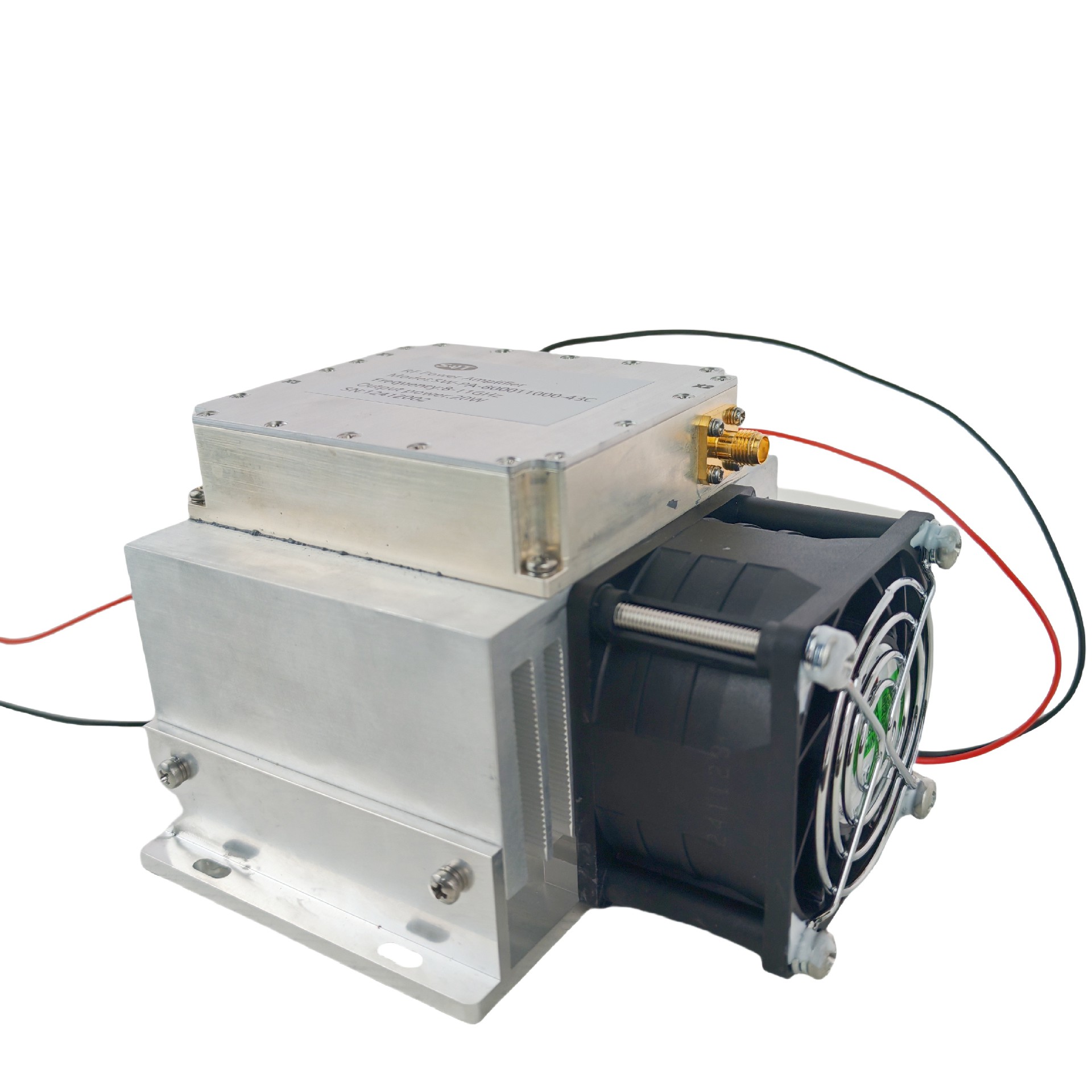

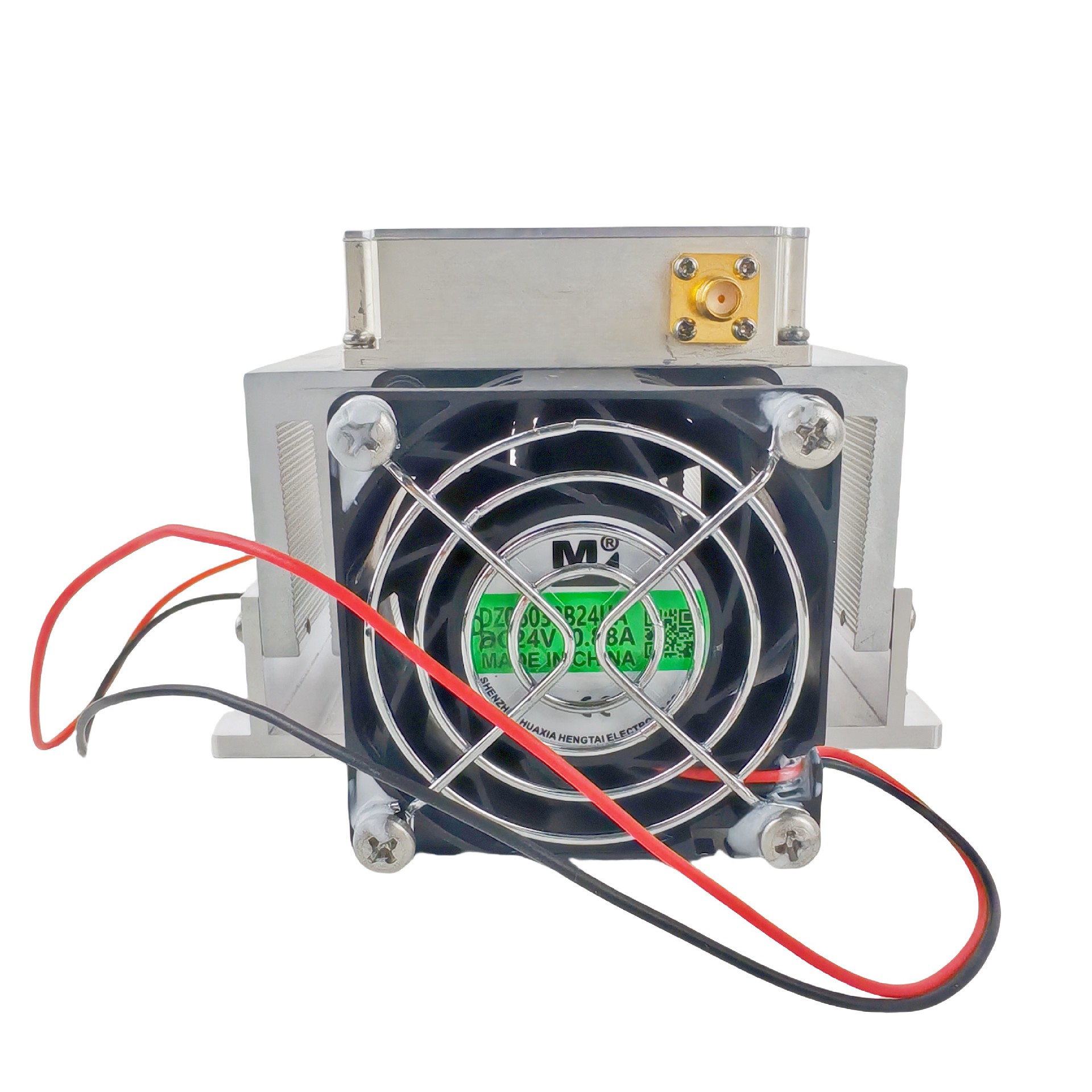

Thermal Management: Built-in or external cooling system to ensure stable operation under high-power conditions.
Application Scenarios
Radar Systems: Amplifies high-frequency signals, enhancing target detection capabilities.
Satellite Communications: Used in ground stations or space communication to strengthen signal transmission.
Electronic Warfare: Supports signal jamming and enhancement in military applications.
Scientific Research: Assists laboratories in testing and analyzing high-frequency signals.
Specification
Typical performance at +28VDC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 8000 | 11000 | MHz | |
RF INPUT | 0 | 3 | 5 | dBm |
Input level peak-to-peak: | 10 | dBm | ||
P-sat Power Output | 42 | 43 | 45 | dBm |
Power Gain Flatness | ±1.5 | dB | ||
Harmonic Signals | -30 | dB | ||
Spurious Signals | -50 | dB | ||
Input VSWR | 1.8 | 2 | ||
Operating Voltage | 28 | 30 | 32 | VDC |
In-Out impedance | 50 | Ω | ||
Current | 3 | A | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

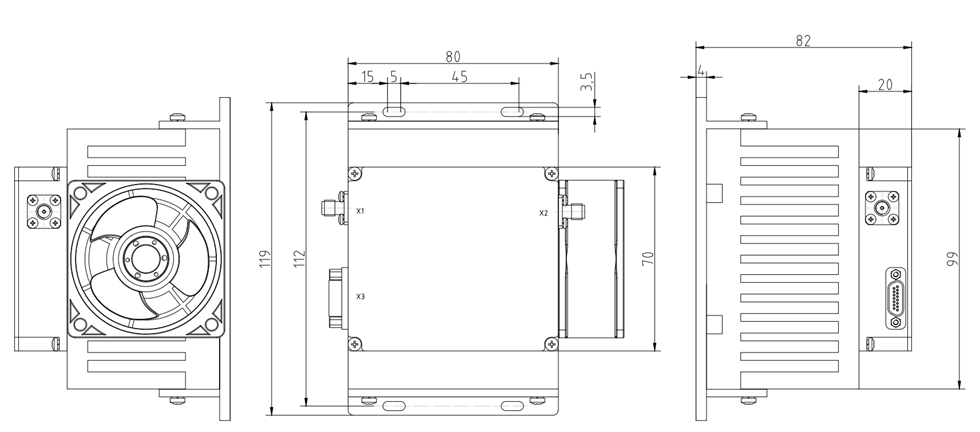

Dimensions (L x W x H) | 119x80x82 | mm |
RF Connectors (Input / Output) | SMA female/SMA female | -- |
DC / Control Connector | J30J-15ZKP | -- |
Cooling | Consider heat dissipation with the system | -- |
Mounting | 3-6 Thru Hole | -- |
Weight | ≤1.5 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -40 | +60 | °C |
Humidity Range | 0-100 | % | |
PA Baseplate Shutoff Temperature | + 90 | °C | |
Product Details
Name:
8-11GHz RF Power Amplifier
Operating Frequency:
8-11GHz
Psat Output Power:
43dBm
Gain:
43dB
Input Vswr:
1.8
Power Gain Flatness:
±2.5dB
Spurious Signals:
-30dBc
Harmonic Signals:
-50dBc
Operating Temp:
-40~60°C
Application:
wireless communications, radar systems, satellite communications, broadcasting, medical equipment
Transport Package:
Carton
Specification:
200×120×30mm
