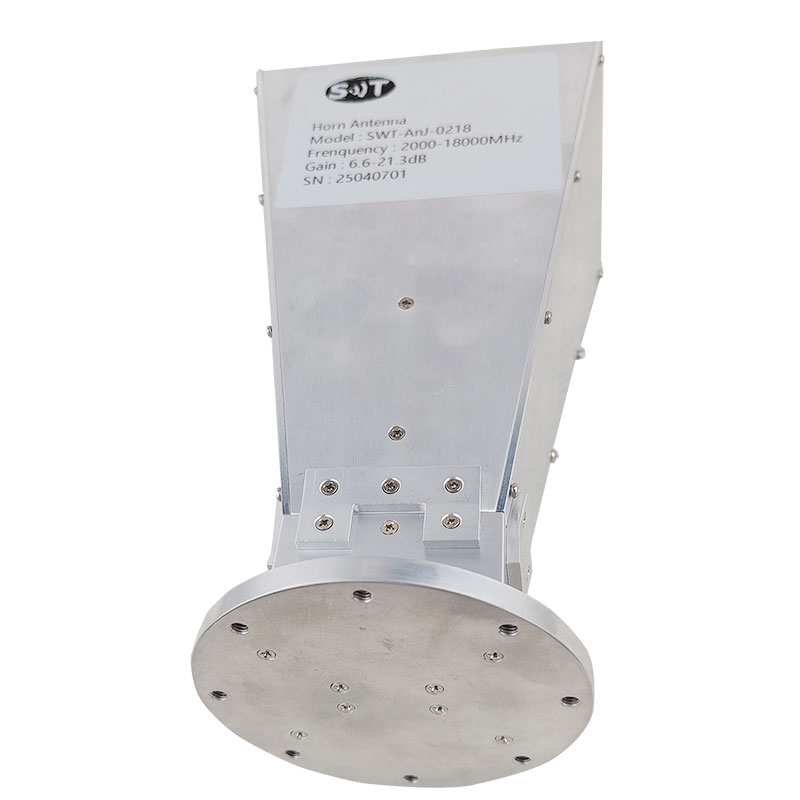

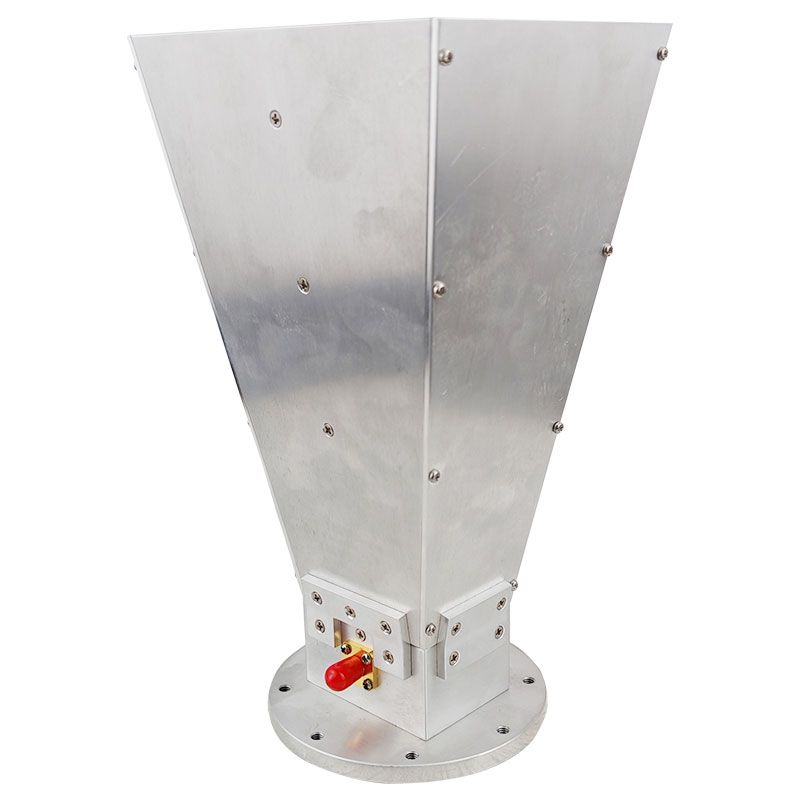

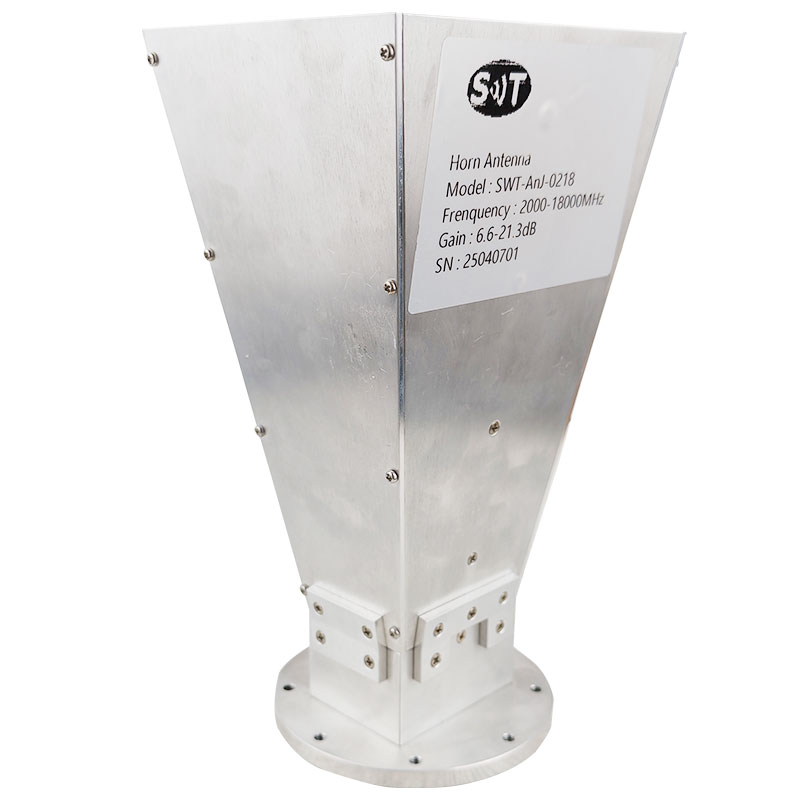

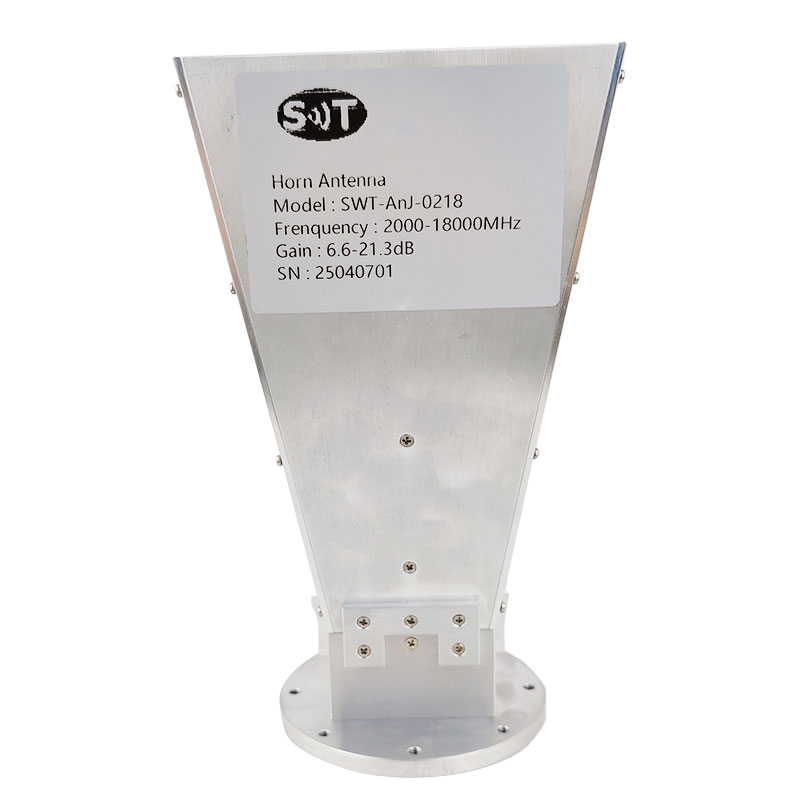

2-18GHz Single Linear Polarization Antenna
Place of Origin：China
Brand Name：SWT
Model Number：SWT-AnJ-0218
Price：Please Contact Customer Service
Product Description
2-18GHz Single Linear Polarization Antenna
| Antenna Specifications | |
|---|---|
| Model | SH-AnJ-0218 |

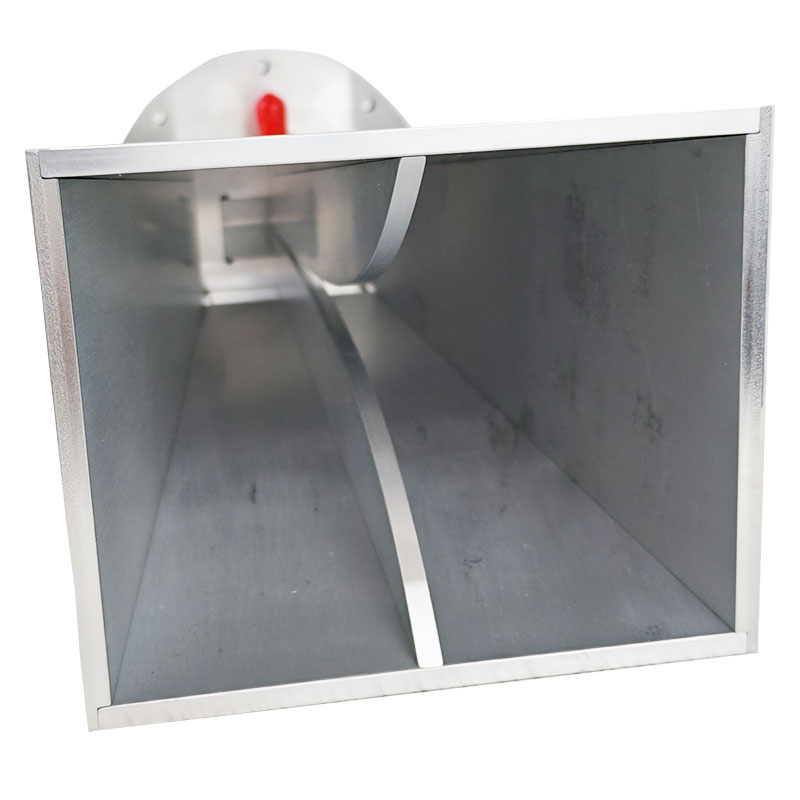

| Antenna Type | Pyramidal Horn |
| Frequency Range | 2GHz-18GHz |
| VSWR | 2 (typical) |
| Polarization | Single Linear Polarization |
| Main Lobe Width | 14.3-98.7° |
| Side Lobe Suppression | -24.2dB |
| Gain | 6.6-21.3dB |
| Connector Type | SMA-50K |

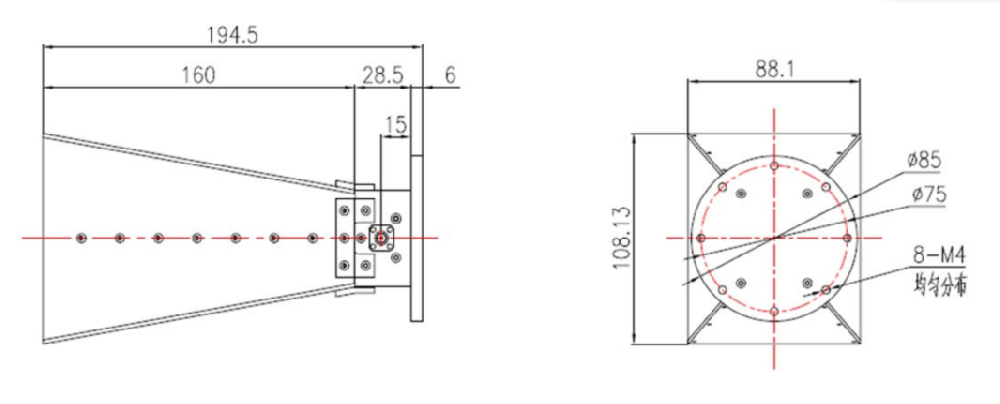

| Aperture Dimensions | 108.13×88.1mm |
| Weight | ≤0.75kg |
| Surface Treatment | Conductive Oxidation |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +80°C |
Product Specification Sheet
Product Details
Received Signal:
Number Of Channels:
Name:
Channel Gain:
Output Signal Power:
Power Consumption:
Power Supply:
Operating Temperature:
Storage Temperature:
Installation Size:
Packing:
Applications:
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
