60500-91900 GHz 25dB Gain Linear Polarization for Millimeter-Wave Communication Radar Systems RF Testing Industrial Commercial Applications
Place of Origin：China
Brand Name：SWT
Model Number：SWT-740SGAH25
Price：Please Contact Customer Service
Product Description
| 1.0 | Electrical parameters | |
| 1.1 | Frequency Band | 60.5-91.9GHz |
| 1.2 | VSWR | ≤1.25 |
| 1.3 | Gain(TYP) | 25dB |
| 1.4 | Polarization | linear polarization |
| 2.0 | Mechanical parameters | |
| 2.1 | Dimensions | 37*26*120mm |
| 2.2 | External surface paint color | gold-plated |
| 2.3 | Basic material | Copper |
| 2.4 | Weight | |

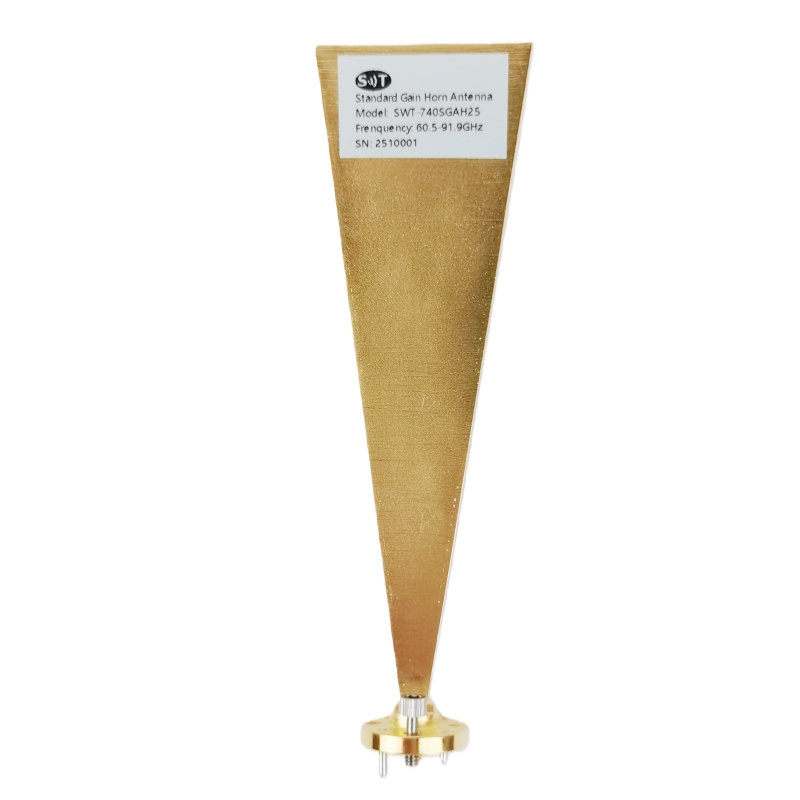

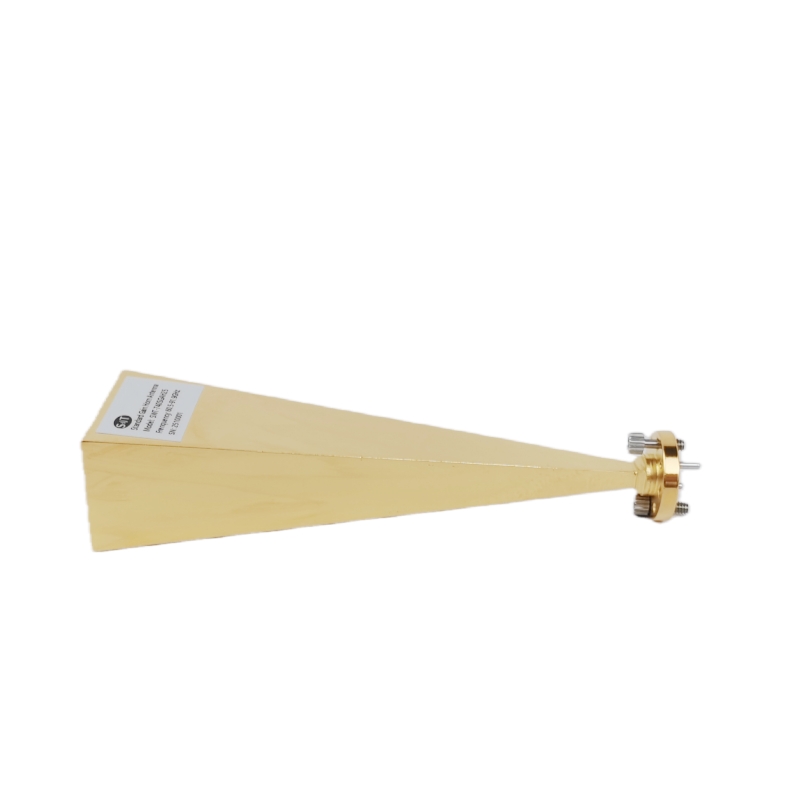

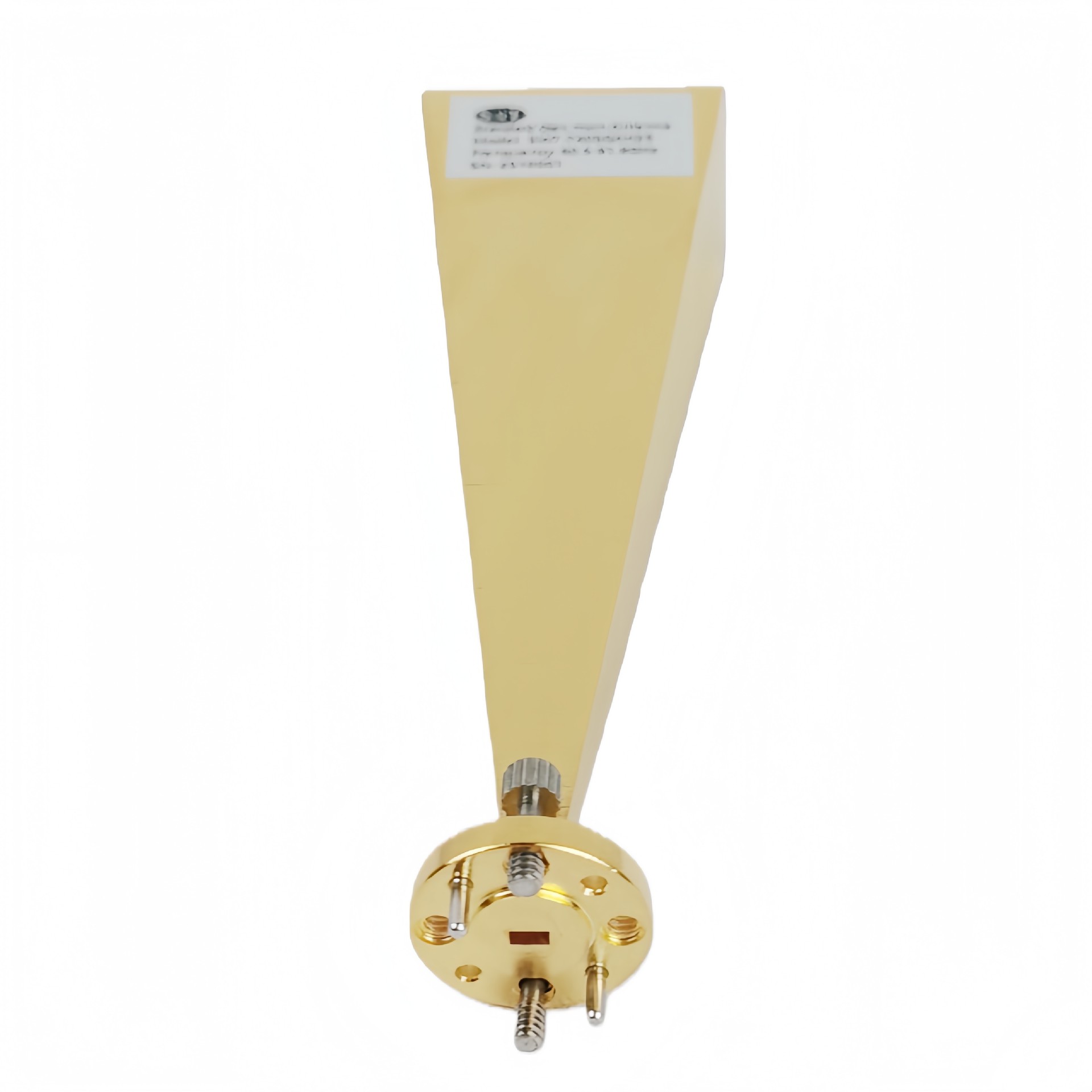

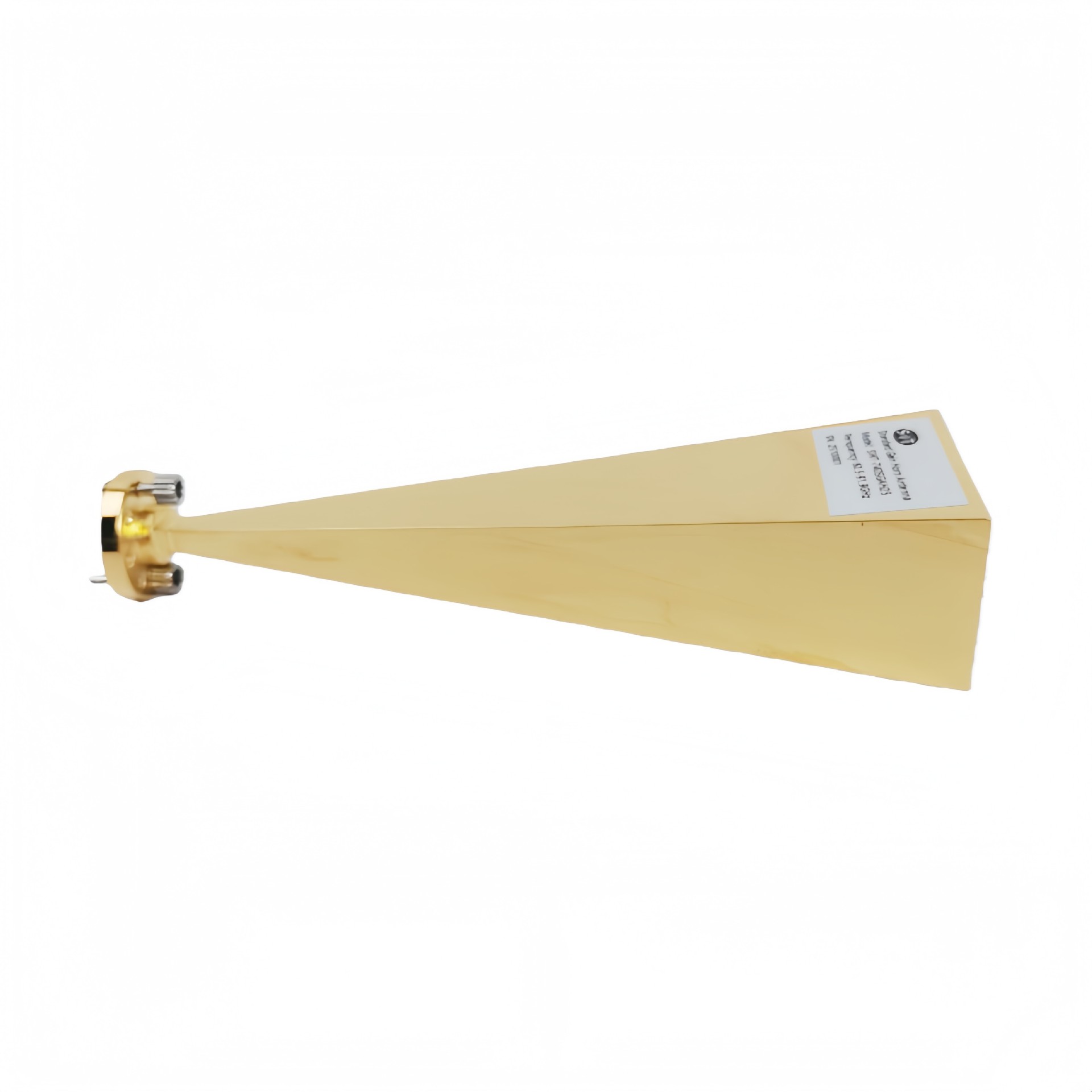

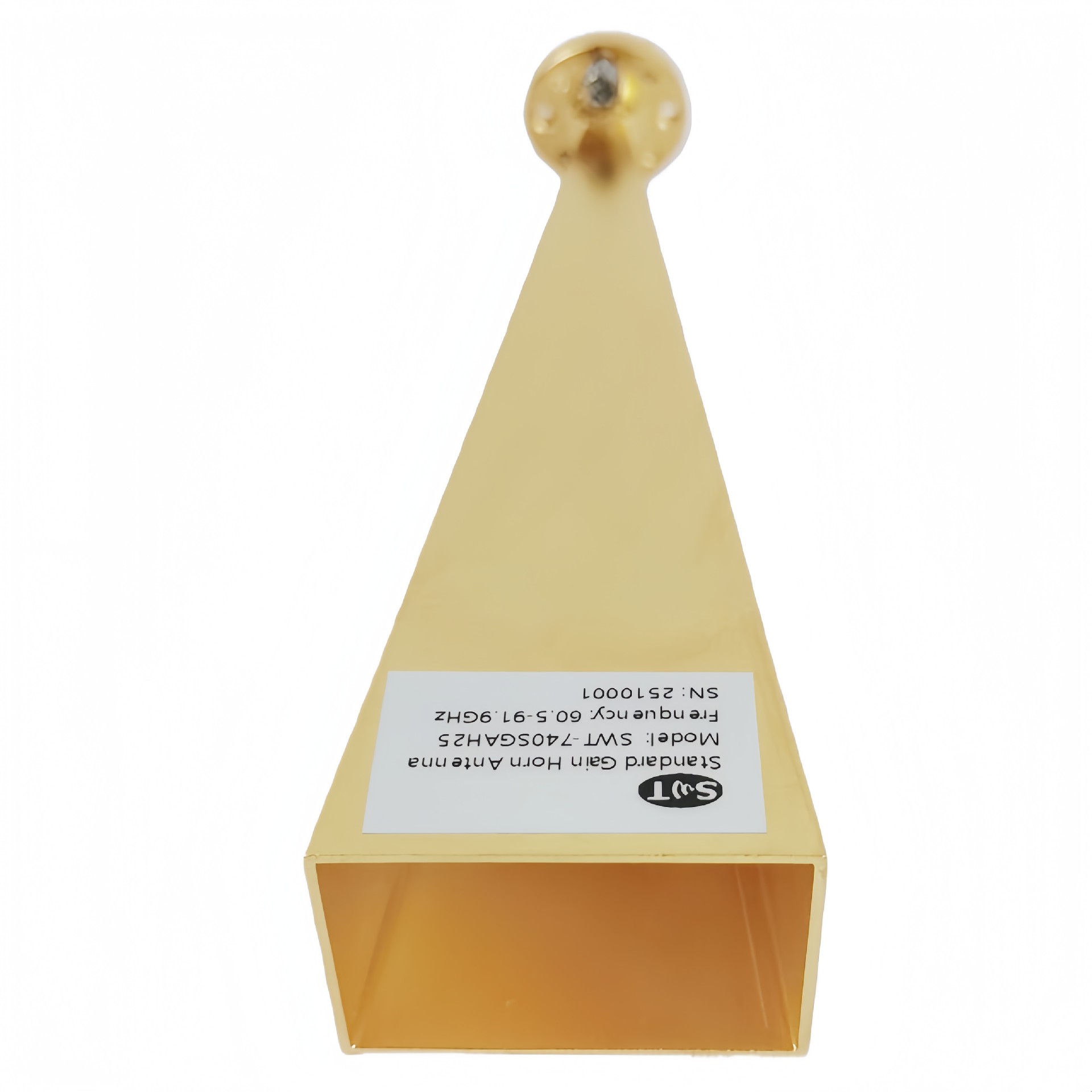

| 3.0 | Product appearance | |
Product Details
Received Signal:
Number Of Channels:
60.5-91.9GHz
Name:
25 dB
Channel Gain:
Output Signal Power:
Power Consumption:
Power Supply:
Operating Temperature:
Storage Temperature:
Installation Size:
Packing:
Applications:
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
