18000-26500 MHz 28 dB Linear Polarization Waveguide Interface Aluminum Material Sea Grey Paint for RF Testing Communication System
Place of Origin：China
Brand Name：SWT
Model Number：SWT-DPLHA190
Price：Please Contact Customer Service
Product Description
1.0 | Electrical parameters: | |
1 .1 | Frequency range | 18-26.5 GHz |
1 .2 | Standing Wave (Max. VSWR) | ≤ 1.5 |
1.3 | Antenna gain | ≥28 dB |
1.4 | Interface | Waveguide interface |
1.5 | Polarization | Linear polarization |
2.0 | Mechanical parameters: | |
2.1 | Outer dimensions ( height ) | About 227*190 mm |
2.2 | External paint color | Sea grey paint |
2.3 | Basic Materials | Aluminum |
2.4 | weight | Approx.: 1Kg |

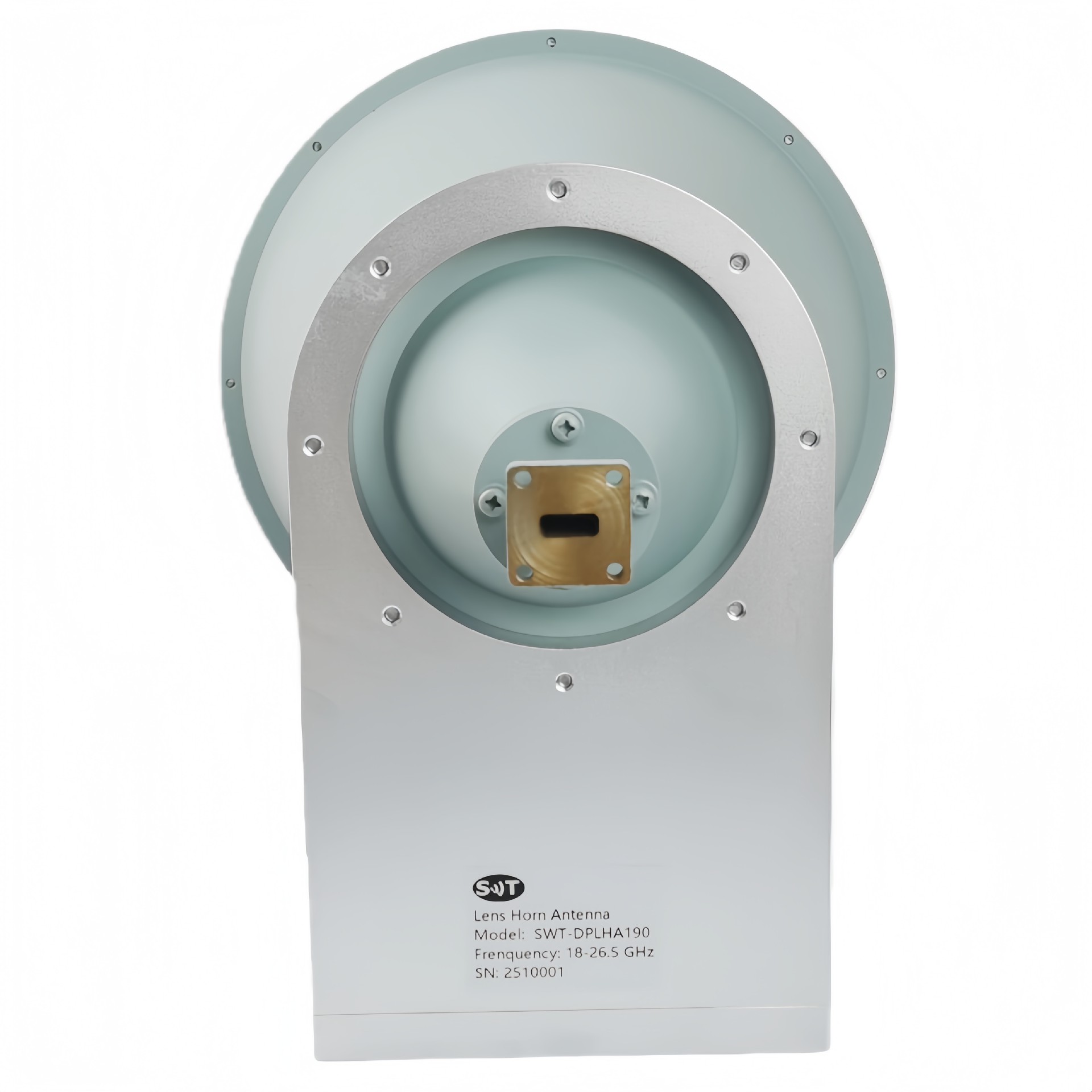

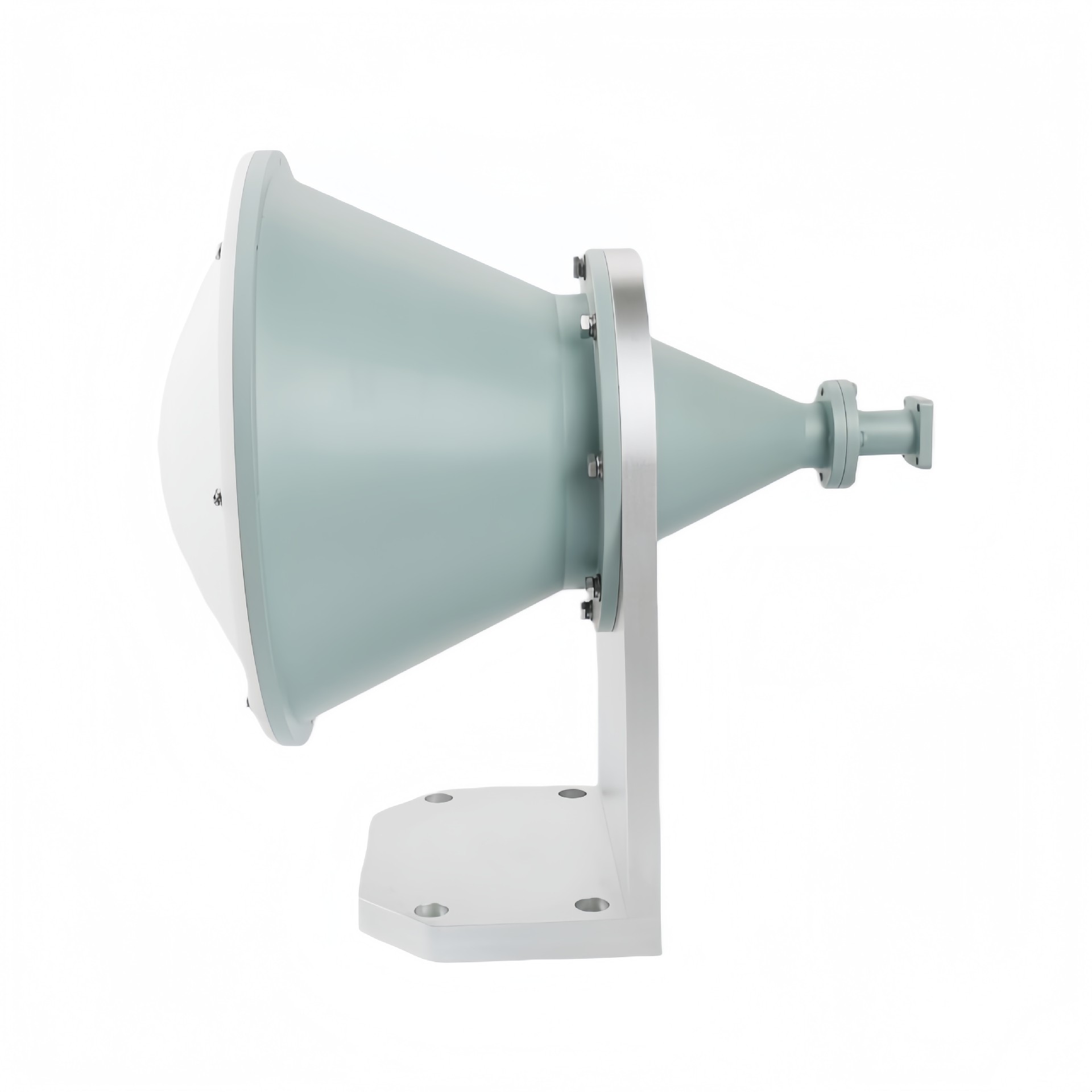

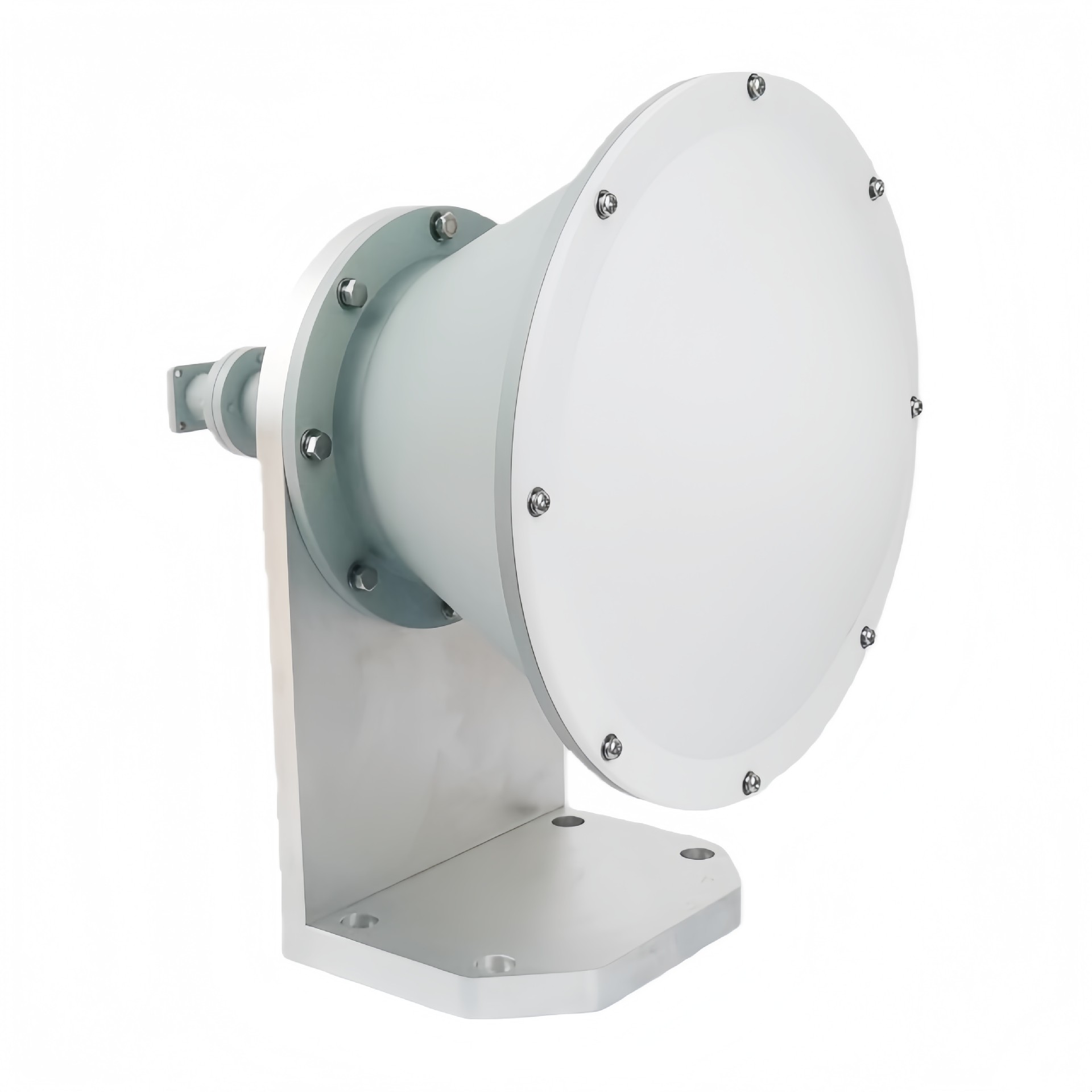

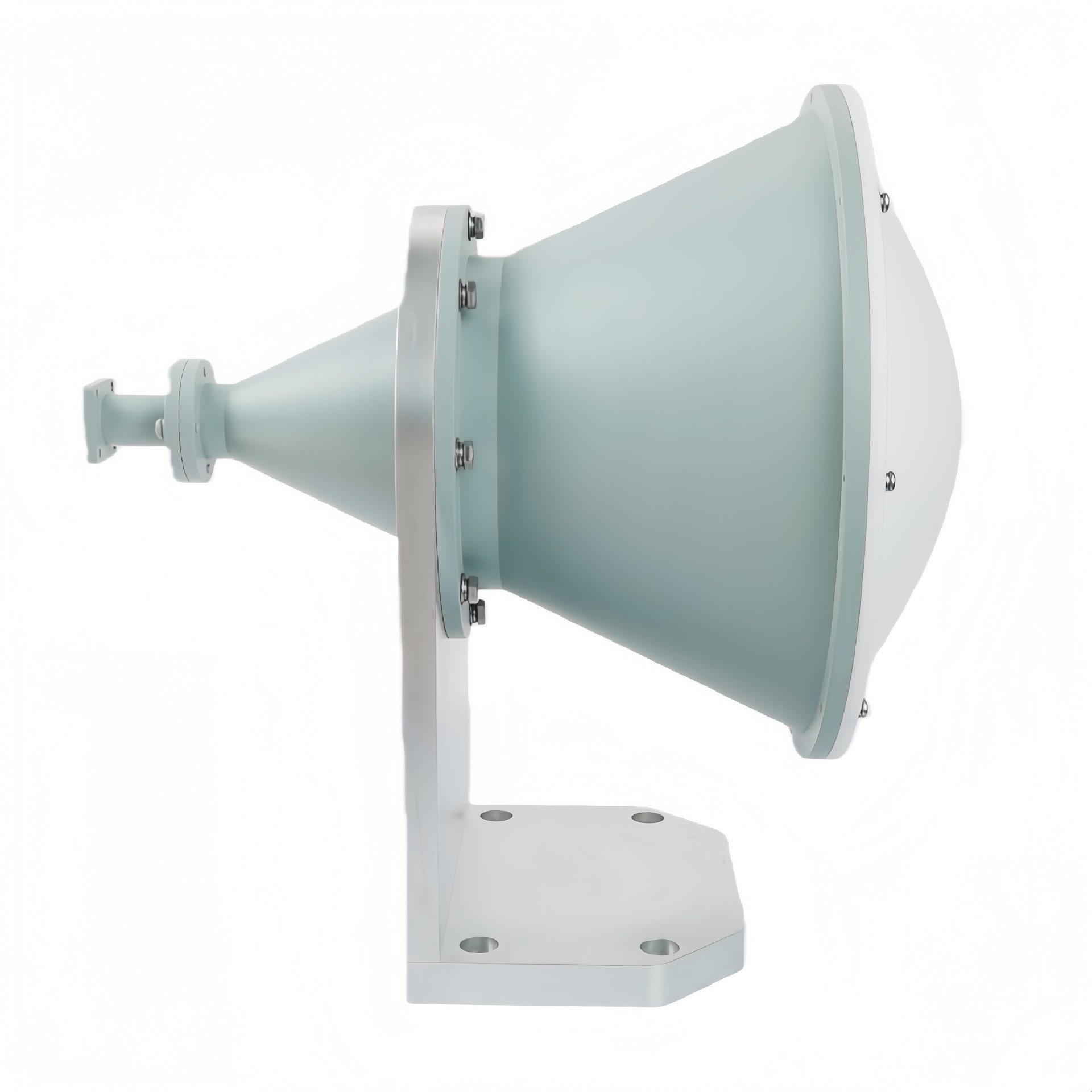

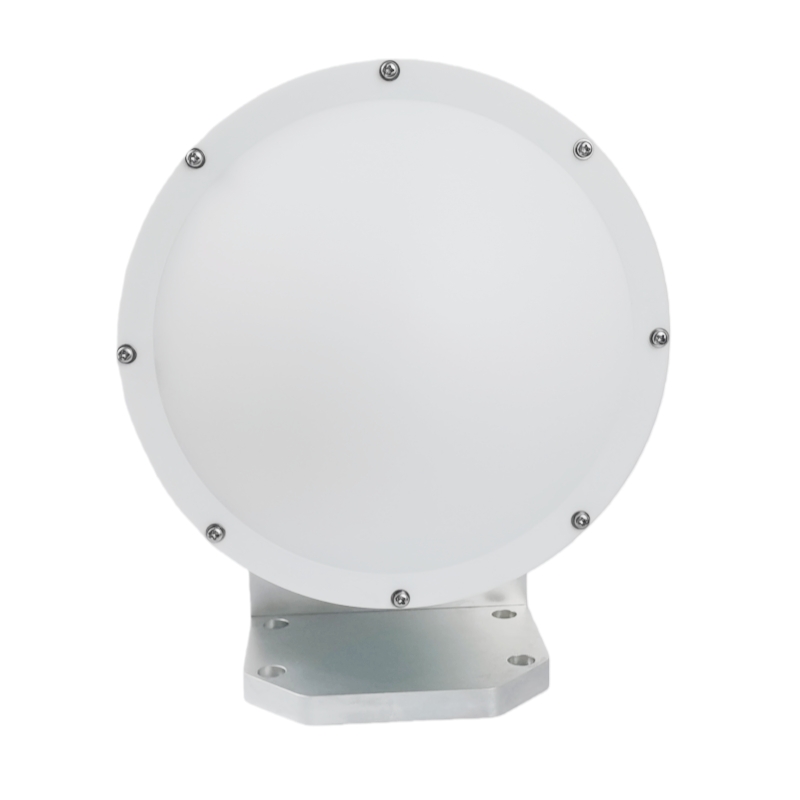

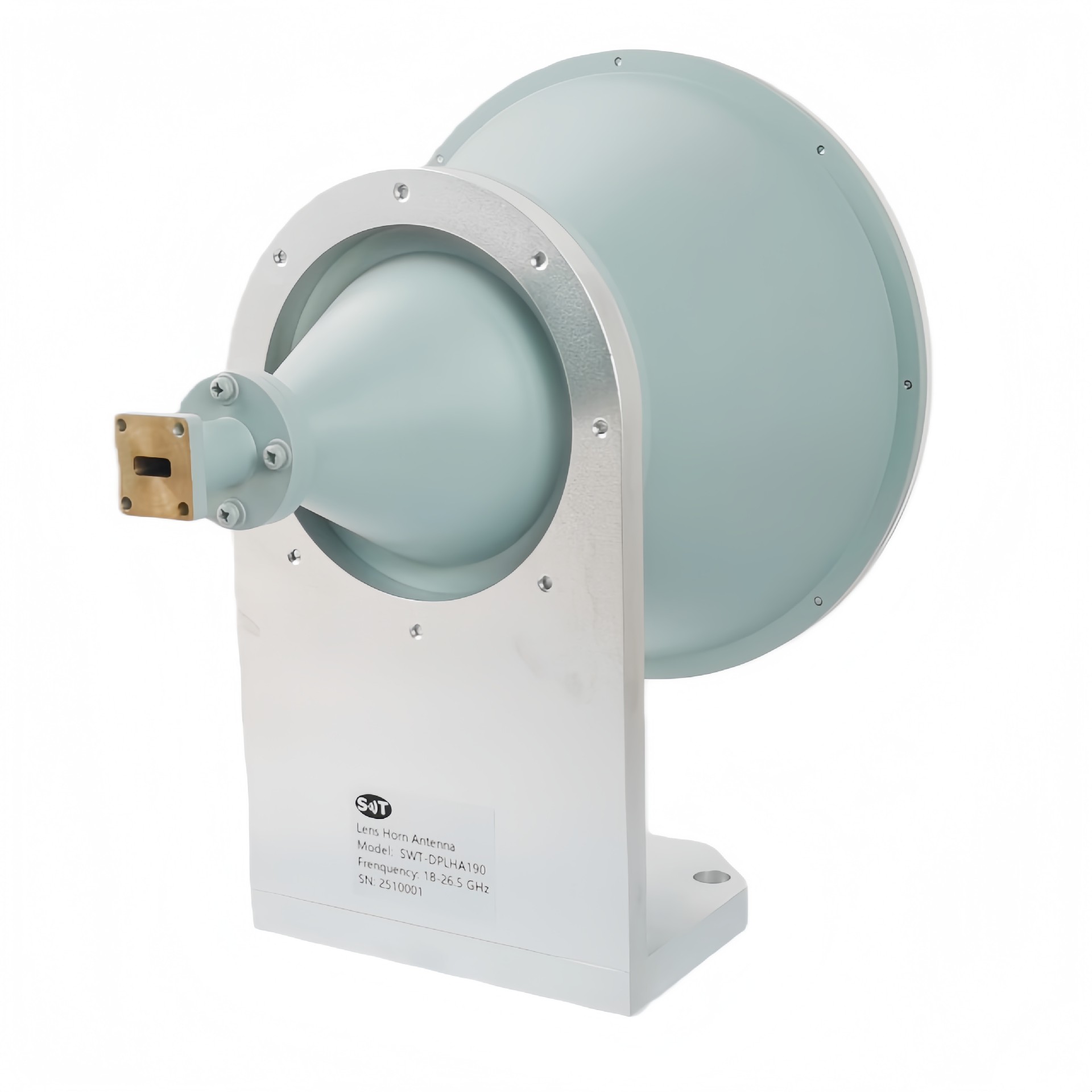

3.0 | Product appearance | |
Product Details
Received Signal:
Number Of Channels:
18-26.5 GHz
Name:
28 dB
Channel Gain:
Output Signal Power:
Power Consumption:
Power Supply:
Operating Temperature:
Storage Temperature:
Installation Size:
Packing:
227*190 mm
Applications:
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
