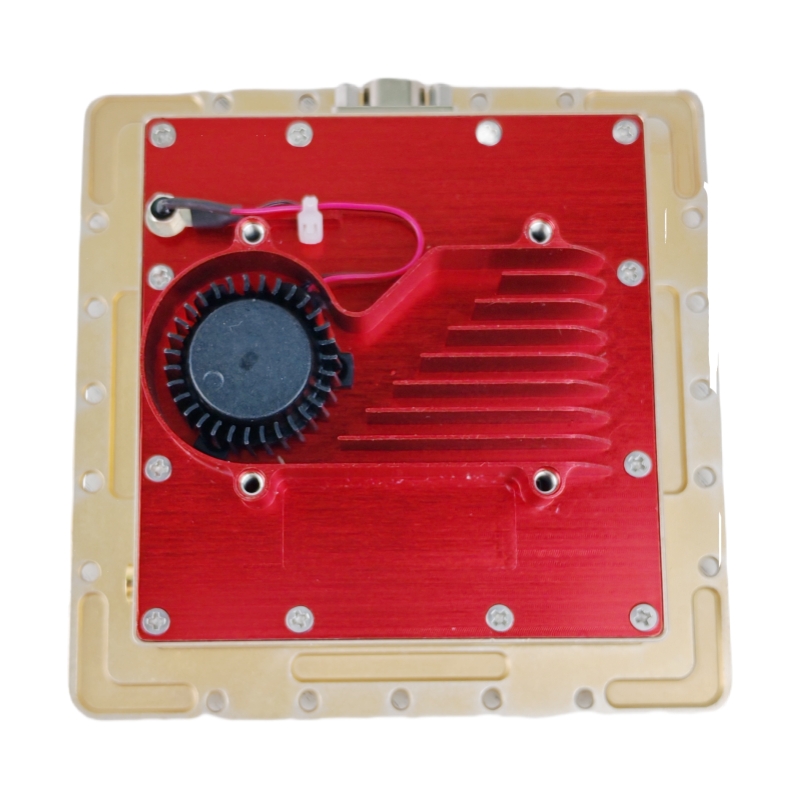

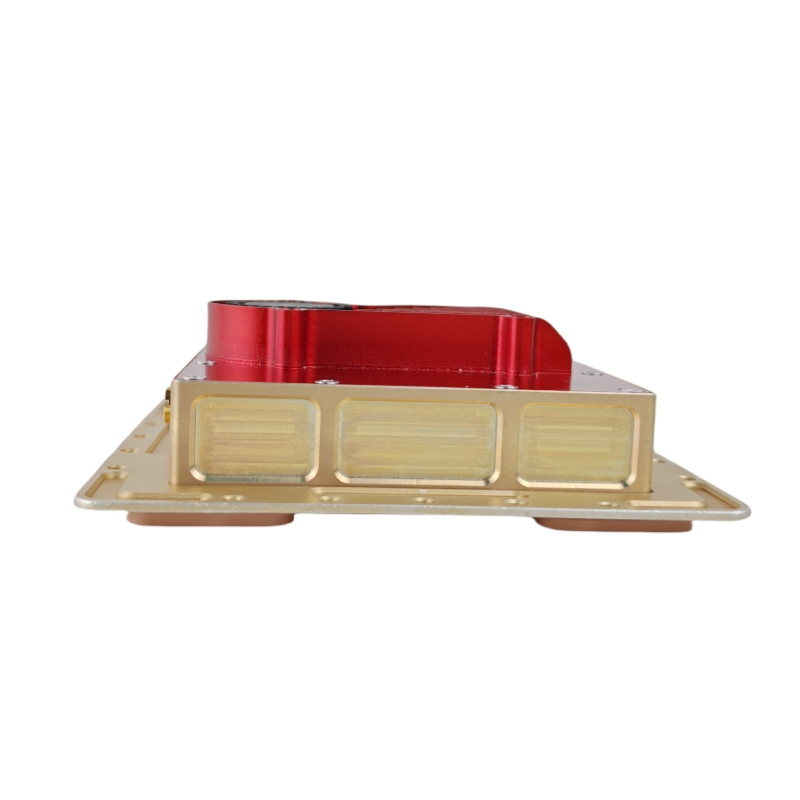

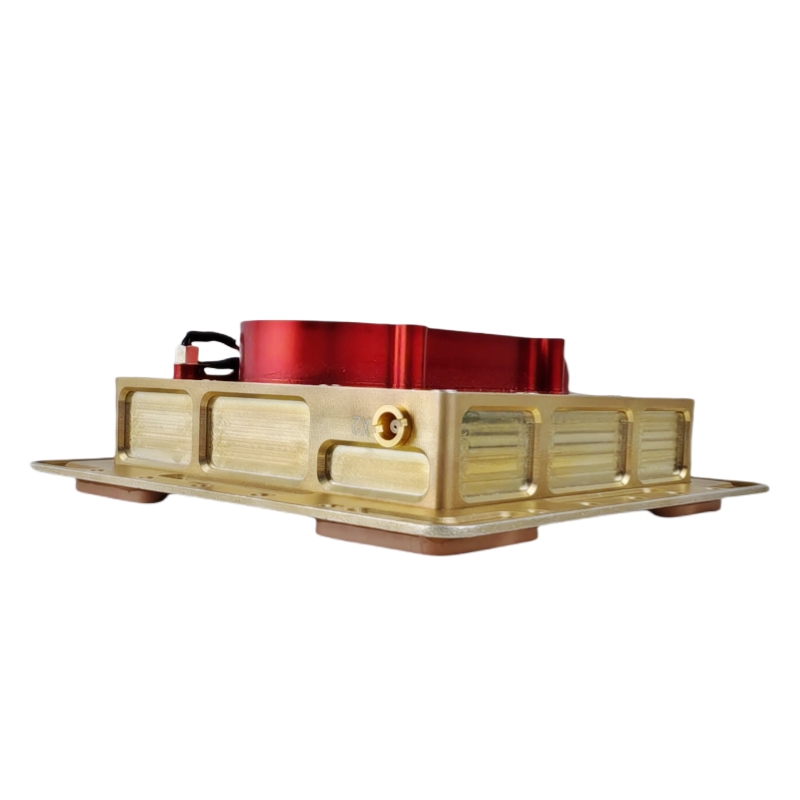

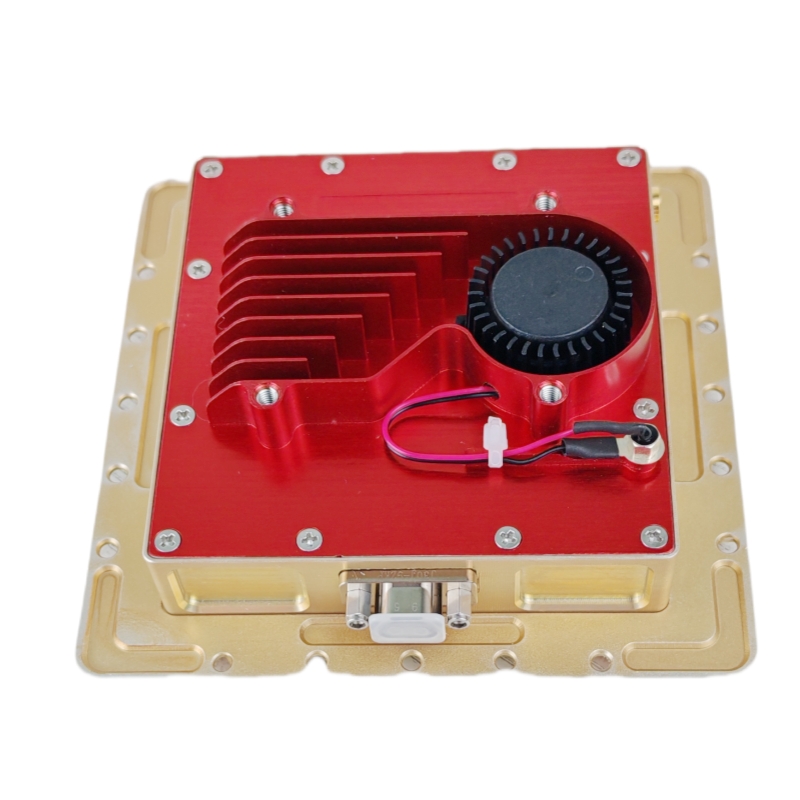

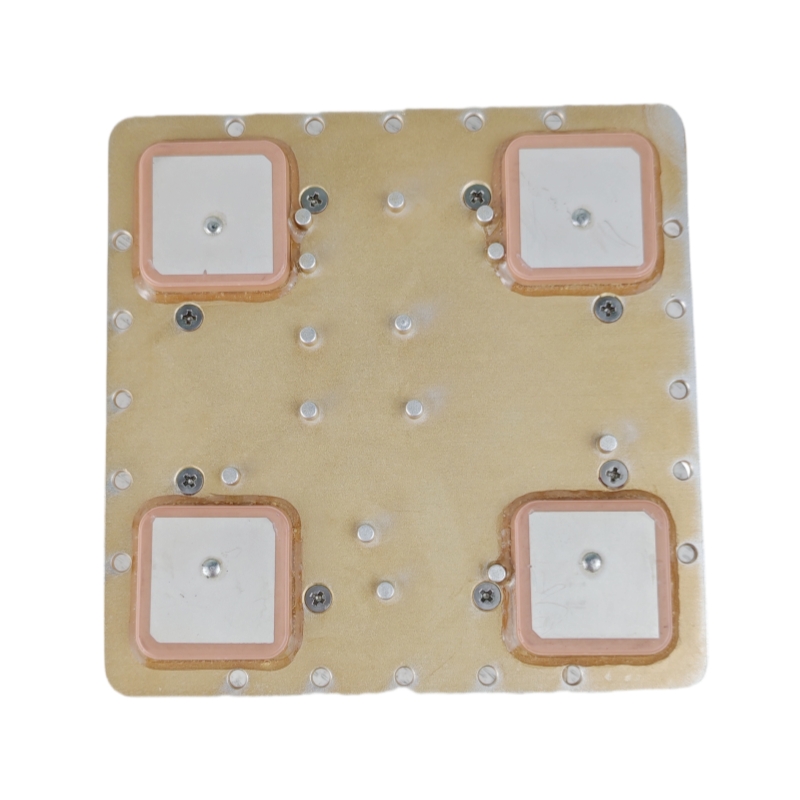

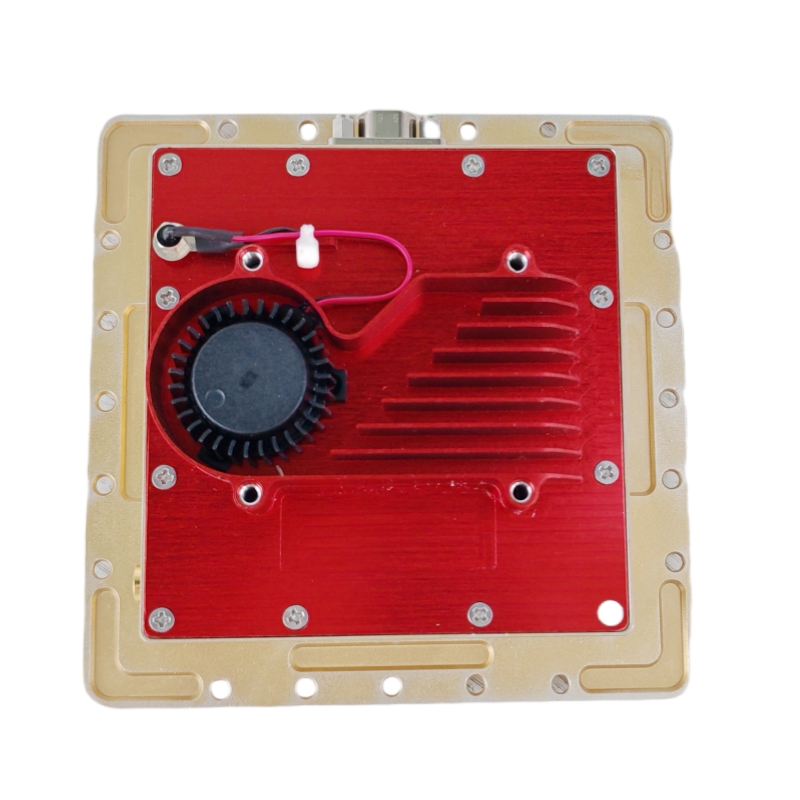

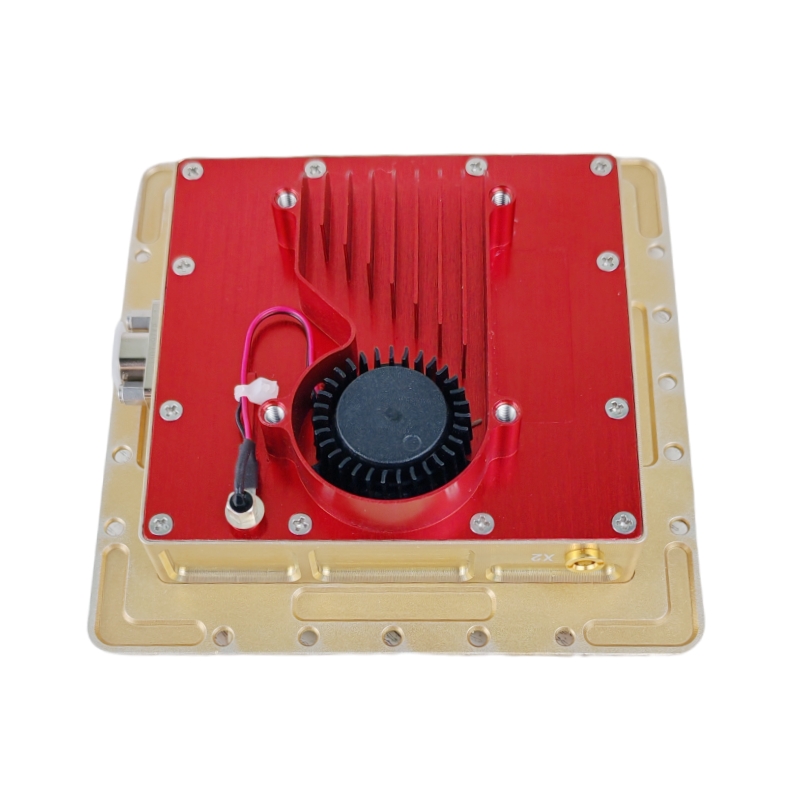

SWT-JRL1-100G Multi-GNSS Anti-Jamming Receiver - BDS/GPS/Galileo/GLONASS, 70-90dB ISR, ≤10m Accuracy, Industrial Grade
Place of Origin：China
Brand Name：SWT
Model Number：SWT-JRL-100G
Price：Please Contact Customer Service
Product Description
SWT-JRL1-100G Multi-GNSS Anti-Jamming Receiver - BDS/GPS/Galileo/GLONASS, 70-90dB ISR, ≤10m Accuracy, Industrial Grade
Function
It can receive satellite signals like BDS-B1, GPS-L1, GALILEO E1 and GLONASS G1, output navigation positioning information, and with anti-interference function for BDS-B1, GPS-L1, and GALILEO E1 frequency navigation signal.
Main Technique Data
| Receiving signal | BDS-B1, GPS L1, GALILEO E1, GLONASS G1 |
| Channels | 4channels BIL1E1, 1 channel GLONASS G1 |
| Anti-interference (ISR) | Three broadband: 70dB~75dB Single broadband: 80dB~90dB |
| Location precision (1σ) | Level≤10m, Height≤10m |
| Speed precision (1σ) | ≤0.2m/s |
| Physical interface | One J301-92KP, One MCX |
| Communication interface | 1 serial port, TTL-3.3V |
| Data form | NMEA-0183 |
| Working temperature (°C) | -40~85 |
| Power supply | DC9V~DC36V |
| Power consumption | 10W |
| Weight | 199g |
| Dimension | 100mm x 100mm x21mm (The size of length and width without connectors) |
| Storage Temperature (°C) | -55~85 |

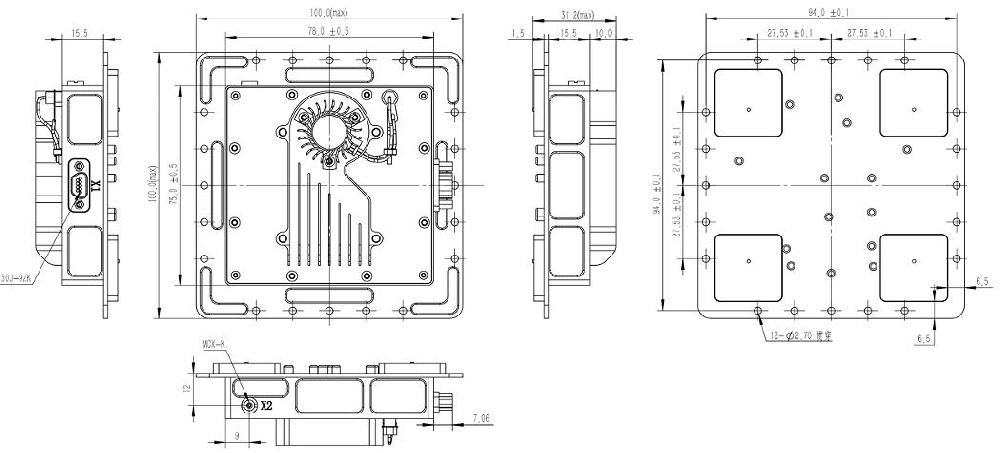

Outline dimension
Product Details
Received Signal:
BDS-B1，GPS L1，GALILEO E1，GLONASS G1
Number Of Channels:
4channels B1L1E1, 1 channel GLONASS G1
Name:
SWT-JRL1-100G Multi-GNSS Anti-Jamming Receiver
Channel Gain:
Output Signal Power:
Power Consumption:
10W
Power Supply:
DC9V～DC36V
Operating Temperature:
-45°C ~ +85°C
Storage Temperature:
-55°C ~ +85°C
Installation Size:
100mm x 100mm x21mm
Packing:
Corrugated Box Packaging
Applications:
Drones & Autonomous Vehicles，Precision Agriculture，Military & Defense。Marine & Aviation，Industrial IoT，Emergency & Surveying
