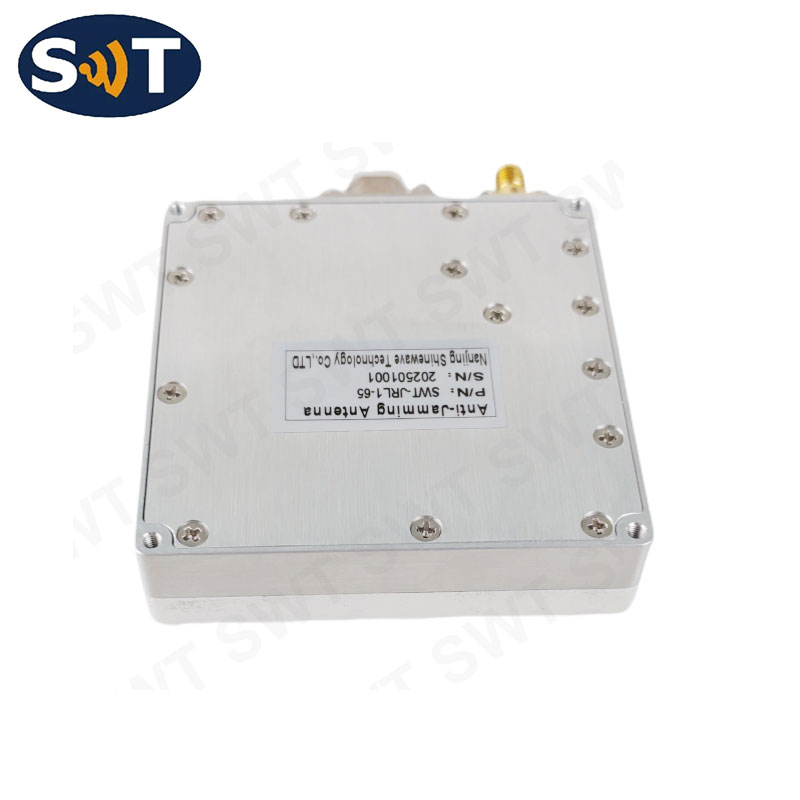

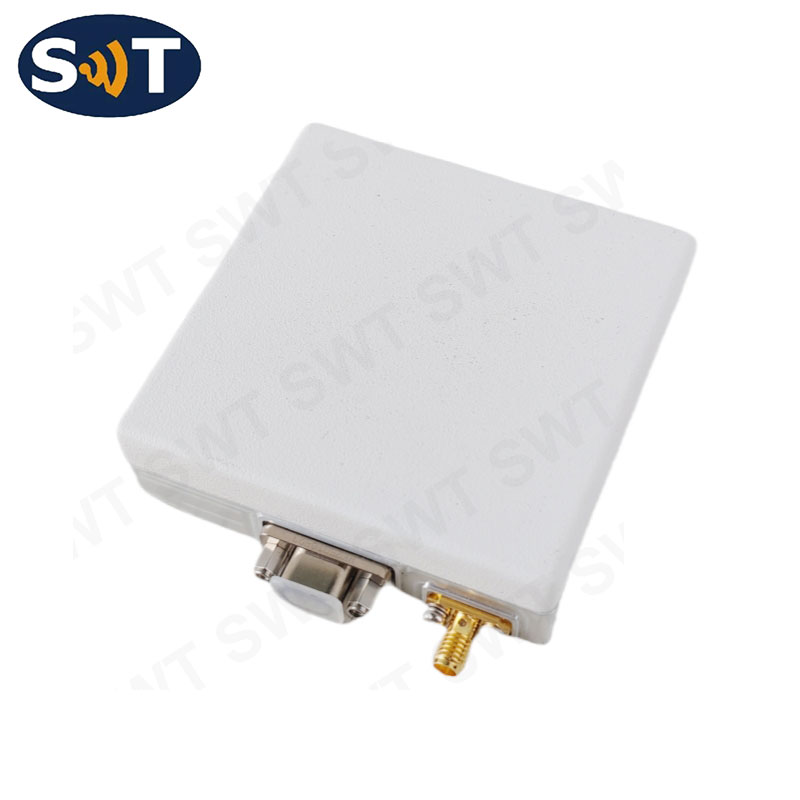

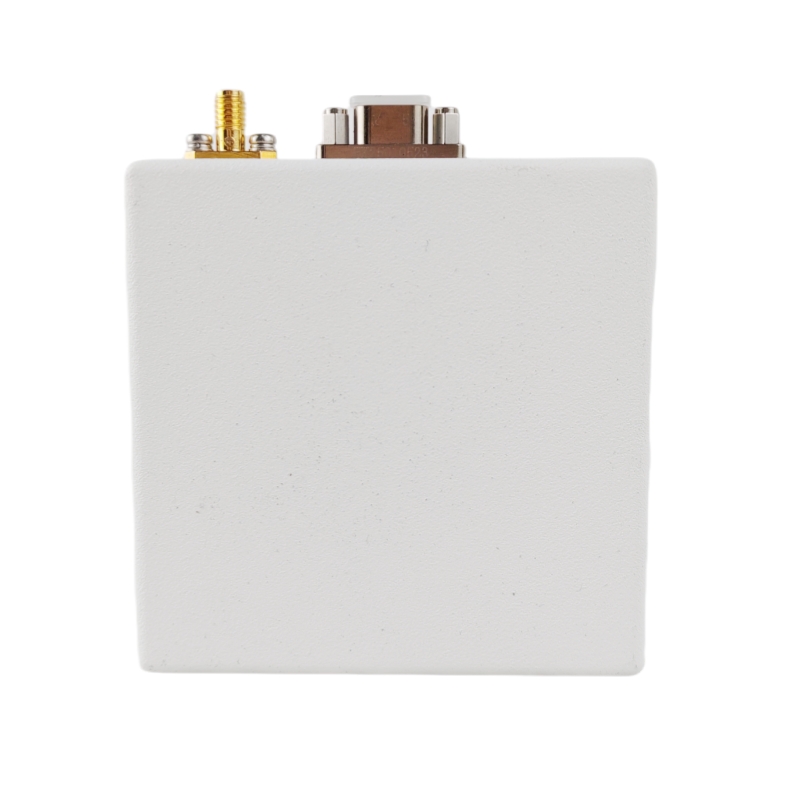

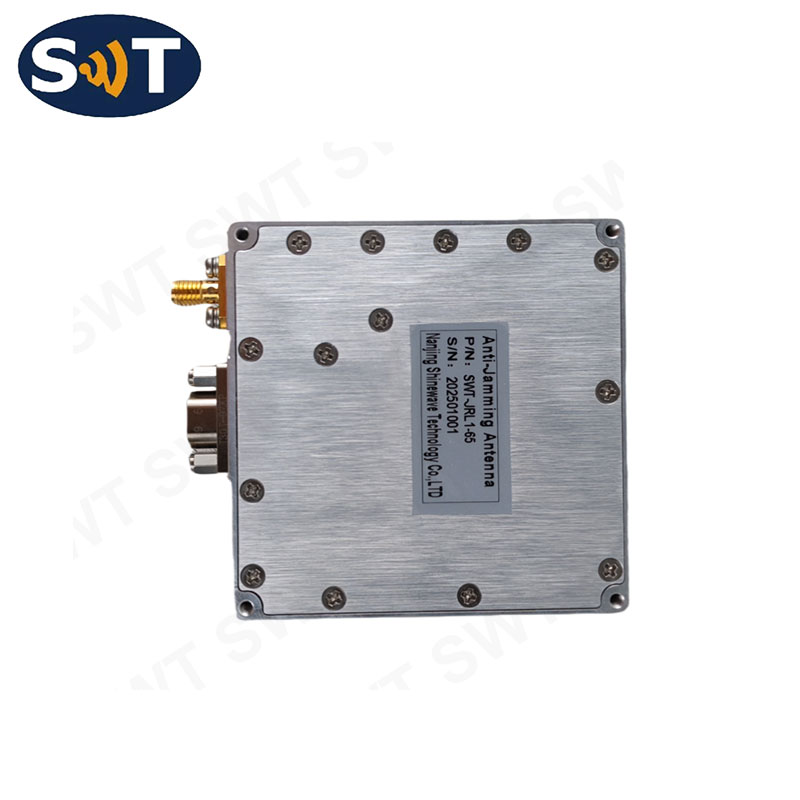

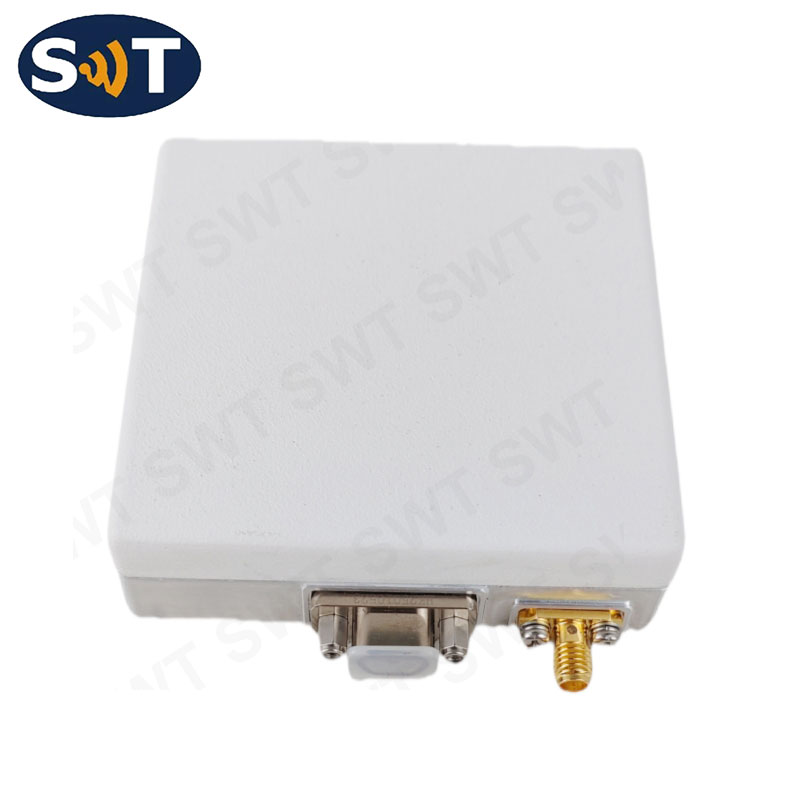

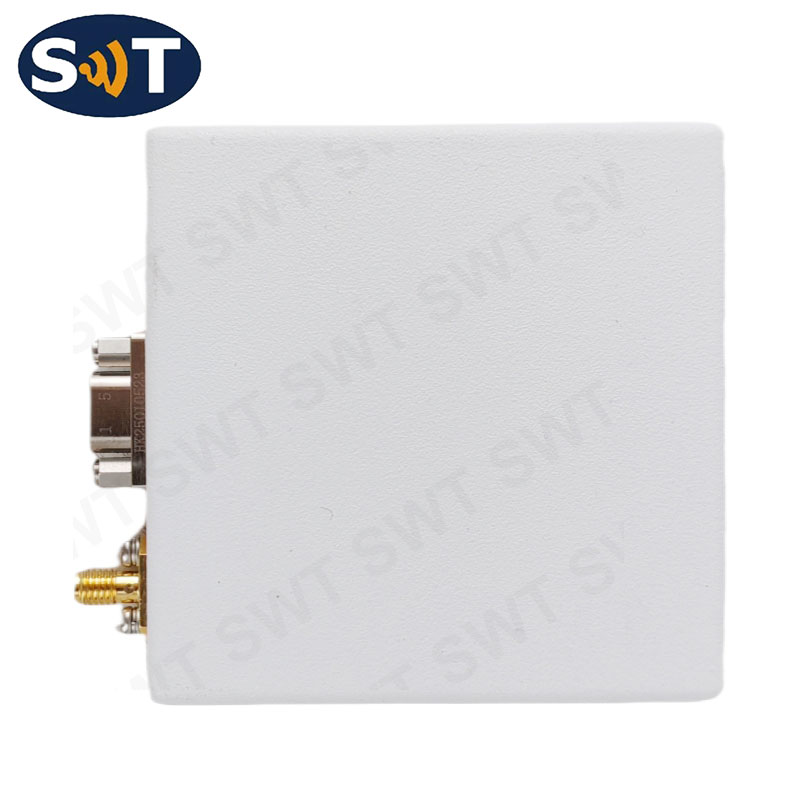

Low power consumption ultra compact 65mm Ultra Light 4-Channel anti-jamming antenna for Mini Drone
Place of Origin：China
Brand Name：SWT
Model Number：SWT-JRL1-65
Price：Please Contact Customer Service
Product Description
Function
It can receive satellite signals like BD-B1, GPS-L1, output navigation positioning information, and with anti-interference
function for BD-B1, GPS-L1 frequency navigation signal.
Application
Suit for Airborne, vehicle-borne, ship-borne, ground systems and other application platform.
Principal character
Receiving signal | BD-B1,GPS L1 | Power supply | DC5V±0.5V |
Channels | 4 channels | Power consumption | ≤5W |
Anti-interference (ISR) | Three broadband：75dB～80dB Single broadband：85dB～90dB | Weight | ≤150g |
Location precision（1σ） | Level≤10m， Height≤10m | Speed precision（1σ） | ≤0.2 m/s |
Physical interface | One J30J-9 socket，one SSMA-K | Dimension | 65mm x 65mm x18mm (without connectors ) |
Communication interface | 1 serial port, RS-232C | Data form | NMEA-0183 |
Working temperature | -40～65 ℃ | Storage Temperature | -55～85 ℃ |
Structural dimensions
Product Details
Received Signal:
BD-B1：1561.098 MHz，GPS L1：1575.42 MHz
Number Of Channels:
4 channels
Name:
SWT-JRL1-65 Anti-Jamming Dual-Band GNSS Receiver
Channel Gain:
Output Signal Power:
Power Consumption:
Max Power Consumption ≤5W All channels under heavy jamming
Power Supply:
DC 5V ±0.5V (4.5V–5.5V
Operating Temperature:
40°C ~ +65°C
Storage Temperature:
-55°C ~ +85°C
Installation Size:
65mm x 65mm x18mm
Packing:
Corrugated Box Packaging
Applications:
Aviation & Aerospace，Land Vehicle Systems，Maritime & Coastal，Critical Infrastructure，Emerging Technologies
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
