Receiving GPS-L2, Bds-B1/GPS-L1, and Bds-B3 Frequency Radio Navigation Signals Anti-Jamming Antenna for Navigation Systems
Place of Origin：China
Brand Name：SWT
Model Number：SWT-JTL1L2-210
Price：$5200/pcs
Product Description
Receiving GPS-L2, Bds-B1/GPS-L1, and Bds-B3 Frequency Radio Navigation Signals Anti-Jamming Antenna for Navigation Systems
Product Description
1.Receiving GPS-L2 frequency and BDS-B1/GPS-L1 frequency radio frequency navigation signal and having the function of suppressing all kinds of interference signal of GPS-L2 frequency and BDS-B1/GPS-L1 frequency, after anti-interference processing, the radio frequency signal is output
2.Receiving the BDS-B3 radio frequency navigation signal and combining it with the anti-jamming GPS-L2 and BDS-B1/GPS-L1 radio frequency navigation signal
3.the algorithm software can be upgraded online through serial port.
| Number of channels | 4 Channels B1/GPS-L1,4 Channels GPS-L2,1 Channels B3 | Weight | 2.73kg |
| Output signal power | -65dBm±5dBm | Dimension | 210mmx210mmx53mm (Height without connector ) |
| Anti-interference performance (ISR) | Three broadband(20MHz): 75dB~80dB; Single broadband(20MHz):85dB~90dB | Power Supply | DC18V~DC36V |
| Gain of channel | 37dB±1dB | Power consumption | 14.2W(28V) |
| Channel isolation | ≥60dB | Physical interface | RF:SMA-K; Power supply:JY27496E13B35PN |
| Channel phase consistency | ≤5degree | Communication connector | Serial port, RS-422A voltage |
| Channel gain consistency | ≤1dB | Working Temperature | -40ºC~85ºC |

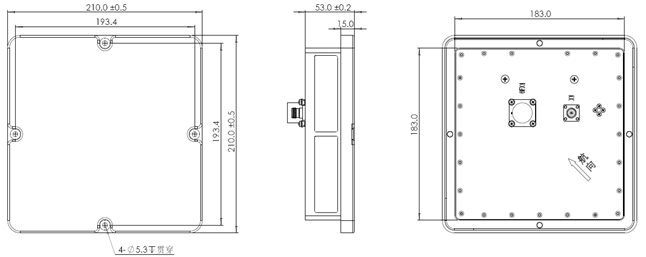

Structural dimensions
Product Details
Received Signal:
Number Of Channels:
4 Channels B1/GPS-L1，4 Channels GPS-L2，1 Channels B3
Name:
4-Element Anti-Jamming Antenna
Channel Gain:
Output Signal Power:
-65dBm±5dBm
Power Consumption:
14.2W(28V)
Power Supply:
DC18V～DC36V
Operating Temperature:
-40℃～85℃
Storage Temperature:
-40℃～85℃
Installation Size:
210mmx210mmx53mm
Packing:
Carton
Applications:
Airborne, vehicle-borne, ship-borne, ground systems
