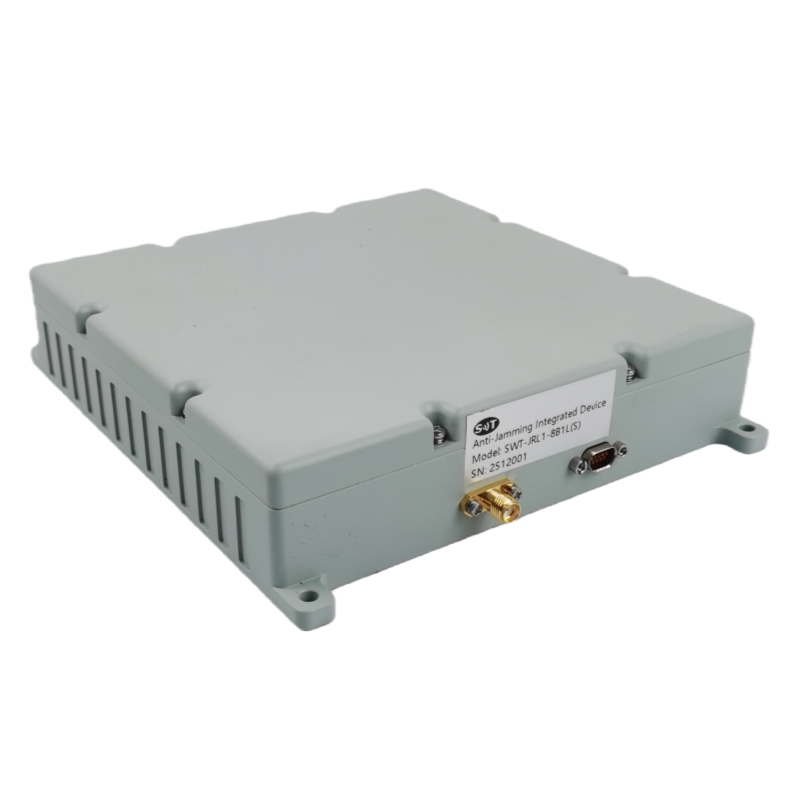

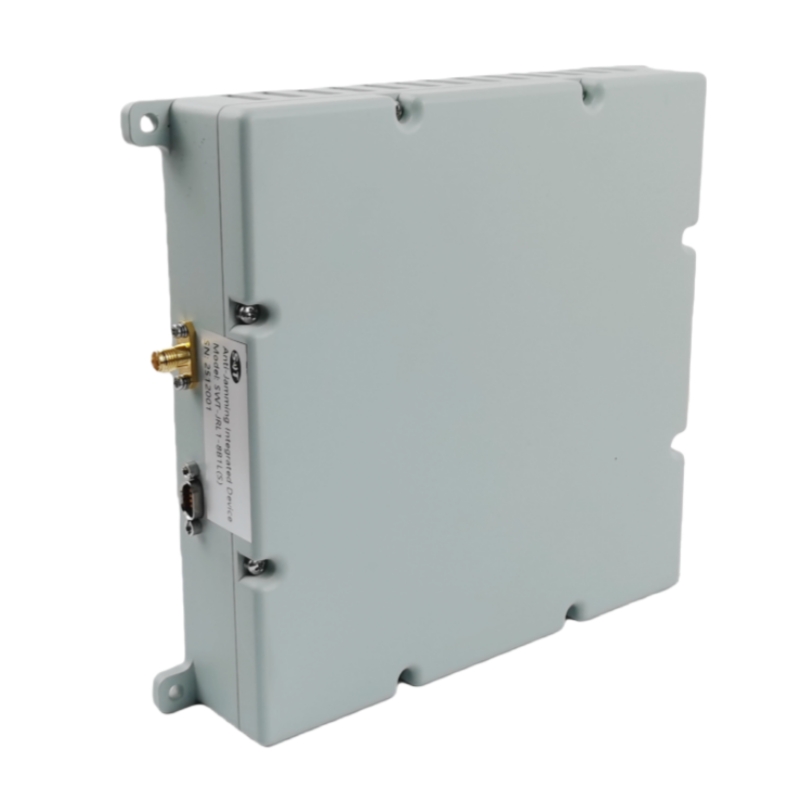

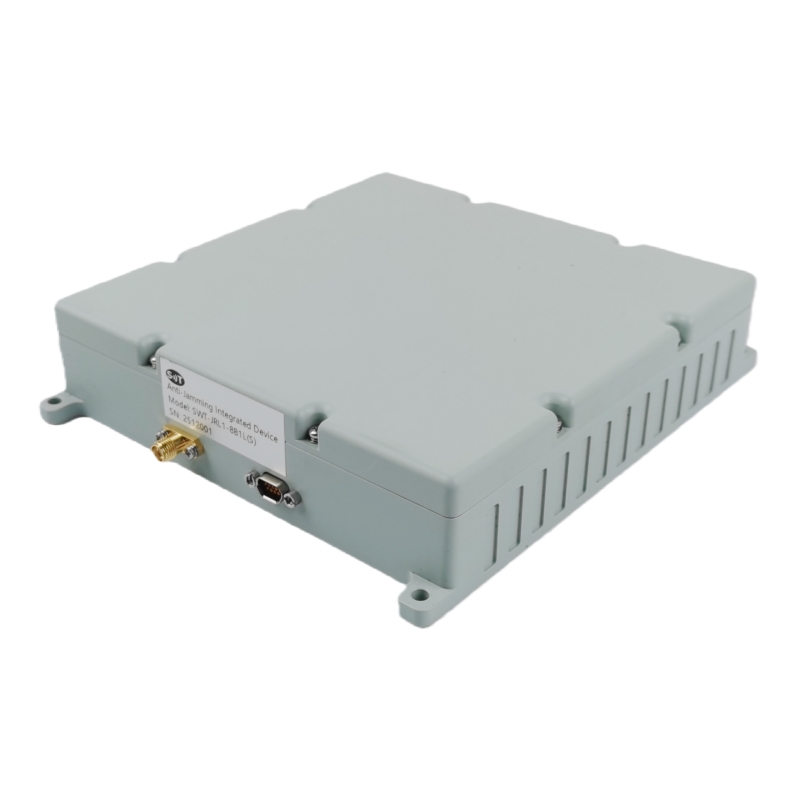

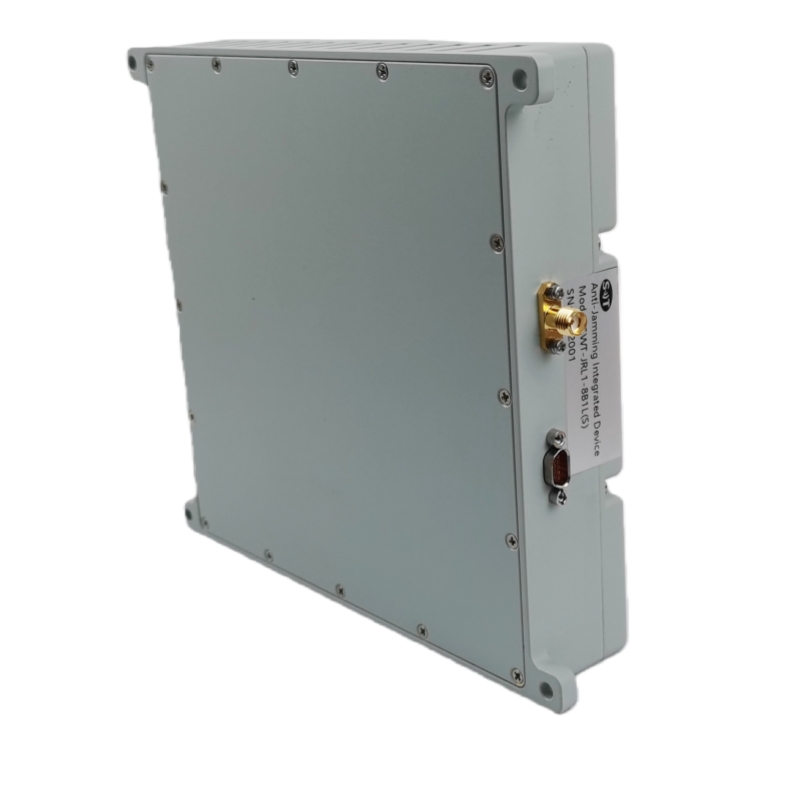

High Performance Interference Resilient Integrated System for Multi GNSS Applications in Dynamic Environments
Place of Origin：China
Brand Name：SWT
Model Number：SWT-JRL1-8B1L(S)
Price：Please Contact Customer Service
Product Description
Description
The Anti-Jamming Integrated Device supports the reception, down-conversion, and amplification of 8 channels of BDS_B1, GPS_L1, and GAL_E1 frequency signals. It combines and forwards the interference-filtered RF signals to the receiver. With a compact size, low power consumption, and simple integration, it features advanced adaptive anti-jamming capabilities. This product is widely suitable for mobile vehicles, aircraft, unmanned platforms, and other applications, significantly enhancing anti-jamming performance.
Product Features and Applications
This anti-jamming integrated terminal features a highly integrated signal processing module for BDS_B1, GPS_L1, and GAL_E1 frequency bands, characterized by low noise figure, high gain, excellent array element consistency, and low mutual coupling. The antenna assembly and receiver offer independent interchangeability. Employing spatio-temporal adaptive anti-jamming technology, it can simultaneously counteract up to seven combined interference sources from different directions and of varying types.
Specifications
Antenna Array
Parameter | Specification |
Antenna Elements | 8-channel B1/L1/E1 array |
Input Frequency (BDS_B1) | 1561.098MHz ± 2.046MHz |
Input Frequency (GPS_L1) | 1575.42MHz ± 1.023MHz |
Input Frequency (GAL_E1) | 1575.42MHz ± 1.023MHz |
Anti-Jamming Processing
Parameter | Specification |
Anti-Jamming Type | Capable of resisting various suppression interferences such as wideband, swept-frequency and pulse, etc. |
Anti-Jamming Capability | Can resist up to 7 combined wideband and narrowband interference sources |
Single Interference-to-Signal Ratio | ≥110dB (reference signal strength: -130dBm) |
Three Interference-to-Signal Ratio | ≥95dB (reference signal strength: -130dBm) |
Seven Interference-to-Signal Ratio | ≥85dB (reference signal strength: -130dBm) |
Receiver Specifications
Parameter | Specification |
Support BDS, GPS positioning, signal reception, decoding and information output functions, and output parameters such as time and location; | |
Cold Start Time | ≤60s (including self-test time) |
Positioning Accuracy | ≤10m |
Velocity Accuracy | ≤0.2m/s |
Reliability
Parameter | Specification |
MTBF (Mean Time Between Failures) | ≥2000 hours |
Continuous Operation Time | ≥24 hours |
Environmental Adaptability
Parameter | Specification |
Operating Temperature | -45℃ to +70℃ |
Storage Temperature | -45℃ to +85℃ |
Physical Specifications
Parameter | Specification |

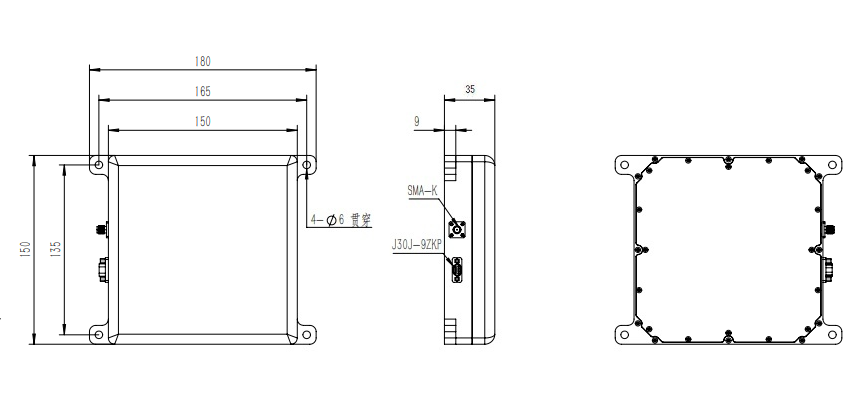

Dimensions | 150.0±0.5mm×150.0±0.5mm×35.0±0.5mm |
Input Voltage | +18V to +32V |
Power Consumption | ≤20W |
Weight | ≤680g |
Interface Specifications
No. | Signal Definition | Signal Description | Remarks |
1 | +18V~+32V | Power Input | Power Port |
2 | +18V~+32V | Power Input | |
3 | GND | Power Ground | |
4 | GND | Power Ground | |
5 | GND | Signal Ground | Data Port |
6 | RX | TTL_RXD0 | |
7 | PPS | 1PPS Signal+ | |
8 | TX | TTL_TXD0 | |
9 | NC | NC |
Product Details
Received Signal:
Number Of Channels:
Name:
Channel Gain:
Output Signal Power:
Power Consumption:
Power Supply:
Operating Temperature:
Storage Temperature:
Installation Size:
Packing:
Applications:
