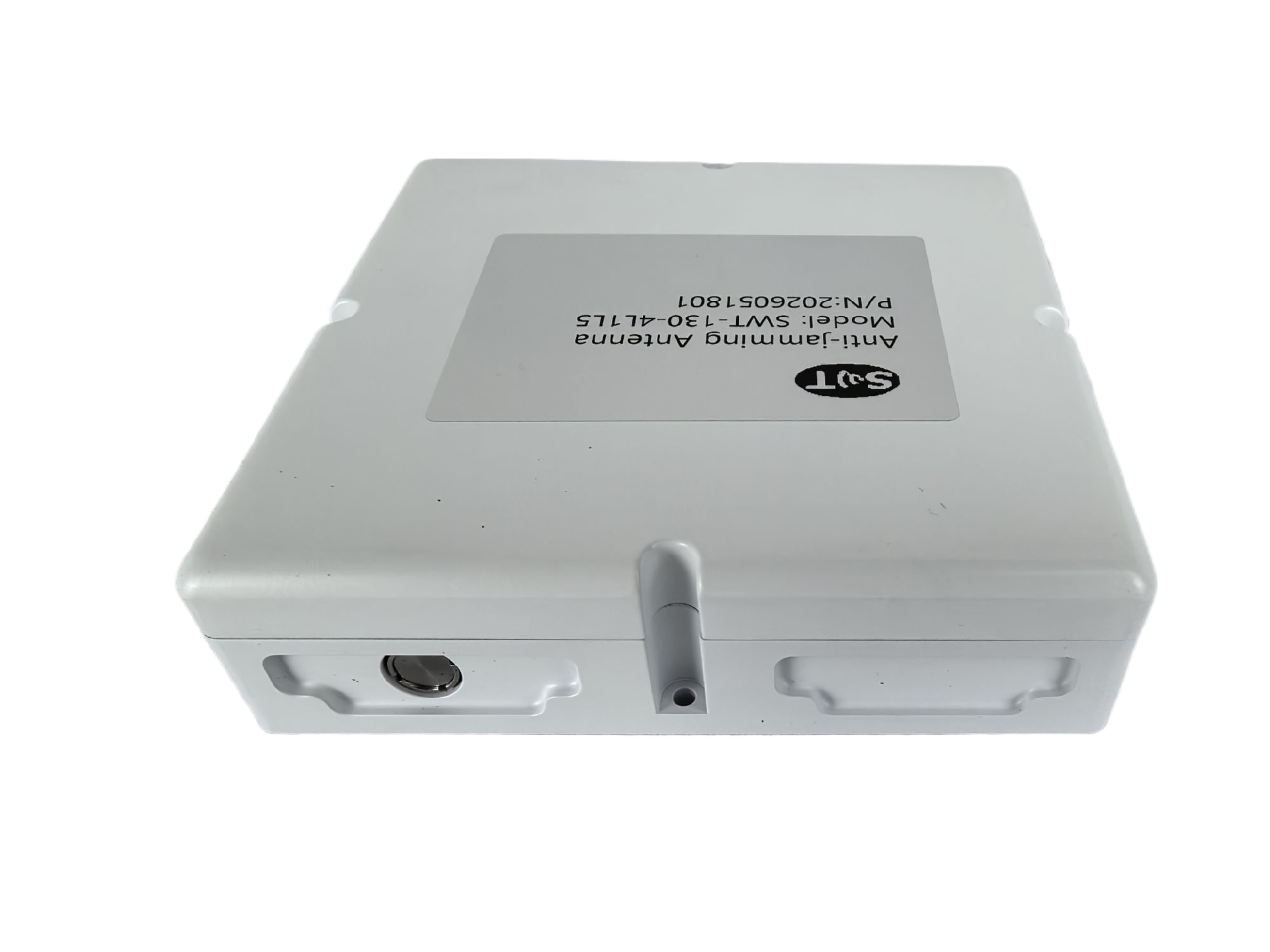

SWT-130-4L1L5 4-Channel GPS L1/L5 Anti-Jamming CRPA Array Antenna with 12~32V Wide Voltage & Three-Directional Interference Suppression, High Precision Positioning Module for Defense Vehicle, Survey Mapping, UAV Navigation, Special Equipment, Field Engineering, Marine Vessel & Precision Meas
Place of Origin：China
Brand Name：SWT
Model Number：SWT-130-4L1L5
Price：Please Contact Customer Service
Product Description
Defense vehicle navigation, geological field surveying, UAV onboard positioning, coastal ship navigation, field construction precision measurement, high-electromagnetic factory equipment positioning, precision lab test equipment.
Function
1) Full-band protected CRPA antenna for 4-channel GPS L1/L5 signal receiving, amplifying, down-conversion, filtering and processing.
2) It adopts 12V~32V wide voltage power supply, consisting of antenna array, RF module and processing module. It can protect against abnormal electromagnetic signals in three
directions, suitable for high-precision positioning scenarios with sensitive electromagnetic environment, and greatly improves positioning stability under complex electromagnetic
conditions.
3) It supports signal types: wideband, narrowband, sweep frequency and pulse.
Main techn ical parameters
Antenna array | 4 Channels L1/L5 | Adaptive Nulling Processing | 4 GPS_L1, 4 GPS_L5 |
Signal Processing Bandwidth | 20MHz | Impedance | 50Ω |
Anti- suppression interference performance(ISR) | Three broadband： ≥95dB@-130dBm； Single broadband： ≥110dB@-130dBm |
MTBF |
≥2000h |
Continuous working time | ≥24h | Interference sources | 3 from different directions |
Power Supply | DC12V～DC32V (20V) | Output Power | -50dbm～-65dbm |
Dimension | 130×130×33mm | Weight | ≤600g±10g |
Working Temperature | -40℃ ~ 70℃, 10%~90 %RH |
Storage Temperature | -40℃ ~ 85℃10%~95%R H, |
Power consumption | ≤18W | Physical interface | Power supply：J30J-9ZK RF: SMA-KF |
Pos it ioning performance
Cold Start Time | ≤60s | Hot Start Time | ≤10s |
Loss-of-Lock Reacquisition Time | ≤3s | Anti-Spoofing Capability | Optional |
Velocity Accuracy | ≤0.2m/s | Positioning Accuracy | ≤10m |

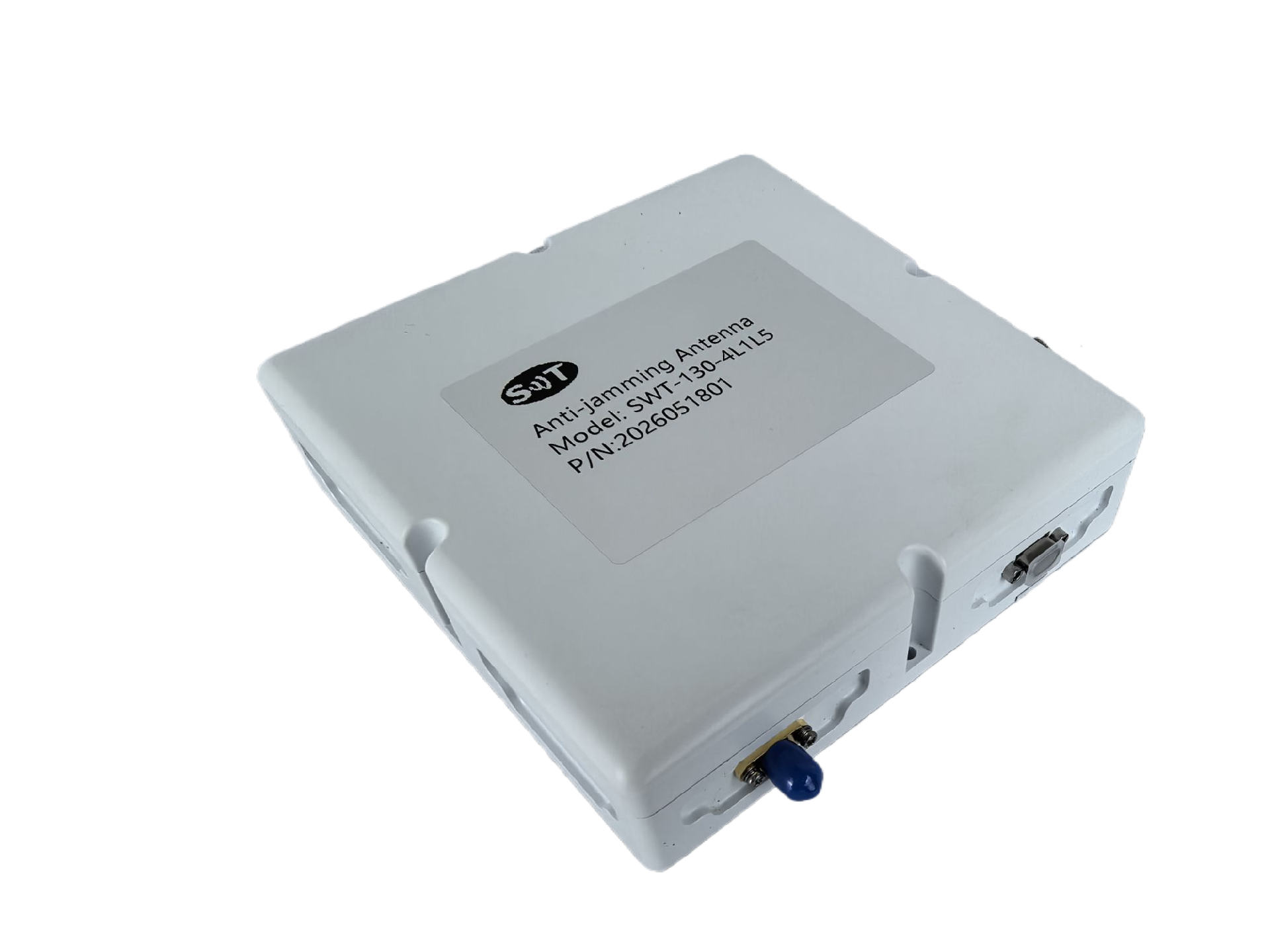

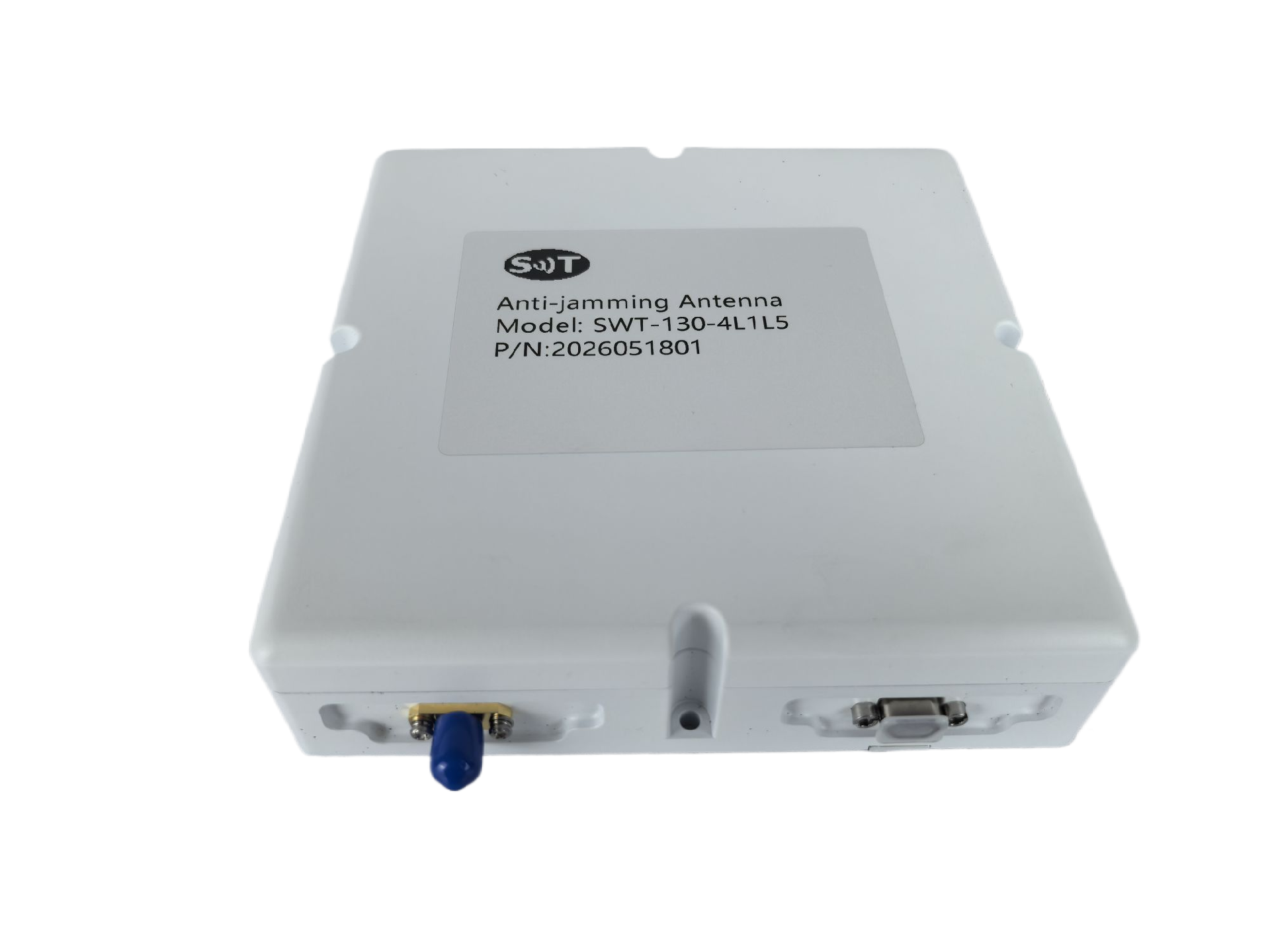

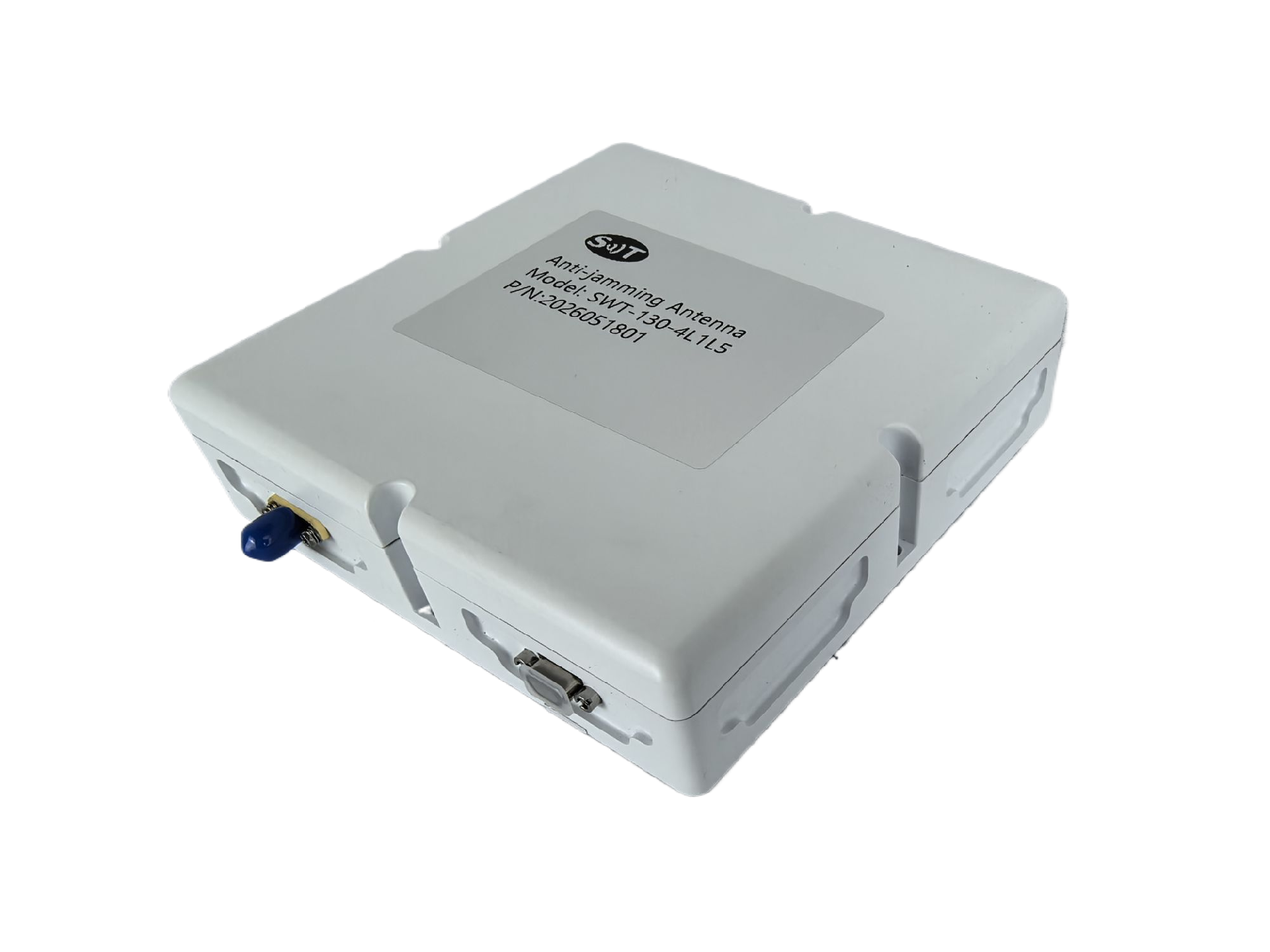

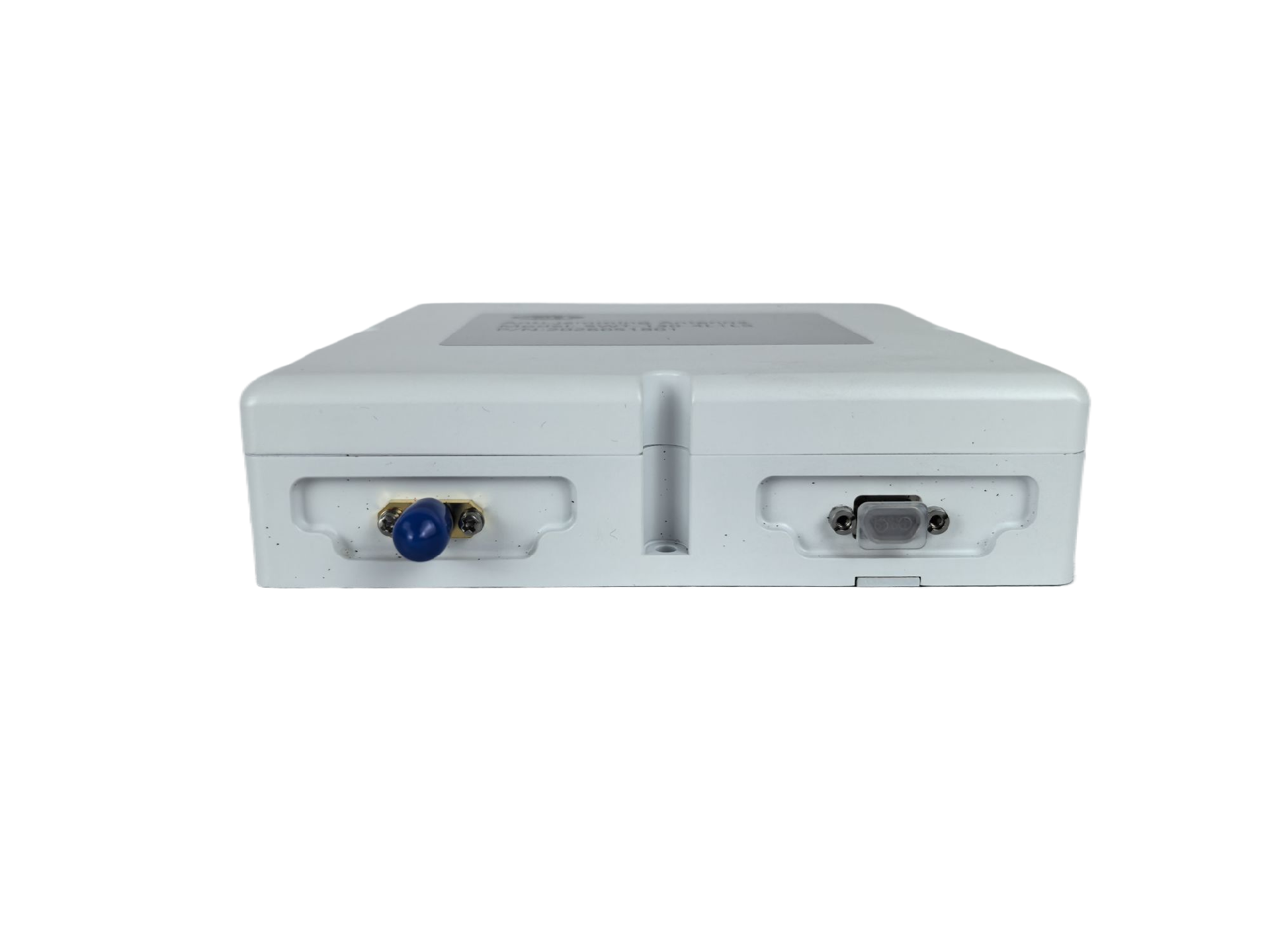

Physical interface Model : J30J-9ZK, pins are defined in the following table.
Number | Definition | Remark |
1 | 20V | Wide Voltage: 12-32V |
2 | TTL_RX | GNSS Receiver Data 115200bps |
3 | TTL_TX | |
4 | 20V | Wide Voltage: 12-32V |
5,6 | GND | GND |
7 | GND | SGND |
8,9 | NC |

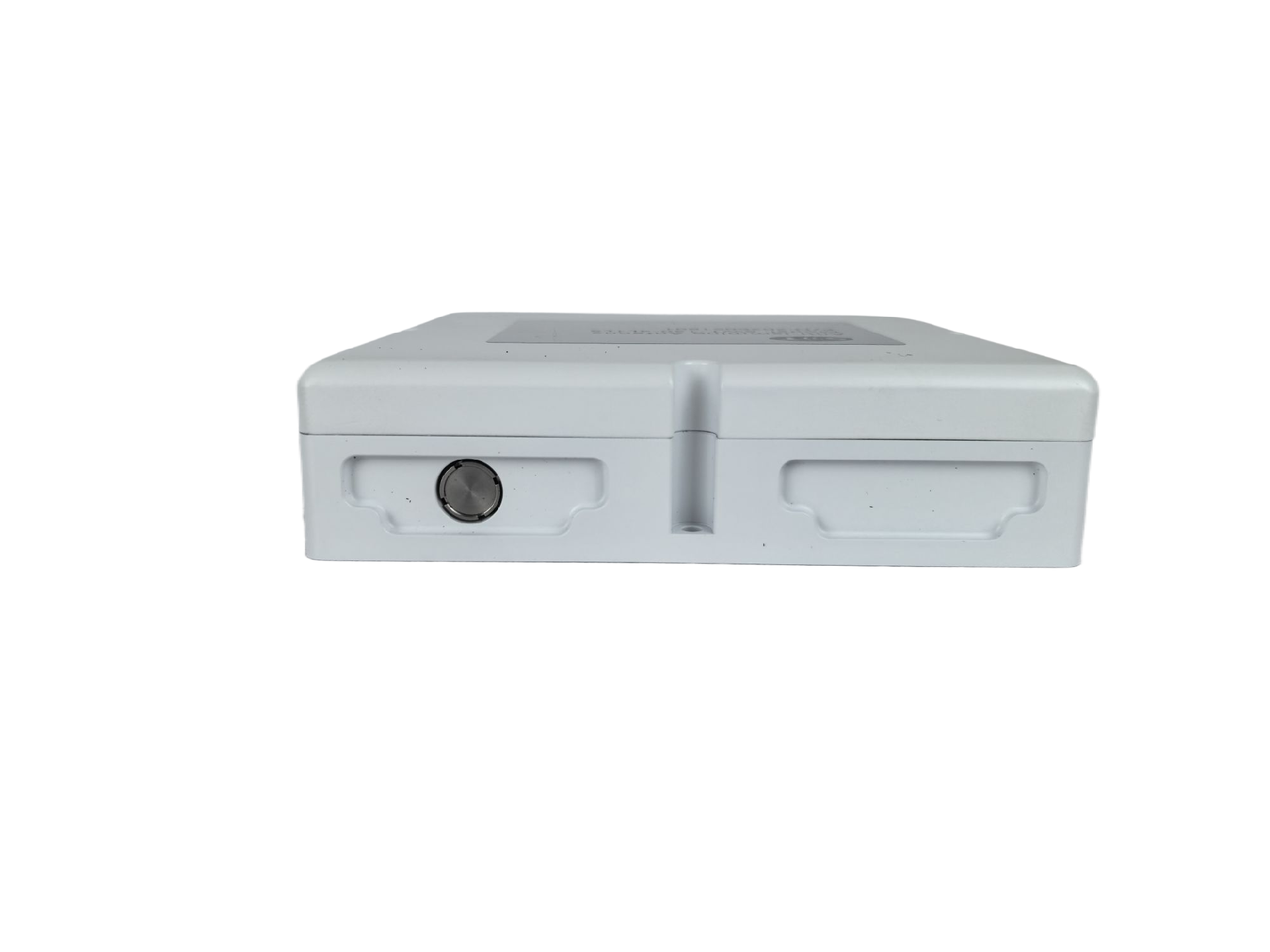

n Structural d imens ions
Product Details
Received Signal:
4-CH Full-band Protected CRPA Anti-jamming Antenna for GPS L1/L5
Number Of Channels:
Name:
-50dBm ~ -65dBm
Channel Gain:
Output Signal Power:
3-direction electromagnetic interference suppression; ≥95dB@-130dBm for three broadband interference, ≥110dB@-130dBm for single broadband interference, supports wide/narrowband, sweep & pulse inte
Power Consumption:
Power Supply:
Operating Temperature:
≤18W
Storage Temperature:
DC 12V~32V, typical 20V
Installation Size:
Defense equipment, vehicle navigation, UAV, mapping & survey, marine navigation, field high-precision positioning under complex electromagnetic environment
Packing:
Applications:
