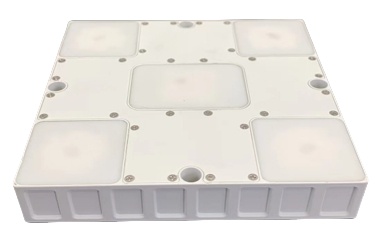

BDS-B3 and B1/L1 Frequency Point Navigation Signal 4 Elements Anti-Jamming Antenna For vehicle-borne
Place of Origin：China
Brand Name：SWT
Model Number：SWT-JRTB3-300G
Price：$5200/pcs
Product Description
BDS-B3 and B1/L1 Frequency Point Navigation Signal 4 Elements Anti-Jamming Antenna For vehicle-borne
FUNCTION:
Receive BD2-B3 satellite signal, and realize theanti-jamming function of BD2-B3 frequency point satellite signal.TECHNICAL PARAMETERS:
| Signal of reception | BD2 B3 | Power supply (V) | DC9~DC36 |
| Num ber of channels | 4 Elements | Power consumption (W) | 10(28V/0.36A) |
| Anti-jamming performance | Three broadband: 75dB ~ 80dB Single broadband: 90dB ~ 95dB | Weight (kg) | 0.5kg |
| Gain of channel(dB) | 40±1 | Size (mm) | 134 m * 134mm * 20mm (Height without connectors) |
| Output signal power (dBm) | -60±5 | Physical interface | J30J-9 core,SMA-K |
| Channel isolation (dB) | ≥65 | Communication interface | Serial port, TIL level |
| Channel gain consistency | ≤±1 | Operating temperature (°C) | -45~85 |
| Channel gain consistency(°) | ≤±5 | Storage temperature (C) | -55~85 |
| Vibration. shock electromagnetic compatibility, etc | Meet the relevant requirements of GIB |
APPLICATION:
Airborne, vehicle-borne, ship-borne, ground systemsand other application platforms.

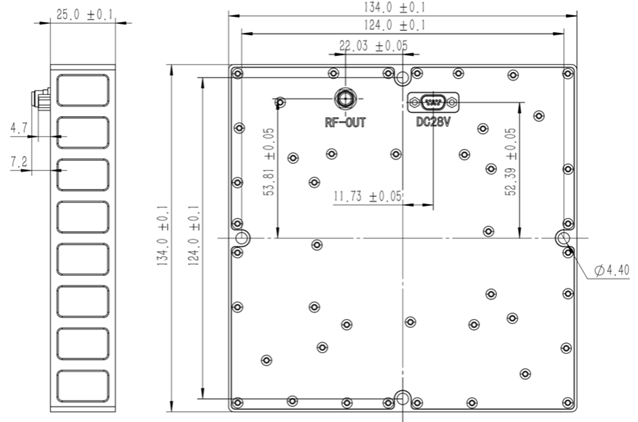

Size

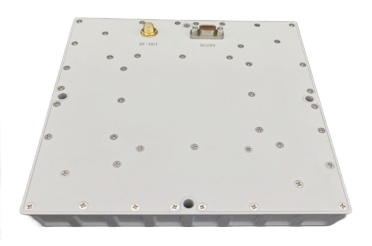

Product Details
Received Signal:
Number Of Channels:
4 B1 Elements, 1 Element Glonass
Name:
4-Element Anti-Jamming Antenna
Channel Gain:
40dB±1 dB
Output Signal Power:
-60±5 (dBm)
Power Consumption:
≤10(28V/0.36A) (W)
Power Supply:
DC9V~DC36V
Operating Temperature:
-40~85℃
Storage Temperature:
-55~85℃
Installation Size:
134 m x 134mm x 20mm
Packing:
Carton
Applications:
Airborne, vehicle-borne, ship-borne, ground systems
