GPS-L1, Galileo E1 and Glonass G1 Anti-Interference Receiver 4 Elements Anti-Jamming Antenna for Navigation Systems
Place of Origin：China
Brand Name：SWT
Model Number：SWT-JRL1-100
Price：$5200/pcs
Product Description
GPS-L1, Galileo E1 and Glonass G1 Anti-Interference Receiver 4 Elements Anti-Jamming Antenna for Navigation Systems
Descriptions
1) It can receive satellite signals like BD-B1, GPS-L1, GALILEO E1 and GLONASS G1, output navigation positioning information, and with anti-interference function for BD-B1, GPS-L1, and GALILEO E1 frequency navigation signal.
2) NMEA0183 navigation data is output through standard RS-232C serial port.
Main Technique Data
| Receiving signal | BD-B1,GPS L1,GALILEO E1,GLONASS G1 | Power supply | DC9V~DC36V |
| Channels | 4channel B1L1E1, 1 channel GLONASS | Power consumption | ≤12 |
| B1L1 Anti-interference ISR | Three broadband: 80dB~85dB Single broadband:90dB~95dB | Weight | 500±5 |
| Location precision(1σ) | Level≤10m, Height≤10m | Speed precision(1σ) | ≤0.2m/s ≤0.2 m/s |
| Physical interface | One J30J-9,One SMA-K(backup) | Dimension | 134mm x 134mm x19mm (The size of length and width without connectors ) |
| Communication interface | 1 serial port, TTL-3.3V | Data output | NMEA-0183,GGA,GLL,GSA,GSV,RMC,VTG,TXT |
| Baud rate | 4800bps-921600bps,Default 9600bps | Data format | 1 start bit, 8 data bits, 1 stop bit, no parity bit. |
| Working temperature( ºC) | -40~85 | Storage Temperature( ºC) | -55~85 |
Physical interface
1) RF signal out: SMA-K socket,be used for outer receiver(backup).
2) Power supply/Communication: J30J-9, pins are defined in the following table.
J30J-9, pins are defined in the following table.
| Number | Definition | Remark |
| 1,4 | Power positive pole | DC9V ~ DC36V |
| 5,6 | Power negative pole | |
| 2 | Serial port RXD | RS-232C voltage |
| 3 | Serial port TXD | RS-232C voltage |
| 7 | Signal GND | |
| 8,9 | Empty |

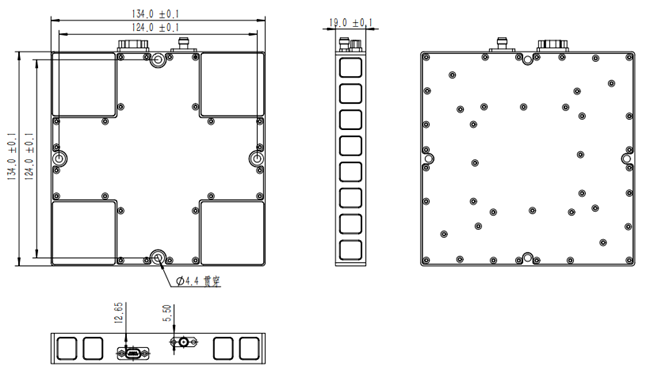

Size
Product Details
Received Signal:
Number Of Channels:
4 B1 Elements, 1 Element Glonass
Name:
4-Element Anti-Jamming Antenna
Channel Gain:
Output Signal Power:
-60±5 (dBm)
Power Consumption:
≤10(28V/0.36A) (W)
Power Supply:
DC9V~DC36V
Operating Temperature:
-40~85℃
Storage Temperature:
-55~85℃
Installation Size:
134 m x 134mm x 20mm
Packing:
Carton
Applications:
Airborne, vehicle-borne, ship-borne, ground systems
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
