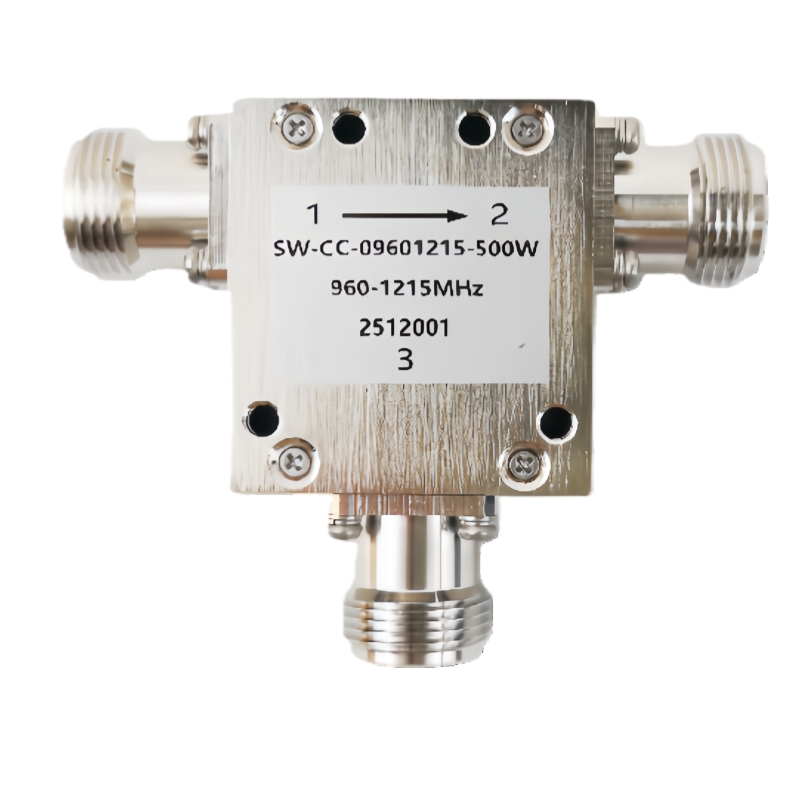

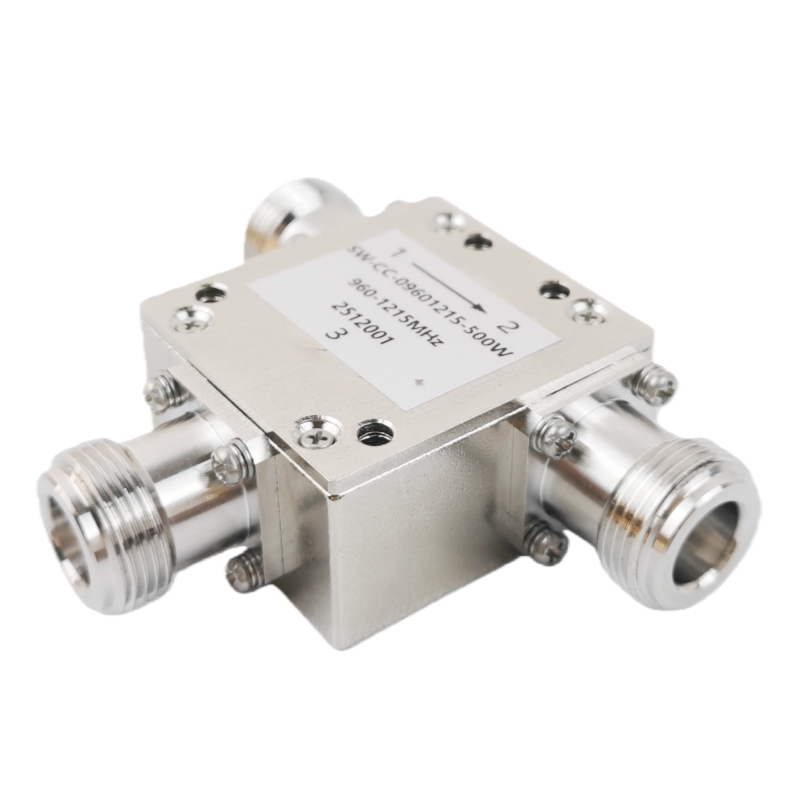

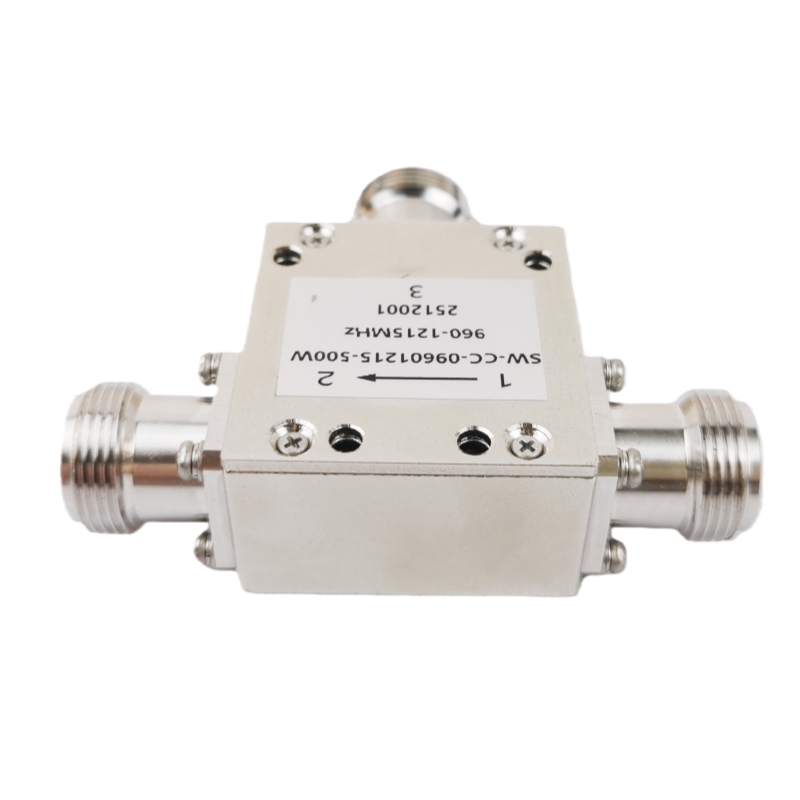

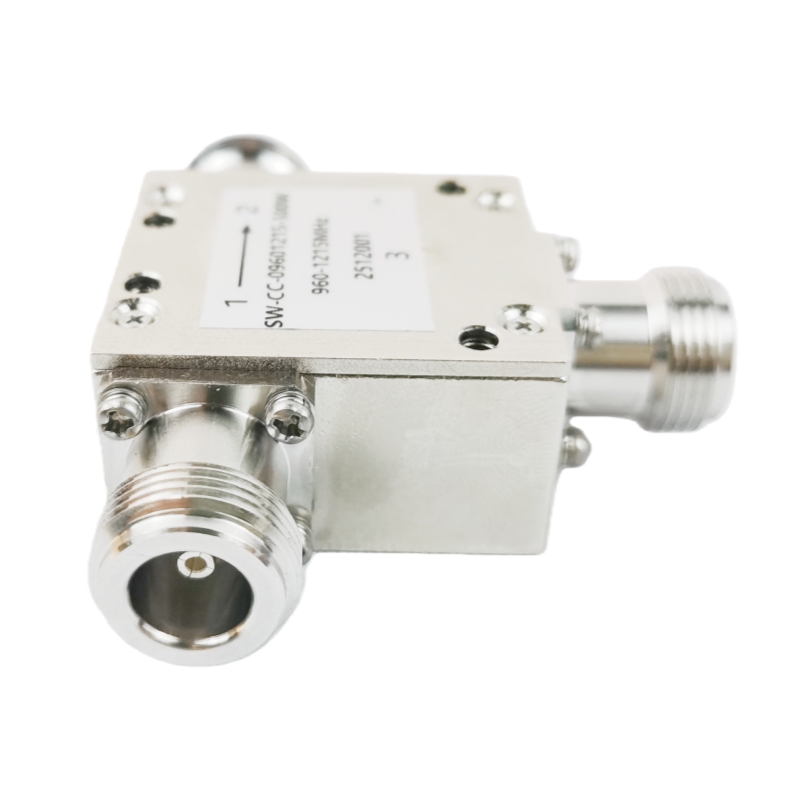

960-1215MHz 500W High-Power RF Amplifier for Tactical Communications and Radar Systems
Place of Origin：China
Brand Name：SWT
Model Number：SW-CC-09601215-500W
Price：Please Contact Customer Service
Product Description
Description
The module is designed for and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
PARAMETER | RF / CHARACTERISTICS | UNIT |
Operating Frequency | 960-1215 | MHz |
VSWR | ≤1.2 | -- |
Insertion loss | ≤0.3 | dB |
Isolation | ≥23 | dB |
Forward Power | 500 | W |
Reverse Power | 500 | W |
Connector | N-F | --- |
Temperature | 0-+65 | ℃ |

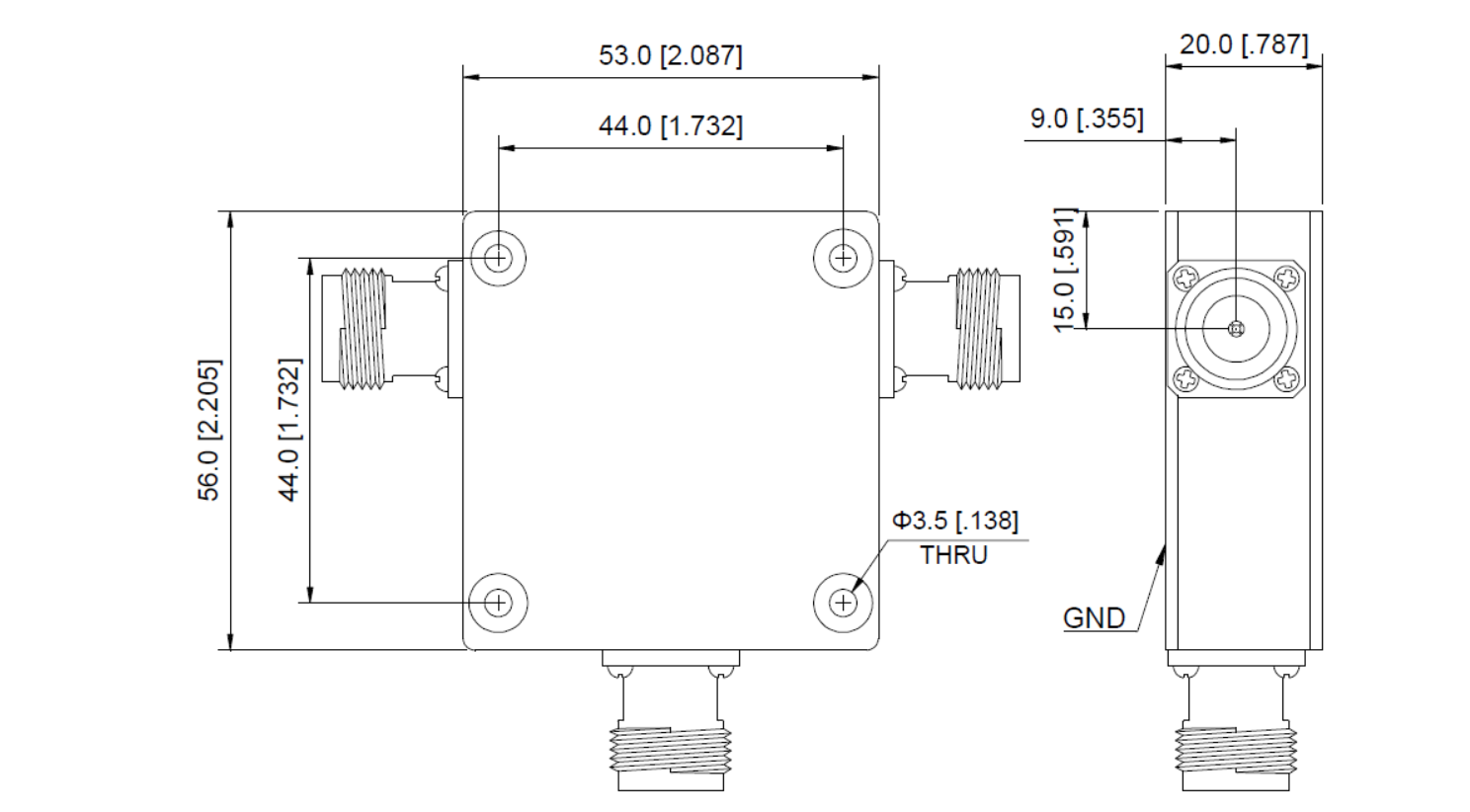

Outline Dimensional Drawing（mm/ inch）
Product Details
Packing:
Power Consumption:
Data Format:
Working Temperature:
Physical Interface:
Communication Interface:
Receiving Signal:
Applications:
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
