VHF 10-25MHz 500W Solid State Microwave Power Amplifier Communication Module for Shortwave Communication, Broadcasting
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-00100025-57C
Price：make request to get price
Product Description
VHF 10-25MHz 500W Solid State Microwave Power Amplifier Communication Module for Shortwave Communication, Broadcasting
The 10-25MHz 500W RF power amplifier is designed for shortwave communication, radio broadcasting, radar systems, and scientific research, providing high power, low distortion, and high linearity to ensure stable long-distance signal transmission.
Key Features:
Wide Frequency Coverage: Operates from 10-25MHz, suitable for shortwave communication and various RF applications.
High Power Output: Delivers 500W (Psat 57dBm), ensuring stable long-distance signal transmission.
High Gain & Low Noise: Optimized circuit design minimizes signal distortion and interference, improving communication quality.
Efficient Cooling System: Features an advanced thermal management design for stable long-term operation and enhanced reliability.
Rugged & Durable Design: Compatible with various RF systems, ideal for military, aerospace, industrial, and research applications.
This high-performance RF power amplifier is an ideal solution for shortwave communication, radar signal amplification, and high-frequency RF applications, ensuring efficient and stable signal transmission.
Specification
Typical performance at +24VDC +25oC,and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 10 | 25 | MHz | |
| Input Level | 30 | 32 | dBm | |
| Gain | 27 | dB | ||
| Output Power | 57 | dBm | ||
| Gain Flatness | ±0.5 | dB | ||
| Input/Output Impedance | 50 | Ω | ||
| Input VSWR | 2 | |||
| Spurious | -50 | dBc | ||
| Supply Voltage | 50 | V | ||
| Operating Current | 30 | A | ||

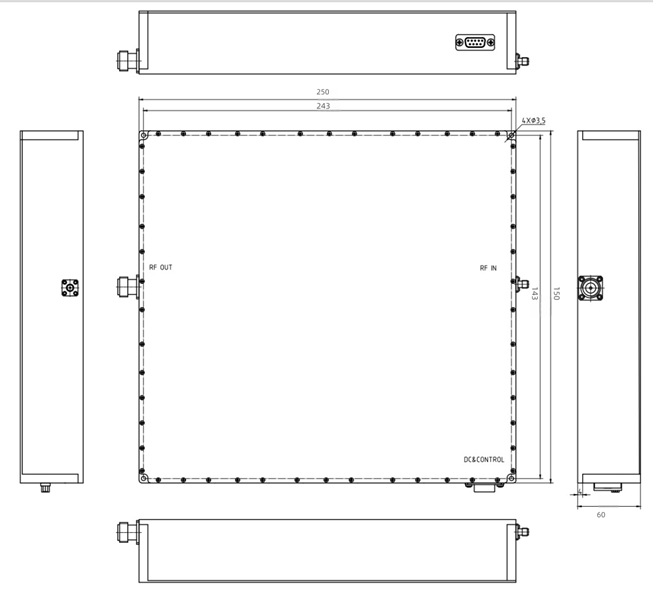

Outline Dimensional Drawing
Product Details
Name:
10-25MHz RF Power Amplifier
Operating Frequency:
0-25MHz
Psat Output Power:
500W
Gain:
57dB
Input Vswr:
2
Power Gain Flatness:
±1.5dB
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
0~50°c
Application:
Wireless Communication, Radar Systems
Transport Package:
Carton
Specification:
Customized
