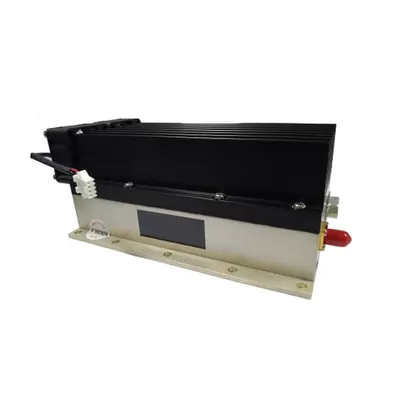

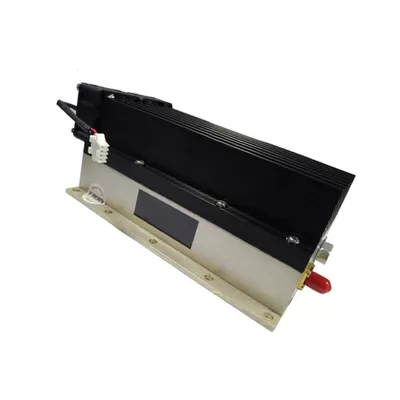

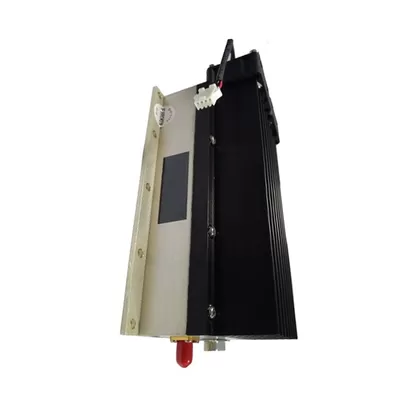

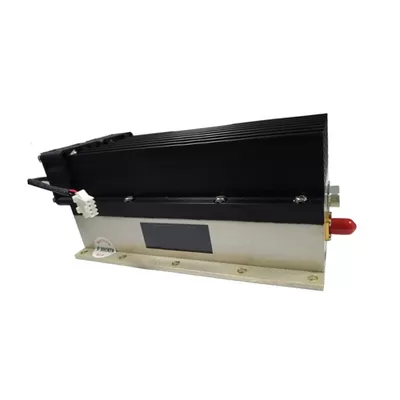

High Output Power 10~ 30MHz 200W 53dB VHF Power Amplifier for RF testing and measurement in laboratory

High Output Power 10~ 30 MHz 200W 53dB VHF Power Amplifier for RF testing and measurement in laboratory

Description

The 10 KHz ~ 30 MHz 200W VHF Power Amplifier is designed for applications that require high-power amplification over a wide frequency range in the VHF band. This amplifier is ideal for communication systems, broadcasting, military applications, test and measurement, and other RF applications requiring reliable and high-performance power amplification.

Key Features:

1. Wide Frequency Range: Operates over a frequency range from 10 KHz to 30 MHz, covering a broad spectrum of VHF applications.

2. High Output Power: Provides a saturated output power (Psat) of 200 watts.

3. High Gain: Offers a gain of 53 dB, allowing for significant amplification of input signals.

4. Low Noise Figure: Ensures minimal noise introduction, maintaining high signal integrity.

5. Robust Design: Built with durable materials and housed in a rugged enclosure to withstand harsh operating conditions.

6. Efficient Cooling: Equipped with a cooling system to maintain optimal operating temperatures, ensuring reliable performance.

7. Protection Features: Includes built-in protection against over-temperature, over-voltage, and over-current conditions to safeguard the amplifier.

8. Linear Performance: Provides excellent linearity, reducing distortion and preserving the quality of the amplified signal.

Applications:
Communication Systems: Enhances signal strength for various communication systems, including VHF radios.
Broadcasting: Suitable for AM, VHF, and other broadcasting applications, ensuring clear and strong signal transmission.
Military Applications: Provides high-power amplification for military communication systems, improving range and reliability.
Test and Measurement: Essential for RF testing and measurement in laboratory and field environments.
Scientific Research: Ideal for research projects requiring high-power, low-frequency RF amplification.
Advantages:
Versatility: Suitable for a wide range of frequencies and applications, offering flexibility in deployment.
High Reliability: Built to perform reliably in demanding conditions with robust construction and protection features.
Ease of Integration: Designed for easy integration into existing systems with standard RF interfaces and control options.

Electrical Specifications:

Frequency:                              10 KHz -30 MHz

Power Gain:                             53 dB Min

Gain Flatness:                         ±2 dB Max

Output Psat:                            200 W Min

Harmonics:                              -20 dBc Max

Non Harmonics Spurious:       -60 dBc Max

Input Power:                           +8 dBm

Input Return Loss:                  10 dB Min

Output Return Loss:               10 dB Typ

AC Voltage:                            100V to 240V AC

Power Consumption:              1200 Watt

Mechanical Specifications:

Parameter                                                     Specification

Dimensions WxHxD                                      mm

RF Connectors In/Out                                   N-F

Weight                                                           20 kg

Cooling                                                          Built in Fan Cooling

Environmental Ratings:

Temperature:             0ºC to +50 ºC Operating

                                  -40 ºC to +70 ºC Non-Operating

Vibration:                   MIL-STD-202F, Method 204D Cond. B

Altitude:                     MIL-STD-202F, Method 105C Cond. B

Temperature Cycle:   MIL-STD-202F, Method 107D Cond. A
