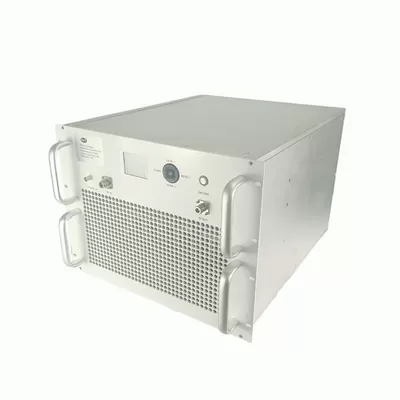

High Performance 495-505MHz Pulse 5kw RF Power Amplifier For Improved Communications Signal Coverage
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-04950505-67C
Price：$21428/pcs
Product Description
Customized 80-1000MHz 850W Ultra Wideband Power Amplifier (Rack-mounted) for EMC Test with High Gain
Description

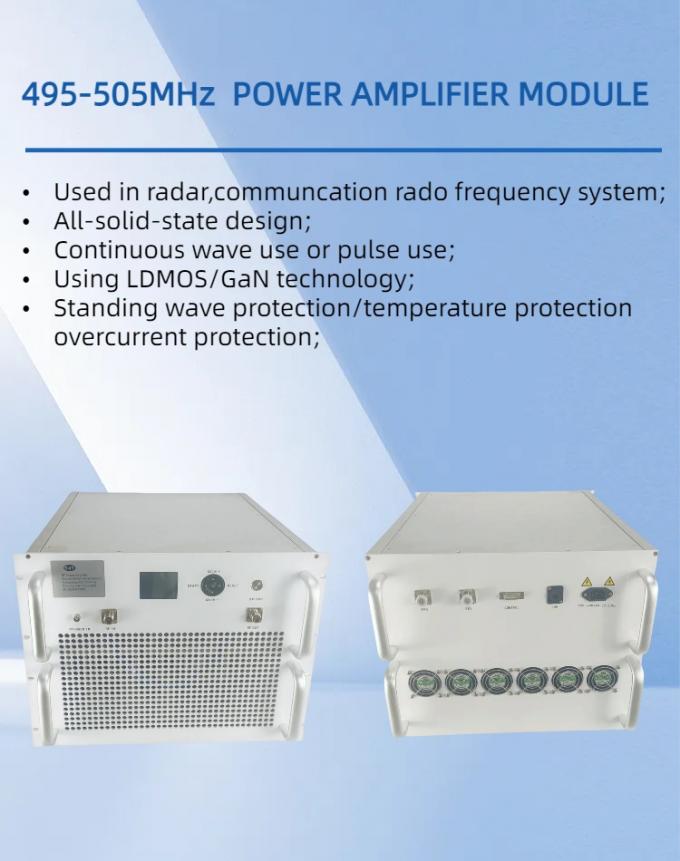

The Pulse 5KW 495-505MHz RF Power Amplifier is a high-performance RF power amplifier designed to deliver strong and stable power output in the 495-505MHz frequency range. Capable of outputting up to 5KW in pulse mode, this amplifier is suitable for a variety of demanding applications such as radar systems, electronic warfare, communication systems, and other scenarios requiring high-power RF signals.
Key Features:
High Power Output: Provides up to 5KW pulse power output in the 495-505MHz frequency range.
Wide Bandwidth: Suitable for various applications within the 495-505MHz frequency range.
High Efficiency: Utilizes advanced power amplification technology to ensure efficient power conversion, reducing energy loss.
Stability and Reliability: Designed for long-term operation stability and high reliability, making it suitable for harsh environments.
Protection Mechanisms: Built-in protection against overheating, overcurrent, and overvoltage to ensure safe operation.
Compact Design: Small size and lightweight for easy integration and installation.
Applications:
Radar Systems: Provides strong pulse signals to support radar detection and tracking functions.
Electronic Warfare: Delivers high power support in electronic countermeasures and signal jamming applications.
Communication Systems: Enhances the coverage and quality of communication signals.
EMC Testing: Used for electromagnetic compatibility testing and validation.
Summary: The Pulse 5KW 495-505MHz RF Power Amplifier is a versatile RF power amplifier that combines high power output, efficiency, and reliability. It is ideal for various fields such as radar, electronic warfare, communication, and EMC testing. Its advanced design and protection mechanisms ensure long-term stable operation, making it the perfect choice for high-demand applications.
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 495 | 505 | MHz | |
| RF INPUT | 0 | 5 | dBm | |
| Power Gain | 67 | dB | ||
| P-sat Output Power | 60 | 67 | dBm | |
| Small Signal Gain Flatness | ±1 | dB | ||
| Power Gain Flatness | ±1 | dB | ||
| In/Out Impedance | 50 | Ω | ||
| Spurious Signals | -60 | dBc | ||
| Harmonic Signals | -20 | dBc | ||
| Gain Control step | 0.5 | dB | ||
| Pulse width | 5 | 25 | us | |
| Repetition period | 10 | 500 | Hz | |
| Rise / Fall time | 100 | ns | ||
| Phase drift coefficient | 0.5 | deg / ℃ | ||
| Gain drift coefficient | 1.5 | % / K | ||
| Output phase change from min to max power | ±10 | ±15 | deg | |
| Trigger Mode | External trigger | |||
| Operating Voltage | 200 | 220 | 260 | V AC |
| Supply Power | 1000 | W | ||
| Input/Output VSWR | 2 | |||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (W x D x H) | The standard 19-inch shelf is 8U high, 482*550*356 | mm |
| RF Connectors (Input / Output) | N-K / 1-5/8 type (female) | -- |
Control Connector (Option1) | DB15: Power on/power off control; Gain Control; Monitoring parameters include output power, temperature Remote control and monitoring can be realized through RS232 |
-- |
| Control Connector (Option2) | RJ45: Remote control and monitoring can be realized through LAN | |
| Cooling | Built-in cooling system, forced air cooling | -- |
| Weight | ≤50 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. | -25 | +55 | °C |
| Humidity Range | 0-90 | % | |
| Amplifier Safeguard Temp. | +80 | °C | |
| Protections | With over temperature protection, input over power protection, output mismatch protection VSWR 4:1 | ||

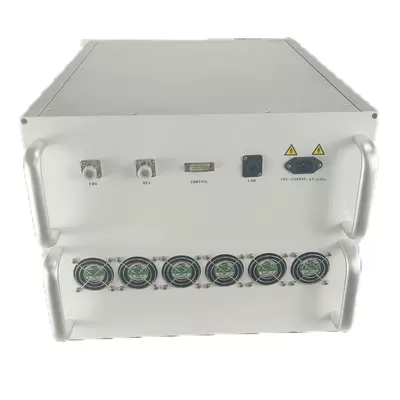

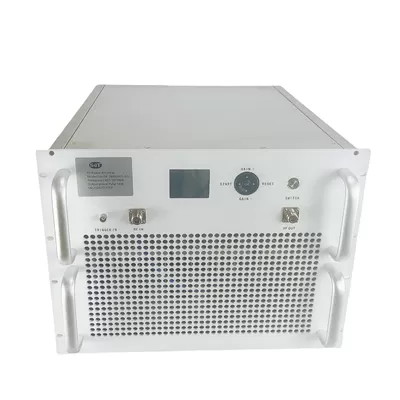

| INPUT/OUTPUT panel Connector | ||
| AMPLIFIER CONNECTOR TYPE: | —— | |
| TRIAD CABLE PART NUMBER: | —— | |
| NUMBER | interface type | DESCRIPTION |
| X1 | N-FK | RF IN |
| X2 | 1-5/8 type | RF OUT |
| X3 | LCD Display | Human-computer interaction interface |
| X4 | Switch | AC/220V/50Hz |
| X5 | RJ45 | LAN |
| X6 | DB15 | Control interface |
| X7 | N-FK | Forward coupling port |
| X8 | N-FK | Reverse coupling port |
| Connector Definition | ||
| AMPLIFIER CONNECTOR TYPE: | DB15 | |
| TRIAD CABLE PART NUMBER: | —— | |
| NUMBER | Definition | DESCRIPTION |
| 1 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
| 2 | Output Power monitoring | Output Power Detection (Output analog voltage) |
| 3 | Reverse Power monitoring | Reverse Power Detection (Output analog voltage) |
| 4 | Temp monitoring | Temp monitoring alarm (Output analog voltage) |
| 5 | GND | GND |
| 6 | RXD |
RS232 serial bus interface (TTL) |
| 7 | TXD | |
| 8 | GND | |
| 9-15 | NC | NC |
| Parts list | ||
| NUMBER | Name | DESCRIPTION |
| 1 | 220V AC power cable | 220V AC power cable |
| 2 | RF Output cable | 1-5/8 type to DIN cable |
| 3 | LAN cable | LAN cable |
| 4 | DB15 connector | Control interface |
| 5 | Certificate of conformity | Certificate of conformity |
| 6 | Test report | Test report |
Product Details
Name:
495-505MHz RF Power Amplifier
Operating Frequency:
495-505MHz
Psat Output Power:
Pulse 5kw
Gain:
67dB
Input Vswr:
2
Power Gain Flatness:
±3dB
Spurious Signals:
-60dBc
Harmonic Signals:
-20dBc
Operating Temp:
-25~55°c
Application:
EMC Test,Communication,Radar Systems,Test and Measurement
Transport Package:
Carton
Specification:
482*550*223mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
