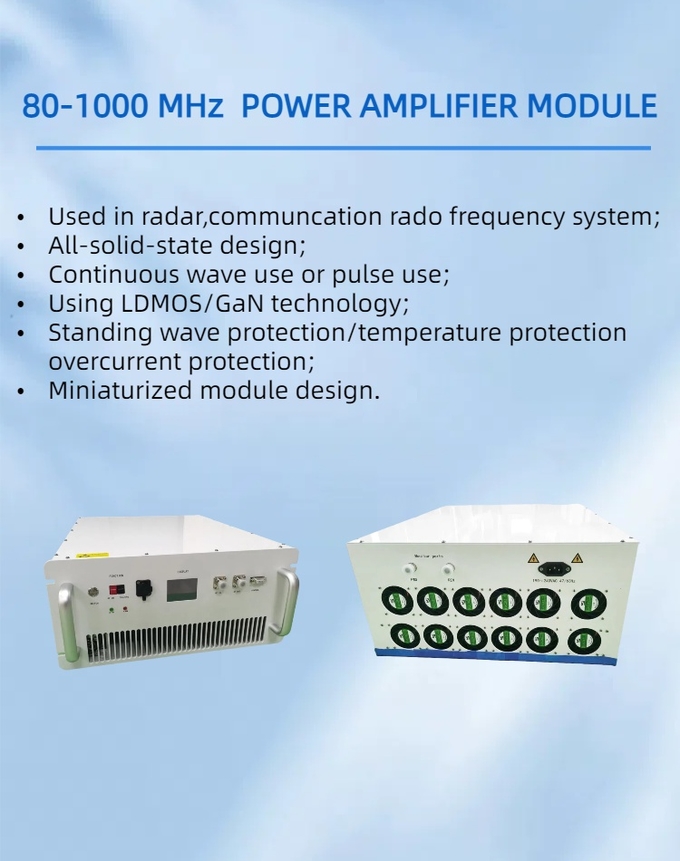

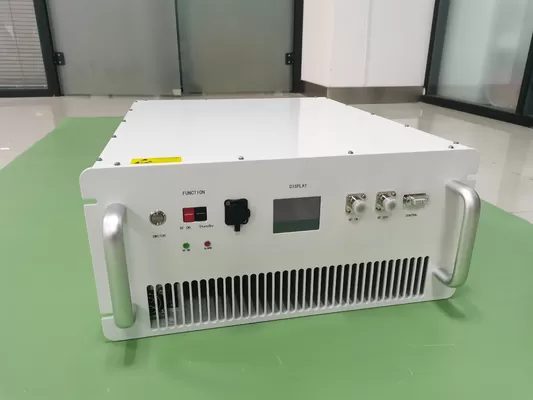

80-1000MHz Psat 400W UHF High Power RF Power Amplifier for Satellite Communication
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-00801000-56C
Price：
Product Description
80-1000 MHz UHF Power Amplifier Psat 400W RF Power Amplifier High Power for Satellite Communication
Description
The Psat 400W 80-1000MHz UHF Power Amplifier is a specialized device designed to amplify radio frequency (RF) signals within the ultra-high frequency (UHF) range, specifically covering the frequency range of 80 megahertz (MHz) to 1000MHz with a Psat (saturated output power) of 400 watts (W).
Frequency Range: This amplifier operates within the UHF frequency range, which typically spans from 300MHz to 3GHz. In this case, it specifically covers the range of 80MHz to 1000MHz, making it suitable for UHF applications such as broadcasting, telecommunications, and RFID systems.
Saturated Output Power (Psat): The Psat of 400W indicates the maximum output power the amplifier can deliver before reaching saturation. This high power output makes it suitable for applications requiring strong signal transmission or testing within the UHF frequency band.
Applications: The UHF Power Amplifier finds applications in various fields such as broadcast transmitters, UHF communication systems, radar systems operating in the UHF band, and scientific research where high-power UHF signals are required.
High Frequency Range: Operating in the UHF band means that this amplifier is designed to handle signals in the higher frequency range efficiently, ensuring accurate amplification and signal integrity in UHF applications.
Stability and Reliability: RF power amplifiers in this range are engineered for stability, reliability, and consistent performance over extended periods, crucial for maintaining signal quality and system reliability in UHF applications.
Versatility: Despite its high power output and specific frequency range, this amplifier can be integrated into various RF systems and setups requiring amplification within the UHF band, offering flexibility and versatility in UHF signal amplification.
In summary, the Psat 400W 80-1000MHz UHF Power Amplifier is a powerful and specialized device tailored for UHF applications, providing high power output, stability, and reliability for demanding UHF communication, broadcasting, radar, and research systems operating within the specified frequency range.
Specification
Typical performance at 220V AC +25oC, and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 80 | 1000 | MHz | |
| RF INPUT | 0 | 5 | dBm | |
| Power Gain | 56 | dB | ||
| P-1dB Output Power | 300 | W | ||
| P-sat Output Power | 400 | W | ||
| Power Gain Flatness | ±3.5 | dB | ||
| In/Out Impedance | 50 | Ω | ||
| Spurious Signals | -65 | dBc | ||
| Harmonic Signals | -15 | dBc | ||
| Gain Adjust Range | 31.5 | |||
| Gain Adjust Ste | 0.5 | |||
| Operating Voltage | 200 | 220 | 240 | V AC |
| Supply Power | 3000 | W | ||
| Input VSWR | 2 | |||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (W x D x H) | The standard 19-inch shelf is 5U high, 482*550*223 | mm |
| RF Connectors (Input / Output) | N-K / N-K (N female) | -- |
| Control Connector (Option1) | DB9:Power on/power off control, gain control; Monitoring parameters include output power, temperature, supply voltage, and supply current | -- |
| Control Connector (Option2) | RJ45:Remote control and monitoring can be realized through LAN | |
| Cooling | Built-in cooling system, forced air cooling | -- |
| Weight | ≤45 | kg |
| AC Connector | Three-in-one air switch | |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. | -25 | +55 | °C |
| Housing Temp. | -45 | +55 | °C |
| Amplifier Safeguard Temp. | +80 | °C | |
| Protections | With over temperature protection, input over power protection, over voltage protection, over current protection, output mismatch protection | ||

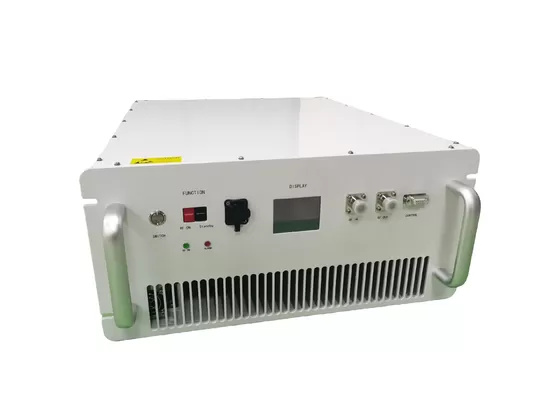

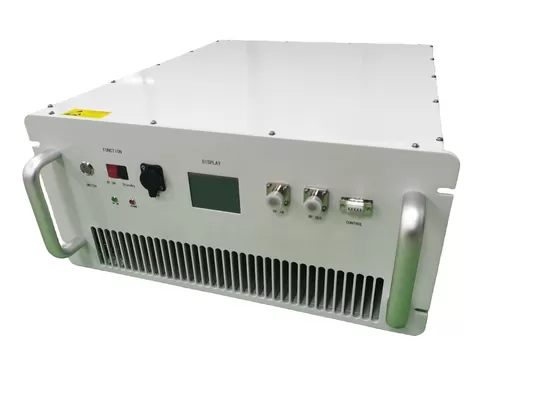

| INPUT/OUTPUT panel Connector | |||
| AMPLIFIER CONNECTOR TYPE: | —— | ||
| TRIAD CABLE PART NUMBER: | —— | ||
| NUMBER | interface type | DESCRIPTION | |
| X1N | N-FK | RF IN | |
| X2 | N-FK | RF OUT | |
| X3 | LCD display | Human-computer interaction interface | |
| X4 | Three-in-one air switch | AC/220V/50Hz | |
| X5 | RJ45 | LAN | |
| X6 | DB9 | Control interface | |

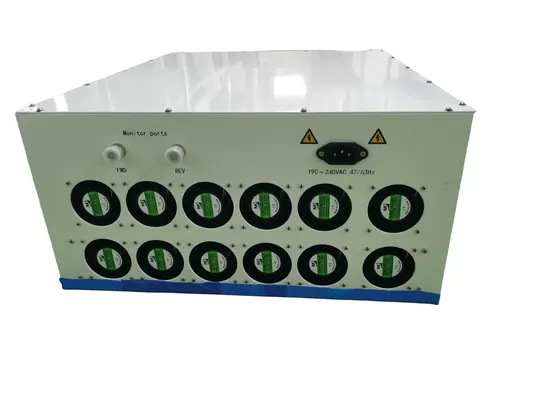

| X7 | N-FK | Forward coupling port | |
| X8 | N-FK | Reverse coupling port | |
| Connector Definition | ||
| AMPLIFIER CONNECTOR TYPE: | DB9 | |
| TRIAD CABLE PART NUMBER: | —— | |
| NUMBER | Definition | DESCRIPTION |
| 1 | PA Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection |
| 2 | Output Power monitoring | Output Power Detection (TTL Hi= Normal , TTL Lo =Fault ) |
| 3 | Temp monitoring | Temp monitoring alarm (TTL Hi= Normal , TTL Lo =Fault ) |
| 4 | Voltage monitoring | Voltage monitoring alarm (TTL Hi= Normal , TTL Lo =Fault ) |
| 5 | Current monitoring | Current monitoring alarm (TTL Hi= Normal , TTL Lo =Fault ) |
| 6 | RXD | RS232 serial bus interface, PA gain adjustment |
| 7 | TXD | |
| 8 | GND | |
| 9 | NC | NC |
Product Details
Name:
80-1000MHz RF Power Amplifier
Operating Frequency:
80-1000MHz
Psat Output Power:
400W
Gain:
56dB
Input Vswr:
2
Power Gain Flatness:
±3.5dB
Spurious Signals:
-65dBc
Harmonic Signals:
-15dBc
Operating Temp:
-25~55°c
Application:
Telecommunications,Radar Systems,Satellite Communication,Test & Measurement,Broadcasting,EMC Test
Transport Package:
Carton
Specification:
482*550*223mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
