Ultra-Wideband Communication Module Low Noise Figure, High Linearity 500-2700MHz RF Power Amplifier
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-05002700-50C
Price：$3580/pcs
Product Description
Ultra-Wideband Communication Module Low Noise Figure, High Linearity 500-2700MHz 50dB RF Power Amplifier
Description
The 500-2700MHz ultra-wideband module covers a frequency range from 500MHz to 2700MHz, making it versatile for various communication and radar systems.
Frequency Range: Covers 500MHz to 2700MHz, suitable for a wide range of communication and radar applications.
Power Output: Typically offers adjustable power output to suit different requirements.
Bandwidth: Features a large bandwidth, supporting complex signal processing and transmission needs.
Modulation: Supports various modulation types such as AM, FM, PM, adapting to different signal processing requirements.
Flexibility: Can be controlled and adjusted via software or hardware interfaces, enabling flexible system integration and management.
Applications: Suitable for radar systems, communication base stations, radio spectrum monitoring, etc., meeting the demands of complex signal processing and transmission.
Characteristics: May include low noise figure, high linearity, stable performance, ensuring excellent operation under various conditions.
This ultra-wideband module is a crucial component in communication and radar systems, providing high-performance signal processing and transmission capabilities for a wide range of complex applications
Outline Dimensional Drawing
Specification
Typical performance at +28V DC +25oC, and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 500 | 2700 | MHz | |
| RF INPUT | 0 | dBm | ||
| P-sat Power Output | 50 | dBm | ||
| Power Gain | 50 | dB | ||
| Power Gain Flatness | ±2 | ±2.5 | dB | |
| In-Out impedance | 50 | Ω | ||
| Spurious Signals | -50 | dBc | ||
| Harmonic Signals | -15 | -10 | dBc | |
| Operating Voltage | 28 | 36 | V DC | |
| Currents | 15 | A | ||
| Input VSWR | 2 | |||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (L x W x H) | 250* 160* 25 | mm |
| RF Connectors (Input / Output) | SMA- KFD/ N-Type Female | -- |
| DC / Control Connector | D-SUB 7W2 | -- |
| Cooling | Air cooled heat dissipation, size to be determined | -- |
| Mounting | 3-6 Thru Hole | -- |
| Weight | ≤4 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. (Housing Temp.) | -25 | +55 | °C |
| Humidity Range | 0-90 | % | |
| PA Baseplate Shutoff Temperature | + 80 | °C | |
| INPUT/OUTPUT PINS | |||
| AMPLIFIER CONNECTOR TYPE: | DB9 | ||
| TRIAD CABLE PART NUMBER: | —— | ||
| PIN NUMBER | LABEL | DESCRIPTION | |
| 1-2 | +VDC | +28V | |
| 3 | GND | Ground | |
| 4 | Temp Monitor | Reference voltage : 750mV @ 25°C, Scale : 10mV/°C | |
| 5 | Amp Enable | TTL Lo or No Connection = Disable, TTL Hi = Enable | |
| 6-7 | GND | Ground | |

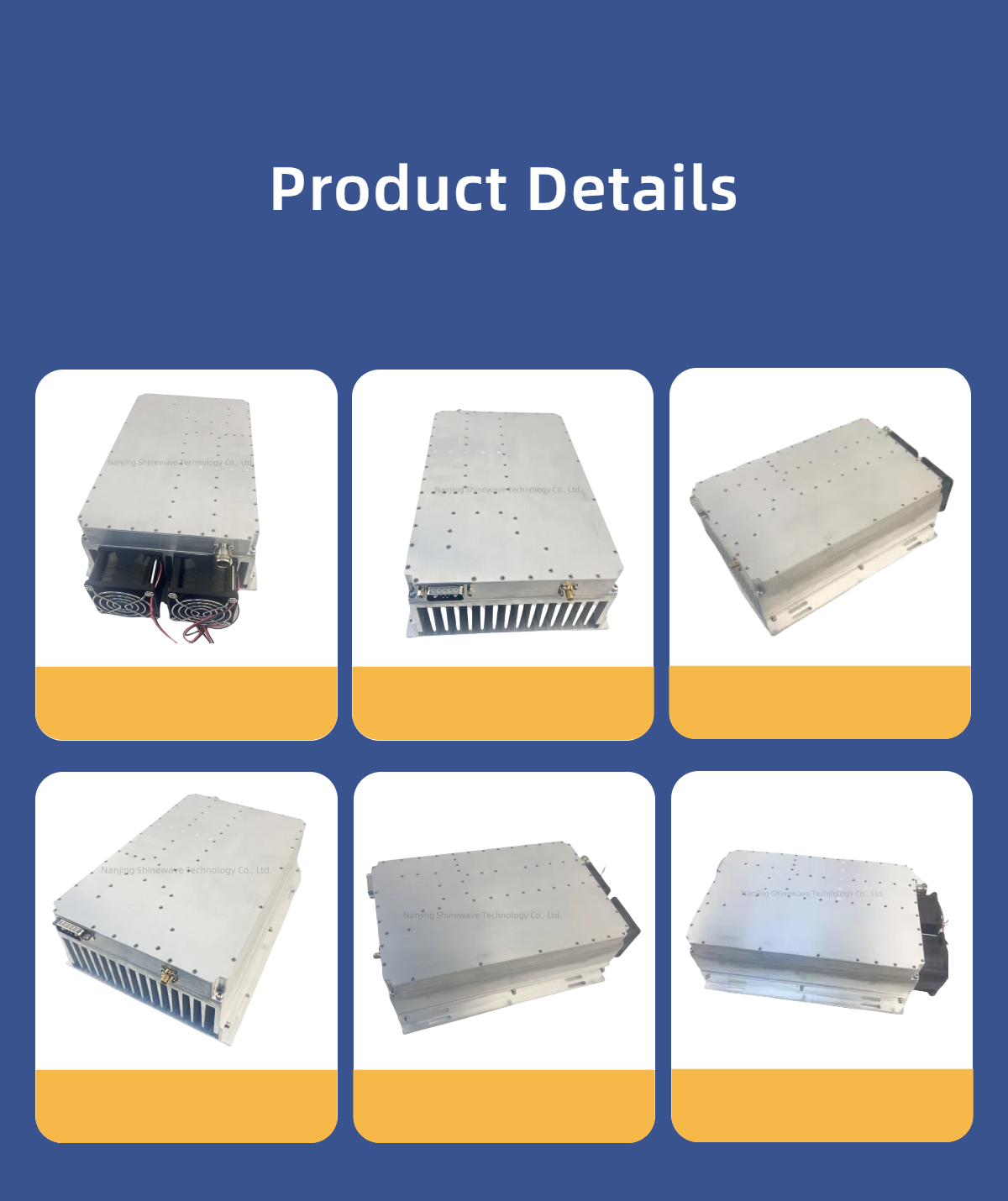

Product Details
Name:
500-2700MHz RF Power Amplifier
Operating Frequency:
500-2700MHz
Psat Output Power:
100W
Gain:
50dB
Input Vswr:
2
Power Gain Flatness:
±2dB
Spurious Signals:
-50dBc
Harmonic Signals:
-15dBc
Operating Temp:
-25~55°c
Application:
Communication,EMC Test,Electronic Warfare
Transport Package:
Carton
Specification:
250* 160* 25mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
