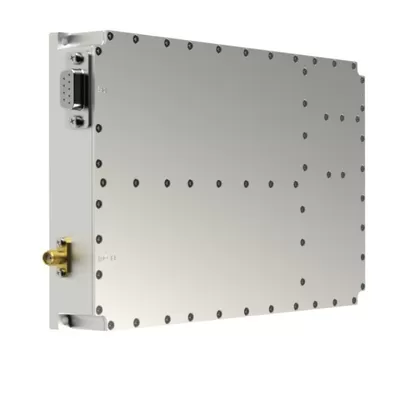

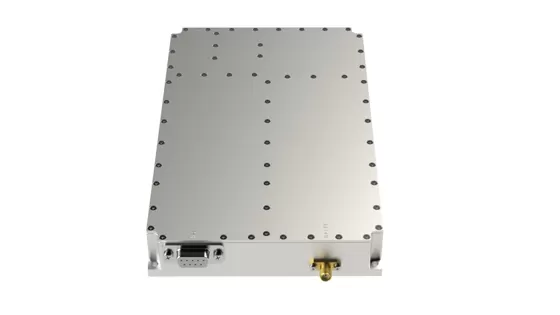

800-1000MHz 100W Psat 50 dBm UHF Power Amplifier RF Linear Amplifier For wireless communications
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-08001000-50C
Price：
Product Description
800-1000MHz 100W Psat 50 dBm UHF Power Amplifier RF Linear Amplifier For wireless communications
Description
The 800-1000MHz 100W Psat (saturated output power) 50 dBm RF Power Amplifier is designed for high-frequency applications.
Frequency Range: Covering the 800MHz to 1000MHz frequency band, it is suitable for various wireless communication, RF testing, and industrial applications in high-frequency environments.
High Power Output: With a Psat of 100W (saturated output power), it delivers robust signal output capabilities, ideal for applications requiring high power output.
High Gain: The amplifier achieves a gain of 50 dBm, effectively enhancing input signals to improve system sensitivity and performance.
Stability and Reliability: Utilizing advanced amplifier design and protection circuits, it ensures stable and reliable operation under various working conditions.
Multiple Protection Features: Includes overheat protection, overload protection, etc., to safeguard the equipment during prolonged operation.
This power amplifier is suitable for wireless communication base stations, RF testing systems, industrial radar, and other high-power, high-gain applications in the 800-1000 MHz frequency range.
Specification
Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 800 | 900 | 1000 | MHz |
| RF INPUT | 0 | dBm | ||
| PSat Power Output | 50 | dBm | ||
| Gain | 50 | dB | ||
| Power Gain Flatness | 3 | dB | ||
| Input VSWR | 1.5 | |||
| Operating Voltage | 28 | VDC | ||
| Spurious Signals | -60 | dBc | ||
| Harmonic Signals | -20 | dBc | ||
| Switching Time | 1.0 | 2.0 | uS | |
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (L x W x H) | 200×130×28 | mm |
| RF Connectors (Input / Output) | SMA- KFD/ SMA- KFD | -- |
| DC / Control Connector | DB15 | -- |
| Cooling | Baseplate Conduction - Optional Heatsink Available | -- |
| Mounting | 3-8 Thru Hole | -- |
| Weight | ≤1.2 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. (Housing Temp.) | -40 | +65 | °C |
| Humidity Range | 0-100 | % | |
| Max RF Input | +5 | dBm | |
| PA Baseplate Shutoff Temperature | + 85 | °C | |
| INPUT/OUTPUT PINS | |||
| AMPLIFIER CONNECTOR TYPE: | DB15 | ||
| TRIAD CABLE PART NUMBER: | —— | ||
| PIN NUMBER | LABEL | DESCRIPTION | |
| 1-4 | +VDC | +28V | |
| 5-8 | GND | Ground | |
| 9 | Amp Enable | TTL Hi= Enable, TTL Lo = Disable or No Connection | |
| 10 | FWD | Forward Power Detection (TTL Hi= Normal , TTL Lo =Fault ) | |
| 11 | REV | Reverse Power Detection(TTL Hi= Normal , TTL Lo = Fault ) | |
| 12-15 | NC | NC | |
Product Details
Name:
800-1000MHz RF Power Amplifier
Operating Frequency:
800-1000MHz
Psat Output Power:
100W
Gain:
50dB
Input Vswr:
1.5
Power Gain Flatness:
±3dB
Spurious Signals:
-60dBc
Harmonic Signals:
-20dBc
Operating Temp:
-40~65°c
Application:
wireless communications, radar systems, satellite communications, broadcasting, medical equipment
Transport Package:
Carton
Specification:
200×130×28mm
