SW-PS-2450-50C High Reliability RF Module for Defense & Commercial 2450MHz 100W S-band Microwave Power Amplifier
Place of Origin：China
Brand Name：SWT
Model Number：SW-PS-2450-50C
Price：Please Contact Customer Service
Product Description
Description

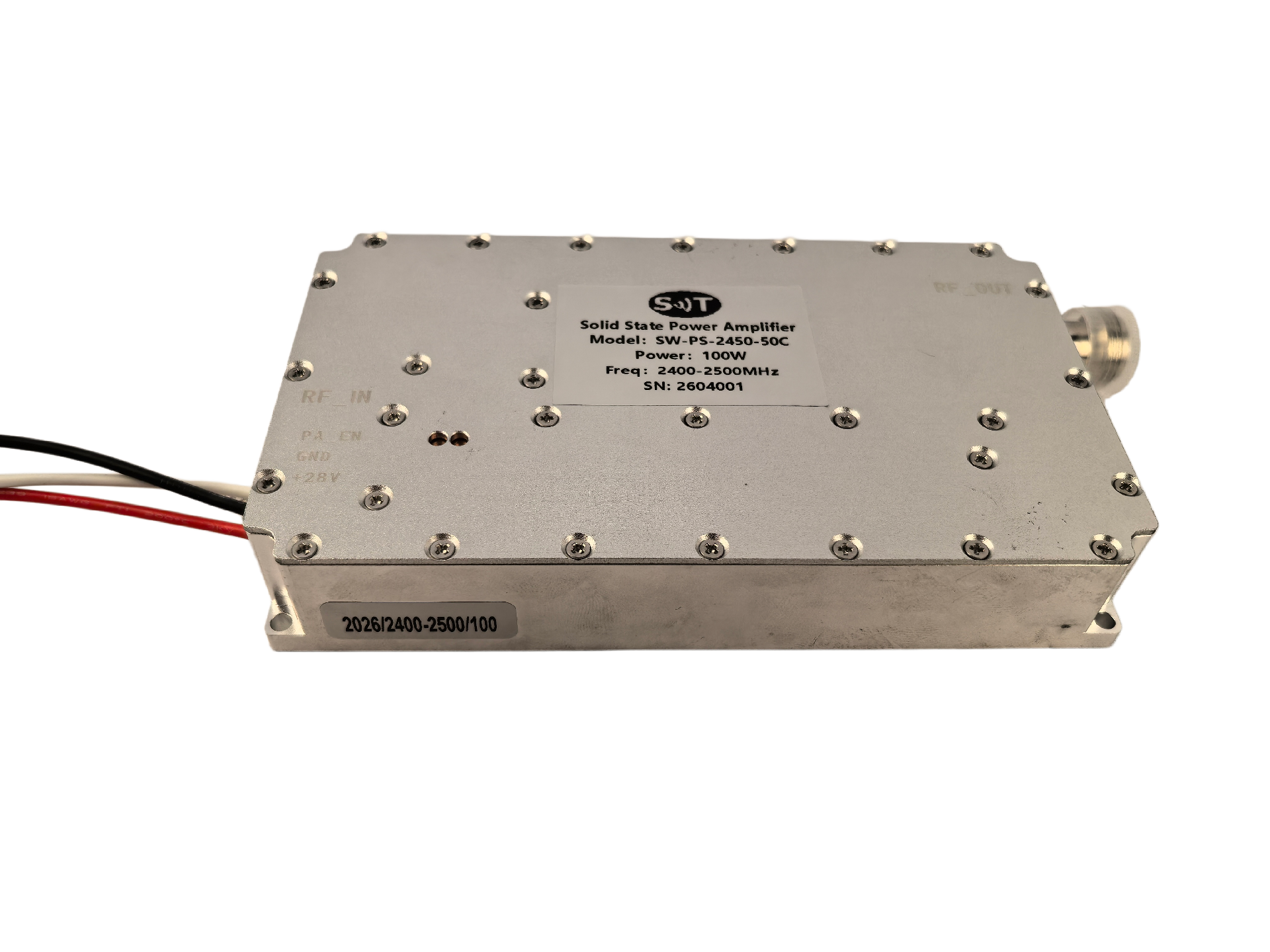

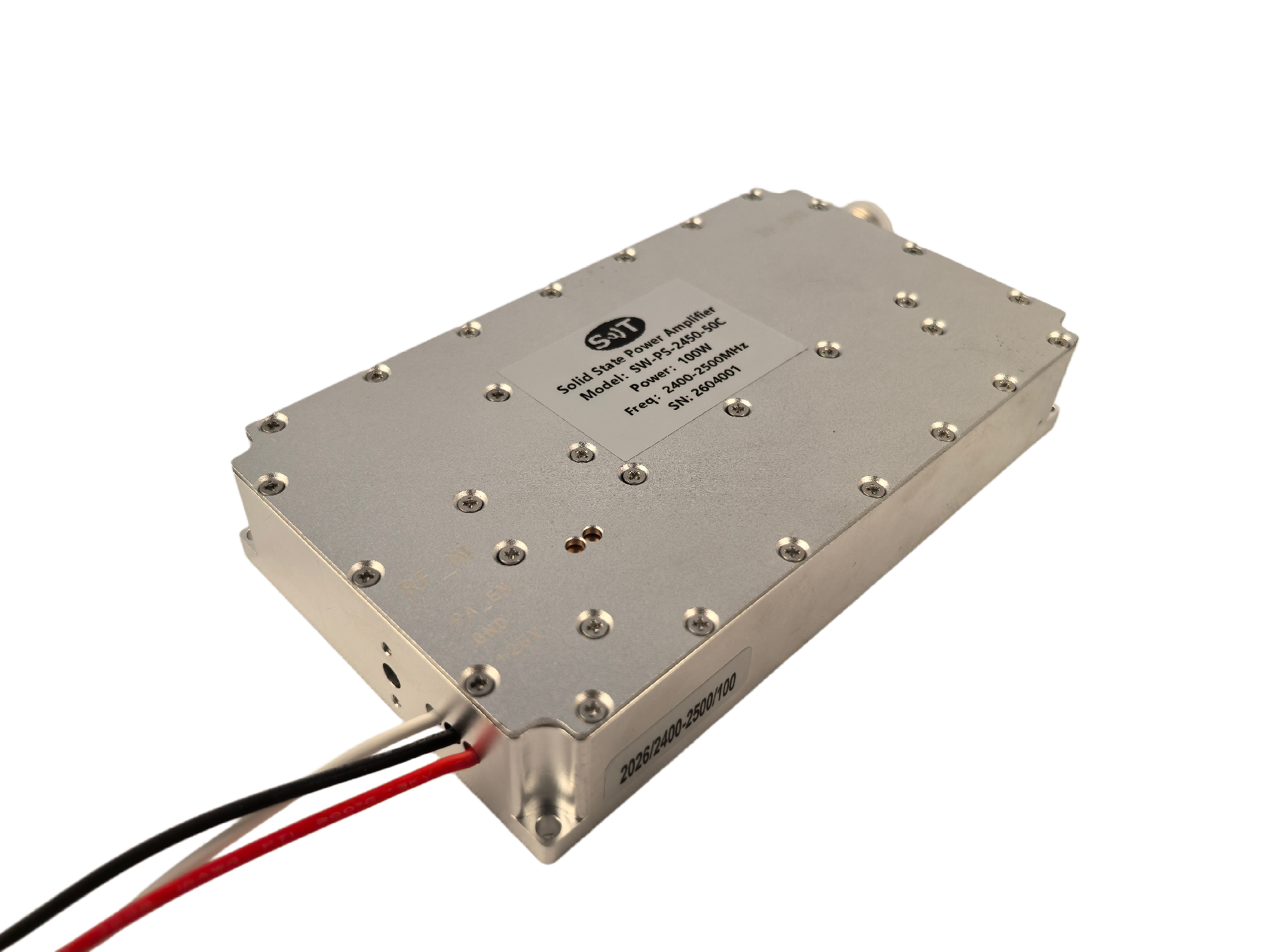

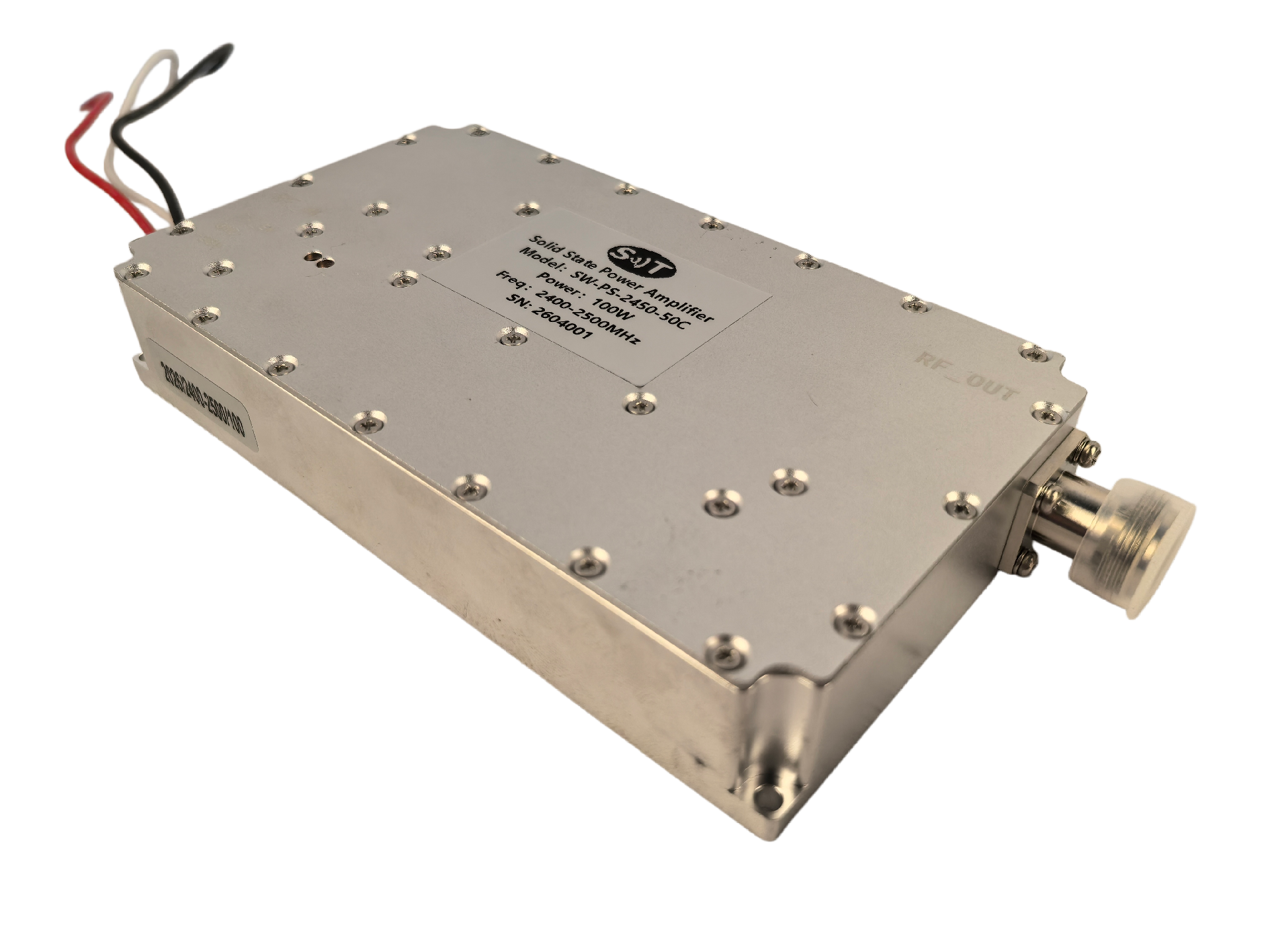

SW-PS-2450-50C 100W S-band microwave power amplifier operates at 2400–2500MHz, typical saturated output 50dBm, 28V DC supply, 50Ω in-out impedance. Features high power density, high efficiency and linearity, dimensions 140×80×25mm, weight ≤1.5kg, external heat dissipation required, operating temp -20℃~+55℃.
Application Scenarios：1. Defense: Radar systems, electronic warfare, Defense communications, tactical communication terminals, wireless detection and transmission equipment;2. Commercial: 2.4G wireless communication base stations, microwave communication links, industrial RF heating equipment, wireless power transmission, test and measurement instruments, IoT high-power RF nodes;3. General: Avionics, vehicle-mounted communication, shipborne communication, fixed base stations and portable RF systems.
Specification
Typical performance at +28VDC +25oC, and in a 50Ω system.
|
RF / ELECTRICAL |
||||
|
PARAMETER |
MIN |
TYP. |
MAX |
UNIT |
|
Operating Frequency |
2400 |
2450 |
2500 |
MHz |
|
P-sat Power Output |
50 |
dBm |
||
|
Operating Voltage |
28 |
VDC |
||
|
In-Out impedance |
50 |
Ω |
||
|
Current |
11 |
A |
||
|
MECHANICAL |
||
|
PARAMETER |
VALUE |
UNIT |
|

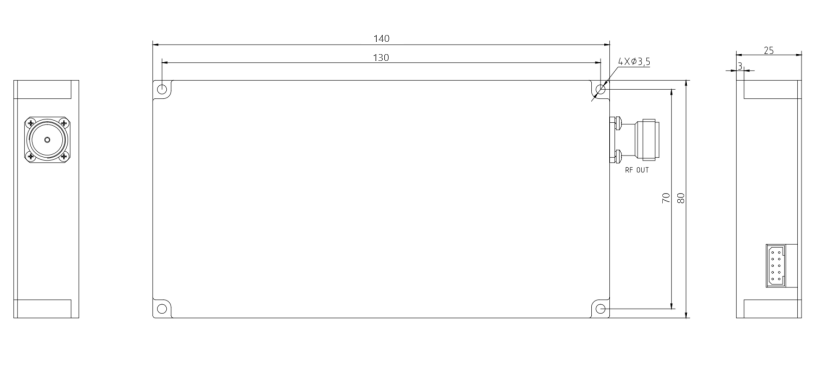

Dimensions (L x W x H) |
140X80X25 |
mm |
|
RF Connectors (Output) |
N- KFD |
-- |
|
DC / Control Connector |
Feed capacitor |
-- |
|
Cooling |
External heat dissipation is required |
-- |
|
Mounting |
φ3.5-4 Thru Hole |
-- |
|
Weight |
≤1.5 |
kg |
|
ENVIRONMENTAL / PROTECTIONS |
|||
|
PARAMETER |
MIN |
MAX |
UNIT |
|
Operating Temp. (Housing Temp.) |
-20 |
+55 |
°C |
|
Humidity Range |
0-95 |
% |
|
Product Details
Name:
SW-PS-2450-50C Microwave Power Amplifier
Operating Frequency:
2400 – 2500 MHz
Psat Output Power:
50 dBm
Gain:
Input Vswr:
Power Gain Flatness:
Spurious Signals:
Harmonic Signals:
Operating Temp:
-20 ℃ to +55 ℃ (housing)
Application:
Defense, Commercial, Radar, Communication, Test & Measurement
Transport Package:
Specification:
