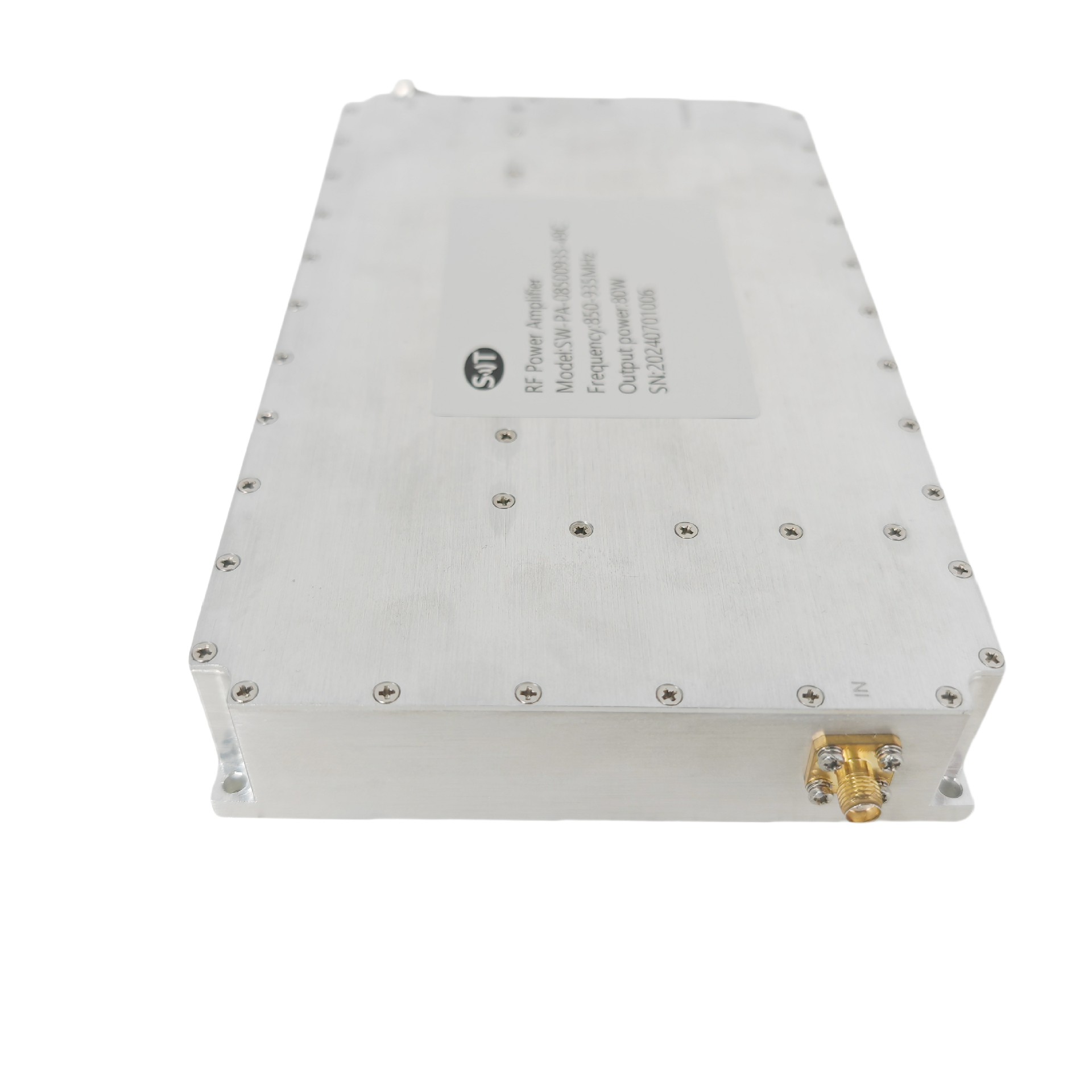

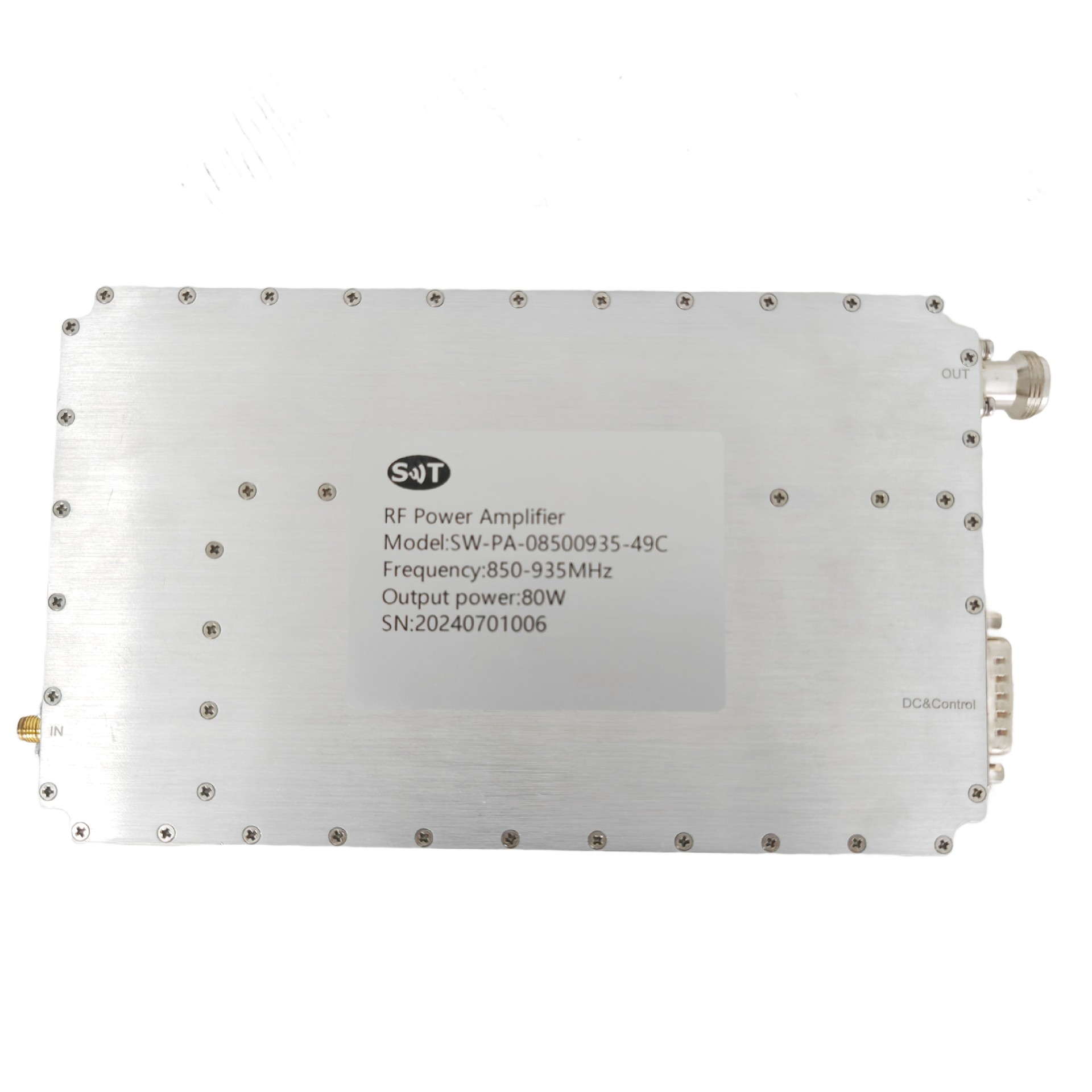

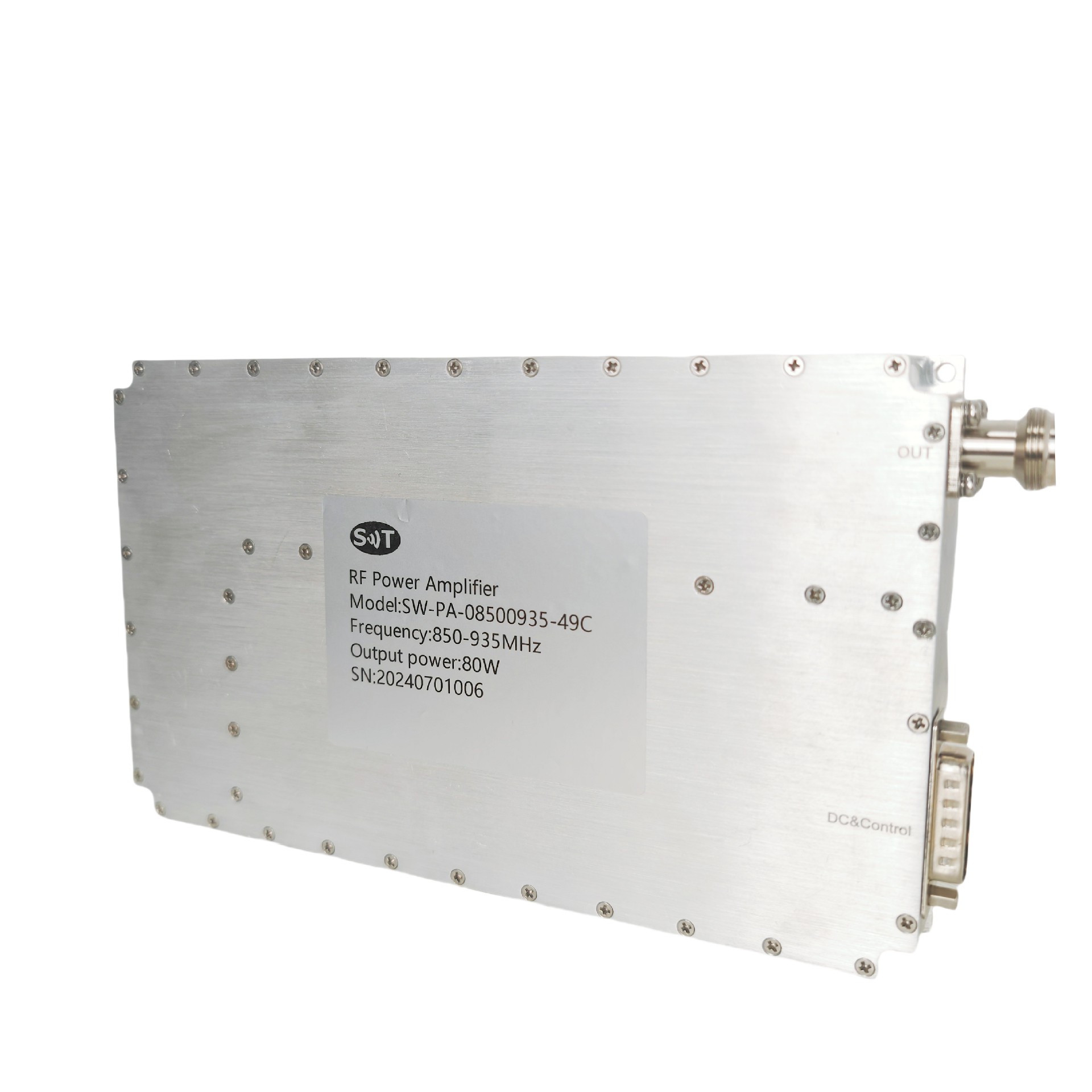

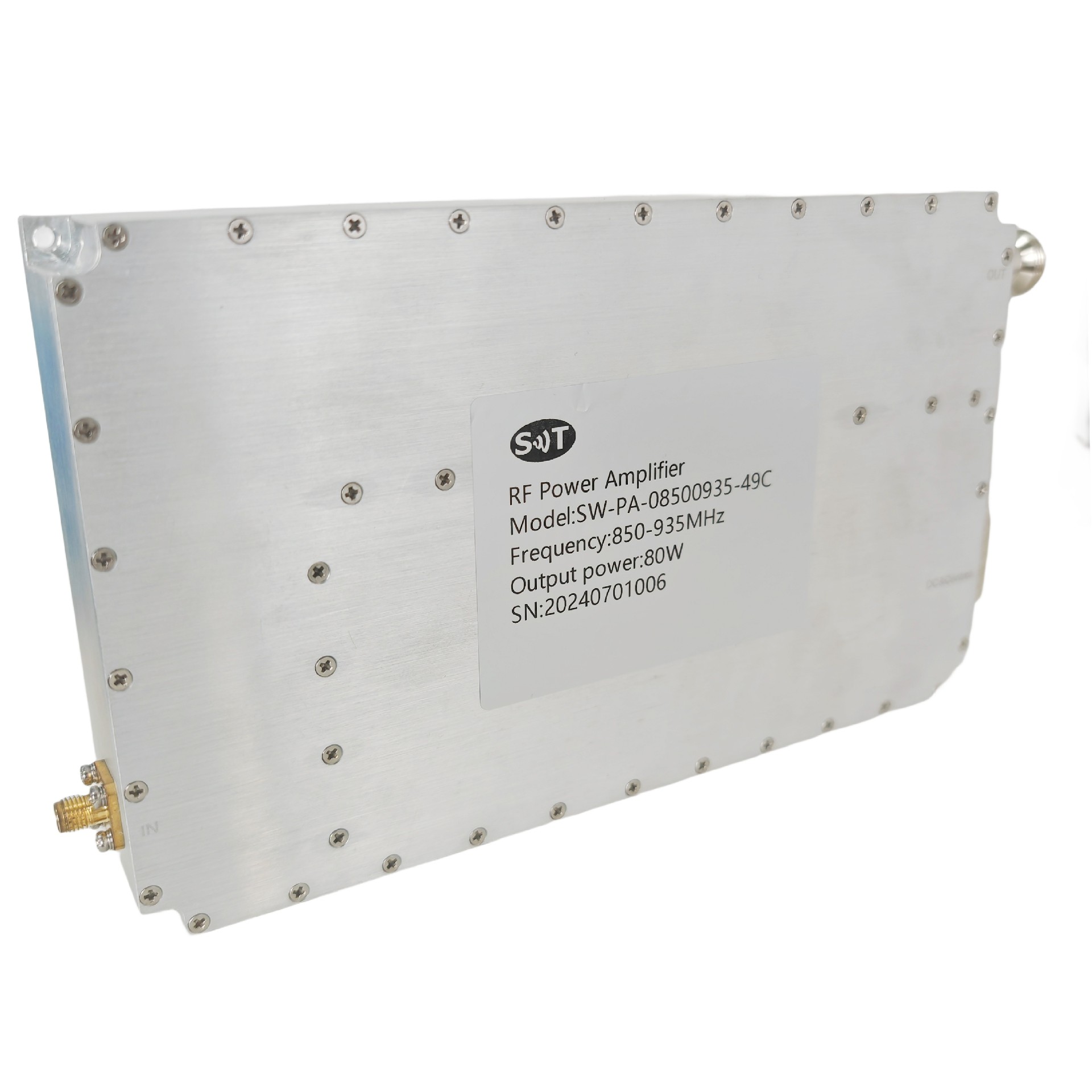

High Linearity and Low Noise 850-935MHz 80W UHF RF Power Amplifier for RF Systems and Test Equipment
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-08500935-49C
Price：$700/pcs
Product Description
High Linearity and Low Noise 850-935MHz 80W UHF RF Power Amplifier for RF Systems and Test Equipment
The 850-935MHz 80W RF power amplifier operates within a frequency range of 850 to 935MHz, delivering a powerful output of 80 watts. It is designed for various applications such as communication systems, radar, and test equipment that require reliable and efficient amplification within this specific frequency band. This amplifier is suitable for both commercial and military uses, providing high gain and stable performance, making it ideal for integration into RF systems that demand robust power and consistency across a wide range of conditions.
Specification
Typical performance at +24VDC +25oC,and in a 50Ω system.
| RF / ELECTRICAL | |||||
| PARAMETER | MIN | TYP. | MAX | UNIT | |
| Operating Frequency | 850 | 935 | MHz | ||
| RF INPUT | 0 | dBm | |||
| P-Sat Power Output | 49 | dBm | |||
| Gain | 49 | dB | |||
| Power Gain Flatness | ±1 | dB | |||
| Input VSWR | 1.5 | ||||
| Operating Voltage | 20 | 24 | 30 | VDC | |
| Gain Adjust Range | 31 | ||||
| Gain Adjust Step | 1 | ||||
| Gain Adjustment Linearity | ±1 | ||||
| Power current | 9 | A | |||
| Spurious Signals | -60 | dBc | |||
| Harmonic Signals | -20 | dBc | |||
| MECHANICAL | ||
| PARAMETER | VALUE | UNIT |
| Dimensions (Lx W x H) | 200×120×30 | mm |

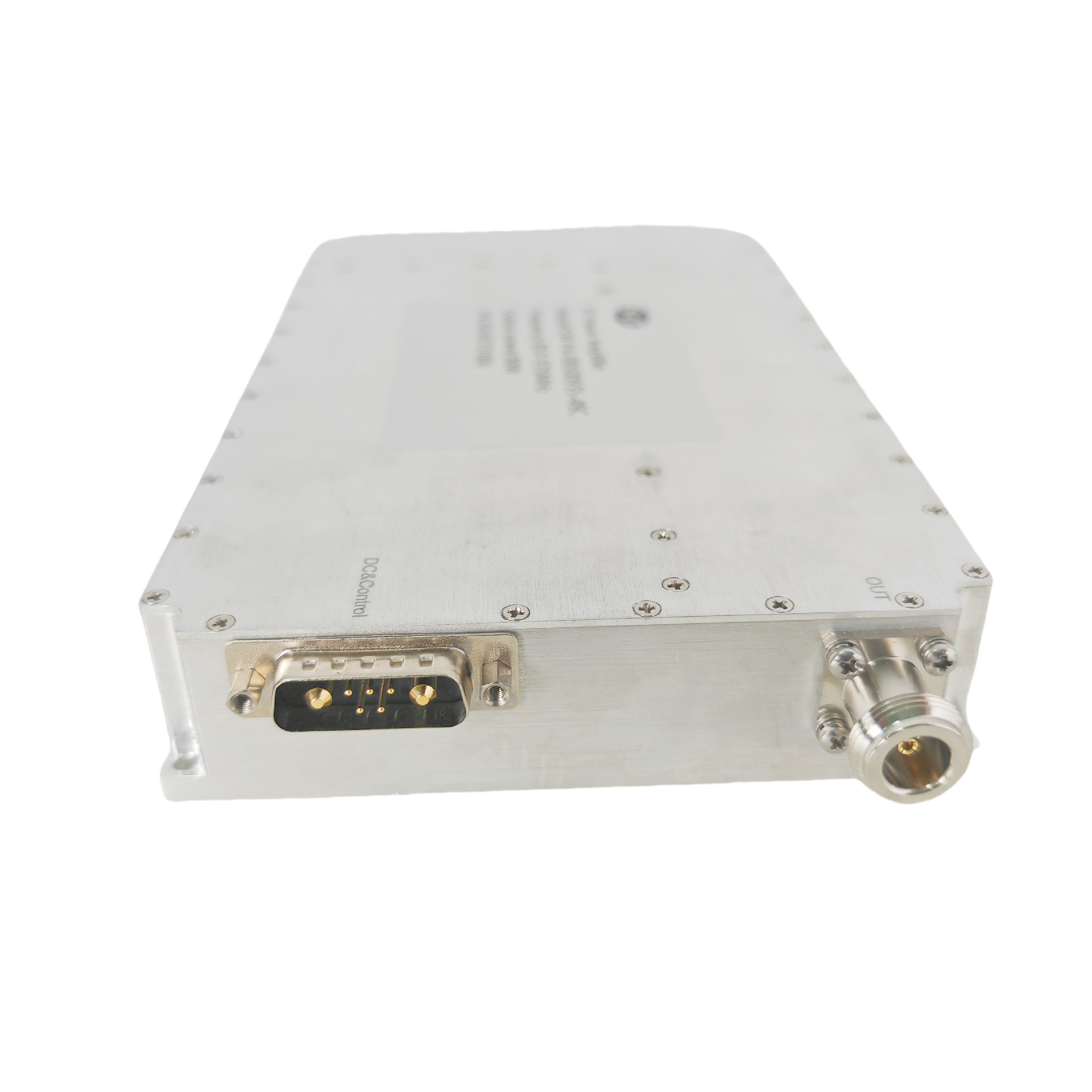

| RF Connectors (Input / Output) | SMA- KFD/ N-female | -- |
| DC / Control Connector | D-SUB 7W2 | -- |
| Cooling | Baseplate Conduction - Optional Heatsink Available | -- |
| Mounting | 3-8 Thru Hole | -- |
| Weight | ≤1.5 | kg |
| ENVIRONMENTAL / PROTECTIONS | |||
| PARAMETER | MIN | MAX | UNIT |
| Operating Temp. (Housing Temp.) | -40 | +60 | °C |
| Storage Temperature | -55 | +85 | |
| Humidity Range | 0-100 | % | |
| Max RF Input | +5 | dBm | |
| PA Baseplate Shutoff Temperature | + 85 | °C | |
| INPUT/OUTPUT PINS | ||
| AMPLIFIER CONNECTOR TYPE: | D-SUB 7W2 | |
| TRIAD CABLE PART NUMBER: | -- | |
| PIN NUMBER | LABEL | DESCRIPTION |
| 1 | +VDC | +24V |
| 2 | GND | Ground |
| 3 | GND | Ground |
| 4 | GND | Ground |
| 5 | 485A | |
| 6 | 485B | |
| 7 | GND | Ground |

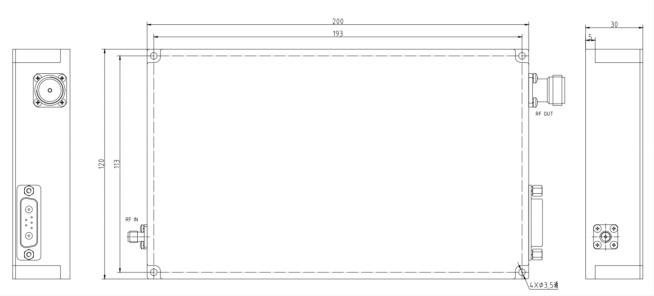

Outline DimensionalDrawing

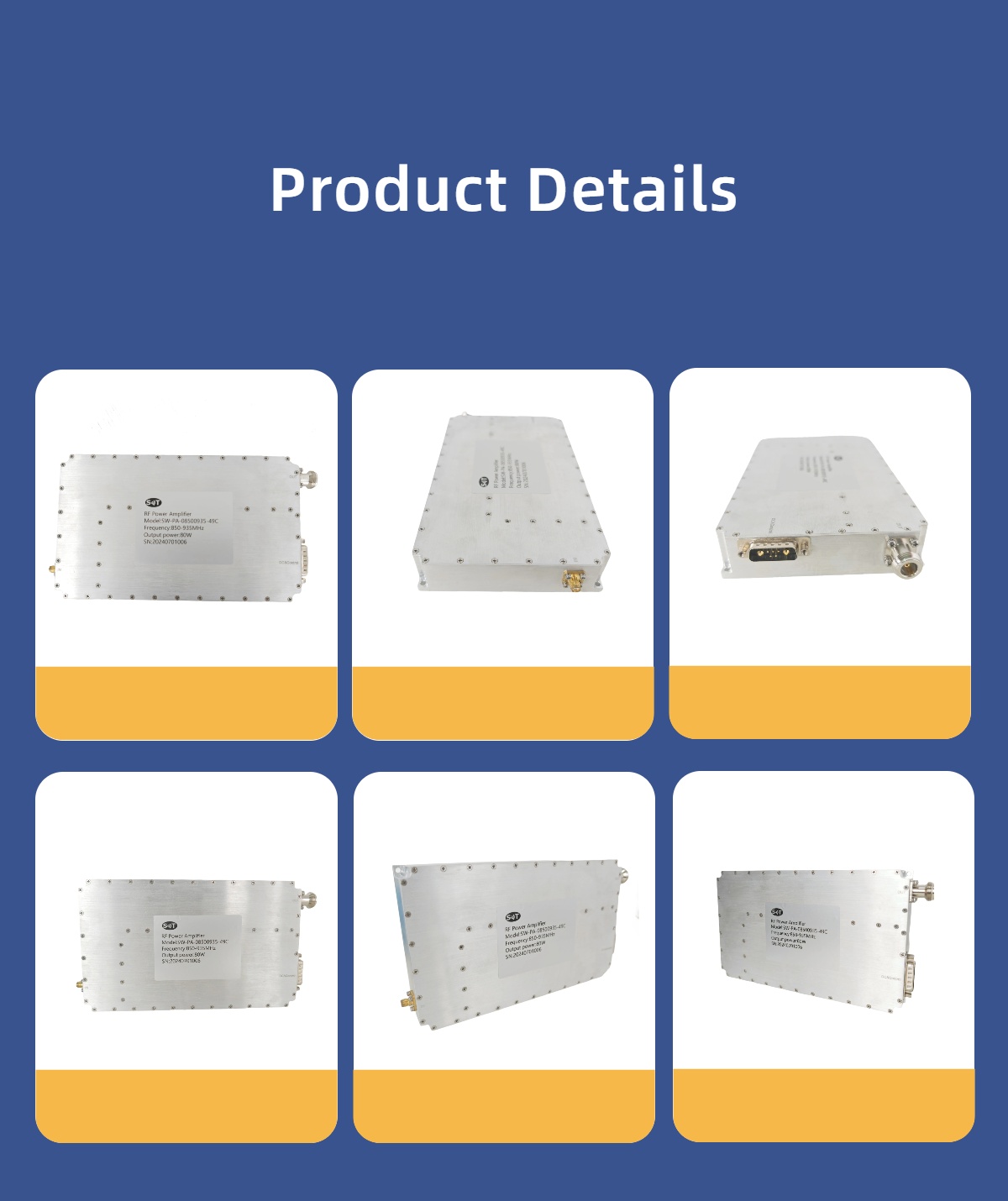

Product Details
Name:
850-935MHz RF Power Amplifier
Operating Frequency:
850-935MHz
Psat Output Power:
80W
Gain:
49dB
Input Vswr:
1.5
Power Gain Flatness:
±1dB
Spurious Signals:
-60dBc
Harmonic Signals:
-20dBc
Operating Temp:
-25~55°c
Application:
Communication Systems, Radar, and Test Equipment
Transport Package:
Carton
Specification:
200×120×30mm
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
