Customized Hf VHF Band 15K-250MHz 20W RF Power Amplifier for Radio Communication, Radar, Broadcasting
Place of Origin：China
Brand Name：SWT
Model Number：SW-PA-0.150250-43C
Price：make request to get price
Product Description

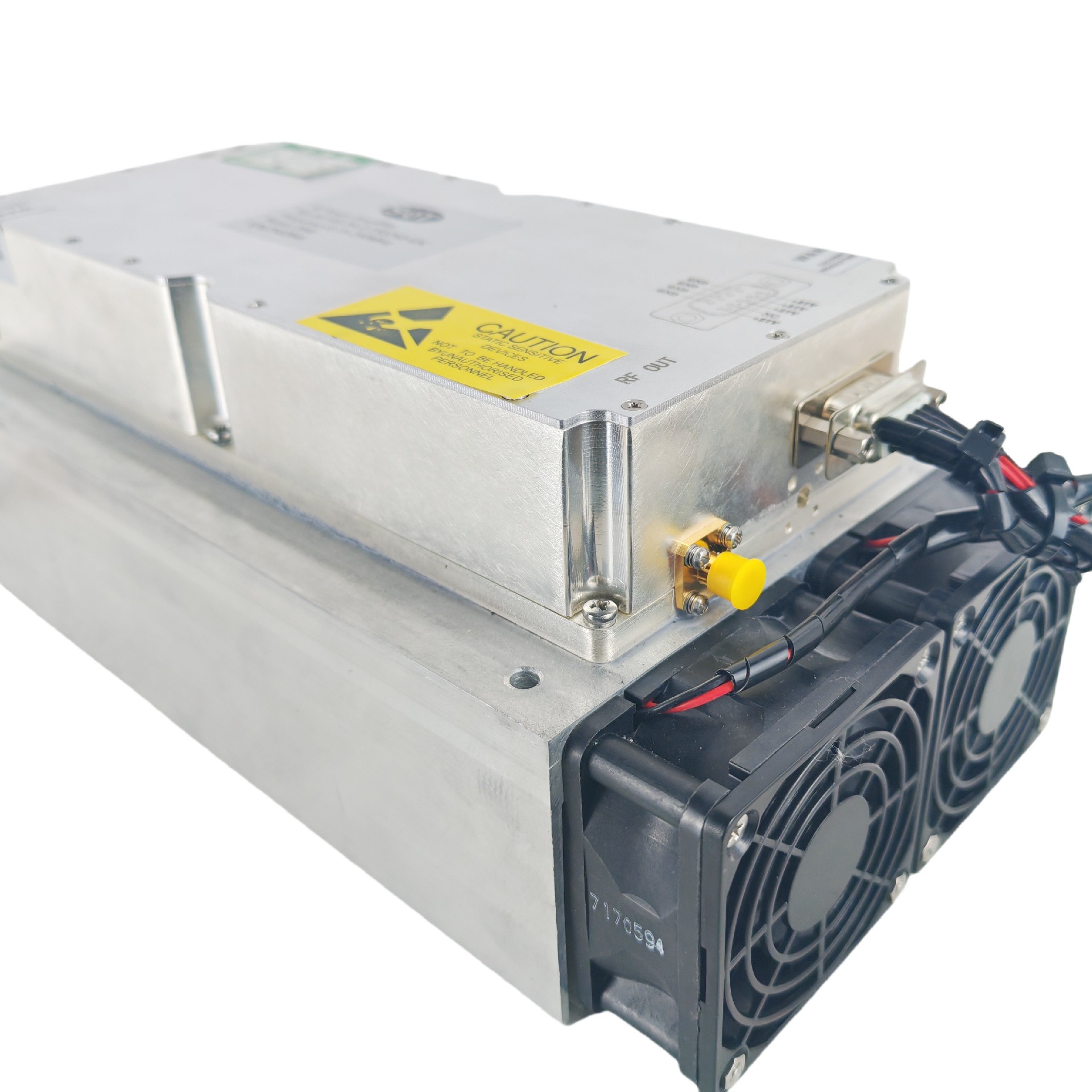

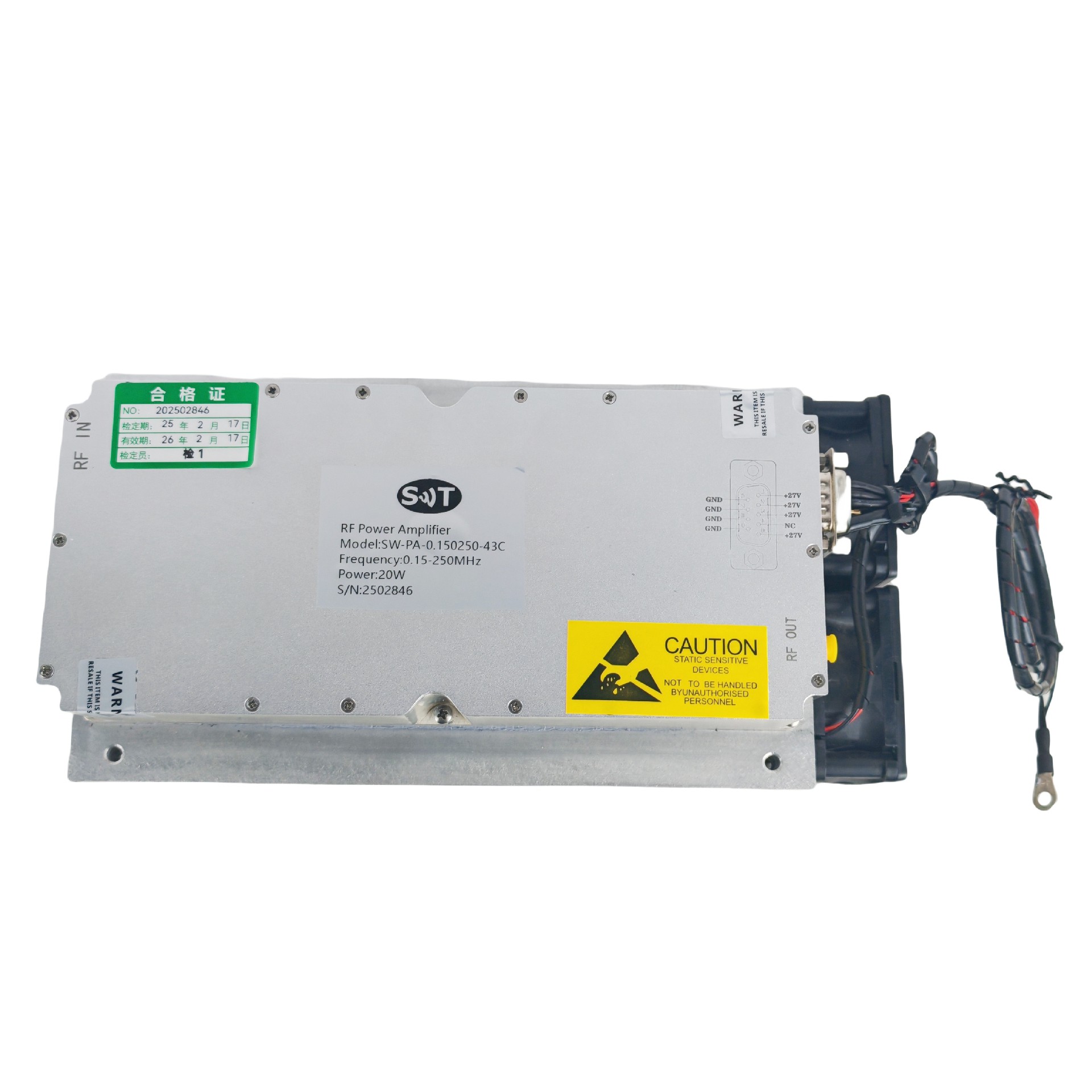

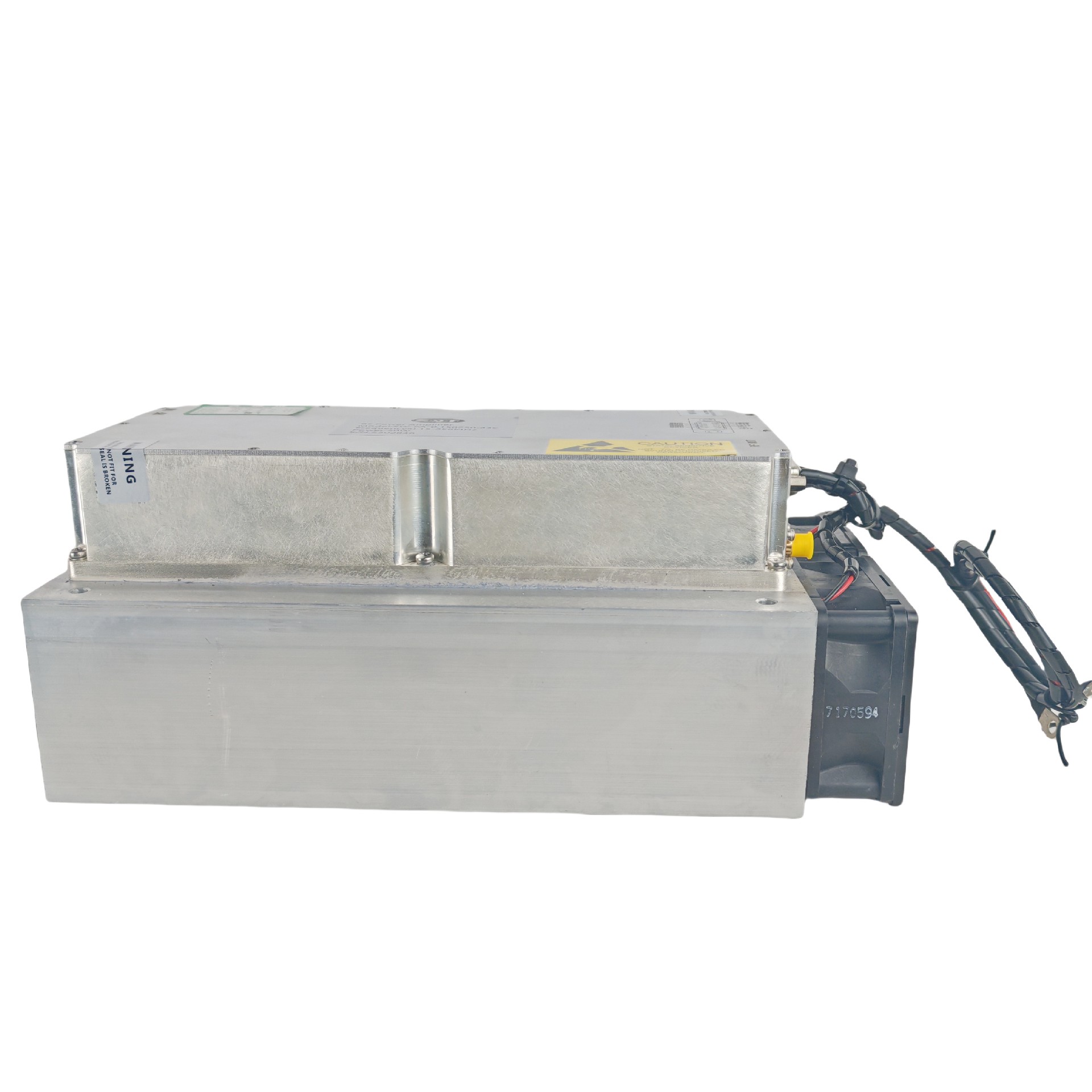

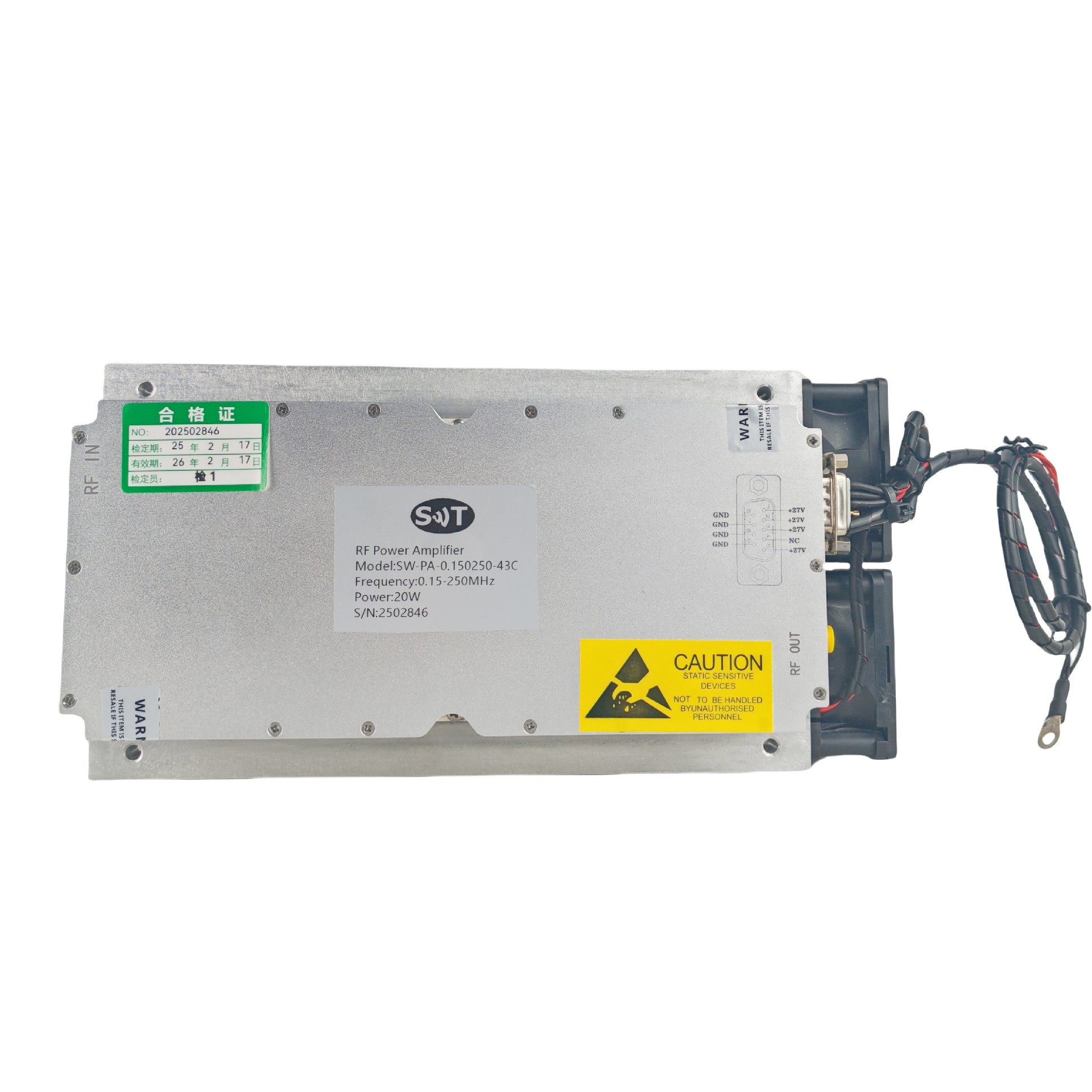

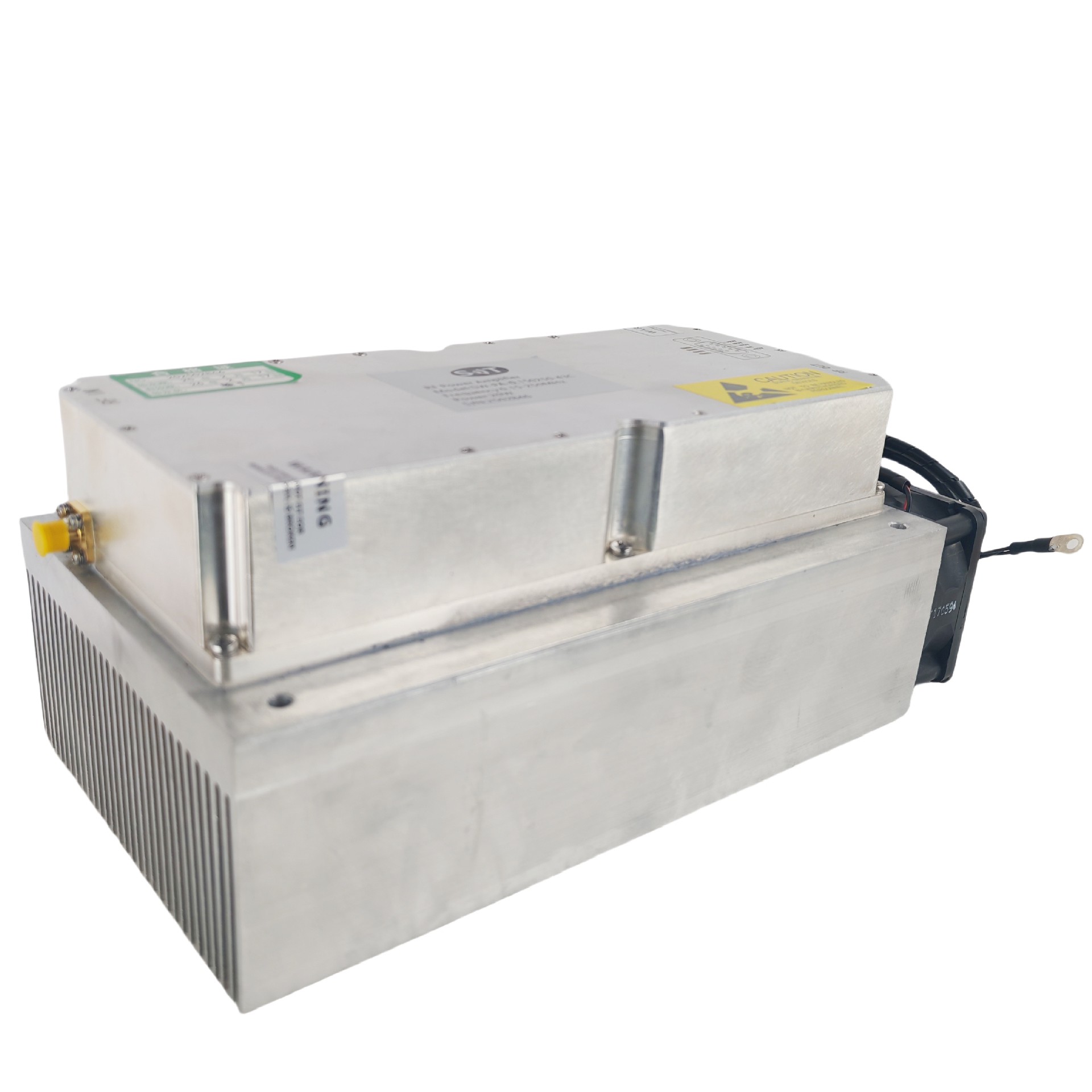

Customized Hf VHF Band 15K-250MHz 20W RF Power Amplifier for Radio Communication, Radar, Broadcasting
This customized 15k-250MHz 20W RF power amplifier is designed for HF/VHF band applications, including radio communication, radar, broadcasting, and RF testing. It offers high efficiency, low distortion, and stable signal amplification for a wide range of RF applications.
Key Features:
Wide Frequency Range: Covers 15kHz to 250MHz, suitable for HF/VHF communication and RF applications.
High Power Output: Provides 20W (Psat 43dBm) output power for stable long-distance transmission.
Low Noise & High Linearity: Ensures excellent signal quality with minimal distortion.

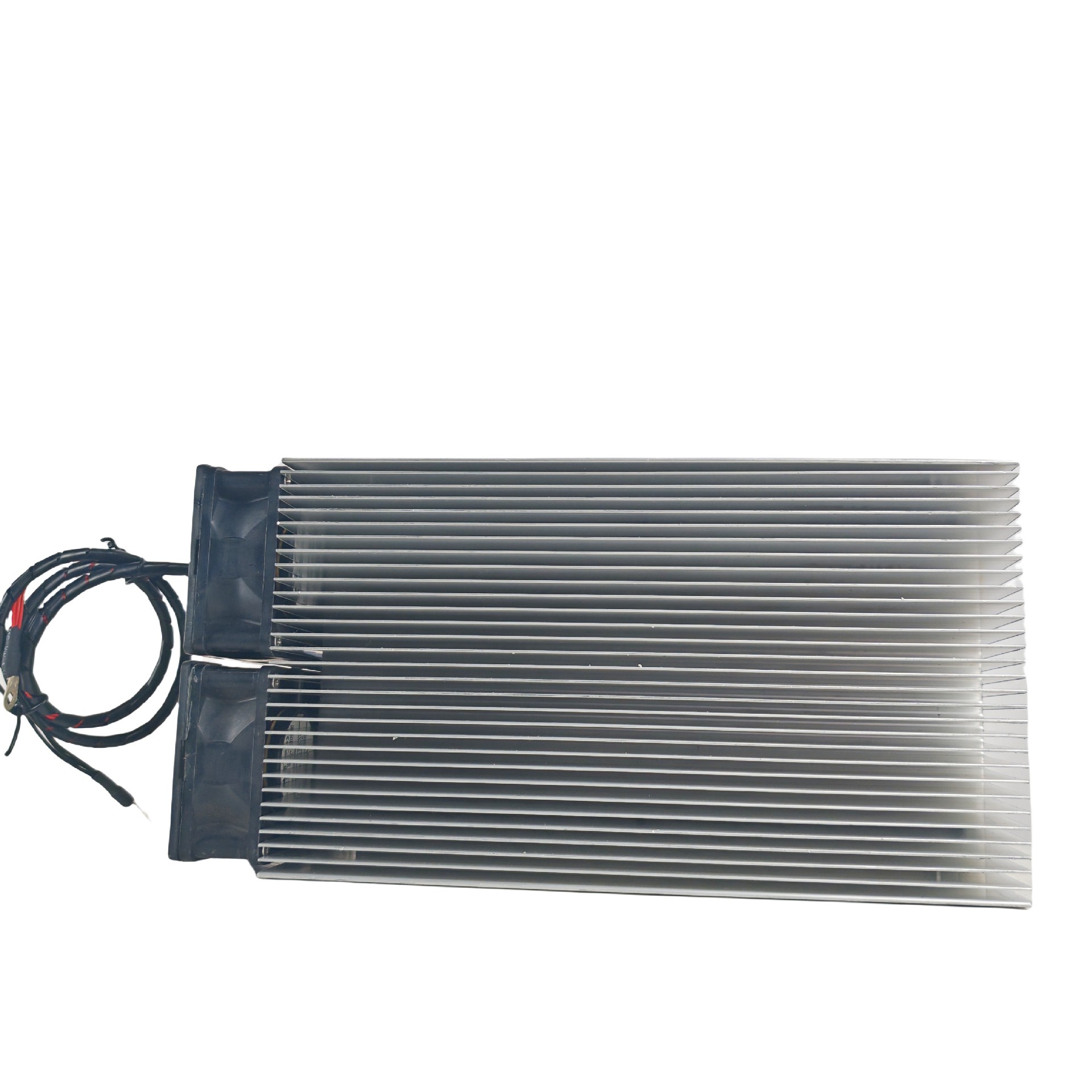

Efficient Cooling System: Optimized thermal management for reliable long-term operation.
Durable & Customizable Design: Compatible with various RF systems, ideal for industrial, military, and research applications.
This high-performance RF amplifier is an ideal solution for HF/VHF communication, radar systems, and precision RF applications, ensuring stable and efficient signal transmission.
Specification
Typical performance at +24VDC +25oC,and in a 50Ω system.
| RF / ELECTRICAL | ||||
| PARAMETER | MIN | TYP. | MAX | UNIT |
| Operating Frequency | 0.15 | -- | 250 | MHz |
| Avg Output PoverPast | 20 | -- | -- | Watts |
| Avg Output Powex P-1 | 10 | -- | -- | Watts |
| Gain | 43 | -- | -- | dB |
| Power In | -- | -- | 3 | dBm |
| Supply Voltage | 27 | -- | -- | V |
| Supply Pover | -- | -- | 150 | W |
| Gain Flatness | -- | ± 1.5 | -- | dB |
| Harmonic | -- | -15 | -- | dBc |
| Spurious | -- | -60 | -- | dBc |
| Ovextenperature protection | 60 | -- | -- | °C |
| Amplifiex safeguard Temp | 60 | -- | -- | °C |
| Safeguard Pover In | -- | -- | 10 | dBm |
| Input VsWR | -- | 2.0 | -- | |
| Nominal impedance | -- | 50 | -- | Ω |

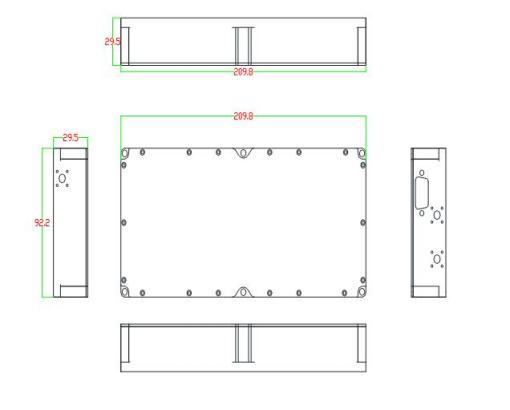

Outline Dimensional Drawing
Product Details
Name:
15k-250MHz RF Power Amplifier
Operating Frequency:
15k-250MHz
Psat Output Power:
20W
Gain:
43dB
Input Vswr:
2
Power Gain Flatness:
±1.5dB
Spurious Signals:
-60dBc
Harmonic Signals:
-15dBc
Operating Temp:
0~50°c
Application:
Wireless Communication, Radar Systems
Transport Package:
Carton
Specification:
209.8×92 .2×29 .5mm
