Wideband High-Gain Horn Antenna for Robust RF Performance in Demanding Operational Environments
Place of Origin：China
Brand Name：SWT
Model Number：SWT-AnJ-0208
Product Description
Product technical indicators
Model | SH-AnJ-0208 |
Antenna form | Pyramid Horn |
Frequency Range | 2GHz~8GHz |
Standing wave | ≤2.0 |
Polarization | Single linear polarization |
Beam width | ≥45° |
Gain | 8～12dB |
Interface form | SMA-50K |
Oral size | 138.27x168.38mm |
Weight | ≤1.2kg |
Surface treatment | Conductive oxidation |
Operating temperature | -40~70℃ |
Storage temperature | -55~80℃ |

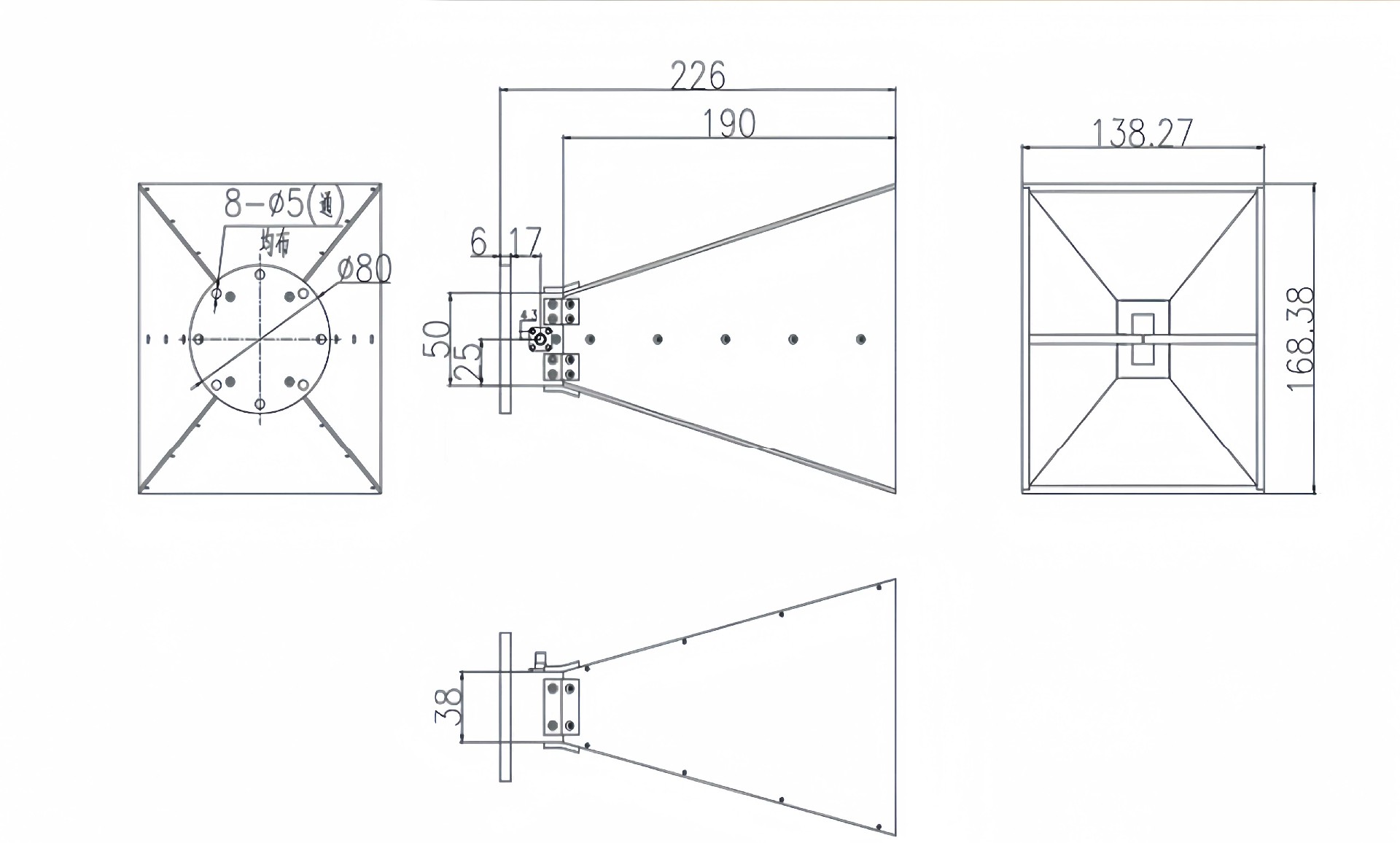

Product specification drawing
Product Details
Antenna Form:
Frequency Range:
Gain:
Interface Form:
Two-port Isolation:
Weight:
Oral Size:
Packing:
Operating temperature:
Storage temperature:
Applications:
