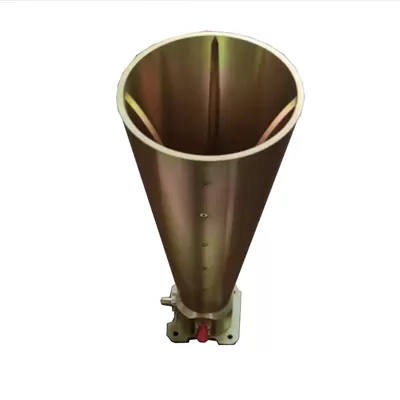

RF Microwave 8-23 GHz Horizontal and Vertical Dual Linear Polarization Antenna
Place of Origin：China
Brand Name：SWT
Model Number：SH-AnT-0823
Product Description
RF Microwave 8-23 GHz Horizontal and Vertical Dual Linear Polarization Antenna
Product Description
The 8-23 GHz dual linear polarization antenna is a type of antenna designed to operate within the frequency range of 8 GHz to 23 GHz. It features dual linear polarization, allowing it to simultaneously transmit and receive electromagnetic waves in two orthogonal directions. This antenna is commonly used in high-frequency communication systems such as radar, satellite communications, radio links, and communication networks.
Frequency Range: Operates within the range of 8 GHz to 23 GHz, covering various communication and radar application bands.
Dual Linear Polarization: Capable of independent polarization in vertical and horizontal directions, providing flexibility in signal transmission and reception.
Radiation Characteristics: Exhibits good radiation characteristics such as radiation power, radiation pattern, beamwidth, etc., which can be designed and optimized based on specific requirements.
Antenna Gain: Typically offers high antenna gain, enhancing signal transmission distance and coverage.
Interference Resistance: Dual linear polarization design improves the antenna's resistance to environmental and channel interference, enhancing the reliability and stability of communication systems.
Antenna Structure: May employ complex antenna structures such as dipole antennas, waveguide antennas, or compensating antennas to achieve desired performance metrics and operational requirements.
Application Areas: Widely used in military communications, satellite communications, radar systems, radio links, and mobile communications, playing a crucial role in the transmission and reception of high-frequency signals.
Performance Optimization: Design and optimization processes may consider parameters such as bandwidth, resonance frequency, impedance matching, beamwidth, cross-polarization, etc., to achieve optimal performance and efficiency.
Understanding these aspects provides insight into the role and advantages of the 8-23 GHz dual linear polarization antenna in communication systems, as well as its specific application methods and performance requirements in different scenarios.
Specification
| Model | SH-AnT-0823 | Interface form | SMA-50K |
| Antenna form | Cone horn | Oral size | ≤77mm |
| Frequency Range | 8GHz-23GHz | Weight | ≤0.5kg |
| Standing wave | no more than 2 | Surface treatment | Conductive oxida |
| Polarization | Horizontal and vertical dual linear polarization 10-40° | Operating temperature | -40°C～70°C |
| Gain | ＞20dB | Storage temperature | -55°C～80°C |
Product Details
Antenna Form:
Horizontal and Vertical Dual Linear Polarization
Frequency Range:
8GHz-23GHz
Gain:
More Than 20 dB
Interface Form:
SMA-50K
Two-port Isolation:
Weight:
≤ 0.5kg
Oral Size:
≤77mm
Packing:
Standard Packing
Operating temperature:
Storage temperature:
Applications:
military communications, satellite communications, radar systems, radio links, and mobile communications
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
