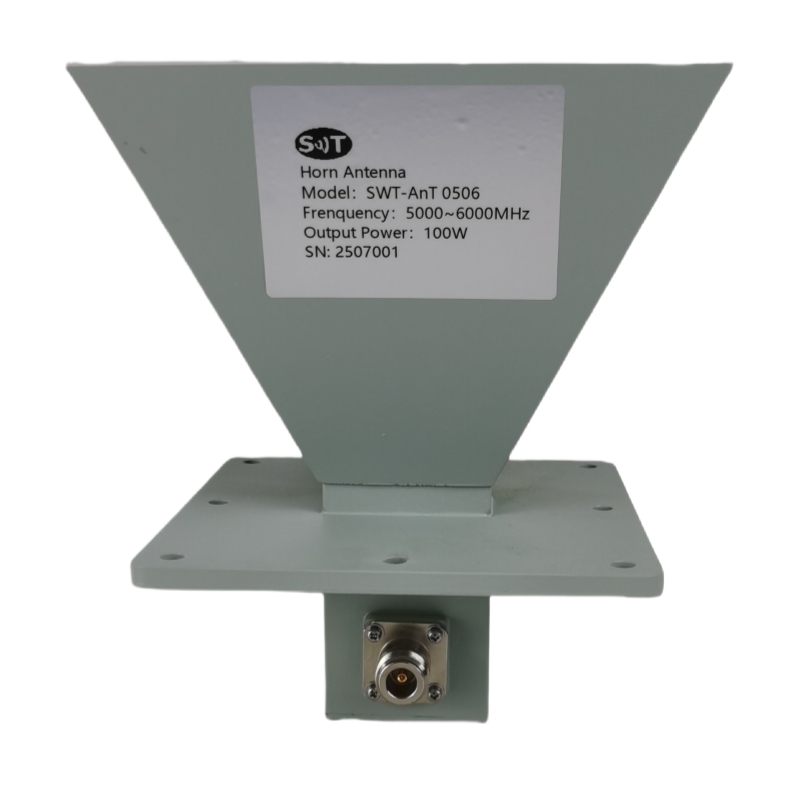

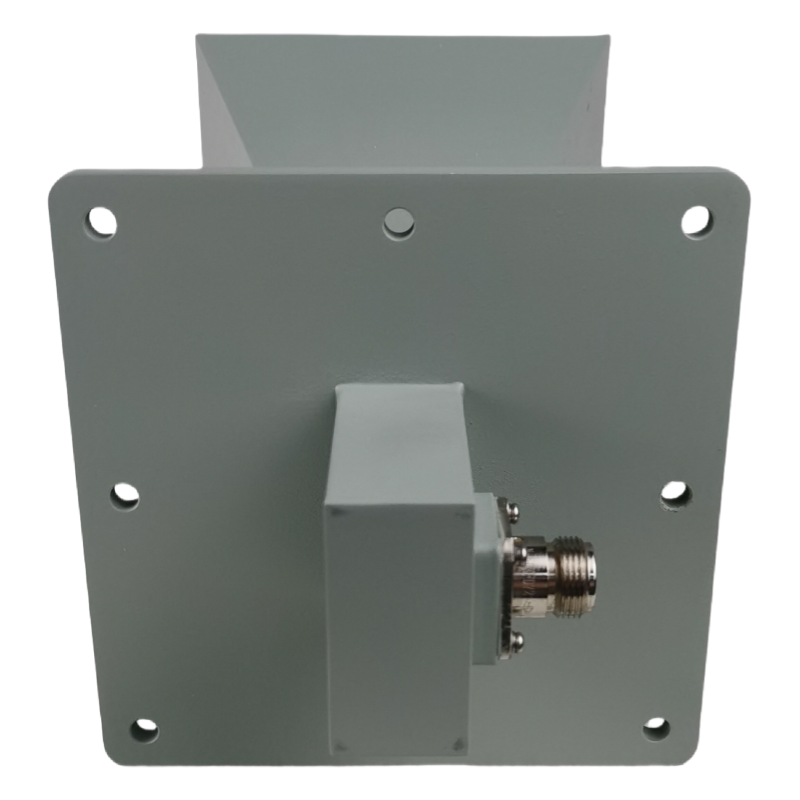

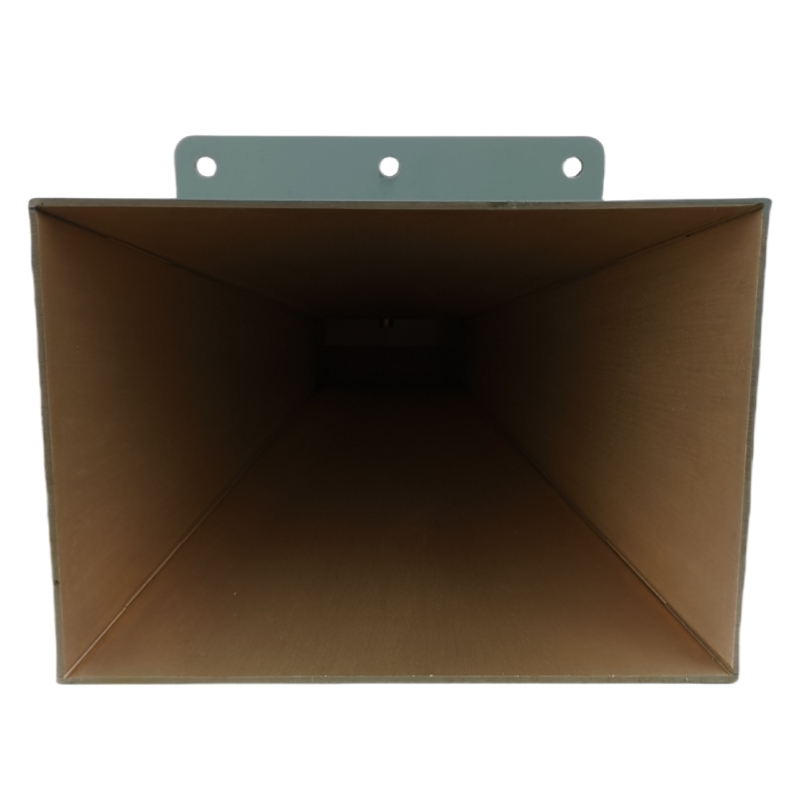

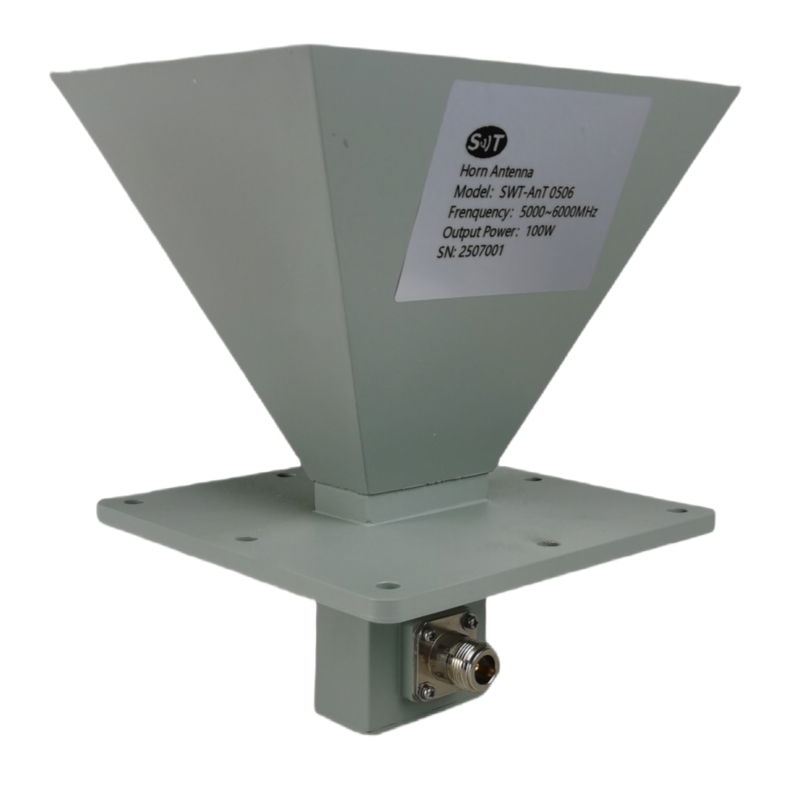

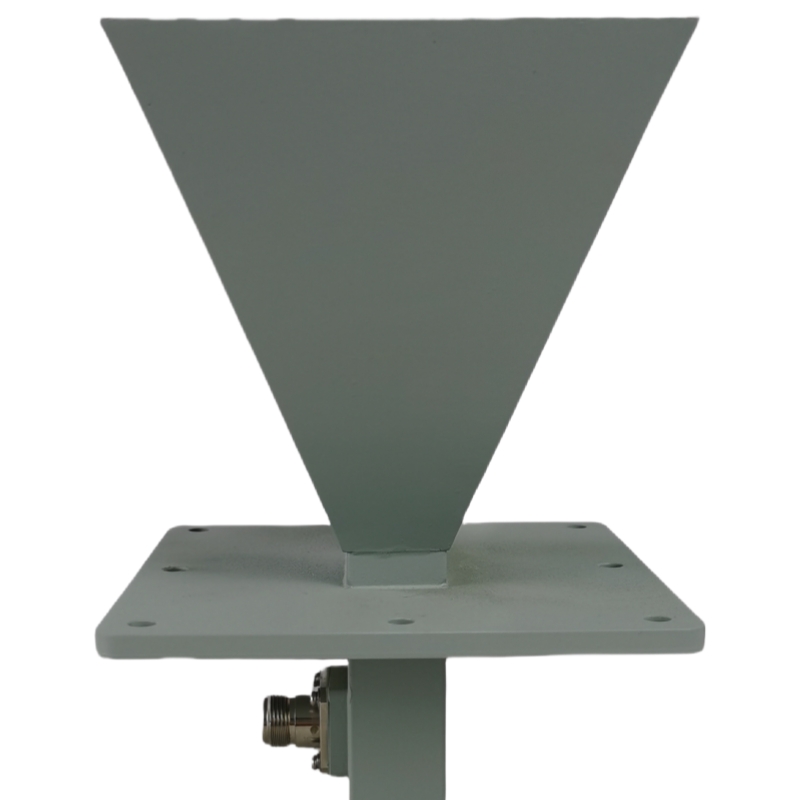

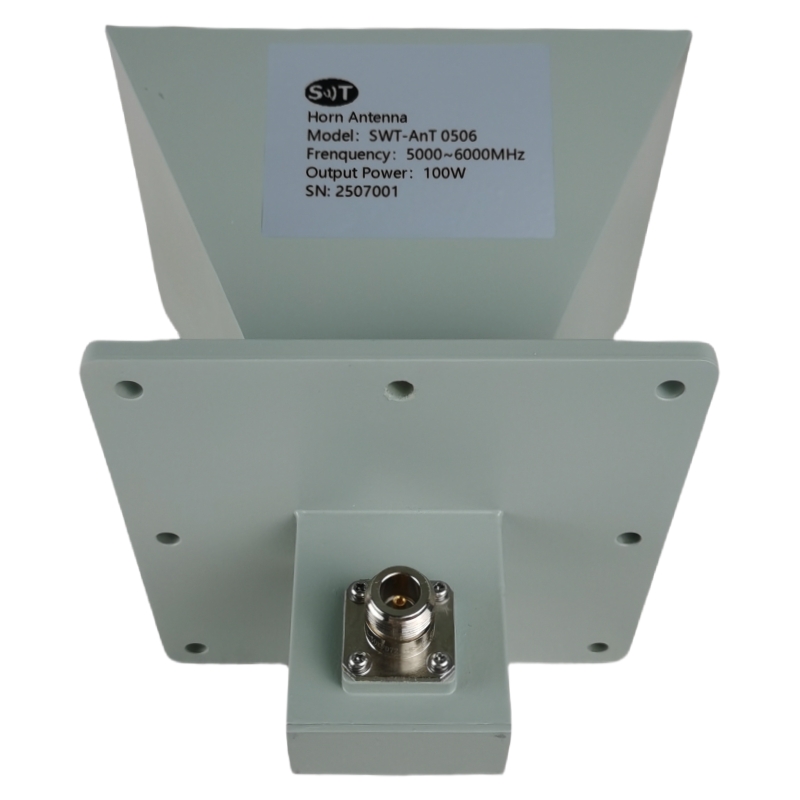

SWT-AnT-0506 High Gain 5-6GHz Horn Antenna for Independent Base Stations
Place of Origin：China
Brand Name：SWT
Model Number：SWT-AnT-0506
Product Description
1. Product technical indicators
1) Model: SWT-AnT-0506;
2) Frequency range: 5GHz to 6GHz;
3) Standing wave: no more than 1.5;
4) Polarization: Linear Polarization;
5) Beam width: 30 。-45 ° ; 6) Gain: ≥12dB@5-6GHz; 7) Power: 100W;
8) Outer dimensions138.27x168.38mm; 9) Basic material: Aluminum;

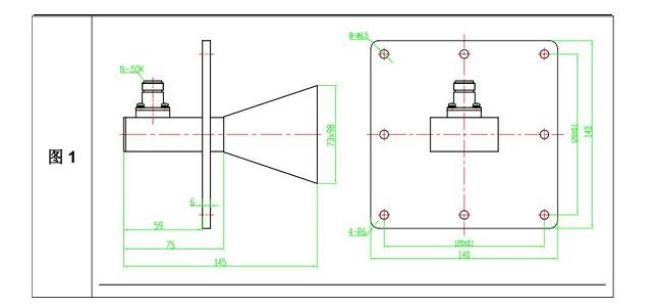

2. Product Specification Diagram
Product Details
Antenna Form:
Frequency Range:
Gain:
Interface Form:
Two-port Isolation:
Weight:
Oral Size:
Packing:
Operating temperature:
Storage temperature:
Applications:
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
