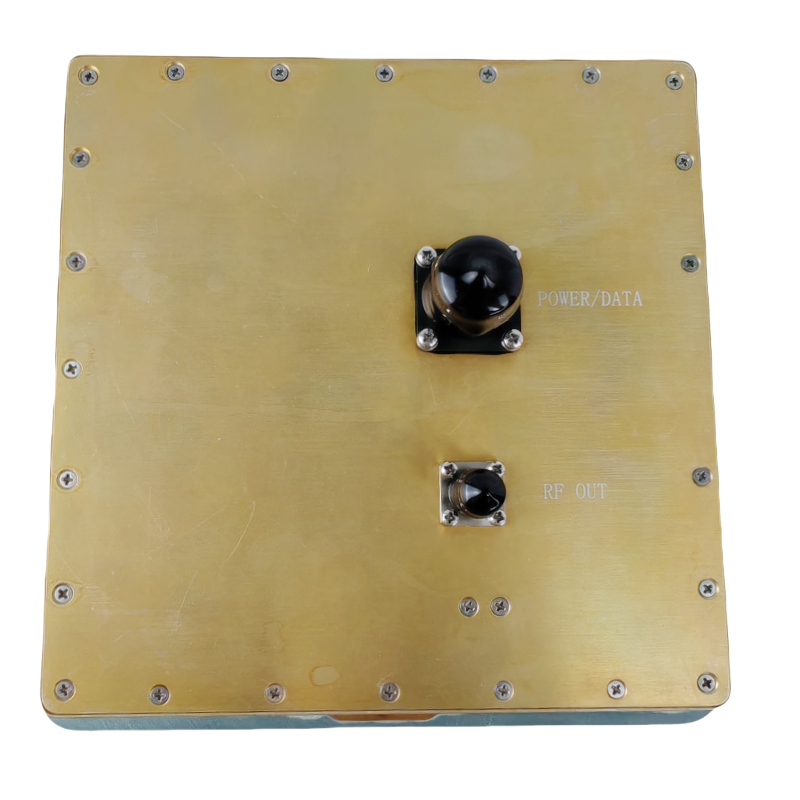

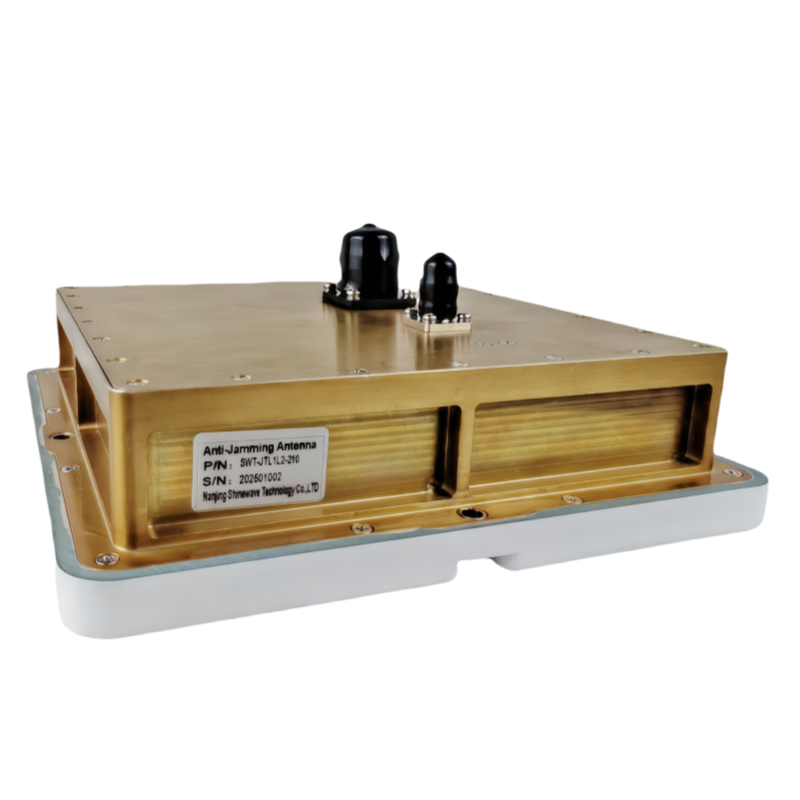

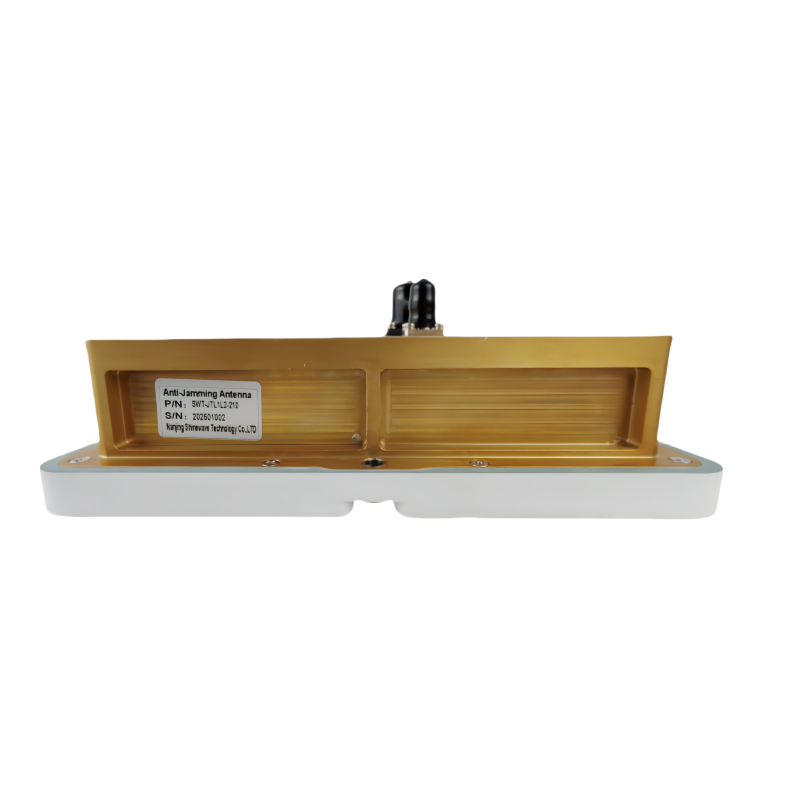

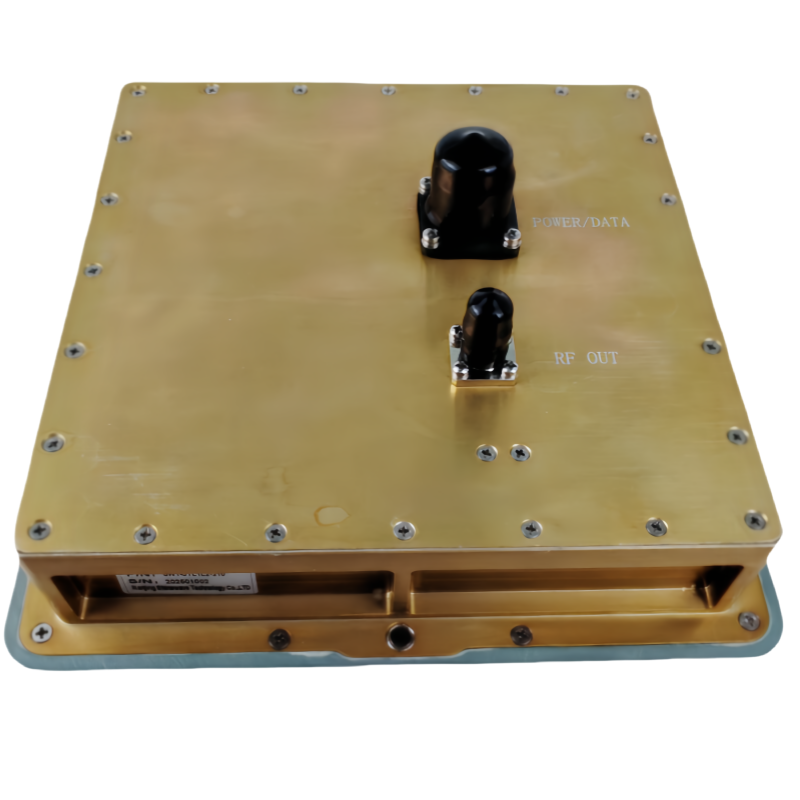

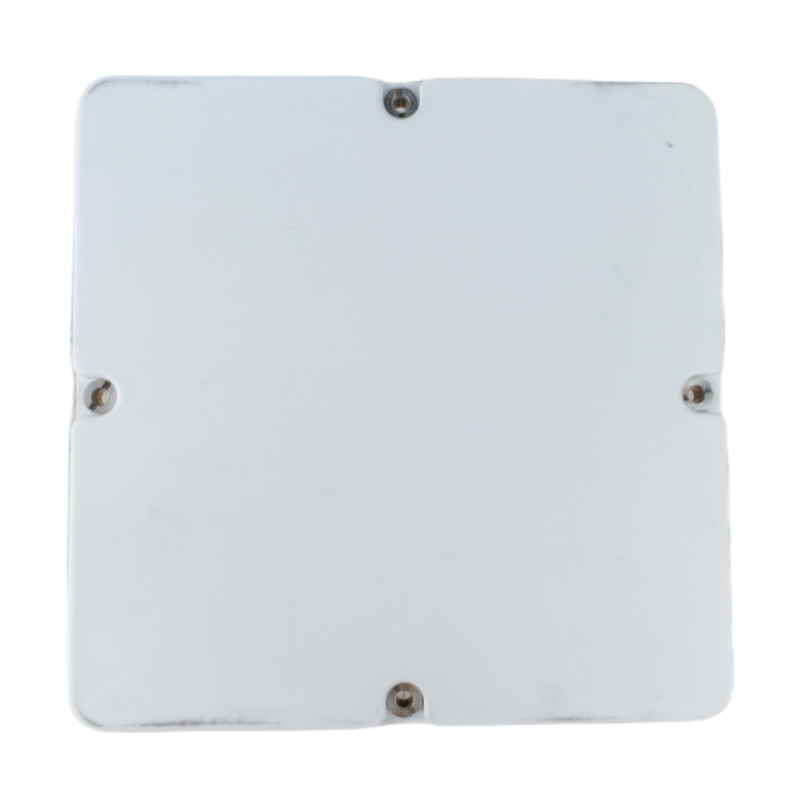

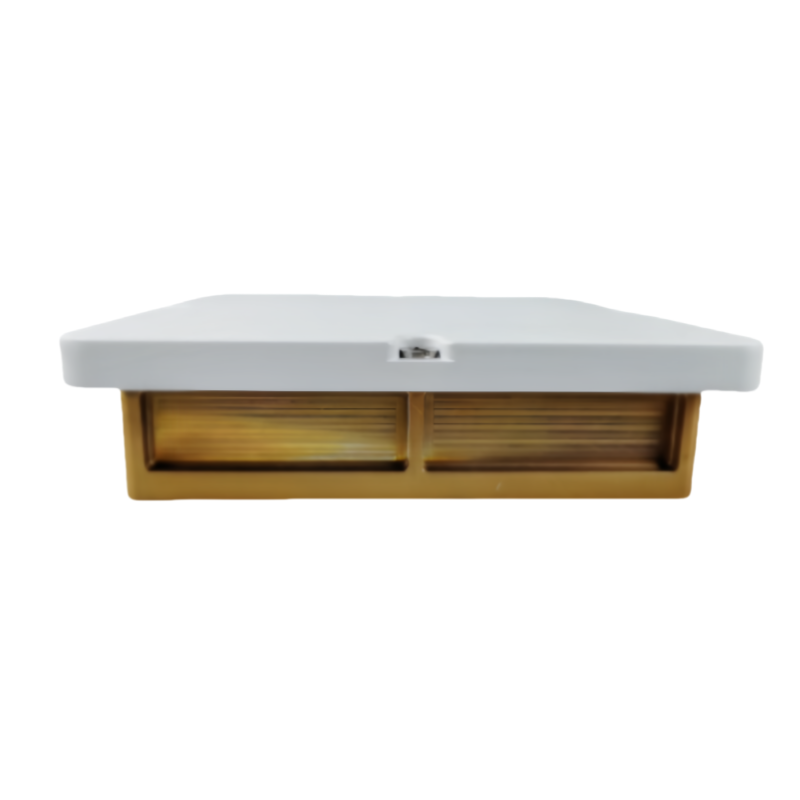

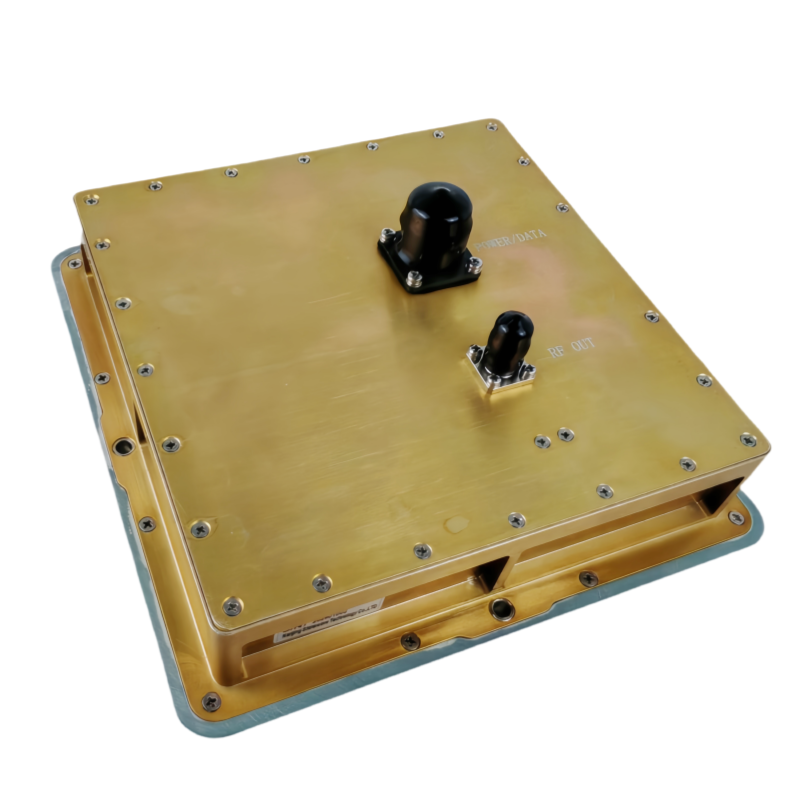

SWT-JRT-2G-01 GPS anti-jamming antenna
Place of Origin：China
Brand Name：SWT
Model Number：
Price：
Product Description
n Function
1) Receiving the BDS-B1/GPS L1/GLONASS L1 satellite navigation signal, and realizing the anti-jamming function for the BDS-B1/GPS L1 frequency signal；
2) Power supply and RF signal output together。
n Main Technique Data
² Number of channels | 2 channels | ² weight | 270g±10g |
² Anti-jamming signal ratio | One broadband jam: 85dB～90dB。 | ² size | Shape：119.4mm x 76.2mm x 18.9mm; Installation：83.8mm x 40.6mm |
² Power / Power consumption | DC5V±0.5V; 5.0W±0.5W | ² Connectors | TNC-K |
² Storage temperature range | -55℃～85℃ | ² working temperature range | -40℃～85℃ |
Product Details
Type:
Small Signal Gain:
Output Power:
Frequency Hopping:
Effection:
Jamming Angle:
Jamming Radius:
Power Consumption:
Power Supply:
Gross Weight:
Application:
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
