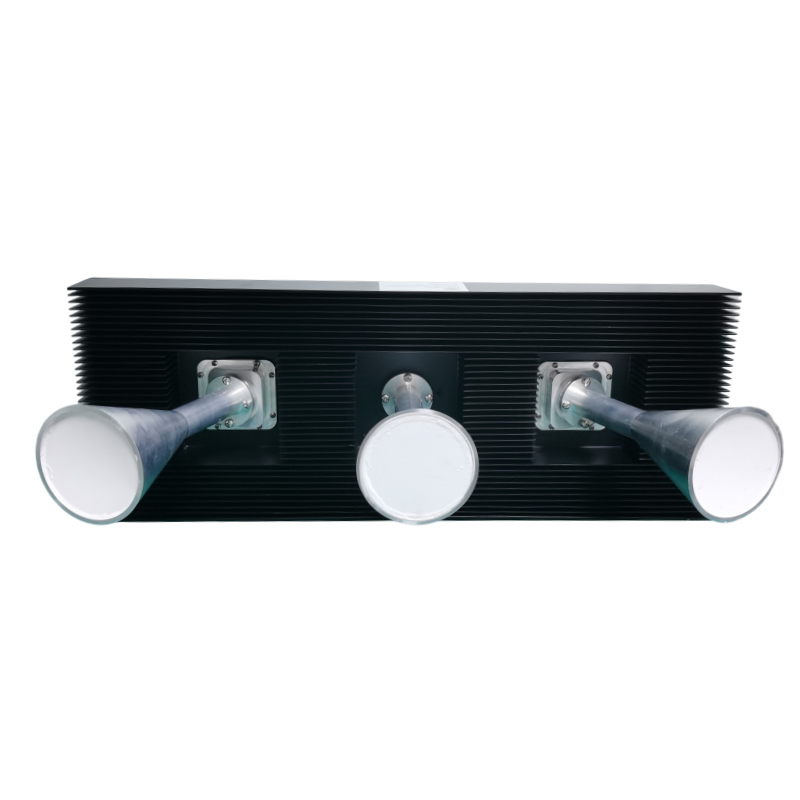

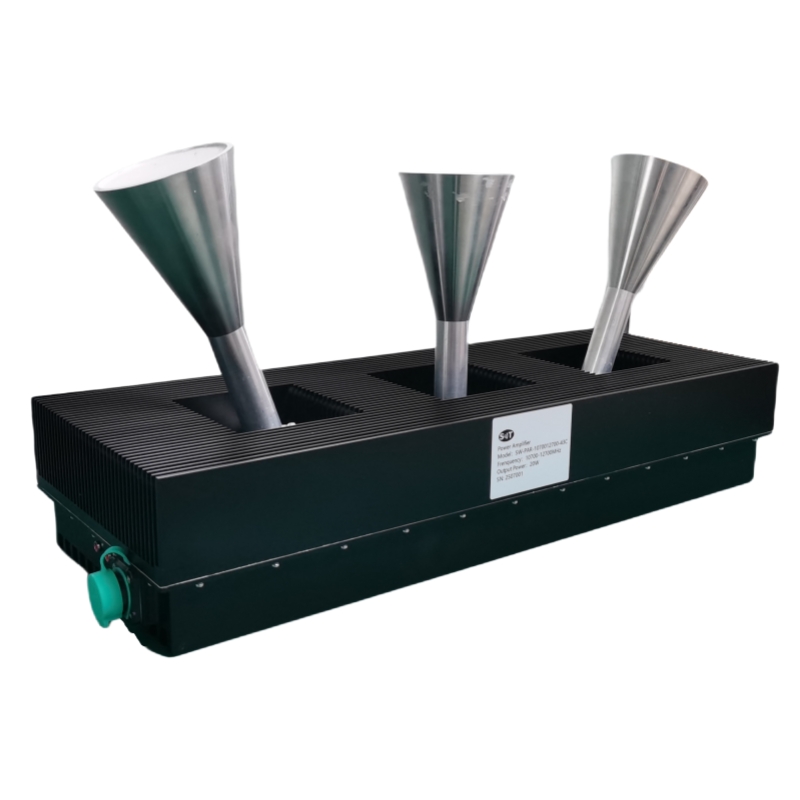

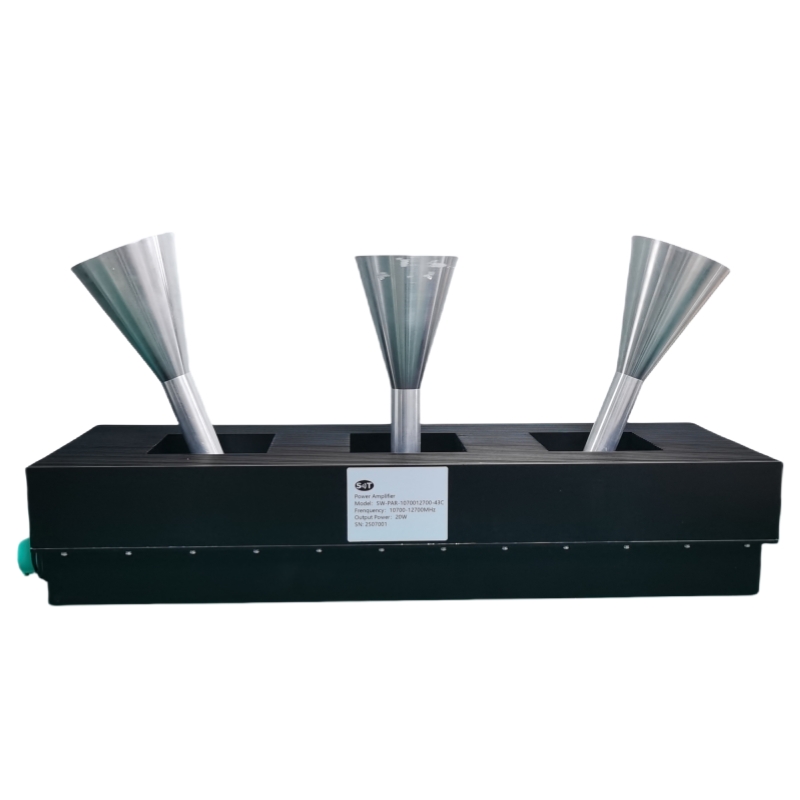

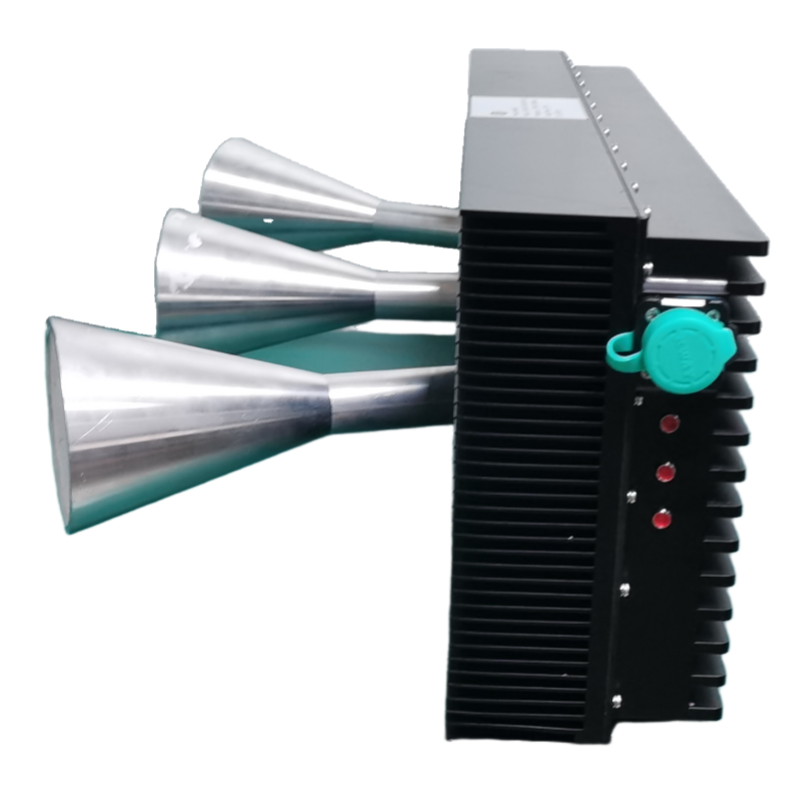

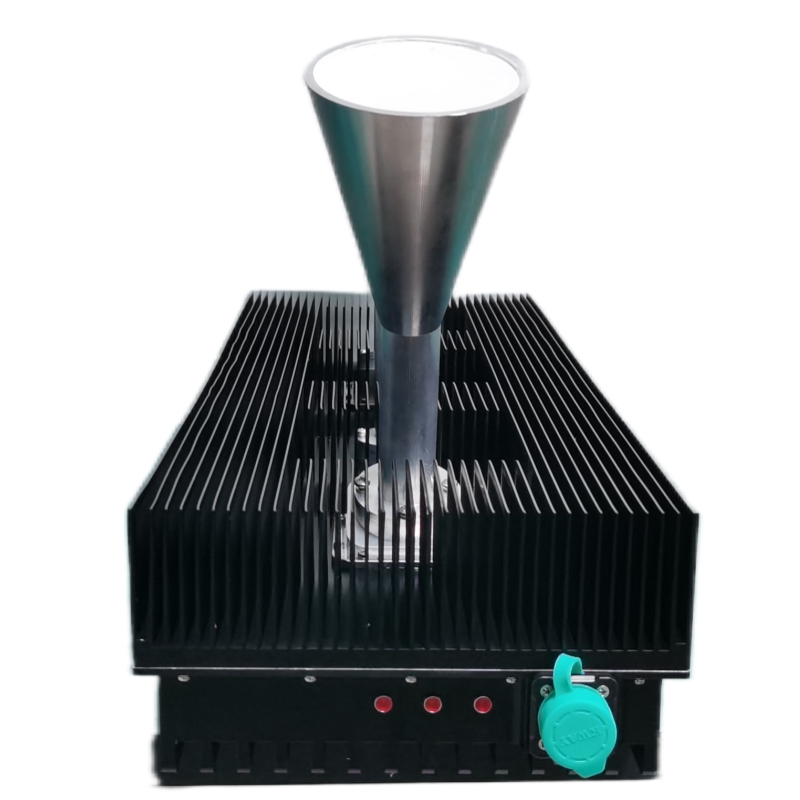

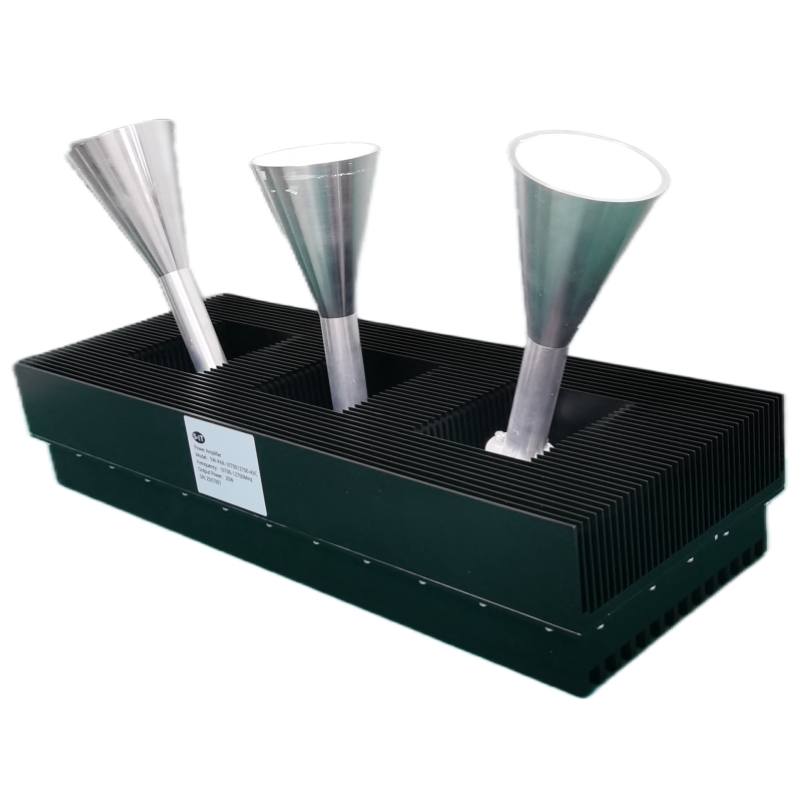

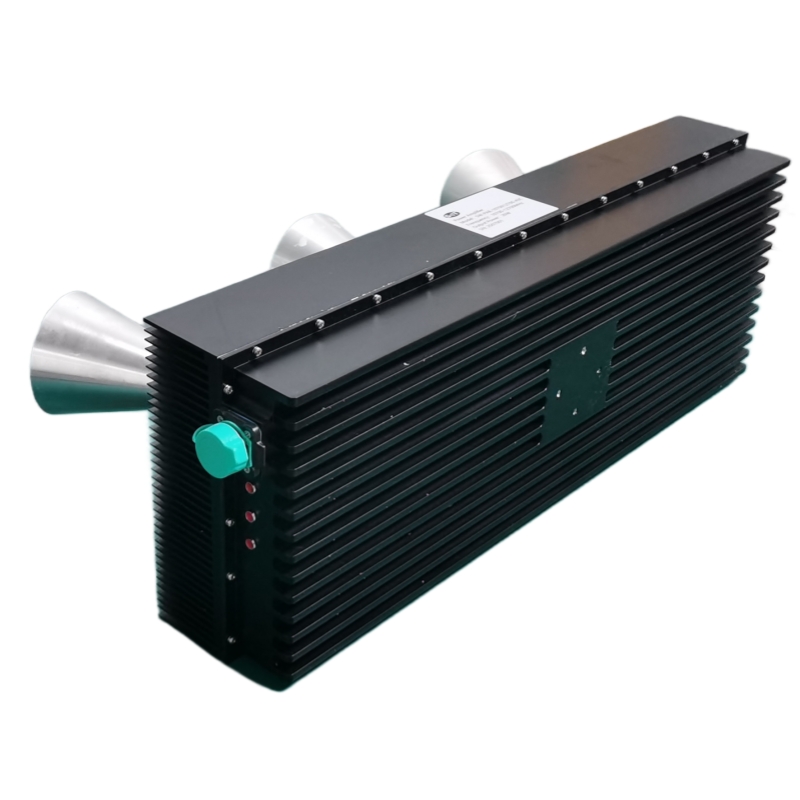

20W Ku Band Triple-Channel RF Power Amplifier with Enhanced Signal Stability for Industrial & Commercial Use
Place of Origin：China
Brand Name：SWT
Model Number：SW-PAR-1070012700-43C
Price：Please Contact Customer Service
Product Description
Description
The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.
Specification
Typical performance at +220V AC +25oC, and in a 50Ω system.
RF / ELECTRICAL | ||||
PARAMETER | MIN | TYP. | MAX | UNIT |
Operating Frequency | 10700 | 12700 | MHz | |
Channel Number | 3 | -- | ||
P-sat Power Output @each channel | 43 | dBm | ||
Power Flatness | ±2 | dB | ||
Operating Voltage | 24 | 28 | DC | |
Out impedance | 50 | Ω | ||
Consumption | 350 | W | ||
MECHANICAL | ||
PARAMETER | VALUE | UNIT |

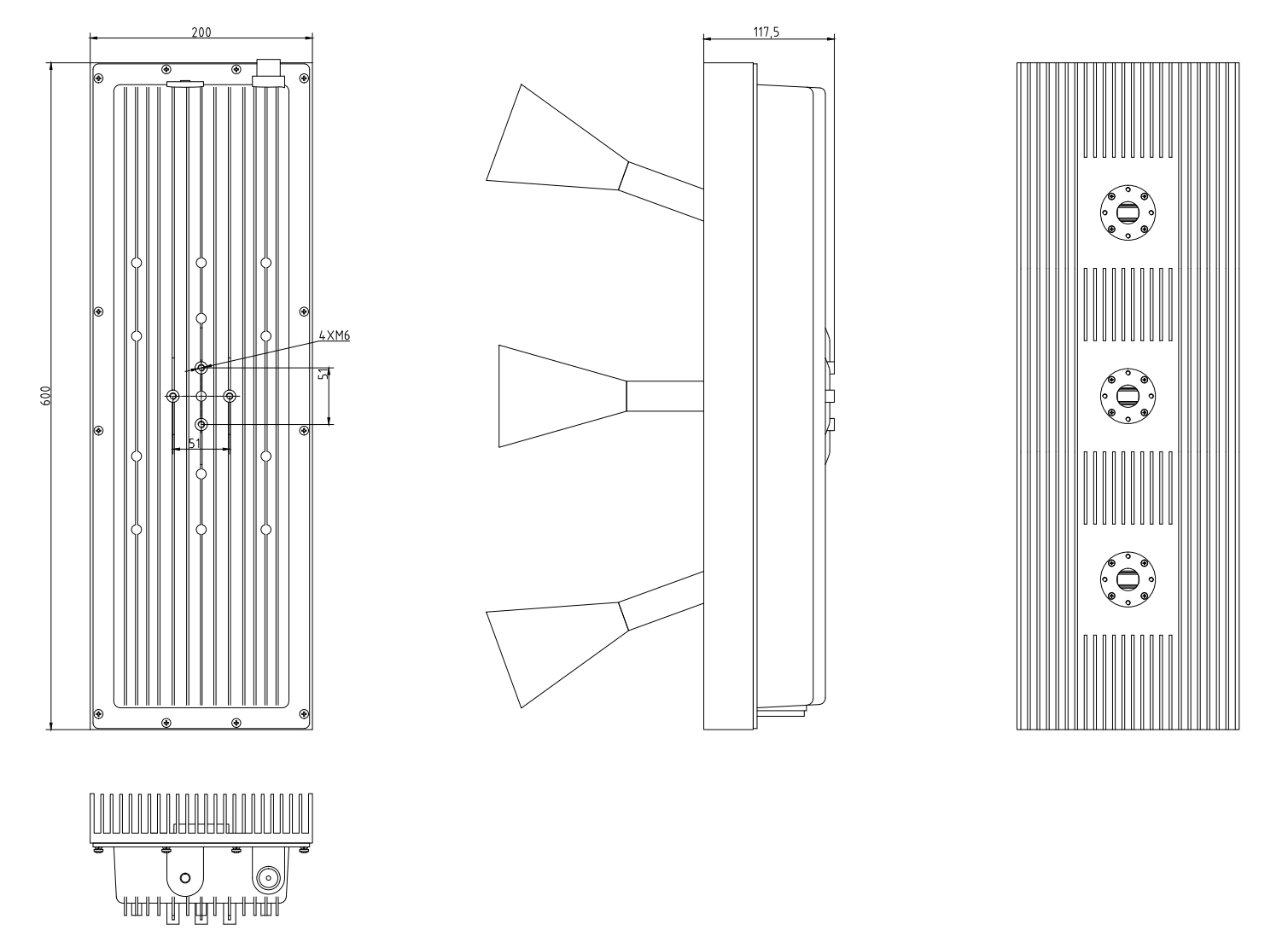

Dimensions (L x W x H) | 600 x200 x 117.5 | mm |
RF Connectors (Output) | circular waveguide | -- |
Antenna polarization | Circularly polarized antenna | -- |
Number of antennas | 3 | -- |
Cooling | Heat dissipation fins | -- |
Mounting | φ6-4 Thru Hole | -- |
Weight | ≤15 | kg |
ENVIRONMENTAL / PROTECTIONS | |||
PARAMETER | MIN | MAX | UNIT |
Operating Temp. (Housing Temp.) | -20 | +55 | °C |
Humidity Range | 0-95 | % | |
Product Details
Type:
Small Signal Gain:
Output Power:
Frequency Hopping:
Effection:
Jamming Angle:
Jamming Radius:
Power Consumption:
Power Supply:
Gross Weight:
Application:
Payment & Shipping Terms
Minimum Order Quantity
1/pcs
Packaging Details
Standard Packing
Delivery Time
5-8 work days
Payment Terms
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability
100pcs per month
