10.7~12.75MHz 100W Ku-Band RF Power Jammer – For Industrial & Commercial Signal Jamming Applications

Place of Origin：China

Brand Name：SWT

Model Number：SW-PAJ-1070012750-50C

Price：Please Contact Customer Service

Product Description

Description

The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.

Specification

Typical performance at +220VAC +25oC, and in a 50Ω system.

RF / ELECTRICAL
PARAMETER	MIN	TYP.	MAX	UNIT
Operating Frequency	10700		12750		MHz
P-sat Power Output		50			dBm
Power Flatness		±2			dB
Output Power Control range		20			dB
Output Power Control steps		1			dB
Minimum sweep bandwidth @By software	300				MHz
Sweep bandwidth setting accuracy	±15				%
Antenna Radiation Pattern		Omni-directional			--
Antenna Gain		0			dBi
Jamming Range (with reference to -110dBm Signal received by the target UAV)		>20			km
Operating Voltage		220			V AC
In-Out impedance		50			Ω
Consumption			600		W

MECHANICAL
PARAMETER	VALUE	UNIT

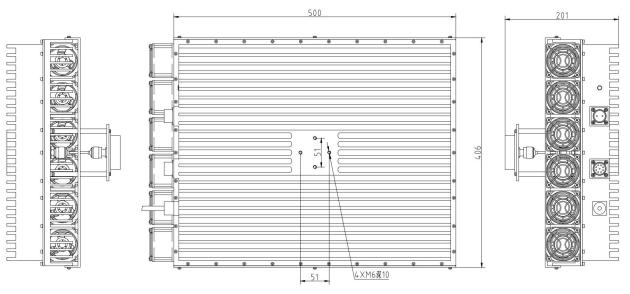

Dimensions (L x W x H)	500 x400 x 201 (Include antenna)	mm
RF Connectors (Output)	Connect with antenna	--
AC Connectors	European standard 220V socket	--
Control Connectors	K20-B9	--
Cooling	Heat dissipation fins	--
Mounting	3-4 Thru Hole	--
Weight	≤25	kg

ENVIRONMENTAL / PROTECTIONS
PARAMETER	MIN	MAX	UNIT
Operating Temp. (Housing Temp.)	-20	+60	°C
Humidity Range	0-95		%
Monitors(Network interface)	1 、Output power monitor ; 2 、Temp monitor ; 3 、Output power control ; 4 、Output Port VSWR monitor .		--
Protections	1 、Over Temp Protection； 2 、High Output VSWR Protection； 3 、Over/ Under voltage Protection.		--
