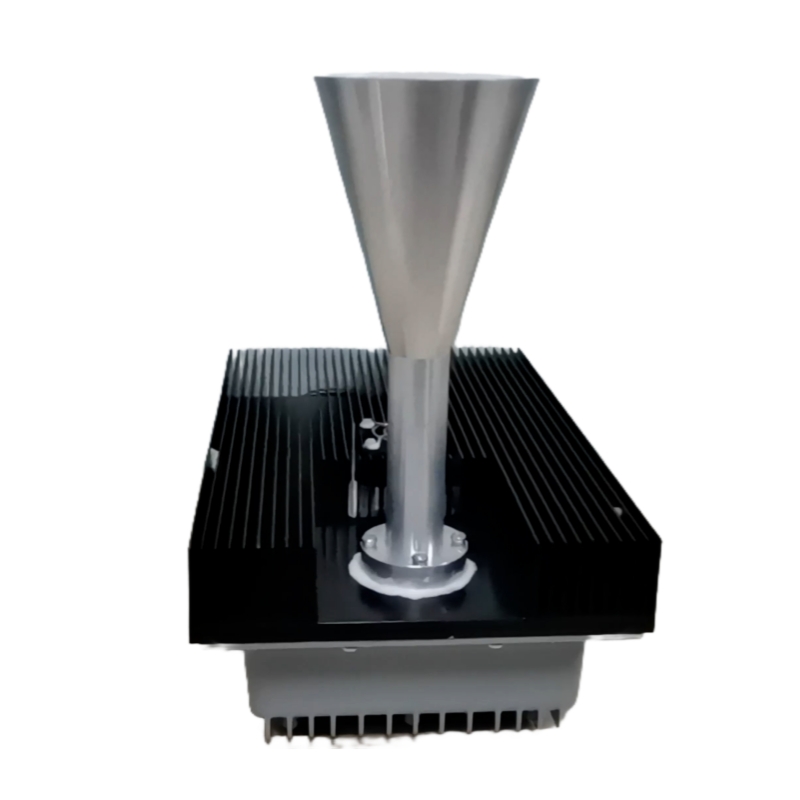

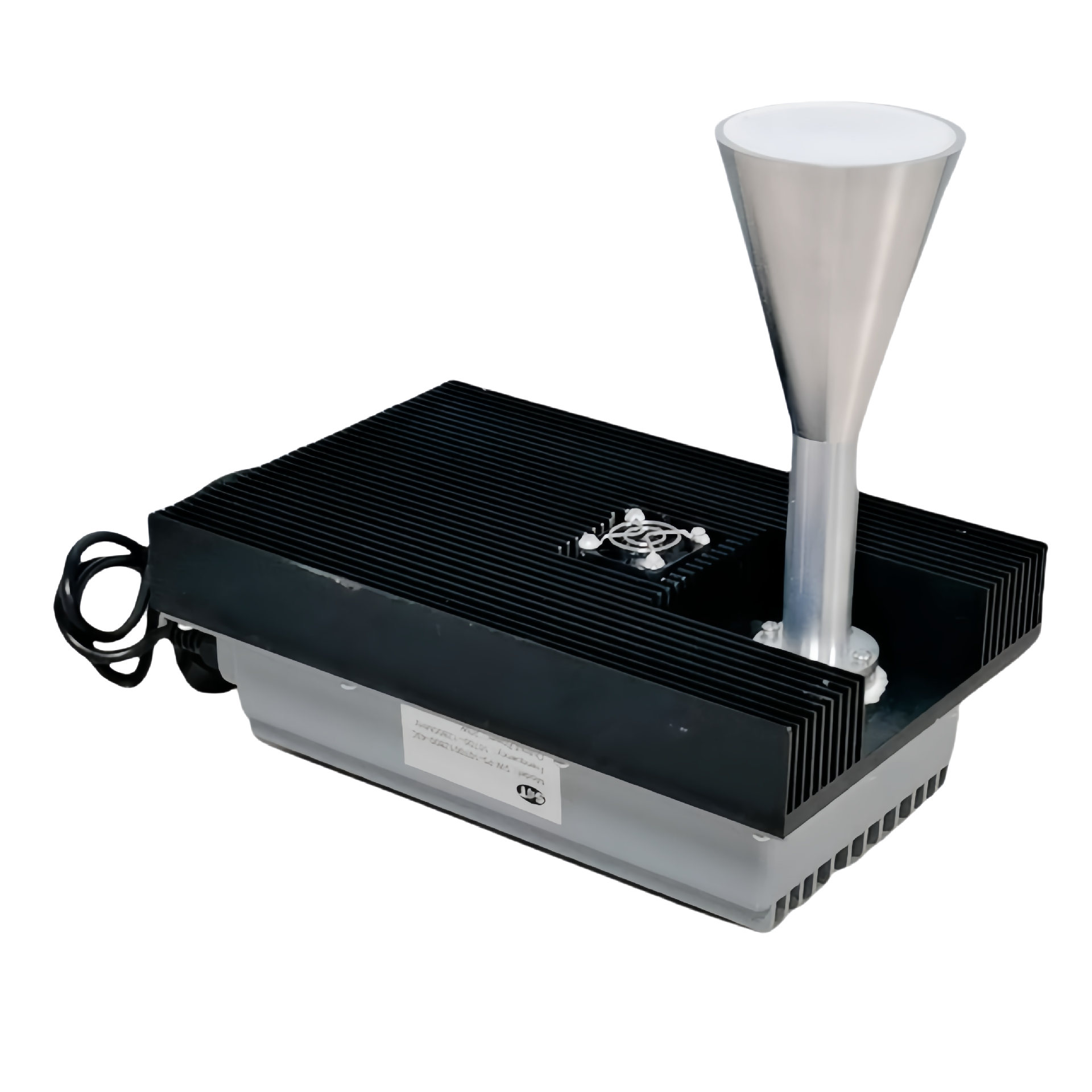

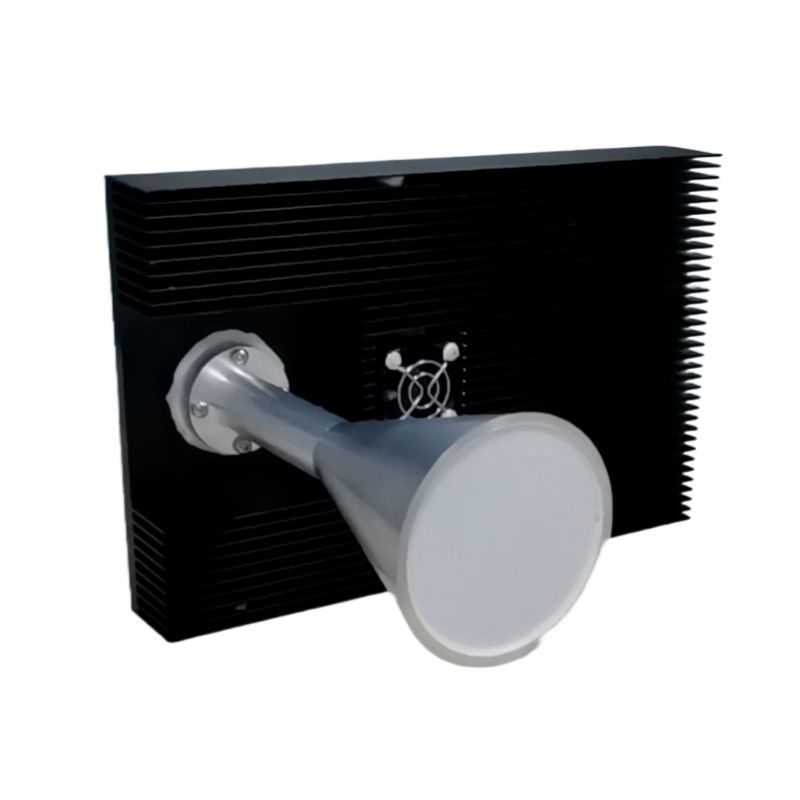

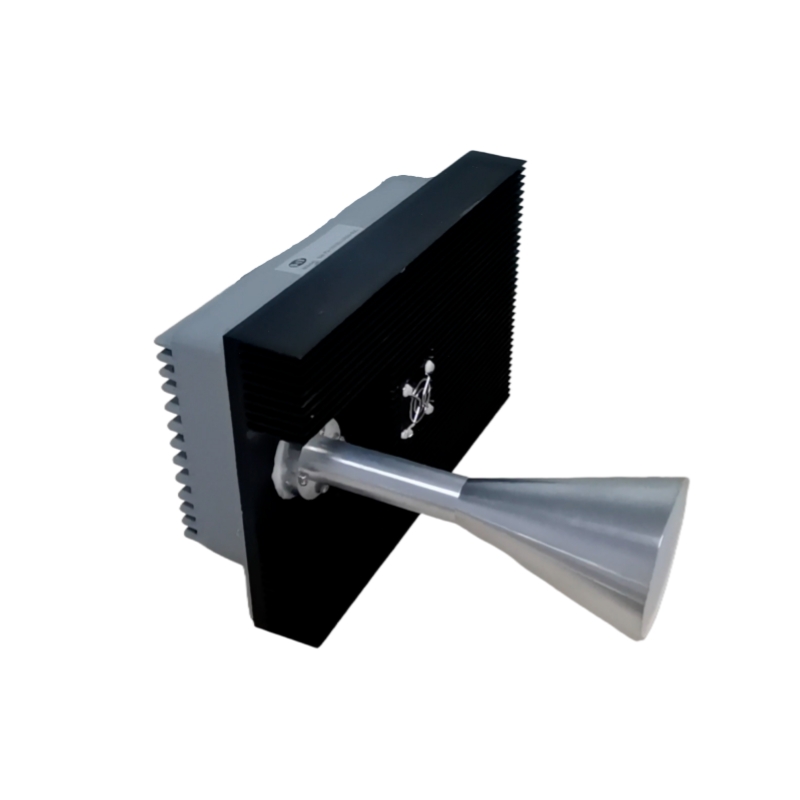

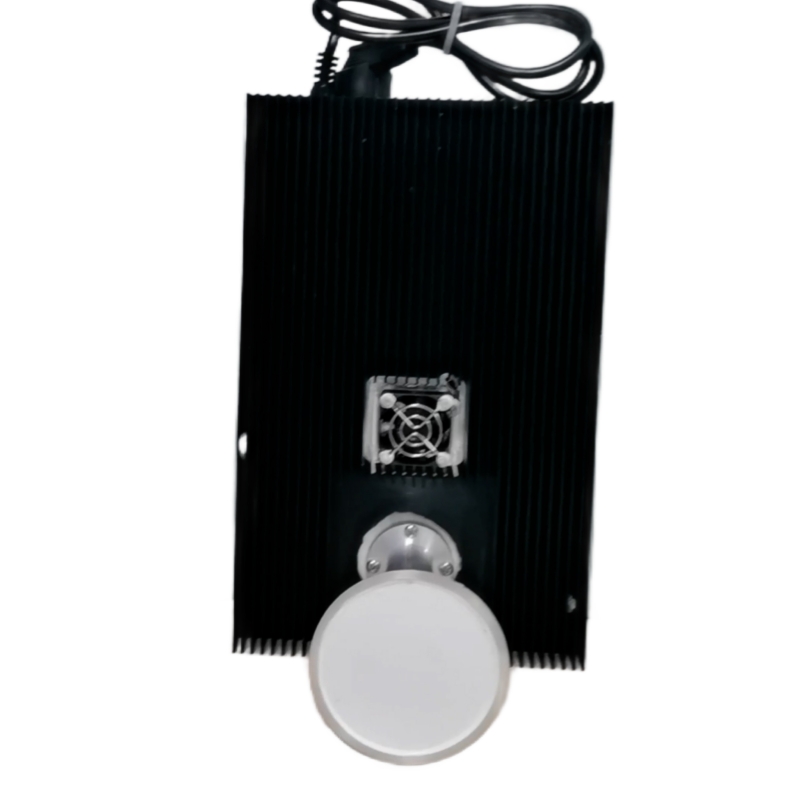

10.7-12.8GHz 43dBm High-Power Ku-Band Amplifier Module for TV Jammer Systems

Place of Origin：China

Brand Name：SWT

Model Number：SW-PS-1070012800-43C

Price：Please Contact Customer Service

Product Description

Description

The module is designed for both military and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.

Specification

Specifications subject to change without notice. Typical performance at +28VDC +25oC, and in a 50Ω system.

Main technical parameter
Technical indicators	coding	Min	TYP	Max	Unit
Low Frequency Band Operating Frequency		10.7		11.7	GHz
High Frequency Band Operating Frequency		11.8		12.8	GHz
Saturated output power	Psat	42.5	43.5	45.5	dBm
Power gain flatness	ΔG		±1.5		dB
Spurious rejection @ saturated output	Spur		-50		dBc
Harmonic suppression @ saturated output	2nd /3nd		-50		dBc
Input/Output Impedance	I/O-IMP	50			Ω
electricity supply	Vdc		AC 220		V
Power consumption (CW)	Pdiss			110	W
Antenna gain			18		dB

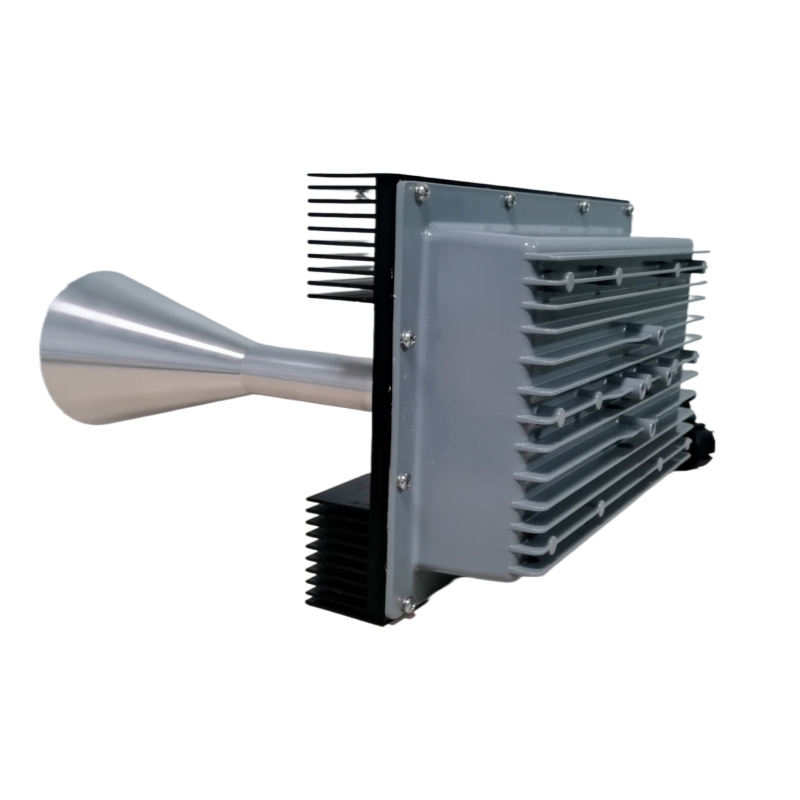

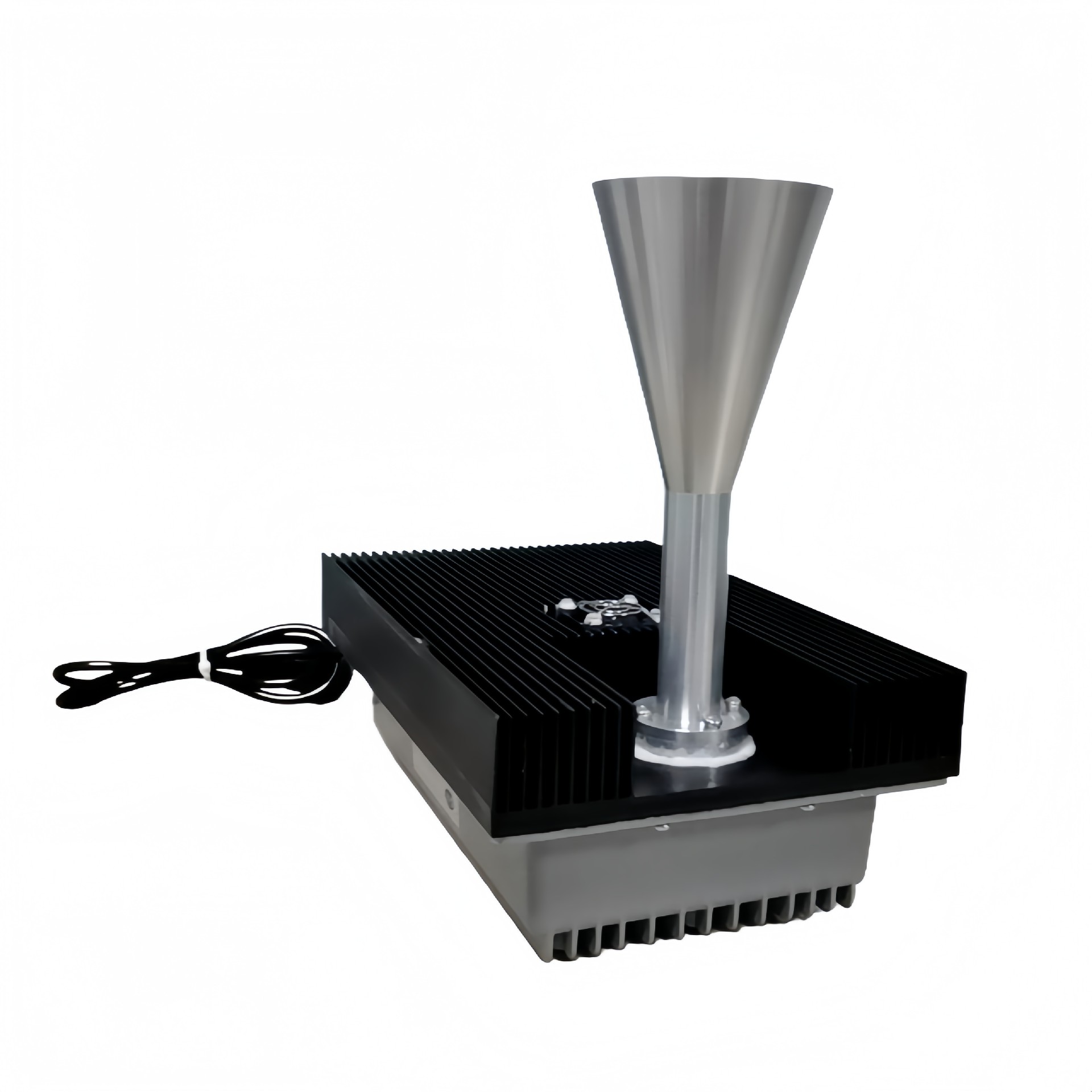

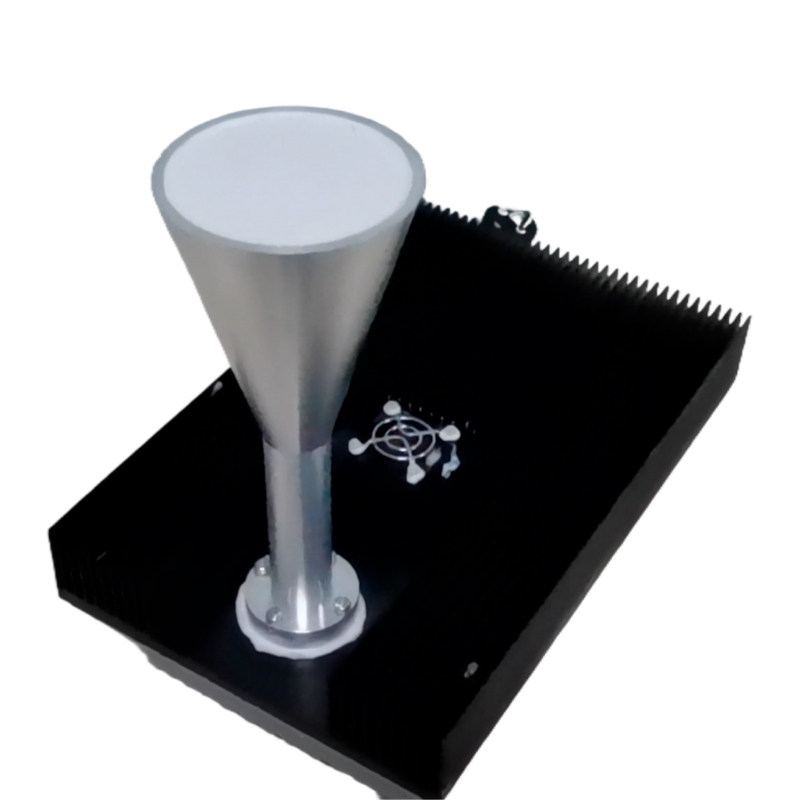

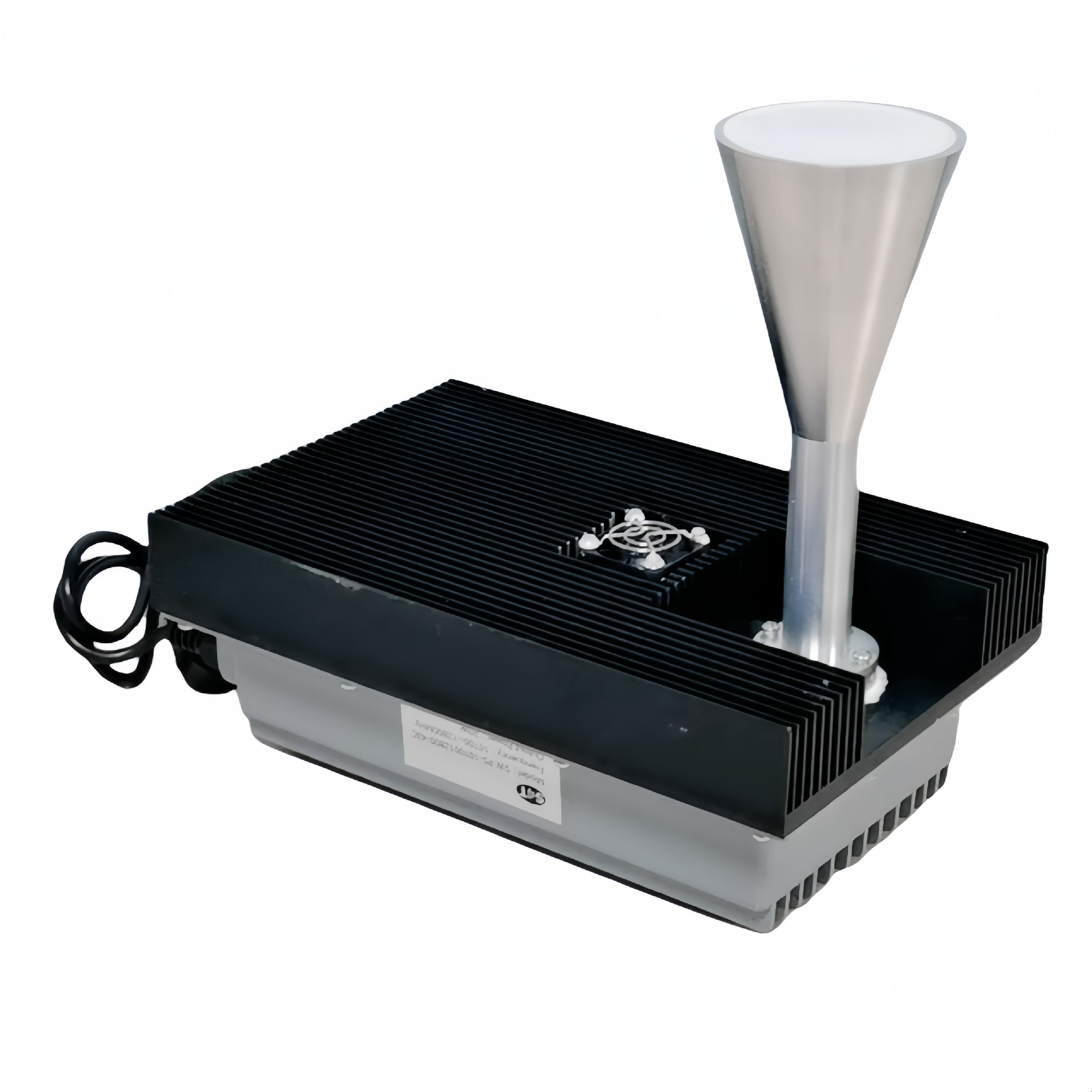

MECHANICAL
PARAMETER	VALUE	UNIT

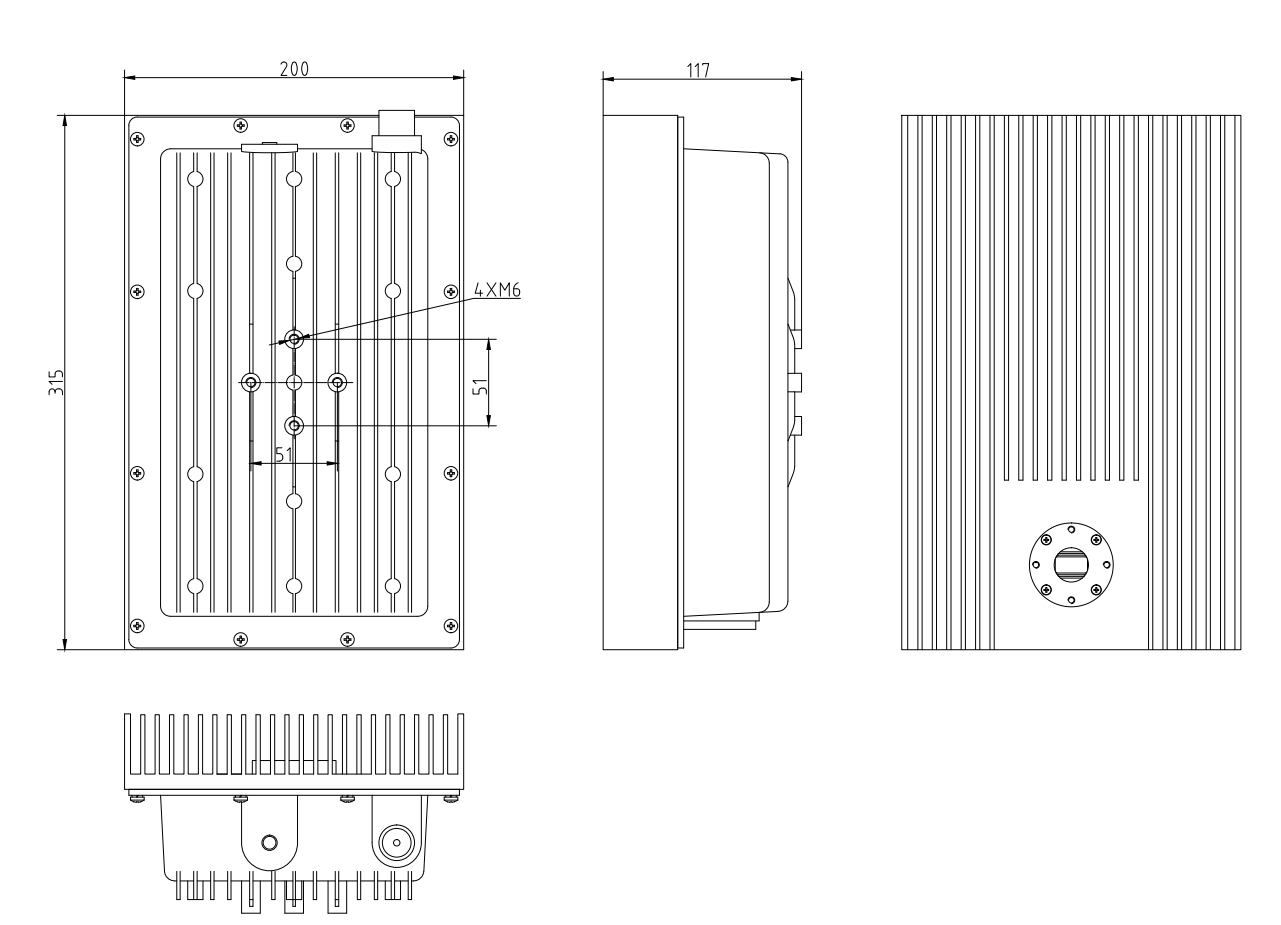

Dimensions (L x W x H)	315200117mm	mm
RF Connectors (Input / Output)	Circular waveguide port（Output）	--
AC / Control Connector	National standard three-plug power cord(220V/10A )	--
Cooling	Natural air Self-cooling	--
Mounting	3-4 Thru Hole	--
Weight	≤6	kg

ENVIRONMENTAL / PROTECTIONS
PARAMETER	MIN	MAX	UNIT
Operating Temp. (Housing Temp.)	-20	+55	°C
Humidity Range	0-100		%
Max RF Input	+0		dBm
PA Baseplate Shutoff Temperature	+ 55		°C
