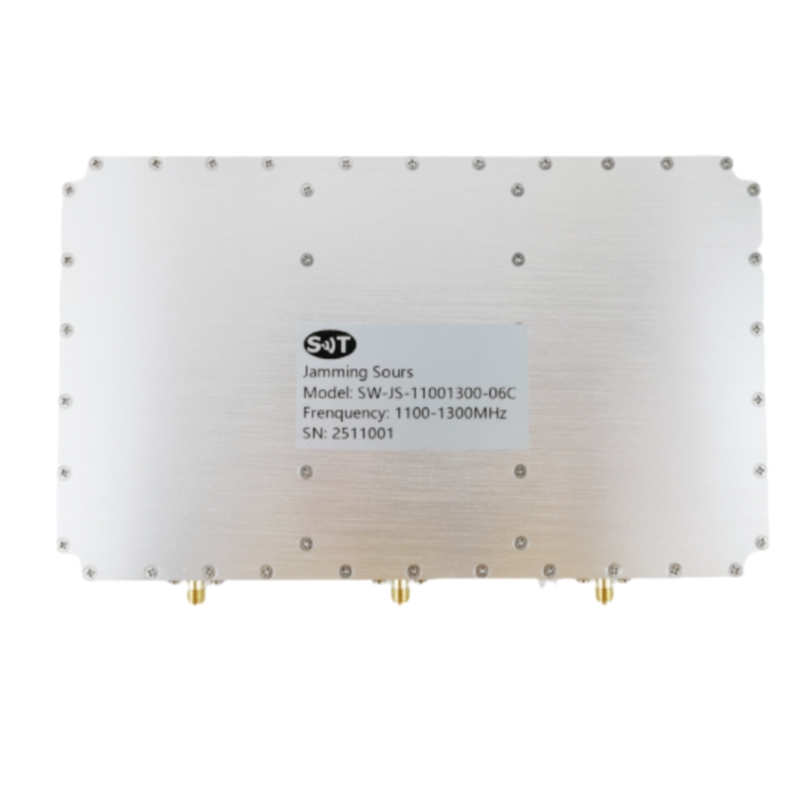

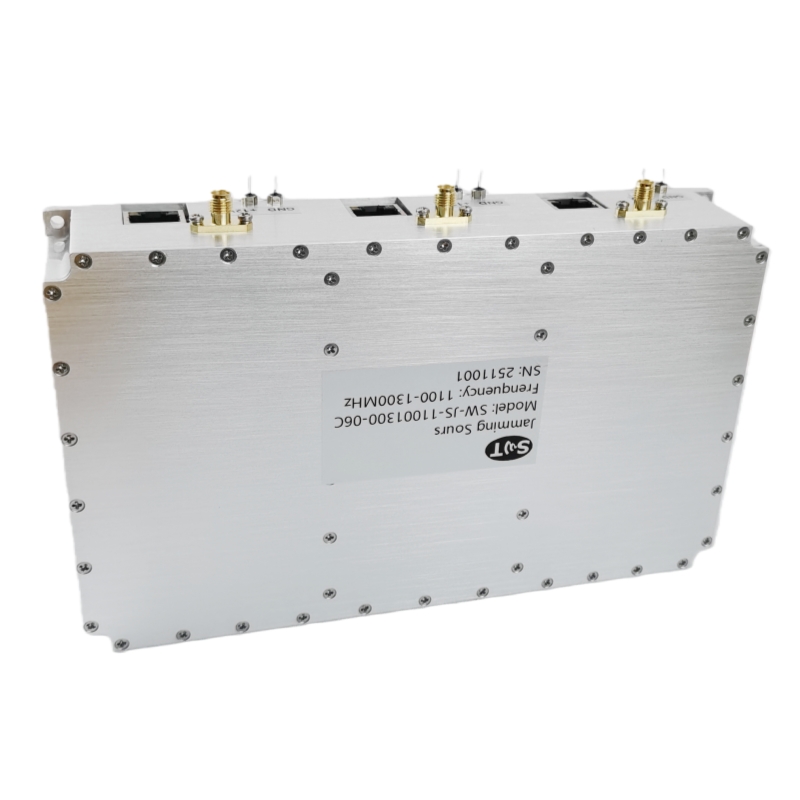

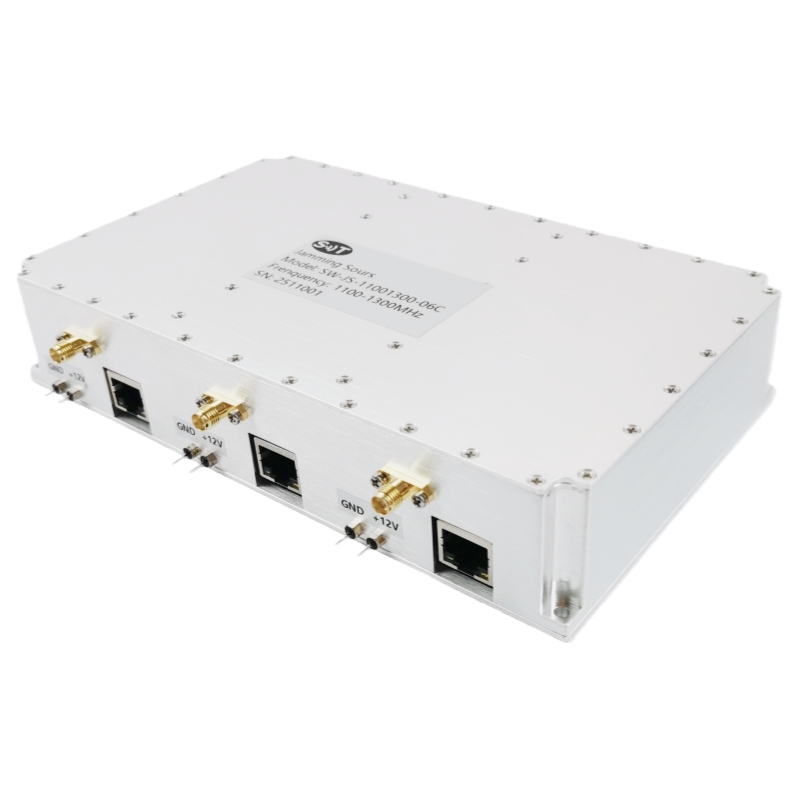

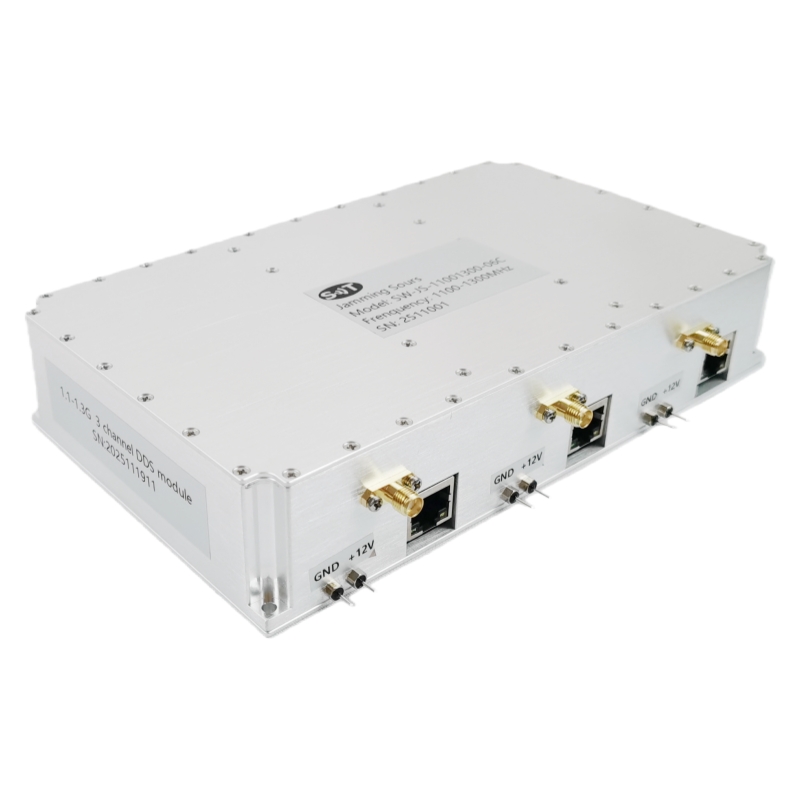

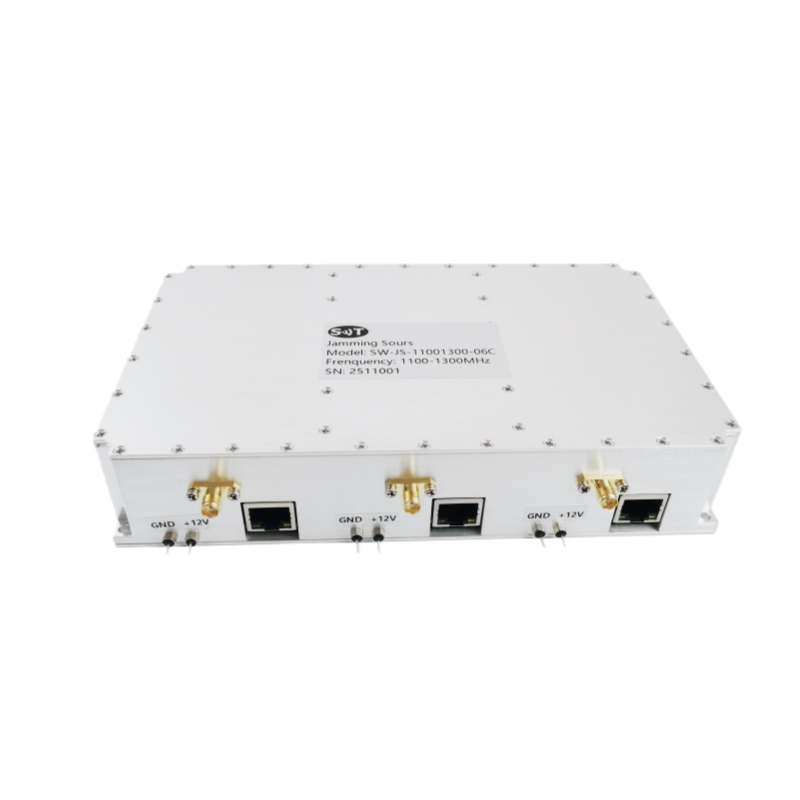

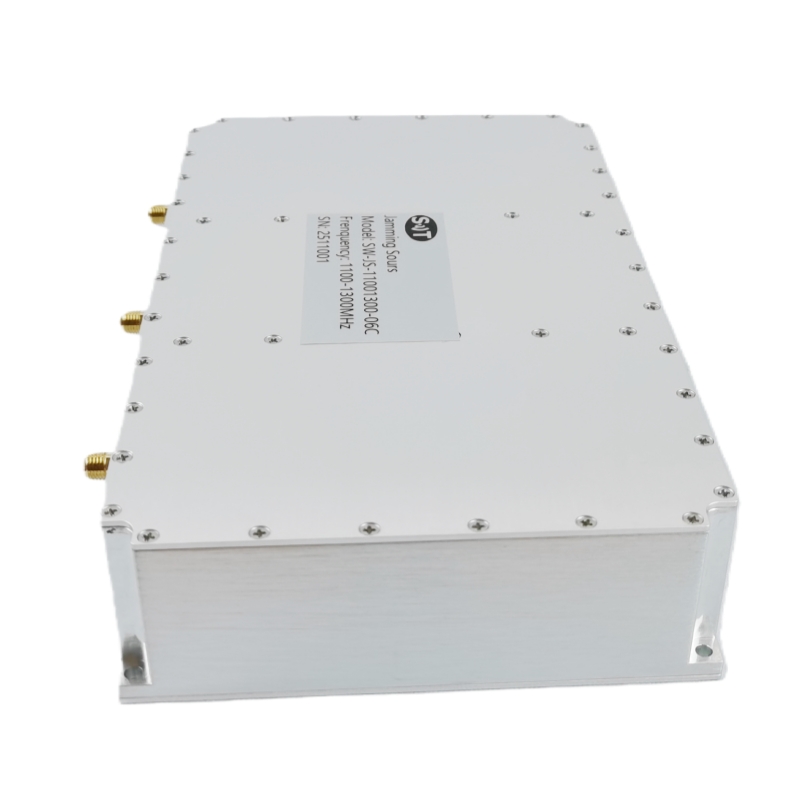

1.1–1.3 GHz High-Performance 3-Channel DDS+PLL Test Signal Source for Commercial RF Signal Simulation

Place of Origin：China

Brand Name：SWT

Model Number：SW-JS-11001300-06C

Price：Please Contact Customer Service

Product Description

Description

The module is designed for commercial applications.

Specification

Typical performance at +12VDC +25oC, and in a 50Ω system.

RF / ELECTRICAL
PARAMETER	MIN	TYP.	MAX	UNIT
Operation mode	DDS+PLL			--
Operation Frequency (3 channel)	1100		1300	MHz
Maximum Set Bandwidth (Adjustable)	1		200	MHz
Sweep Step (Adjustable)	1	50		KHz
Sweeping Rate (Dwell time at a point) (Adjustable)	4	100		ns
Output Power (Adjustable)	0		6	dBm
In-band Flatness		±2		dB
Operating Voltage		12		VDC
Power current		0.1	0.2	A

MECHANICAL
PARAMETER	VALUE	UNIT
Dimensions (L x W x H)	12020030	mm
RF Connectors (Output)	SMA- KFD	--
Connector	JL23-14ZJW	--
Cooling	Baseplate Conduction - Optional Heatsink Available	--
Mounting	φ3-4 Thru Hole	--
Weight	≤1.5	kg

INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE:		JL23-14ZJW
TRIAD CABLE PART NUMBER:		——
PIN NUMBER	LABEL	DESCRIPTION
1-4	+VDD	+12V
5-8	GND	Ground
9	TX+	Ethernet-based user interface (Ethernet port) Interface to configure the output bandwidth, Power, ect… via software and save the setting to non-volatile memory (After power-cycling, the configured output is retained)
10	TX-
11	RX+
12	RX-
13-14	Remain	Remain
