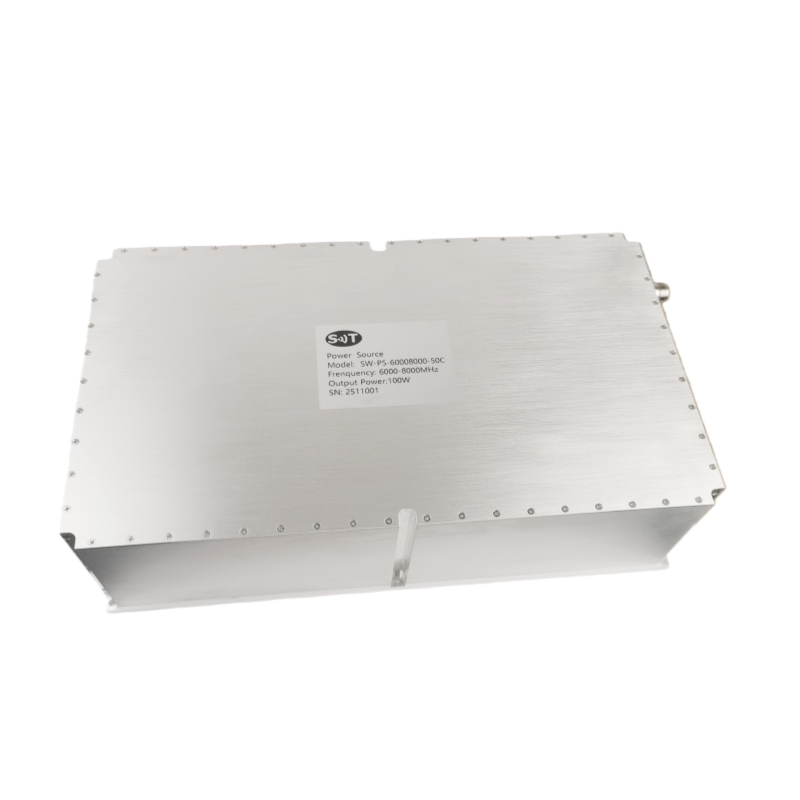

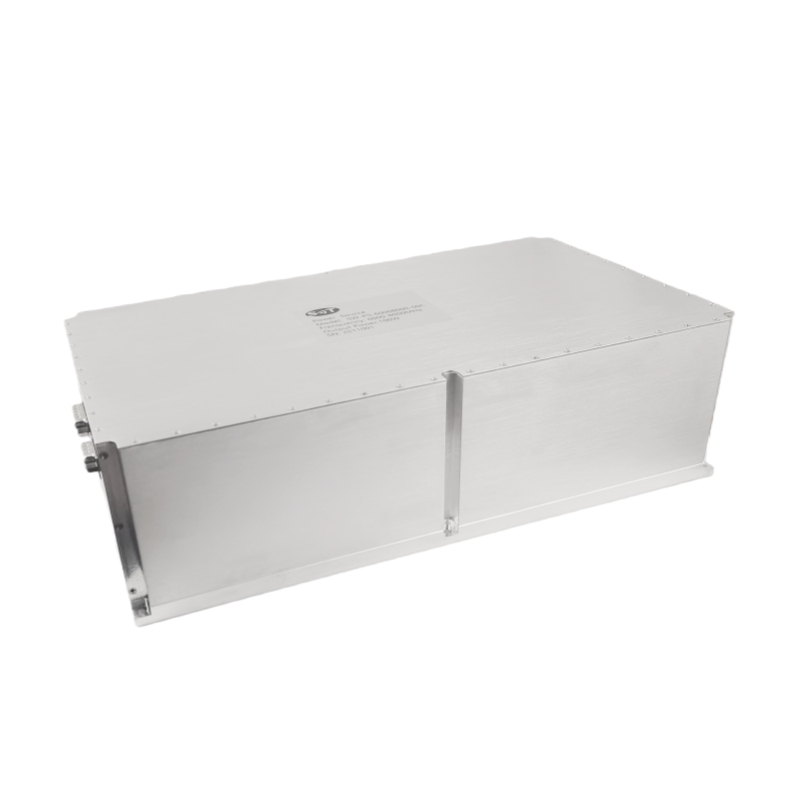

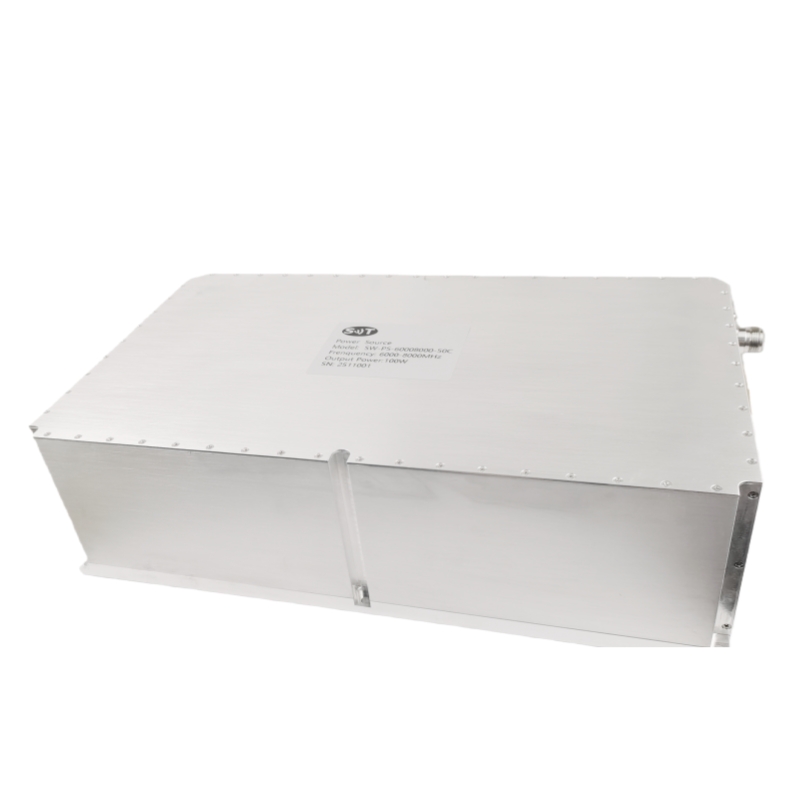

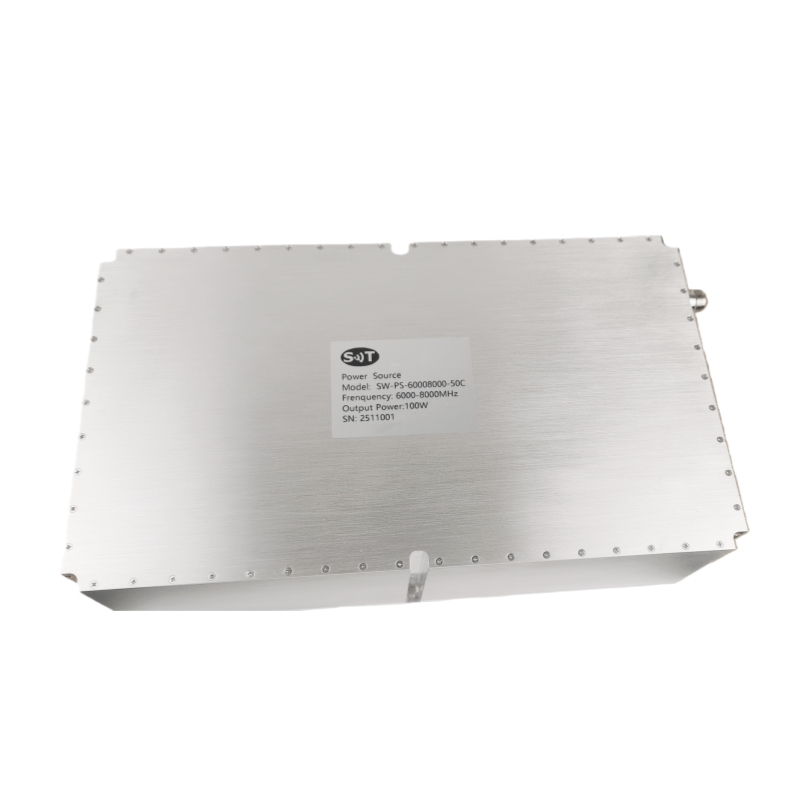

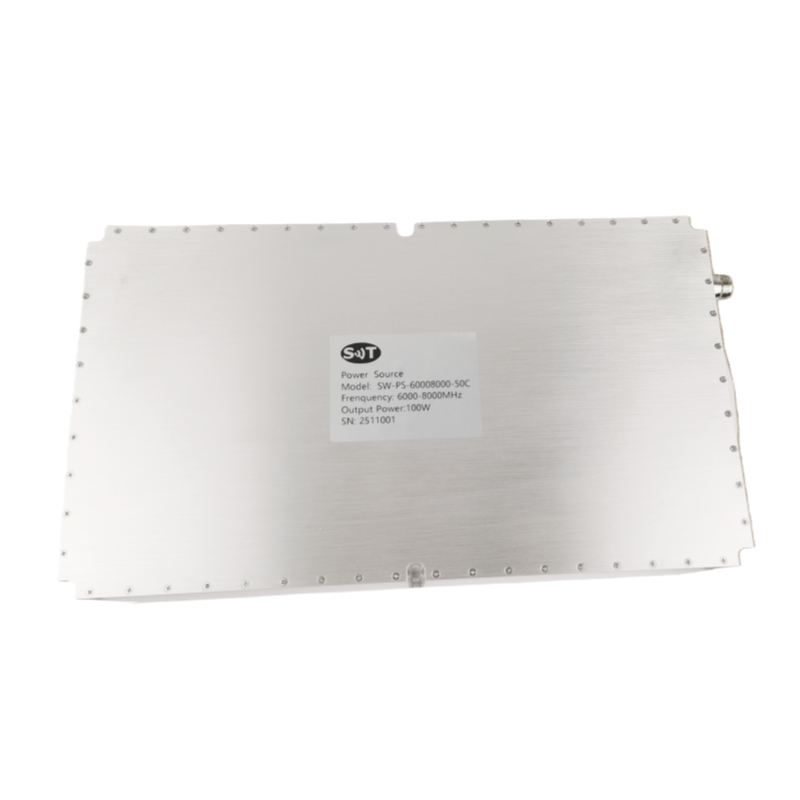

6000–8000 MHz CW High-Power Signal Amplifier with 100W Output, High Efficiency, and Integrated Monitoring for Commercial Use

Place of Origin：China

Brand Name：SWT

Model Number：SW-PS-60008000-50C

Price：Please Contact Customer Service

Product Description

Description

The module is designed for both Industrial and commercial applications. The latest device technologies and design methods are employed to offer high power density, efficiency, and linearity in a small, lightweight package.

Specification

Typical performance at +28 VDC +25oC, and in a 50Ω system.

RF / ELECTRICAL
PARAMETER	MIN	TYP.	MAX	UNIT
Operating Frequency	6000		8000	MHz
Operation Mode	CW
Sweeping signal type	Linear frequency modulation			dBm
Sweeping signal band	5		250	MHz
Customization Dwell time	100		2000	ns
Saturated Output Power		50		dBm
Gain Flatness @ Psat		±1.5		dB
Spurious Signals @ 100W		-55		dBc
Harmonic Signals @ 100W		-20		dBc
Input VSWR		2		--
Operating Voltage		32		V DC
Currents		15		A
In-Out impedance		50		Ω

MECHANICAL
PARAMETER	VALUE	UNIT

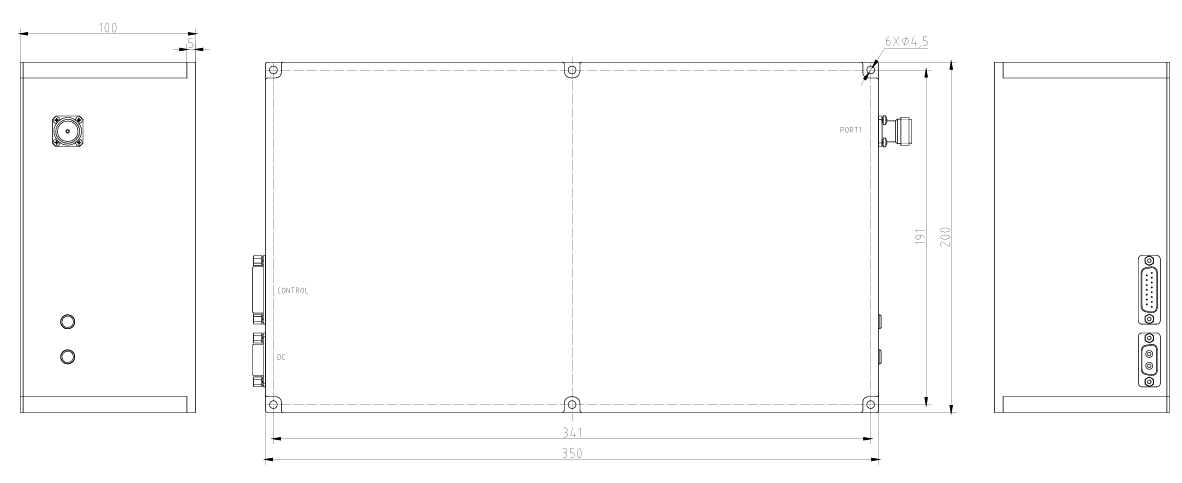

Dimensions (L x W x H)	300200100	mm
RF Connectors (Output)	N- KFD	--

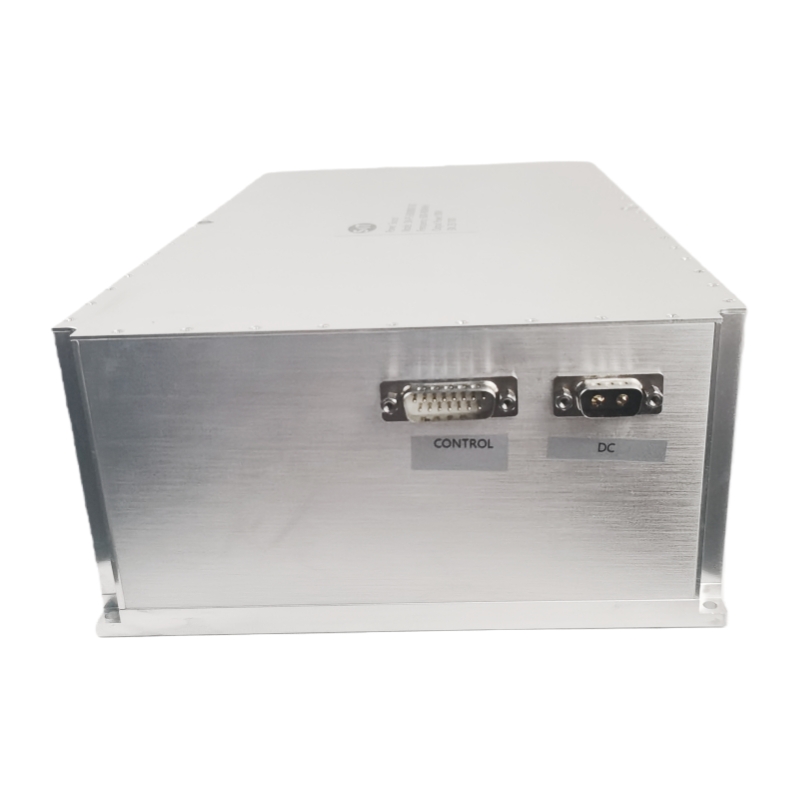

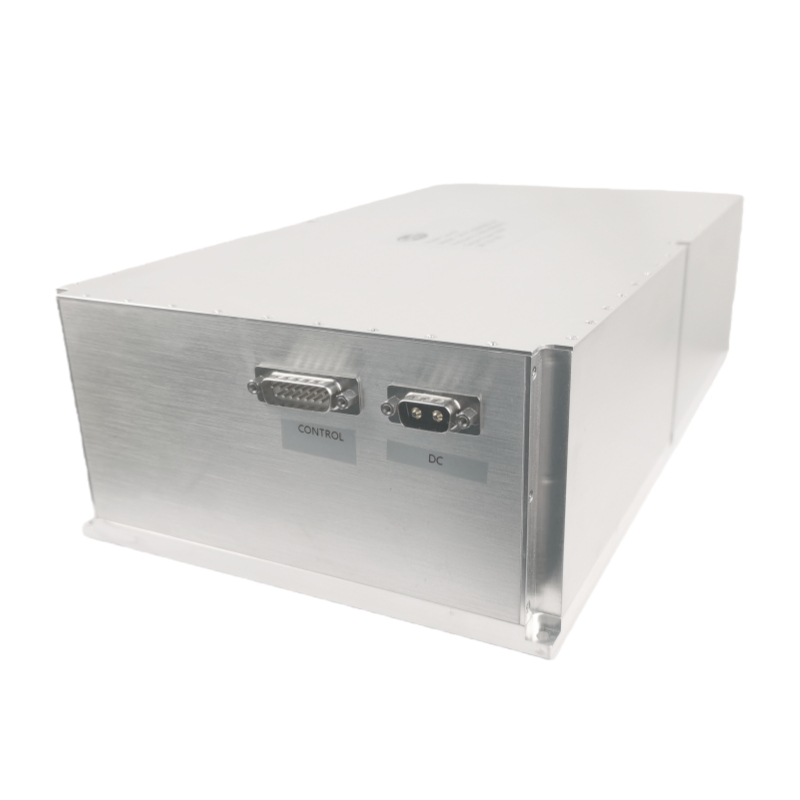

DC / Control Connector	D-SUB 2W2 M / D-B15 M	--
Cooling	Consider heat dissipation with the system	--
Mounting	φ4.5-6 Thru Hole	--
Weight	≤8	kg

ENVIRONMENTAL / PROTECTIONS
PARAMETER	MIN	MAX	UNIT
Operating Temp. (Housing Temp.)	-10	+55	°C
Humidity Range	0-95		%

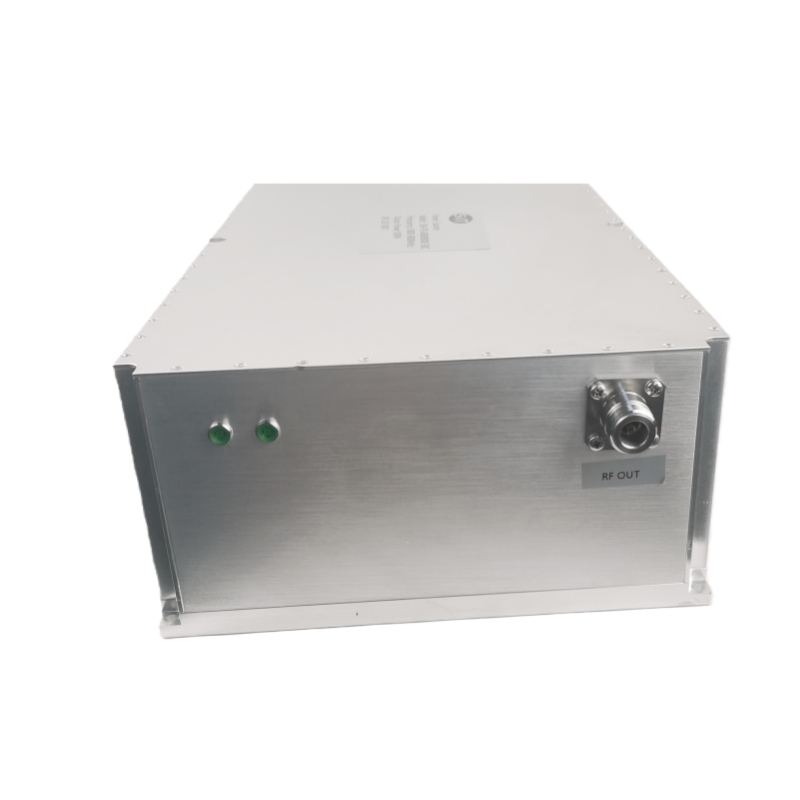

LED Monitoring	PA module must be have a LED for DC power on and another LED for RF power monitoring		--
Protections	Open/Short Output Protection		--
	Low voltage protection		--
	Reverse Polarity Protection		--
	Over Temperature Protection		--

INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE:			D-SUB 2W2 M
TRIAD CABLE PART NUMBER:			——
PIN NUMBER	LABEL		DESCRIPTION
A1		+VDC	+32V
A2		GND	Ground

INPUT/OUTPUT PINS
AMPLIFIER CONNECTOR TYPE:		D-B15 M
TRIAD CABLE PART NUMBER:		——
PIN NUMBER	LABEL	DESCRIPTION
1	Power On/OFF Control	Power OFF: TTL “Low”, Power On: TTL “High” (Low : 0~0.5V, High : 2.5~5V)
2	GND	Ground
3	RS485A	PC software communicate with PA through RS485 communication protocol TTL communication
4	RS485B
5	GND
6-15	NC	NC
